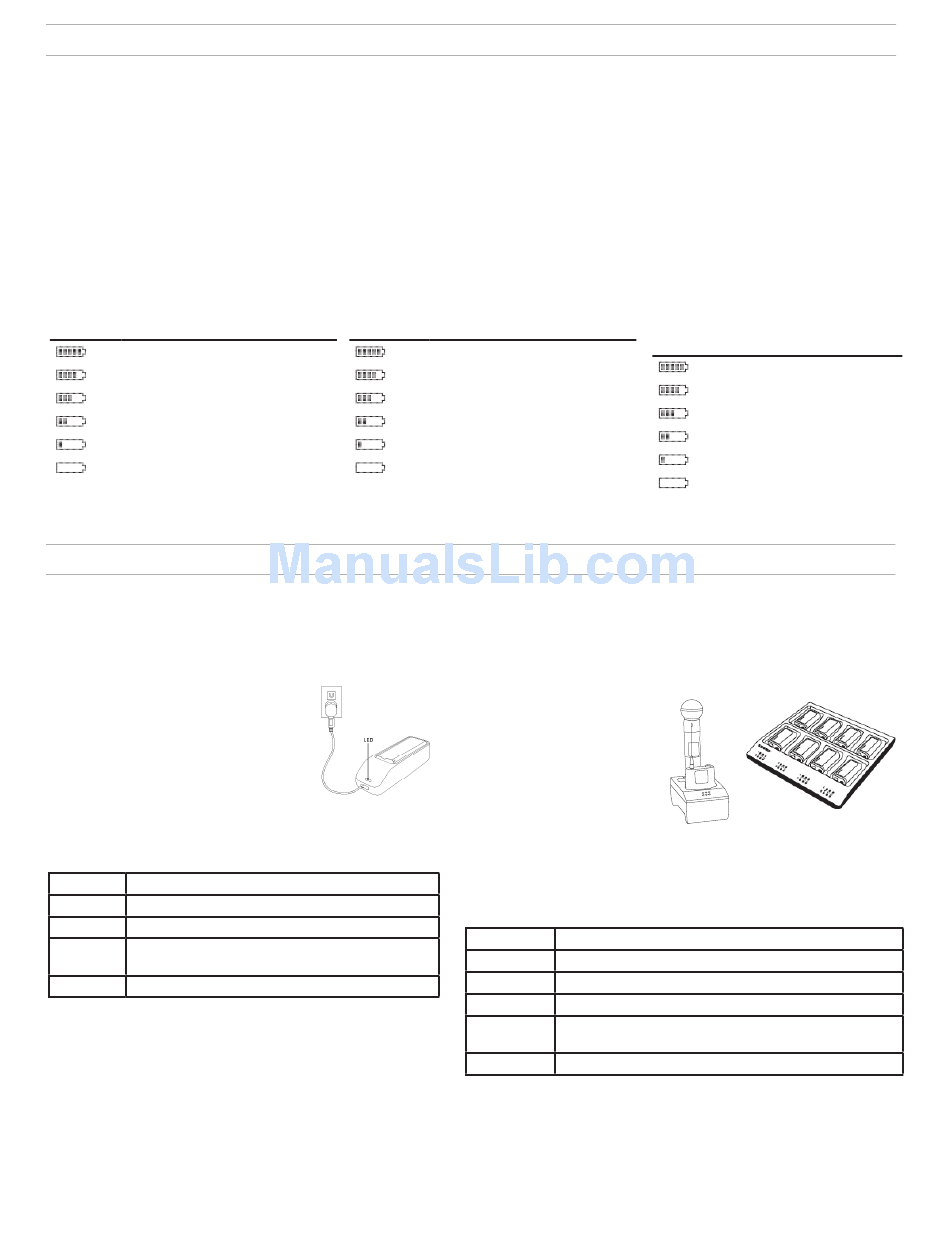

AA Batteries and Transmitter Runtimes

QLX-D transmitters are compatible with the following AA battery types:
• Alkaline
• Lithium Primary
• Nickel Metal Hydride (NiMH)
Transmitter Runtime
A 5-segment battery indicator representing the charge level of the transmitter battery is displayed on the screens of the transmitter and receiver. The fol-
lowing tables contain the approximate remaining transmitter runtime in hours:minutes.
Alkaline Batteries: Up to 9 Hours of
Runtime
Battery Approximate Runtime Remaining
Indicator (hours:minutes)
9:00 to 7:15
7:15 to 5:30
5:30 to 3:45
3:45 to 2:00
2:00 to 0:20
0:20 to 0:00

Shure SB900 Rechargeable Battery

Shure SB900 lithium-ion batteries offer a rechargeable option for powering the QLX-D transmitters. Batteries quickly charge to 50% capacity in one hour
and reach full charge within three hours.
Single chargers and multiple bay chargers are available to recharge the Shure batteries.
Caution: Only charge Shure rechargeable batteries with a Shure battery charger.
Single Bay Charger
The single bay charger offers a compact
charging solution.
1. Plug the charger into an AC power source
or USB port.
2. Insert a battery into the charging bay.
3. Monitor the charging status LEDs until
charging is complete.
Charging Status LED
Color Status
Red Charging
Green Charging Complete
Amber Fault: check connections and battery
Flashing
Off No battery in bay
Important Tips for Care and Storage of Shure

Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable perfor-
mance and ensures a long lifetime.
• Always store batteries and transmitters at room temperature
• Ideally, batteries should be charged to approximately 40% of
capacity for long-term storage
• During storage, check batteries every 6 months and recharge to
40% of capacity as needed
10
NiMH Batteries: Up to 10 Hours of
Runtime
Battery Approximate Runtime
Indicator Remaining (hours:minutes)
10:00 to 8:00
8:00 to 6:00
6:00 to 4:00
4:00 to 2:00
2:00 to 0:20
0:20 to 0:00
Multiple Bay Chargers
Shure offers two models of mul-
tiple bay chargers:
• SBC-200 two bay charger
• SBC-800 eight bay charger
Multiple bay chargers can charge
individual batteries or batteries
installed in transmitters.
1. Plug the charger into an AC power source.
2. Insert batteries or transmitters into the charging bay.
3. Monitor the charging status LEDs until charging is complete.
Charging Status LED
Color
Green
Green/Red
Red
Amber
Flashing
Off
Do Not Duplicate or Redistribute
Lithium Primary Batteries: Up to 16
Hours of Runtime
Battery Approximate
Indicator Runtime Remaining
(hours:minutes)
16:00 to 12:45
12:45 to 9:30
9:30 to 6:30
6:30 to 3:15
3:15 to 0:20
0:20 to 0:00
Status
Charging Complete
Charge level above 90%
Charging
Fault: check connections and battery
No battery in bay
