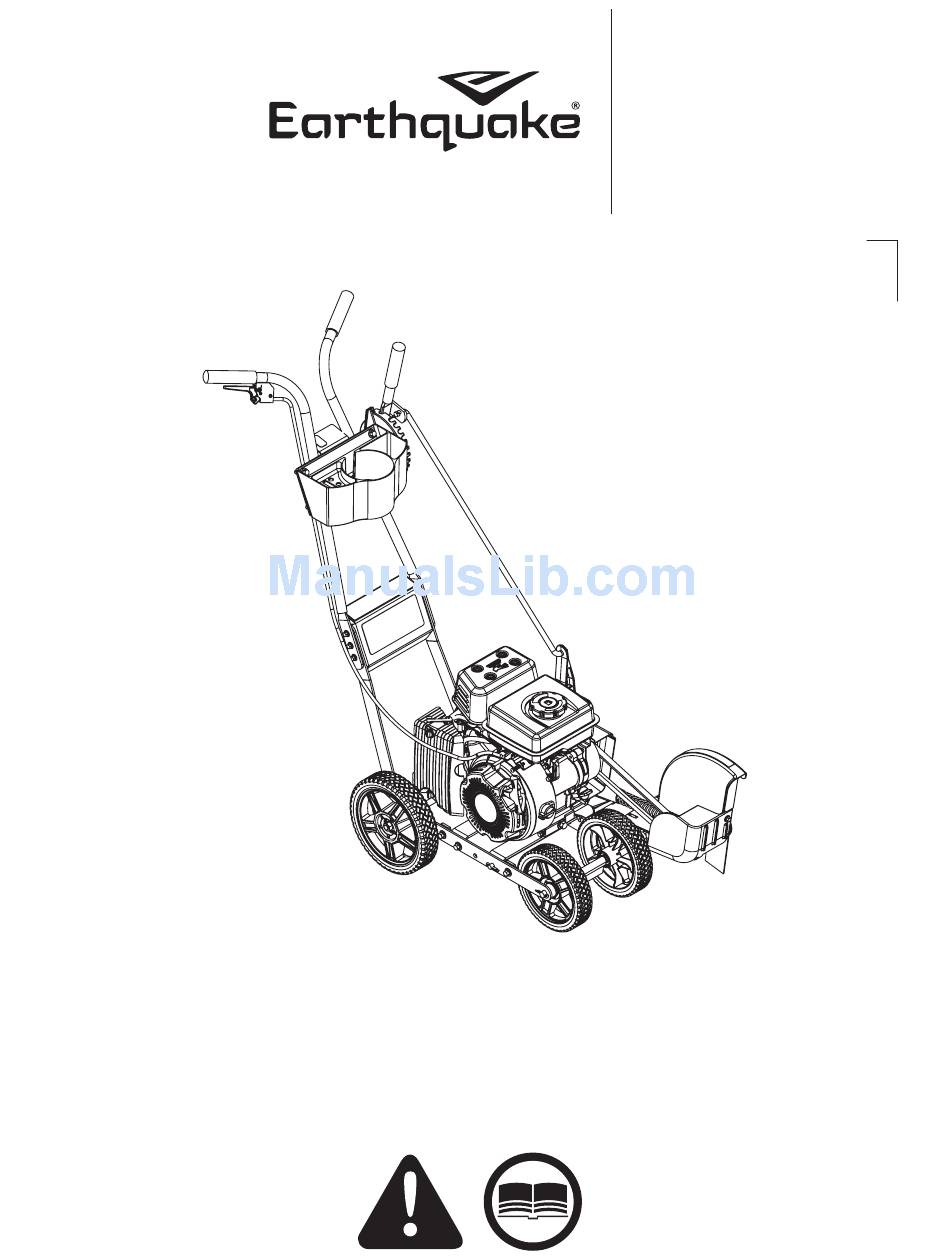

- Page 1 Operator’s Manual Original Operating Instructions Edger GAS/OIL Includes models: RATIO 50:1 23275 24000 P/N: 22945 ECN: 10900 REV2: 11/16/16 Get parts online at © 2016 Ardisam, Inc. www.getearthquake.com All Rights Reserved...
-
Page 2: Table Of Contents
INTRODUCTION Congratulations on your investment in quality. Thank you for purchasing an edger from Earthquake®. We have worked to ensure that your product meets the highest standards for usability and durability. With proper care, your edger will provide many years of service. -
Page 3: Warnings
Operator’s Manual Edger WARNINGS AND SAFETY PRECAUTIONS WARNING Owner’s Responsibility Accurate assembly, and safe and effective use of the edger is WARNING INDICATES A HAZARD WHICH, IF NOT the owner’s responsibility. AVOIDED, COULD RESULT IN DEATH OR SERIOUS IN- • Read and follow all safety instructions. -
Page 4: General Safety Rules
Do not operate the machine without proper guards or other safety protective devices in place. is idling. If it does rotate when engine is idling, contact Earthquake® for instructions. • See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by •... -
Page 5: Safety Precautions
Operator’s Manual Edger ENGINE SAFETY PRECAUTIONS WARNING Preventing Carbon Monoxide Poisoning ENGINES GIVE OFF CARBON MONOXIDE, AN ODORLESS, • Never try to ventilate engine exhaust indoors. Carbon COLORLESS, POISONOUS GAS. CARBON MONOXIDE MAY monoxide can reach dangerous levels very quickly. BE PRESENT EVEN IF YOU DO NOT SMELL OR SEE ANY •... -
Page 6: Service Safety/Symbols
K: Hot Surfaces. otherwise inaccessible to children. L: Fire Hazards. • Use only original equipment parts from Earthquake®, M. Do Not Use In Thunderstorms--For severe weather, stop including all nuts and bolts. operation of this machine and seek shelter. N. Keep Hands at a Safe Distance from Blade. -
Page 7: Safety Decals
If any of these decals are lost or damaged, replace them at once. See your local dealer or contact Earthquake® directly for replace- ments. These labels are easily applied and will act as a constant visual reminder to you, and others who may use the equipment, to follow the safety instructions necessary for safe, effective operation. -
Page 8: Features And Controls
Operator’s Manual Edger FEATURES & CONTROLS Control Functions The information below briefly describes the function of individual controls. Operating requires the combined use of several controls ap- plied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section. *For engine features and controls see engine manual. -
Page 9: Specifications
NOTE: Specifications are correct at time of printing and are subject to change without notice. ACCESSORIES Accessories are available from your authorized Earthquake® dealer or directly from Earthquake. Always use genuine Earthquake accessories. OPTIONAL ACCESSORIES CURB WHEEL KIT Part No.24024... -
Page 10: Assembly
2. Attach tool holder and adjustment handle(s) with 3xM8x25 the top foam out of the box, remove all loose parts from both bolts and 1xM8x30 bolt. FOR MODEL 23275 SEE FIGURE 2a. the top and bottom foam packaging. FOR MODEL 24000 SEE FIGURE 2b. - Page 11 Operator’s Manual Edger 30 mm FIGURE 2a: 23275 ONLY FIGURE 4 30 mm FIGURE 2b: 24000 ONLY FIGURE 5 *Engine removed for clarity FIGURE 3 FIGURE 6 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5...
-
Page 12: General Operation
Operator’s Manual Edger GENERAL OPERATION CAUTION DO NOT STOP ENGINE BY MOVING CHOKE CONTROL WARNING TO CHOKE. BACKFIRE OR ENGINE DAMAGE MAY OCCUR CARBON MONOXIDE GAS IS TOXIC. MOVE THE ENGINE TO A WELL-VENTILATED AREA OUTDOORS, TO PREVENT CARBON MONOXIDE POISONING. INHALATION CAN CAUSE UNCONSCIOUSNESS AND DEATH. - Page 13 Operator’s Manual Edger CAUTION IF ENGINE FAILS TO START AFTER ATTEMPTING STARTING PROCEDURES, PLEASE CONTACT OUR CUS- TOMER SERVICE DEPARTMENT AT 800-345-6007. STARTER ROPE CAN CAUSE AN UNANTICIPATED JERK TOWARDS ENGINE. PLEASE FOLLOW INSTRUCTIONS TO AVOID INJURY. NEVER LEAVE ENGINE RUNNING WHILE UNATTEND- ED.
-
Page 14: Edging Tips
Operator’s Manual Edger EDGING TIPS WARNING! 1. Move edger to a desired area to begin edging, making sure ROTATING CUTTING BLADE MAY THROW OBJECTS that the left rear wheel is on a hard surface and the blade is over area to be cut. CAUSING PERSONAL INJURY. -
Page 15: Maintenance
Operator’s Manual Edger MAINTENANCE LUBRICATION WHEELS ENGINE MAINTENANCE Lubricate the wheels and bearings at least once a season with Refer to the Engine Operator’s Manual included with your edger for a light oil. Also if the wheeels are removed for any reason, a detailed description of all engine-related service specifications. -
Page 16: Transporting And Storage
TROUBLESHOOTING 1. If fuel is present in the fuel tank, transport in an open vehicle At Earthquake®, we build quality and durability into the design in an upright position. of our products; but no amount of careful design by us, and 2. -
Page 17: Troubleshooting Guide
Operator’s Manual Edger TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY/ACTION Engine will not start 1. Power switch off 1. Flip switch to ON position 2. Spark plug wire disconnected 2. Connect spark plug wire to spark plug 3. Out of fuel 3. -
Page 18: Illustrated Parts Breakdown
Operator’s Manual Edger PARTS BREAKDOWN EDGER TRANSMISSION AND BLADE PARTS EXPLOSION 25826 MANUAL PARTS BAG 31, 33 31, 33 30, 32 30, 32 Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-5... - Page 19 Operator’s Manual Edger EDGER TRANSMISSION AND BLADE PARTS LIST KEY PART # DESCRIPTION QTY. KEY PART # DESCRIPTION QTY. 25494 ENGINE R80V 79CC EPA III CARB ICES 24836 CHAIN GUARD ROD 24169 BOLT M8 X 25 HEX 22097 COTTER PIN 4 MM 23989 BRACKET CLUTCH SHIELD 400018...
- Page 20 Operator’s Manual Edger EDGER CHASSIS PARTS EXPLOSION AND LIST KEY PART # DESCRIPTION QTY. KEY PART # DESCRIPTION QTY. 23252 VIPER ENGINE MOUNT FRONT 14109 NUT M6 NYLOCK FLANGE 23233 PIVOT ROD 19945 BOLT M8 X 20 FLANGE 23808 REAR AXLE 23251 VIPER ENGINE MOUNT REAR NUT M10 NYLOCK...
- Page 21 Operator’s Manual Edger EDGER HANDLEBAR PARTS EXPLOSION AND LIST 16, 4 KEY PART # DESCRIPTION QTY. KEY PART # DESCRIPTION QTY. 23261 GRIP W1265V0903 NUT M10 NYLOCK 16400 NUT M8 NYLOCK FLANGE 23268 SPRING FOR HEIGHT ADJUSTMENT 23245 THROTTLE CABLE 18844 BOLT M10 X 20 HEX 26771...
- Page 22 Operator’s Manual Edger (OPTIONAL) EDGER CURB WHEEL KIT PARTS EXPLOSION AND LIST (24024) KEY PART # DESCRIPTION QTY. KEY PART # DESCRIPTION QTY. W1265V0903 NUT M10 NYLOCK 22097 COTTER PIN 4 MM 23268 SPRING FOR HEIGHT ADJUST 25318 BOLT M12 X 80 HEX 23259 BRACKET HEIGHT ADJUSTER 50175...
-
Page 23: Warranty
Operator’s Manual Edger WARRANTY TERMS AND CONDITIONS Ardisam, Inc. (Ardisam) warrants this edger under a five-year limited warranty to be free from defects in the material or workmanship or both for a period not exceeding sixty consecutive months from the date of original purchase by the first retail consumer or first commercial end user. - Page 24 Earthquake®, Division of Ardisam, Inc. 1160 8th Avenue, PO Box 666 Cumberland, WI 54829 800-345-6007 | Fax 715-822-2223 E-mail: info@getearthquake.com All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Items used for props not included. Some assembly may be required.
