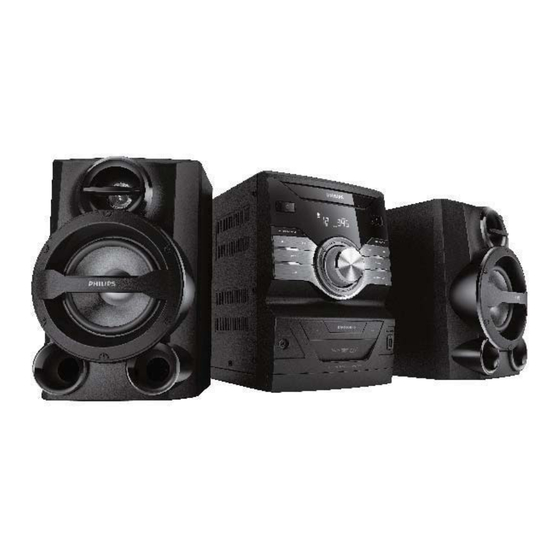

Mini Hi-Fi system
CONTENTS
Technical specification
Safety Instruction
Version variation ---------------------------------------------------------------2-2
Block diagram -------------------------------------------------------------------3-1
Wiring diagram ----------------------------------------------------------------3-2
Circuit diagram -----------------------------------------------------------4-1--4-4
LCD+KEY LINE IN+AUX CD+USB BOARD
top & bottom layout------------------------------------------------------5-1--5-5
Exploded diagram -------------------------------------------------------------6-1
Disassembly drawing
©Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by LZ 1312
Subject to modification
Version 1.0
-------------------------------------------------1-1--1-10
--------------------------------------------------------------2-1
---------------------------------------------------7-1--7-5
FWM2200/55
FWM2200X/78
3140 038 60120
Advertisement
Related Manuals for Philips FWM2200/55
Summary of Contents for Philips FWM2200/55
-
Page 1: Technical Specification
Disassembly drawing ---------------------------------------------------7-1--7-5 ©Copyright 2013 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips. - Page 2 TECHNICAL SPECIFICATION DEPICTION Description Page FRONT CABINET OPEN/CLOSE (BUTTON) ALBUM PRESET (BUTTON) (BUTTON)>>| (BUTTON) TUNER (BUTTON) AUX/MP3 LINK (BUTTON) (BUTTON)MAX SOUND (BUTTON) DSC (BUTTON) USB (JACK) POWER ON/OFF (BUTTON) ALBUM PRESET STOP (BUTTON) DISC (BUTTON) USB (BUTTON) VOLUME (KNOB) DBB (BUTTON) MP3 LINK(JACK) PLAY (BUTTON) |<<...
- Page 3 TECHNICAL SPECIFICATION DEPICTIONP DescriptionP M ANTENNA SOCKET .M. PIG TAIL ANTENNA eft / Right Speaker Socket AUX IN JACK .C. Voltage Selector CABINET Diemensions with Boxes ( wxhxd ) W705xH371xD292xmm Material :HIPS / ABS / PMMA Diemensions without Boxes ( wxhxd ) W220xH312xD248mmF inshing :Chrome Plate Weight ( inclusive packing )9.5Kg Units in Masstercarton...
- Page 4 Tested according to General Test Instruction refer to PHILIPS standary ( UAN -D1591 ) Measured according to PHILIPS standary ( UAN - L1059 ) unless other wise stated All not mentioned date, please refer to PHILIPS standary ( XUW - 0010 - jun 2001 ) DERIVED...
- Page 5 TECHNICAL SPECIFICATION TECHNIAL DESCRIPTION Total power 200W, matching SPEAKER of 100W+-1dB x 2 channel 6 ohm load. GENERAL PART OUTPUT stage Protection : Yes Temperature : YES Shorcircuit : Yes LoudSpeaker D.C. Protection : Yes. INDICATORS Standby Mode Indicator : LCD display Clock active ECO Mode Indiicator : LCD turns off, ECO - Standby LED turn on (Only for 12/05/37) ELECTRICAL DATA...
- Page 6 TECHNICAL SPECIFICATION AUDIO SIGNAL PROCESSING Micro Hi-Fi System with PLL Tuner ,USB, CD-MP3, 100W+-1dB*2 channel (1speaker load) Class D Digital Power Amplifier DSC ( Digital Sound Control ) Input sinewave 2000mV at 1kHz to R/L channel of AUX-IN socket Set DSC to Flat mode Adjust volume to obtain 500mW across 6 ohm load at 1ch speaker ouput The 500mW will be used as 0dB reference Inject sinewave 2000MV to AUX - IN socket with frequencies indicated below :...
- Page 7 TECHNICAL SPECIFICATION TECHNIAL DESCRIPTION SOFTWARE IMPLEMENTED CLOCK / TIMER FUNCTION WITH 32.768Khz QUARTZ OSCILLATOR. GENERAL PART Timer Setting Clock and Timer Timer Wakeup Mode LAST SETTING (MODE) Remarks Time Setting for 24hrs (05/12/98/55/79/96/77/78) ,for 12 hrs (37/ ) Volume at Wakeup Last Setting Normal: 1 sec/day Limit : 2 sec/day...
- Page 8 TECHNICAL SPECIFICATION TECHNIAL DESCRIPTION CD + MP3 - Part Specifications CD mechnism refer to Philips standard specification GENERAL PART Measurement are directly done at the connector on CDC board Extern Description Unit Filter Output Resistance Ohms Output Voltage - Unloaded ( 0dB , 1 kHz )
- Page 9 TECHNICAL SPECIFICATION TECHNIAL DESCRIPTION TUNER using Digital PLL Tuner SI4730D60 GENERAL PART WAVE RANGE TOLERANCE TUNING GRID FM 87.5 - 108 MHz 50KHZ 530 - 1710 10KHz AERIAL PIGTAIL ANT 1200MM AM LOOP ANTENNA AH42-20001P-A D145x120mm INDICATORS ELECTRICAL DATA Limit Unit F.M.
- Page 10 TECHNICAL SPECIFICATION TECHNIAL DESCRIPTION Measurment are directly done at the connector on the board GENERAL PART Measurement are directly done at the connector on CDC board Description Specification Output Resistance < = 1.5 kOhm Output Voltage RL = 33 k ohm ( )dB, 1 Khz ) 830mVrms +/- 1.5dB Channel Unbalance <...
- Page 11 TECHNICAL SPECIFICATION 1-10 TECHNIAL DESCRIPTION AUX IN AUX Part Nom. Limit Condition THD 10% Output Power 100W 2000mV 1KHz input SNR unwtd. 60dB 50dB 2000mV 1KHz input SNR wtd. dBA 65dBA 55dBA 2000mV 1KHz input Crosstalk (1KHz) 60dB 50dB 2000mV input Crosstalk (10KHz) 60dB 50dB...
-
Page 12: Version Variation
VERSION VARIATION 2- 1 Type /Versions: FWM2200 Service policy Boardi nu sed: LCD+KEY BOARD LINE IN+AUX BOARD USB+CD BOARD Type /Versions: FWM2200 Features Feature diffrence VOLTAGE SELECTOR ECO STANDBY - DARK *T IPS :C -- Component Lever Repair. M -- Module Lever Repair -- Used... -
Page 13: Safety Instruction
SAFETY INSTRUCTION 2- 2 2.0 SAFTETY INSTRUCTION S WAARSCHUWIN G WARNIN G Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladinge n susceptible to electrostatic discharges (ESD) (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie ka drastically.
