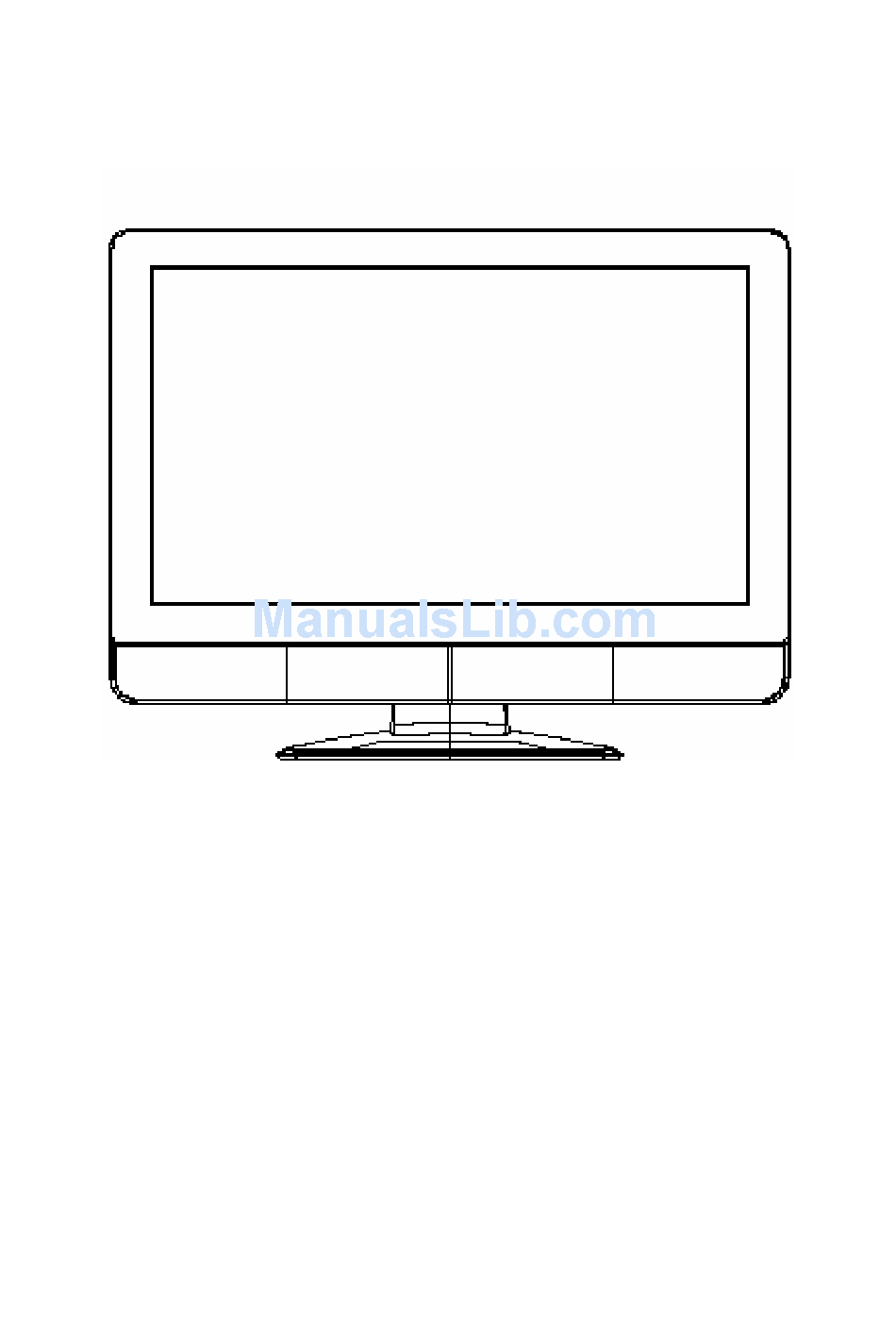

Page 1: Service Manual
Service Manual Model #: VIZIO VP503 FHDTV10A V, Inc 320A Kalmus Drive Costa Mesa, CA 92626 TEL : +714-668-0588 FAX :+714-668-9099 Top Confidential... - Page 2 8. Waveforms 9. Trouble Shooting 10. Block Diagram 10-1 11. Spare parts list 11-1 12. Complete Parts List 12-1 Appendix 1. Main Board Circuit Diagram 2. Main Board PCB Layout 3. Assembly Explosion Drawing Block Diagram VIZIO VP503 FHDTV10A Service Manual...
- Page 3 Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL); Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric Appliance Control Act); or an AC cord that meets the local safety standards. VIZIO VP503 FHDTV10A Service Manual...
- Page 4 Chapter 1 Features 1. Built in TV channel selector for TV viewing 2. Simulatnueous display of PC and TV images 3. Connectable to PC’s analog RGB port 4. Built in S-video, HDTV, composite video, HDMI and TV out 5. Built in auto adjust function for automatic adjument of screen display 6.
- Page 5 Chapter 2 Specification 1. PDP CHARACTERISTICS Model Name: MD-50H11NJA Display Size: 50-inch(diag.)HD plasma display module Outline Dimension: 1188.1mm (H) x 688.9 mm (V) x 616.6 mm (D) (Typ.) Pixel Pitch: 0.810mm x 0.810mm x RGB Pixel Format: 1366 horiz. By 768 vert. Pixels RGB strip arrangement Display Operating Mode: Transmissive mode, normally Black Surface Treatment: Hard Coating (3H), Anti-glare treatment of the front polarizer (Haze 13%).
- Page 6 6. ENVIRONMENT Operating Temperature: 0c~40c (Ambient) Operating Humidity: Ta= 35 °C, 90%RH (Non-condensing) Operating Altitude: 0 - 14,000 feet (4267.2m)(Non-Operating) 7. DIMENSIONS (Physical dimension) Dimensions with stand： 1024.4mm(W) x 669.2mm(H) x 243.4mm(D) inches Dimension without stand： 1024.4mm(W) x 665.7mm(H) x 99.9mm(D) inches 8.
- Page 7 (6) Module has high frequency circuits. System manufacturers shall do sufficient suppression to the electromagnetic interference. Grounding and shielding methods may be important to minimize the interference. 2. HANDLING PRECAUTIONS FOR PROTECTION (1) The protection film is attached to the bezel with a small masking tape. When the protection film is peeled off, static electricity is generated between the film and polarizer.
- Page 8 Chapter 3 On Screen Display On Screen Display (OSD) is a friendly interface providing the function adjusting in our system. Customers could operate it only by few buttons. There is the introduction of the OSD. Main unit button POWER MENU CH ▲...
- Page 9 a. Picture Mode (Custom/Standard/ Movie/Game/Vivid/Football/Golf/ Basketball/Baseball) b. Brightness (0~100) c. Contrast (0~100) d. Color (0~100) e. Tint (-32~+32) f. Sharpness (0~7) g. Advanced Video h. Reset Picture Mode B. Audio: a. Audio Mode (Flat/Rook/Pop/Classic/Jazz) b. Equalizer(120Hz/500Hz/1.5KHz/5KHz/10KHz) c. Balance (-50~50) d. Surround (On/Off) e.
- Page 10 C. TV: a. Tuner Mode (Cable/Antenna) b. Auto Search c. Partial Channel Search d. Skip Channel e. MTS (Stereo/SAP/Mono) f. Time Zone (Eastern/Atlanic/Indiana/Central/Mountain/Arizona/Newfoundland/ Pacific/Alaska/Hawaii) g. Daylight Saving (On/Off) CONFIDENTIAL – DO NOT COPY Page 3-3 File No. SG-0279...
- Page 11 D. Setup: a. Language(English/Français/Español) b. Sleep Timer(Off/30 Minutes/60 Minutes/90 Minutes /120 Minutes) c. Wide (Wide/Panoramic/normal) d. Input Naming e. CC (Off / CC1~4) f. Image Cleaner g. Parental h. H/V Position i. Reset All Setting CONFIDENTIAL – DO NOT COPY Page 3-4 File No.
- Page 12 E. Parental: a. Rating Enable (ON/Off) b. Channel Block c. US TV Rating d. US Movie Rating e. Canadian English Rating f. Canadian French Rating g. DTV Rating h. Block TV Unrated (Yes/No) i. Access Code Edit CONFIDENTIAL – DO NOT COPY Page 3-5 File No.
-
Page 13: Vga Mode
VGA Mode A. Picture Adjust: a. Auto Adjust b. Brightness (0~100) c. Contrast (0~100) d. Color Temperature (9300/6500/Custom) e. H-Size (0~255) f. H. Position (0~100) g. V. Position (0~100) h. Fine Tune (0~31) CONFIDENTIAL – DO NOT COPY Page 3-6 File No. - Page 14 B. Audio: a. Audio Mode (Flat/Rook/Pop/Classic/Jazz) b. Equalizer c. Balance (-50~+50) d. Surround (On/Off) e. Digital Audio Out (PCM/off/Dolby Digital) f. Speakers (On/Off) g. Audio Out (Fixed/Variable) h. Lip Sync(0~5) i. Reset Audio Mode CONFIDENTIAL – DO NOT COPY Page 3-7 File No.
- Page 15 D. Setup : a. Language (English/Français/Español) b. PIP c. Sleep Timer (Off/30 Minutes/60 Minutes/90 Minutes /120 Minutes) d. Wide (Wide/Panoramic/normal) e. Input Naming f. Image Cleaner g. Reset All Setting CONFIDENTIAL – DO NOT COPY Page 3-8 File No. SG-0279...
- Page 16 AV / COMPONENT MODE A. Picture： a. Picture Mode (Custom/Standard/Movie/Game/Vivid/Football/Golf/Basketball/Baseball) b. Brightness (0~100) c. Contrast (0~100) d. Color (0~100) e. Tint (-32~+32) f. Sharpness (0~7) g. Advanced Video h. Reset Picture Mode CONFIDENTIAL – DO NOT COPY Page 3-9 File No. SG-0279...
- Page 17 B. Audio： a. Audio Mode (Flat/Rook/Pop/Classic/Jazz) b. Equalizer c. Balance (-50~+50) d. Surround (On/Off) e. Digital Audio Out (Off/Dolby Digital/PCM) f. Audio Out (Fixed/Variable) g. Speakers (On/Off) h. Lip Sync (0~5) i. Reset Audio Mode CONFIDENTIAL – DO NOT COPY Page 3-10 File No.
- Page 18 C. Setup： a. Language (English/Français/Español) b. Sleep Timer (Off/30 Minutes/60 Minutes /90 Minutes /120 Minutes) c. Wide (Wide/Panoramic/Normal) d. Input Naming e. CC (Off/CC1~CC4) f. Image Cleaner g. Parental h. H/V Position i. Reset All Setting CONFIDENTIAL – DO NOT COPY Page 3-11 File No.
- Page 19 h. Parental: a. Rating Enable (ON/Off) b. Channel Block c. US TV Rating d. US Movie Rating e. Canadian English Rating f. Canadian French Rating g. DTV Rating h. Block TV Unrated (Yes/No) i. Access Code Edit CONFIDENTIAL – DO NOT COPY Page 3-12 File No.
- Page 20 E. Advanced Video： a. Noise Reduction (Low/Medium/Strong/Off) b. Color Enhancement (Normal/Rich Color/Green/Flesh / Green/Blue /Off) c. Advanced Adaptive Luma (Low/Medium/Strong/Extend/Off) d. Color Temperature CONFIDENTIAL – DO NOT COPY Page 3-13 File No. SG-0279...
- Page 21 F. TV Rating： a. TV-Y b. TV-Y7 c. TV-G d. TV-PG e. TV-14 f. TV-MA (Allowed Rating/Blocked Rating) CONFIDENTIAL – DO NOT COPY Page 3-14 File No. SG-0279...
- Page 22 G. Movie Rating： a. G b. PG c. PG-13 d. R e. NC-17 f. X (Allowed Rating/Blocked Rating) CONFIDENTIAL – DO NOT COPY Page 3-15 File No. SG-0279...
-
Page 23: Hdmi Mode
HDMI MODE A. Picture： a. Picture Mode (Custom/Standard/ Movie/Game/Vivid/Football/Golf/Basketball/Baseball) b. Brightness (0~100) c. Contrast (0~100) d. Color (0~100) e. Tint (-32~+32) f. Sharpness (0~7) g. Advanced Video h. Reset Picture Mode CONFIDENTIAL – DO NOT COPY Page 3-16 File No. SG-0279... - Page 24 B. Audio：(Bold: Default) a. Audio Mode (Flat/Rook/Pop/Classic/Jazz) b. Equalizer c. Balance (-50~+50) d. Surround (On/Off) e. Digital Audio Out (Off/Dolby Digital/PCM) f. Speakers (On/Off) g. Audio Out (Fixed/Variable) h. Lip Sync (0~5) i. Reset Audio Mode CONFIDENTIAL – DO NOT COPY Page 3-17 File No.
- Page 25 C. Setup： a. Language (English/Français/Español) b. PIP c. Sleep Timer (Off/30 Minutes/60 Minutes/90 Minutes /120 Minutes) d. Wide (Wide/Panoramic/Normal) e. Input Naming f. Image Cleaner g. H/V Position h. Reset All Setting CONFIDENTIAL – DO NOT COPY Page 3-18 File No. SG-0279...
- Page 26 D. Advanced Video： a. Noise Reduction (Low/Medium/Strong/Off) b. Color Enhancement (Normal/Rich Color/Green/Flesh / Green/Blue /Off) c. Advanced Adaptive Luma (Low/Medium/Strong/Extend/Off) d. Color Temperature CONFIDENTIAL – DO NOT COPY Page 3-19 File No. SG-0279...
- Page 27 [INPUT] “INPUT” could supply an interface providing a list. The list shows input sources and provides the choices of different sources. The list includes items as below: A. TV: Analog TV or digital TV B. AV: Composite (AV) signal C. Component: Color difference (YPbPr) video signals. D.
- Page 28 Chapter 9 Trouble shooting MONITOR DISPLAY NOTHING (PC MODE) Start Is Power board output +5VSB (F4)? Is J1 connector of MB good? LED is lighted Is DC-DC OK? (Orange White) Is U22 pin2 (+3V3SB) working ok? It is in power saving 1.
- Page 29 (TV, AV, S-VIDEO) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check DVD player 1. Check P4 signal 2. Check signal between P4 and U13 (IF AV, S-Video mode) U13 input correct? 3. Check Tuner power at L11 is 30V DC level and L12 is 5V DC level (IF TV mode) Progress “Trouble of panel no display “process...
- Page 30 (COMPONENT) IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal good? 2. Check host’s setting 1. Check signal from P4 2. Check system power +5V at U14 (5,6,7,8 P4 input correct? Pin) and 5VSB (F4) 1. Check signal between U13 & P4 U13 input 2.
- Page 31 HDMI IS NOT DISPLAY CORRECTLY Start 1. Check video Input signal 2. Check host’s setting 1. Check P8, P9,P7 connect 2. In HDMI 1,2; Check the pin18 & HDMI hot plug 19 of P8, P9 is logic “H”; sink 3. In HDMI 3,4; check the R114 & R241 is logic “H”...
- Page 32 TROUBLE OF DC-DC CONVERTER Start The voltage is about +5V (+5VSB) 1. Check power board 2. Check power cable, F4 & connection J1 3. Check U22 pin3 (+5VSB) & pin2 (+3V3SB) The voltage is about +5V while power switch on 1.
- Page 33 TROUBLE OF EDID READING Start Support DDC1/2B 1. Analog cable ok? 2 .Check signal (U31 to P5) Is Analog DDC OK? 3. Check U31 Voltage 4. Is protocol compliant? Support DDC1/2B 1.HDMI cable ok? 2. Check signal (U33 to P8) (U34 to P9) (U504 to Is HDMI DDC OK? P502 / U503 to P501) 3.
- Page 34 TROUBLE OF PANEL NO DISPLAY Check LVDS harness Check J8 connect good Check LVDS CLOCK is Check J8 Pin17/18, 3/4 72Mhz~77MHz 1. Check F15_ON is logic “H” (L90) 2. Check 5V (L607) Check control signal 3. Check PANEL_STBY_ON is logic “H” (R339) 4.
