6. Remove the 4 screws that secure the front grill to the
cassette housing. (Figure 4)
7. Locate the cord and disconnect the wiring connections
noting their original locations.
!
NOTE: A flat head screwdriver can be used to gently
pry between the end of the connector and the switch to
release the wires.
8. Remove the two screws that attach the cord strain relief
grommet from inside the back of the bottom panel and
release the cord.
9. Install the new cord.
10. Reassemble in the reverse order as above.
FUSE / FUSE ASSEMBLY REPLACEMENT
Tools Required: Flat head screwdriver
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
!
NOTE: Ensure that all of the components that
contain water have been emptied before performing any
maintenance.
1. Disconnect and remove the log set from the unit and
put it in a safe place.
2. From the front of the unit, remove the top cover and the
water tank from the inside of the unit. (Figure 3)
3. Inside of the unit remove the two screws that secure
the cassette assembly to the chassis.
4. Lift the cassette assembly out of the unit.
5. Remove the 4 screws that secure the front grill to the
cassette housing. (Figure 4)
6. Remove the 4 screws that secure the front grill to the
cassette housing. (Figure 4)
7. Locate the fuse assembly located on the bottom the
unit and using the flat head screwdriver remove the
assembly.
8. Replace the fuse and the fuse assembly.
!
NOTE: The unit will not need to be disassembled to
replace the fuse only.
9. Reassemble in the reverse order as above.
LIGHT ASSEMBLY REPLACEMENT
Tools Required: Phillips head screwdriver
Flat Head Screwdriver
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
!
NOTE: Ensure that all of the components that
contain water have been emptied before performing any
maintenance.
1. Disconnect and remove the log set from the unit and
put it in a safe place.
2. From the front of the unit, remove the top cover and the
water tank from the inside of the unit. (Figure 3)

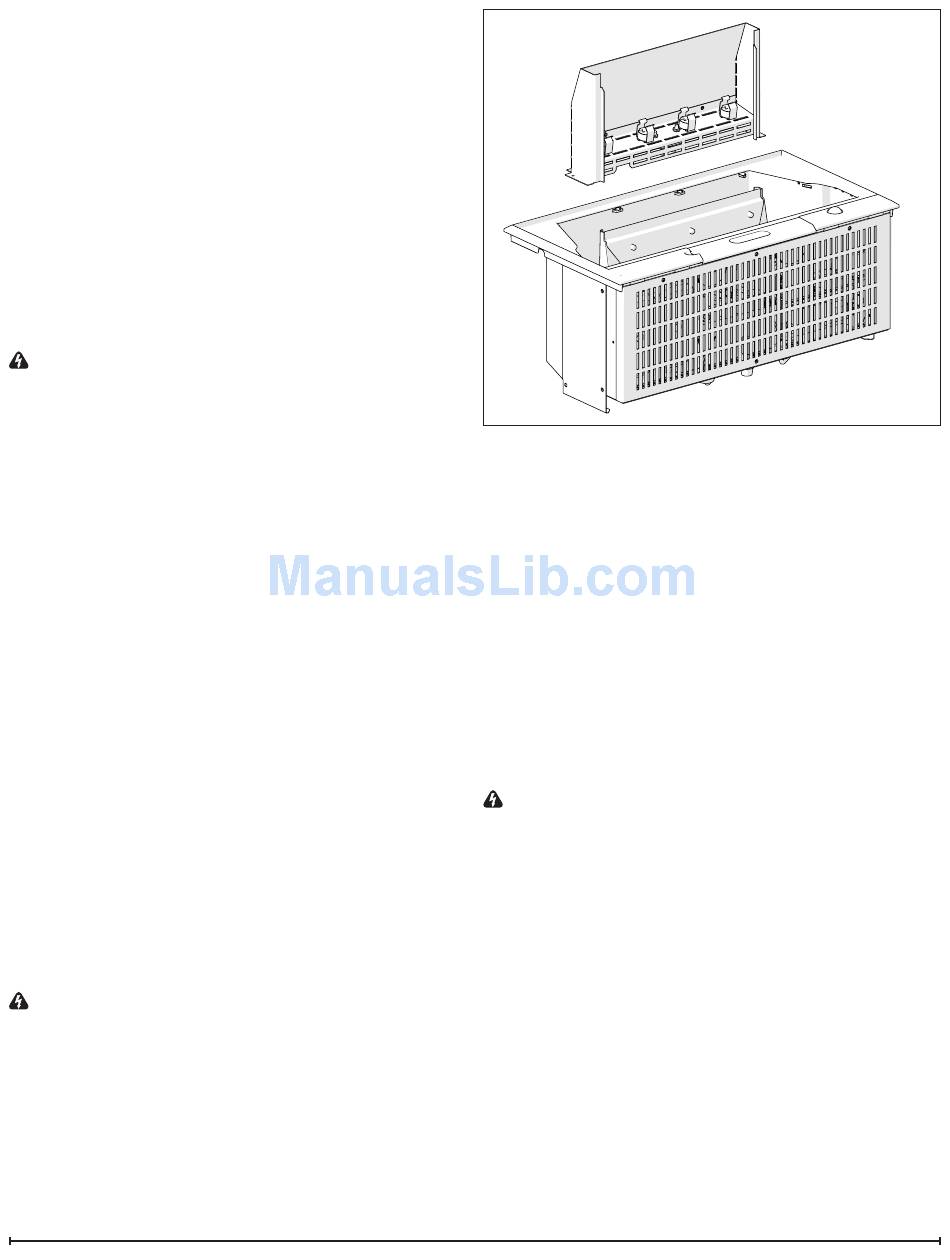

Figure 5
3. Inside of the unit remove the two screws that secure
the cassette assembly to the chassis.
4. Lift the cassette assembly out of the unit.
5. Turn the unit turned upside down, remove the 2 screws
that hold the light assembly to the unit. (Figure 5)
6. Remove the light assembly and replace with the new
light assembly.
7. Reattach the wire onto the new light assembly.
8. Re-assemble the remainder of the cassette in reverse
order from the instructions above.
FAN ASSEMBLY REPLACEMENT
Fan Motor and Fan Housing
Tools Required: Phillips head screwdriver
Flat Head Screwdriver
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
!
NOTE: Ensure that all of the components that
contain water have been emptied before performing any
maintenance.
1. Disconnect and remove the log set from the unit and
put it in a safe place.
2. From the front of the unit, remove the top cover and the
water tank from the inside of the unit. (Figure 3)
3. Inside of the unit remove the two screws that secure
the cassette assembly to the chassis.
4. Lift the cassette assembly out of the unit.
5. Remove the 3 screws that hold the cover onto the fan
housing. (Figure 6)
6. Remove the fan motor out of the housing and discon-
nect the wiring connection located near the bottom of
the housing.
7. If replacing only the motor, attach new motor and reas-
9
