Subaru Legacy 2017 Quick Reference Manual

Hide thumbs Also See for Legacy 2017:

Advertisement

Table of Contents

See also: Owner's Manual
2017 Quick Reference Guide

Advertisement

Table of Contents
loading

Related Manuals for Subaru Legacy 2017

Summary of Contents for Subaru Legacy 2017

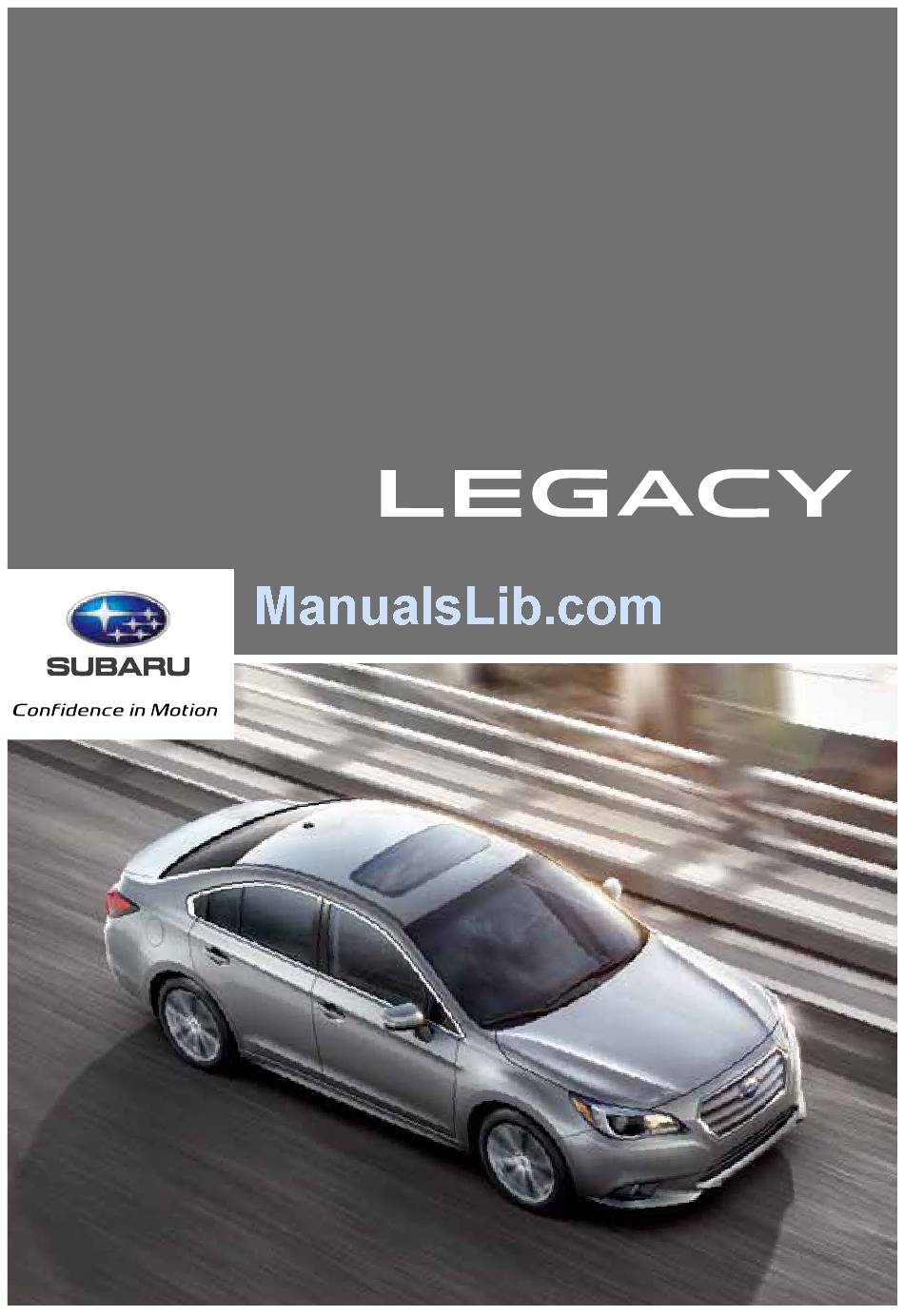

  • Page 1 2017 Quick Reference Guide...

  • Page 2: Basic Operation

    For detailed operating and safety information, please refer to your owner’s Manual. basic opeRation Lock/Unlock doors Remote keyless entry system All doors will be locked. The driver’s door will be unlocked. (To unlock all doors, briefly press the button a second time within 5 seconds.) Press and hold to open the trunk.

  • Page 3: Remote Control Mirror Switch

    adjust each component Front seat Power seat (Driver’s seat-if equipped): Forward and backward adjustment Seat cushion angle adjustment Seat height adjustment Seatback angle (reclining) adjustment Lumber support adjustment (if equipped) Manual seat (if equipped): Forward and backward adjustment Seat cushion height adjustment (Driver's seat only) Seatback reclining adjustment Tilt/telescopic steering wheel...

  • Page 4: Start/Stop Engine

    start/stop engine Push-button ignition switch (if equipped) To start engine: STEP1: Carry the access key, and sit in the driver’s seat. STEP2: Apply the parking brake. Operation STEP3: Shift the select lever in the P position. indicator STEP4: Depress the brake pedal until the indicator on the push-button ignition switch turns green.
  • Page 5 operate select lever/shift lever Continuously variable transmission (if equipped) Select lever button With the brake pedal depressed, shift while pressing the button in Shift while pressing the button in Shift without pressing the button M = Manual mode: With the vehicle either moving or stationary, move the Upshift Downshift select lever from the D position to the M position to...
  • Page 6 Main paRts anD opeRation Models without EyeSight system Models with EyeSight system Headlight switch/Turn signal lever/Front fog light switch (if equipped) Headlights Headlight flasher, High/Low beam change (dimmer) High beam assist function (if equipped) The high beam assist function automatically changes the headlight from high beam to low beam (or vice versa). The high beam assist function is activated when: 1.

  • Page 7: Wiper And Washer Switch

    Wiper and washer switch Windshield wiper To operate the wiper, rotate knob to; : Mist (for a single wipe) : Off : Intermittent : Low speed : High speed Wiper intermittent time control Windshield washer Hazard warning flasher switch To turn on the hazard warning flasher, press the button. Use the hazard warning flasher when you have to park in emergency conditions.

  • Page 8: Trunk Lid Opener Switch

    Defroster button/Rear window defogger button Defroster button: Press the button to defrost the windshield. Rear window defogger button: Press the button to turn on rear window defogger, outside mirror defogger and windshield wiper deicer (if equipped). The function will automatically shut off after approximately 15 minutes.

  • Page 9: Audio Control Buttons

    Power door locking switch To lock all doors To unlock all doors Seat heater (if equipped) Front seat heater switch HIGH mode indicator MID mode indicator LOW mode indicator Front passenger’s Driver’s side side Fuel filler lid release lever Pull Right side This indicates that the fuel filler door (lid) is located on the right side of the vehicle.

  • Page 10: Child Safety Locks

    Hill Holder switch Deactivate the Hill Holder function when: Activate/ • Towing a trailer Deactivate • Carrying a heavy load • When you do not frequently stop your vehicle on an uphill slope using the parking brake. *The design may be slightly different from the illustration depending on the models.
  • Page 11 FUnction FoR MoRe coMFoRtabLe DRiVe Models without EyeSight system Models with EyeSight system Vehicle Dynamics Control OFF switch Press the switch to deactivate the Vehicle Dynamics Control system. Indicator lights on the combination meter Vehicle Dynamics Control mode Vehicle Dynamics Control OFF mode It may be helpful to temporarily deactivate the Vehicle Dynamics Control system to escape from the following situations.

  • Page 12: Information Display

    Cruise control buttons (if equipped) Models without EyeSight system Cruise control enables you to maintain a constant vehicle speed without holding your foot on the accelerator pedal and it is operative when the vehicle speed is 40 km/h (25 mph) or more. Cruise control main button: To activate and deactivate RES/SET switch:...

  • Page 13: Multi Information Display

    Multi information display ECO gauge Basic screen Cruise control information Select lever/gear position indicator km/h Warning screen Odometer/double trip meter Control switch: By operating ▲ or ▼ of the control switch, the screens and selection items can be switched. When the /SET switch is pulled toward you, the item can be selected and set.
  • Page 14 Steering responsive fog lights OFF switch (if equipped) If the steering responsive fog lights OFF switch is pressed, the steering responsive fog lights OFF indicator is displayed on the Multi information display of the combination meter, and the steering responsive fog lights system is deactivated.

  • Page 15: Lane Departure Warning

    Lane Departure Warning OFF switch (Models with EyeSight system) Press and hold this switch for approximately 2 seconds or longer to turn off the Lane Departure Warning and Lane Sway Warning functions. Lane Departure Warning When vehicle speed is approximately 50 km/h (30 MPH) or more, this function warns the driver if the system detects that the vehicle is likely to depart the traffic lane.
  • Page 16 Seat position memory function (driver’s seat - if equipped) Some of your desired seat positions can be registered. Register the seat position with button 1 or 2 or each of the access keys (if equipped) and retrieve the seat position. Heated Steering Wheel system (if equipped) The Heated Steering Wheel system warms the surface of the steering wheel at a constant temperature.

  • Page 17: Warning Lights

    ON. Warning lights Refer to your Owner’s Manual for countermeasures when each warning light comes on. If necessary, consult your authorized SUBARU dealer. Seatbelt warning Front passenger’s seatbelt warning Remind the driver to fasten Remind the front passenger to seatbelt.
  • Page 18 Automatic headlight beam leveler warning Automatic headlight beam leveler malfunction. Access key warning The access key is not inside the vehicle. For other situations, refer to your Owner’s Manual. ABS warning Anti-lock Brake System malfunction/EBD System malfunction. (Brake System warning light illuminates simultaneously). Windshield washer fluid warning The fluid level in the windshield washer fluid tank decreases to the lower limit.

  • Page 19: Indicator Lights

    indicator lights The following indicators show the current status of your car. Refer to your Owner’s Manual for more information. Turn signal Headlight High beam indicator indicator indicator Front fog light Security Door open indicator indicator indicator BSD/RCTA OFF Cruise control Cruise control indicator indicator...
  • Page 20 Colours shown may vary due to reproduction variations in the printing process, and some vehicle parts cannot be shown in certain photographs. Subaru Canada, Inc. reserves the right to discontinue or make changes at any time, without notice or incurring obligations, to colours, materials, equipment, accessories, features, specifications and models, or to change their prices.
