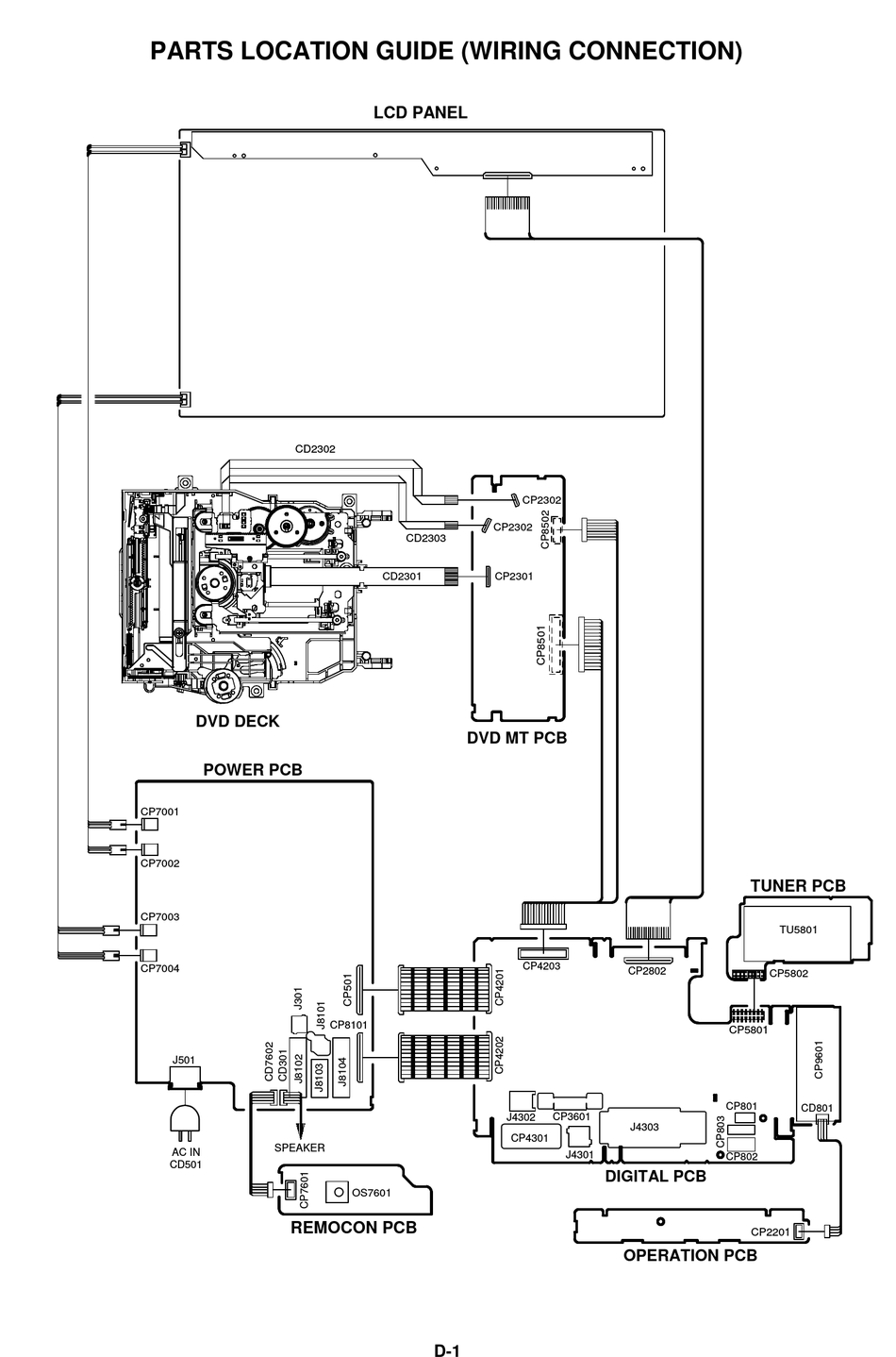

PARTS LOCATION GUIDE (WIRING CONNECTION)

CD2302
DVD DECK
POWER PCB
CP7001
CP7002
CP7003
CP7004
J501
SPEAKER
AC IN
CD501
REMOCON PCB
LCD PANEL
CP2302
CD2303
CD2301 CP2301
DVD MT PCB
CP8101
OS7601
D-1
CP2302
CP4203
CP2802
CP3601
J4302
J4303
J4206
CP4203
CP4301
CP4301
J4301
DIGITAL PCB
OPERATION PCB
TUNER PCB
TU5801
CP5802
CP5801
CP801
CD801
CP802
CP2201
