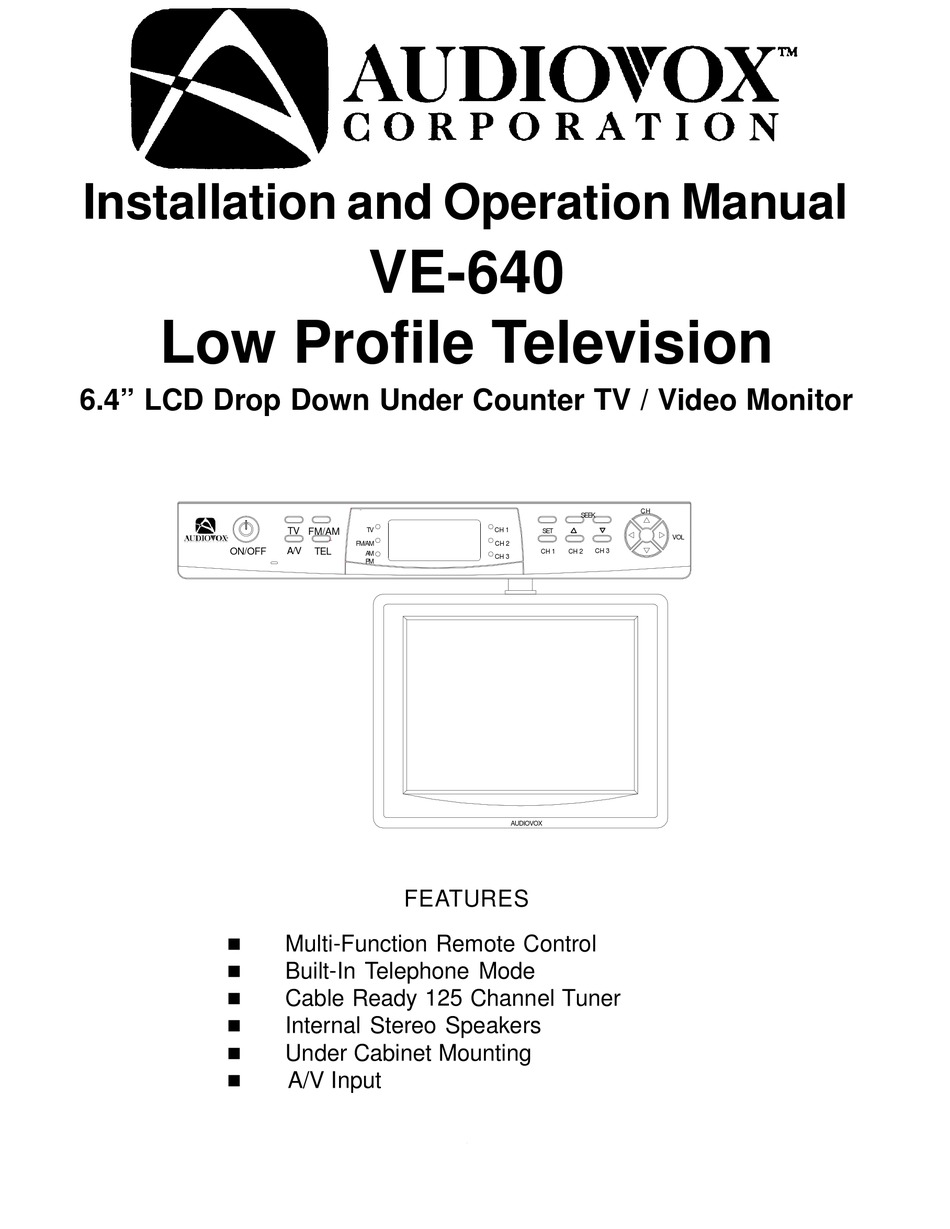

Installation and Operation Manual
Low Profile Television
6.4" LCD Drop Down Under Counter TV / Video Monitor
ON/OFF
n
n
n
n
n
n
VE-640
TV
TV
FM/AM
FM/AM
A/V
TEL
AM
PM
FEATURES
Multi-Function Remote Control
Built-In Telephone Mode
Cable Ready 125 Channel Tuner
Internal Stereo Speakers
Under Cabinet Mounting
A/V Input
SEEK
CH 1
SET
CH 2
CH 3
CH 1
CH 2
CH 3
AUDIOVOX
-1-
CH
VOL

Advertisement

Table of Contents
loading

Related Manuals for Audiovox VE 640

Summary of Contents for Audiovox VE 640

  • Page 1 6.4” LCD Drop Down Under Counter TV / Video Monitor FM/AM ON/OFF Multi-Function Remote Control Built-In Telephone Mode Cable Ready 125 Channel Tuner Internal Stereo Speakers Under Cabinet Mounting A/V Input VE-640 CH 1 FM/AM CH 2 CH 1 CH 3 AUDIOVOX FEATURES SEEK CH 3 CH 2...

  • Page 2: Important Safety Information

    1) Unplug the unit before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 2) Use only Audiovox approved accessories. 3) Do not install this video product where it is likely to be exposed to water.

  • Page 3: Included In This Kit

    INCLUDED IN THIS KIT VE-640 Television Remote Control Unit (PN 136C2037) AC Power Cord (PN 136B2038) Mounting template Hardware Bag (PN 1501395) 3/4” Mounting screws (4) 1-1/4” Mounting screws (4) 1-1/2” Mounting screws (4) 3/4” Spacer (4) 1/2” Spacer (4) 1/4”...

  • Page 4: Under Cabinet Installation

    UNDER CABINET INSTALLATION FRONT VIEW Choose an appropriate mounting location underneath a cabinet or shelf. Close proximity to an electrical outlet and a TV antenna or cable connection will facilitate a neat, easy installation. Do not mount the VE-640 above a range or oven. Be sure that the location chosen will provide adequate access to the electrical connectors on the rear of the unit before continuing.

  • Page 5: Front Panel Controls

    FRONT PANEL CONTROLS 1) REMOTE INFRARED SENSOR-This sensor receives infrared signals from the hand held remote control unit. 2) TV INDICATOR-When illuminated, the VE640 is in television mode. 3) FM/AM INDICATOR-When illuminated, the VE640 is set to receive AM or FM radio broadcast.

  • Page 6: Rear Panel Connections

    REAR PANEL CONNECTIONS AM-ANT. 1) FM ANTENNA- Allows the VE-640 to be connected to an external antenna for the reception of FM broadcast signals. 2) 75 OHM ANTENNA CONNECTOR Allows the VE-640 to be connected to a 75 ohm external coaxial antenna. 3) AUDIO INPUT-RIGHT-Connect to right audio output from external A/V source.

  • Page 7: Remote Control Functions

    REMOTE CONTROL FUNCTIONS 1. POWER ON/OFF (PWR) Press this button to turn the TV on. Press the button again to turn the TV off. 2. NUMERICAL BUTTONS (1- 9, 0) Use these buttons to make a direct channel selection. The channel number chosen will be displayed on the front panel of the VE-640.

  • Page 8: Channel Tuning Set Up

    OPERATION TURNING THE VE-640 ON/OFF 1) Press the ON/OFF button to turn the unit on. 2) Press the ON/OFF button again to turn the unit off. CHANNEL TUNING SET UP In addition to normal broadcast reception of VHF and UHF channels, if you are a Cable TV subscriber, your new TV is capable of receiving many unscrambled Cable channels without the use of a converter box.

  • Page 9: Troubleshooting

    OPERATION CONTINUED SETTING THE PRESETS (FOR AM AND FM RADIO OR TV MODES) 1) Tune to the desired channel. 2) Press the set button and the display flashes. 3) Select desired Preset (Channel 1, 2, or 3) and the LED adjacent to the preset will illuminate to confirm selection.

  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS Illumination: Backlighting Life Expectancy: Pixels: Resolution: Power Supply: Operating Temperature: Frequency Range: Channels: TV System: Audio Output: Body Size: Screen: Weight: CCFL Edge Lit Tube 10,000 Hrs. 224, 640 960 x 234 120 VAC 60 Hz, 22 Watts 0°...
  • Page 11 Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 12 128-6124 © Copyright 2001 Audiovox Corp. 150 Marcus Blvd. Hauppauge, NY 11788 -12-...
