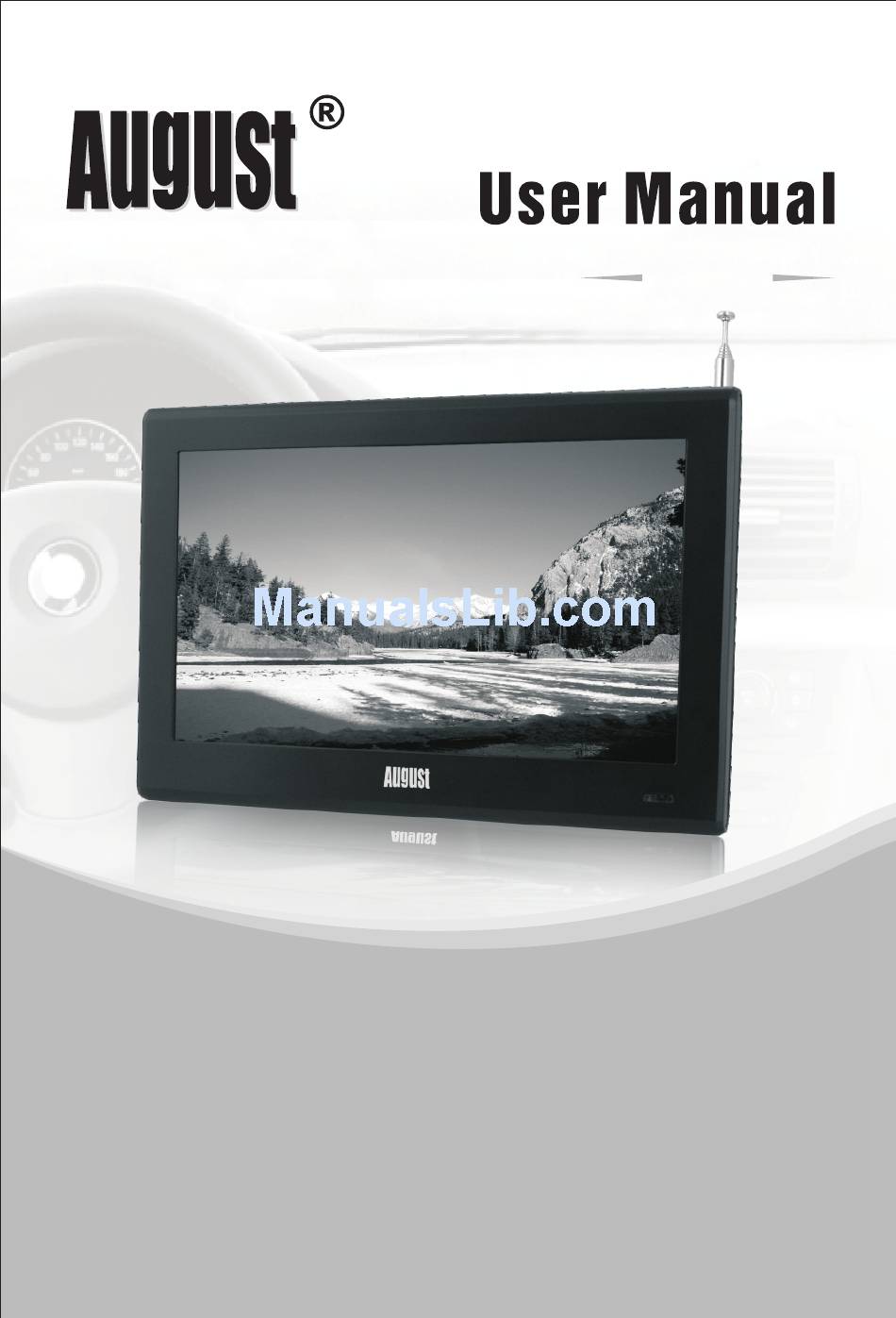

- Page 1 DA100C 10 INCH DIGITAL/ANALOGUE TV & MEDIA PLAYER TV NUMERIQUE/ANALOGIQUE 10 POUCES & LECTEUR MEDIA 10 ZOLL DIGITAL/ANALOG TV & MEDIA PLAYER TV DIGITALE/ANALOGICA & MEDIA PLAYER 10 POLLICI TV DIGITAL/ANALGICA 10 PULGADAS & LECTOR MEDIA...
-
Page 2: User Manual
User Manual Thank you for buying our August TV. You may already be familiar with using a similar product but please take time to read these instructions carefully. It is designed to familiarise you with the product’s many features and to ensure that you get the very best from your purchase. -
Page 3: Quick Start Guide
Quick Start Guide DA100C When scanning for channels for the first time, it is suggested to use a rooftop aerial. If any channels are saved, the information will be saved to your TV and you can then switch to the portable antenna and change your location to find the best place to receive a signal. - Page 4 Changing location may improve signal reception but a rooftop aerial designed for digital TV should be used to achieve the best possible reception. For any further queries, please telephone August International Ltd helpline +44 (0) 845 250 0586 or email service@augustint.com...
-
Page 5: Table Of Contents
Contents 1. Safety Instructions 2. Accessories 3. Part Names and Functions 4. Connection 5. Basic Operation 6. Digital Freeview TV (DVB-T) 7. Digital TV Recording 8. Card Reader & USB Functions 9. Games 10. Analogue TV (ATV) 11. Battery Compartment Specifications 13. -
Page 6: Safety Instructions
1. Safety Instructions 1.1 Storage and Use Do not expose Keep this TV this device to set away from extreme water or damp temperatures. Operating environments. temperature range: 0°C to 50°C Storage temperature: -10°C to 60°C. Never expose Never drop or this TV set to expose this moisture, dust,... -
Page 7: Accessories
Never try to repair or modify this device yourself, this will invalidate the warranty, may cause further damage to the device and could cause personal injury. In the case of any fault, please turn off the device immediately and contact August International customer services or your retailer to arrange a professional repair. -
Page 8: Part Names And Functions
3. Part Names and Functions 3.1 Front 1. IR receiver window 2. LCD display 3.2 Back 1. Speakers 6. AV in/out 2. Antenna input 7. Standby power indicator 3. USB port 8. 12V DC IN 4. SD/MMC card slot 9. Battery compartment 5. - Page 9 3.3 Top Power / Play / Pause / Resume Main Menu MENU Left / Reverse Right / Forward Enter/ Confirm Channel Down/ Down/ Previous Track or Chapter Channel Up/ Up / Next Track or Chapter Volume Down VOL- Volume Up VOL+ Press repeatedly for mode switch.
- Page 10 Next track or chapter Previous track or chapter Left / confirm or change settings in ATV mode Confirm settings Right / confirm or change settings in ATV mode Down / Channel Down Rewind in media player mode Forward in media player mode Switch subtitles on or off 7 day electronic program guide Use RIGHT, UP and DOWN to navigate today's program information.
-
Page 11: Connection
*Note: 1. Please ensure proper disposal of used batteries. 2. To prevent leakage of fluid from the lithium battery, remove the battery when not using the remote control for a long period of time. If the battery leaks fluid, carefully wipe it out of the battery case, then insert a new lithium battery. - Page 12 4.3 Connecting to a TV set via AV Output Turn off all devices before connecting or disconnecting any cables. Audio/Video output Black AV cable (Included) Yellow White To video input jack (Yellow) To audio input jack (White) To audio input jack (Red) Signal flow *Note:...
-
Page 13: Basic Operation
5. Basic Operation 5.1 Switching the device off or on 5.1.1 Switching on Connect the device to mains power, then either press and hold the power button on the device for 1.5 seconds, or press the power button on the remote control to switch the device on. 5.1.2 Switch Power Off Either press and hold the power button on the device for 1.5 seconds, or press the power button on the remote control to switch the device off. -
Page 14: Digital Freeview Tv (Dvb-T)
6. Digital Freeview TV (DVB-T) If there are no channels saved on the TV, Channel Organizer cannot be accessed, and "Channel not available" will be displayed. If the device is not set to the Digital TV mode, press MODE repeatedly until DTV appears on 3. - Page 15 If there are no channels saved on the TV, 3. Use UP/DOWN to select the channel, and Channel Sorting cannot be accessed and then select the category by pressing the "Channel not available" will be displayed. numbers (1-8). 3. Press UP/DOWN to select: 4.
- Page 16 ⑥ 1. Use UP/DOWN to select TV channels and PCR PID: can be changed by pressing the press ENTER. It will ask “ Delete all TV numbers. channels?”, select “Yes” to confirm and ⑦ Once all settings have been made, press delete all channels, select “No”...
- Page 17 6.2.2 Manual Search Use UP/DOWN to select the setting you wish to If you know a channel's broadcasting frequency change. and bandwidth, using manual search to find the channel can be quicker. 1. OSD: supports 5 menu patterns, press LEFT/RIGHT to select between Theme1-5. Select Manual Search, press ENTER, it will ask 2.
- Page 18 2. Aspect Ratio: press LEFT/RIGHT to select 7. After setting, press ENTER to confirm, between 16:9, 4:3 Pan Scan, 4:3 Letter Box, press MENU to exit the setup, it will show press ENTER to confirm and exit the setting. “Successfully updated”. Or press UP/DOWN to select another option.
- Page 19 In Manual timer mode, press UP/DOWN to select an option, use RIGHT/LEFT or numbers to change the Date or Time. (GMT Offset and Summer Time options are greyed out and not available in Manual timer mode). ① Wakeup Message: use LEFT/RIGHT to select between Birthday, Anniversary or General.
-
Page 20: Digital Tv Recording
Enter the old password, if it is correct, the 7. Digital TV Recording cursor will move to Enter New Password The device supports recording Freeview TV option, enter and confirm the new password. to a USB memory stick or external hard The system will show “Password changed”. -
Page 21: Card Reader & Usb Functions
1. Timer No.: the number of this Wakeup Timer 8. Card Reader & USB Functions setting, use LEFT/RIGHT to change. 2. Timer Mode: use LEFT/RIGHT to select This player has built-in SD/MMC card reader between Once, Daily, Weekly, Yearly or Off. and USB port. - Page 22 Press to play the previous movie, Press to play the previous music file, press for the next one. press for the next one. Press MENU to stop at any time, press again Press ZOOM to zoom in or zoom out. to exit the playback.
-
Page 23: Games
10. Analogue TV (ATV) 9. Games Games can be accessed by selecting Menu-> To search for Analogue TV, press MODE Game-> Native Games. repeatedly until it shows ATV, press LEFT or RIGHT to switch to the Analogue TV mode. Press MENU, the ATV SETUP menu will show as follows: Press UP/DOWN to select the game you want to play, press ENTER to confirm. -
Page 24: Battery Compartment
10.3 SKIP SWITCH The SKIP SWITCH allows you to hide any channels, and they will be skipped when selecting channels using CH+ or CH-. Move to the channel you want to skip, press MENU, then select SKIP SETUP, the following menu will show: Use UP/DOWN to select SKIP ON, press ENTER to confirm, then press MENU to exit. - Page 25 Caution: Use AA 1.2V rechargeable batteries only. Use normal AA 1.5V batteries may cause permanent damage to the device and will invalidate the warranty. Have the batteries fully charged before the first time using them. The playback time may become shorter after the batteries are charged and discharged for a large number of times.
-
Page 26: Specifications
12. Specifications Screen size: 10 Inch Resolution: 1024 x 600 pixels LCD Display Aspect Ratio: 16:9 Brightness: 170 cd/m Contrast: 400:1 Decode Standard DVB-T MPEG2 6, 7, 8 MHz DVB-T Band Width VHF: 177.5~226.5 MHz DVB-T Frequency UHF: 474~858 MHz PAL-I , DK, BG Analogue TV Format SECAM-L, DK... -
Page 27: Troubleshooting
Caption DIVX(4.0, 5.0), XVID File Type MP3,WMA Music player 32Kbps~320Kbps Bit Ratio File Type JPG,JPEG(not include non--interlace) Photo viewer Up to 4000 x 3000 pixels Resolution 13. Troubleshooting Problems listed below do not necessarily signify a fault with the unit. Please check this list before requesting repairs. -
Page 28: Warranty
This is due to the fact that Freeview is yet to operate in full power in the UK. August TVs should not be deemed as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial. - Page 29 August International Ltd United Kingdom Telephone:+44 (0) 845 250 0586 www.augustint.com...
