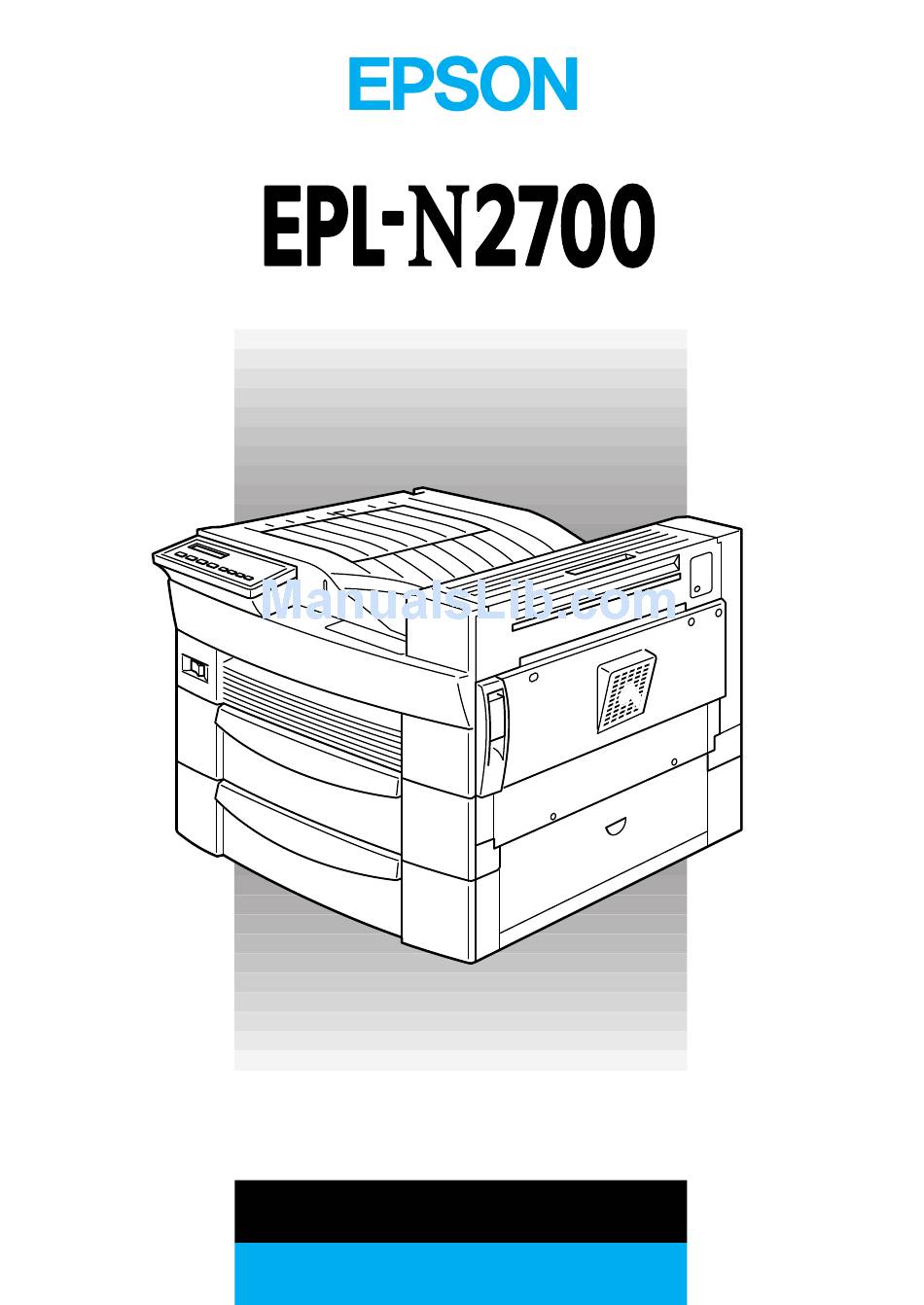

Epson EPL-N2700 Quick Reference Manual

Page printer
Hide thumbs Also See for EPL-N2700:

Advertisement

Quick Links

Download this manual See also: Service Manual, Reference Manual
Page Printer
Quick Reference Guide
4010652
XXX-00

Advertisement

loading

Related Manuals for Epson EPL-N2700

Summary of Contents for Epson EPL-N2700

  • Page 1 Page Printer Quick Reference Guide 4010652 XXX-00...

  • Page 2: Preventing Paper Feed And Paper Jam Problems

    Preventing Paper Feed and Paper Jam Problems To prevent frequent paper feed or paper jam problems, use this checklist of corrective measures. Use a higher-quality paper—one that is not too thin or rough. Fan the stack of paper and then tap its edges to align it before you load it.
  • Page 3 Note: Check for jams at all paper sources or paths indicated on the LCD panel. The printer cannot resume printing until all the jams are cleared. The LCD panel displays up to four paper sources or paths at the same time. Other areas where jams may be occurring will be shown on the LCD panel after you have checked all indicated jams.
  • Page 4 Jam LC2, Jam LC3 This message indicates that paper has jammed in one of the Lower Cassettes. The standard Lower Cassette, located directly beneath the MP Tray, is always numbered LC1, and any optional 500-Sheet Lower Cassette Units and the Large Capacity Paper Unit are numbered LC2, LC3, and so on from top to bottom.
  • Page 5 Jam A This message indicates that there may be a paper jam inside cover A or cover B on the right side of the printer. Open cover A gently. Caution: Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper.
  • Page 6 Remove any paper you find jammed inside the printer. If you do not see any paper inside cover A, open cover B. Remove the paper inside cover B. If the paper is difficult to remove, use the gear lever inside cover A shown below.
  • Page 7 Jam C1, Jam C2, Jam C3 This message indicates that there may be a paper jam inside cover C1, C2, or C3 on the right side of the Lower Cassettes. Open the cover indicated on the LCD panel. The names of the cassettes are indicated on each cassette.
  • Page 8 When the paper jam is cleared completely, the jammed page’s print data is automatically reprinted. Jam D This message indicates that there may be a paper jam inside cover D on the Duplex Unit. Open cover D. Caution: Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper.
  • Page 9 Jam E This message indicates that there may be a paper jam inside cover E on the back of the 5-Bin Multi-Purpose Unit. Open cover E. Caution: Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper.
  • Page 10 Jam F This message indicates that there may be a paper jam inside cover F on the paper guide of the 10-Bin Multi- Purpose Unit. Open cover F. Caution: Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper.
  • Page 11 Move the 10-Bin Multi-Purpose Unit away from the printer. Open cover G on the back of the 10-Bin Multi- Purpose Unit. Caution: Because the toner on the paper inside the printer may not have been fixed on the page, toner may come off on your hands when you remove the paper.

  • Page 12: Status And Error Messages

    Status and Error Messages This section contains an alphabetical list of status, error, and warning messages that appear on the LCD panel. Can’t Print Duplex In your printer driver, select Duplex Print Unit on the Option menu, then select Duplex Print on the Layout menu.
  • Page 13 Check Paper Size The paper size setting on the printer driver’s Basic Settings menu, or in SelecType, is different from the size of paper loaded in the printer. Make sure the correct size of paper is loaded in the printer; then press the Continue button to clear the message.
  • Page 14 If you still cannot close the cover, the imaging cartridge may not be installed correctly. Reinstall the imaging cartridge as described in “Replacing the Imaging Cartridge” on page 24. Cover C1, C2, C3 Open The cover on the right side of the Lower Cassette, an optional 500-Sheet Lower Cassette Unit, or Large Capacity Paper Unit is open.
  • Page 15 Cover G Open Cover G, on the back of the 10-Bin Multi-Purpose Unit, is open. Move the 10-Bin Multi-Purpose Unit away from the printer. Then pull the latch on cover G and close the cover firmly. Duplex Mem Overflow There is not enough memory for duplex printing. The printer prints only on the top side and ejects the paper.
  • Page 16 To correct this error, (1) press the Continue button, or (2) turn off the printer, then remove the ROM from slot Format Error ROM B A ROM module which is not formatted is inserted in slot B. If the ROM had been written to, it is possible that the writing was not completed.
  • Page 17 Insert Imaging Crtg The imaging cartridge is not correctly installed. See “Replacing the Imaging Cartridge” on page 24 to reinstall it. Invalid AUX I/F Card An interface card not supported by this printer is installed. Turn off the printer, then remove the card. Invalid Option An option not supported by this printer is installed, or a supported option is installed incorrectly.
  • Page 18 Invalid ROM A The ROM module in slot A is not supported by this printer, or a supported module is installed incorrectly. See “Adobe PostScript3 ROM Module” in the Reference Guide to make sure you are using a suitable ROM for this printer or to reinstall the ROM.
  • Page 19 Manual Feed xxx yyy Manual Feed mode is specified for the current print job. Make sure the indicated paper size (xxx) is loaded in the indicated paper source (yyy), then press On Line. If you do not want to print this job in manual mode, press Continue.
  • Page 20 Multibin is Removed The 10-Bin Multi-Purpose Unit is not installed properly, or is not firmly attached to the printer. Install the unit as instructed in “Installing the 10-Bin Multi-Purpose Unit” in the Reference Guide, and press Continue. Need Memory Your printer lacks the printer memory required to print your print job.
  • Page 21 Paper Set xxx yyy The paper loaded in the indicated tray (xxx) does not match the indicated paper size (yyy). Replace the paper with the correct size of paper and press Continue. Print Overrun The time required to process data exceeds the print engine speed because the volume of data is too great.
  • Page 22 Reset All All printer settings have been reset to the user default configuration, or to the last settings that were saved. Reset to Save You have changed the SelecType setting but the new setting was not activated immediately after exiting SelecType.
  • Page 23 Service Req xyyy A controller error or a print engine error has been detected. Write down the error number listed on the LCD panel (xyyy) and turn off the printer. Wait at least five seconds and then turn it back on. If the error message still appears, turn off the printer, unplug the power cord, and contact a qualified service person.
  • Page 24 Write Error ROM A The ROM is not installed in slot A, or cannot be written to. It is also possible that writing to the ROM in slot A was not completed. To correct this error, do one of the following: 1) turn off the printer and remove the ROM, then turn on the printer, 2) remove the card while the printer is on, then press the Continue button, or 3) reset the printer by...

  • Page 25: Replacing The Imaging Cartridge

    Replacing the Imaging Cartridge The imaging cartridge prints up to 15,000 pages depending upon the complexity of your print jobs. If your printed images become faint, enter the SelecType Setup menus and use the Toner function to find out approximately how much toner remains in the imaging cartridge.
  • Page 26 Make sure the printer is turned on. Gently open the printer cover and remove the imaging cartridge by pulling the handles on the front of the cartridge toward you. Dispose of the used imaging cartridge as a nonburnable item. Warning: Do not dispose of used imaging cartridges in fire, as they can explode and cause injury.
  • Page 27 While holding the new imaging cartridge horizontally, gently shake it a few times to distribute the toner evenly. Caution: Do not turn the imaging cartridge upside down. Do not expose the imaging cartridge to room light any longer than necessary. Overexposing the cartridge may cause abnormally dark or light areas to appear on the printed page and reduce the life of the...
  • Page 28 To release the spring-loaded carrying handles on the sides of the cartridge, hold down each handle with your hand and remove the tape, then take your hand away slowly. Warning: When you remove the tape, the handle may spring out quickly enough to hurt your fingers. To avoid this, hold the handle firmly while peeling off the tape.
  • Page 29 Close cover A by pushing it up and into the printer. Warning: Do not touch the hot areas indicated on the caution labels inside cover A. Caution: Never transport the printer with the imaging cartridge installed.
  • Page 30 SelecType Map The maps in this section show the order in which SelecType menus and options appear on the LCD panel. Press the Menu button to display the next menu. Press the Alt + Menu buttons to display the previous menu.
  • Page 34 Page Printer Quick Reference Guide Printed in Japan 99.XX-XX...
