FPE1909DVDC

Summary of Contents

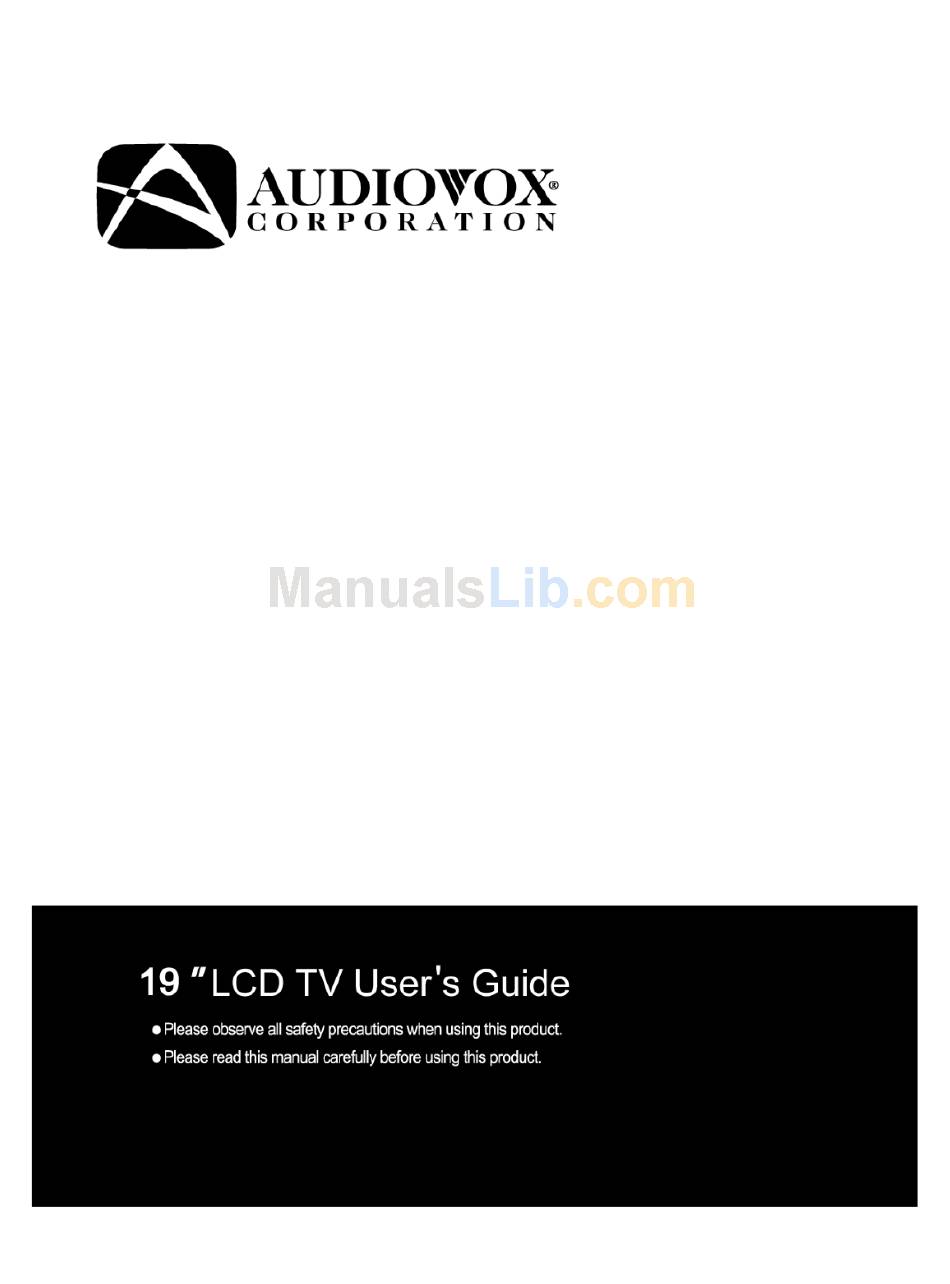

  • Page 1

    FPE1909DVDC...

  • Page 2: Safety Information

    Dear Customers May we take this opportunity to thank you for purchasing this LCD TV .We strongly recommend that you carefully read the safety and operation instructions before operating your TV. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your LCD TV found in this manual. Safety Information Note: ...

  • Page 3: Precaution

    Precautions Please read these precautions before operating this unit. Power cord protection:  Never use your LCD TV if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from where people can trip over it.

  • Page 4: Table Of Contents

    Table of contents Safety Information……………………………………………………………….……………………..………..2 Precaution………….…………………………………………………………….……………………..………..3 Table of contents……………………………………………………………….……………………..………..4 View of the Unit……………………………………………………………….……………………...……..5-6 Remote Control……...…………………………………………………………….……………………...…..7-8 For TV operation Basic opeartion……...……………………………………………………………….………………….…..9-10 Menu.opeartion..……………………………………………………………….…………………………..11 P I C T U R E S e t t i n g s … … . . . … … … … … … … … … … … … … … … … . … … … … … … … … … . . 1 2 S O U N D S e t t i n g s …...

  • Page 5: View Of The Unit, View Of The Unit

    The View of the Unit STATUS LED The LED will turn red in standby mode, and turn green in the on mode Infrared Receiver VOL+/VOL- button Decrease and increase volume. MENU button Press once to display the OSD (on screen display), press again to turn the OSD off. CH+/CH- button Decrease and increase channels.

  • Page 6

    The View of the Unit...

  • Page 7: Remote Control, Remote Control

    Remote Control POWER button NUMERIC buttons (0-9 and -/--) MENU button DIRECTION and ENTER/PLAY button INFO button SLEEP button MUTE button PLAY/PAUSE button (DVD only) STOP button (DVD only) GOTO button (DVD only) A-B button (DVD only) TITLE button (DVD only) ANGLE button (DVD only) FAST REVERSE button (DVD only) FAST FORWARD button (DVD only)

  • Page 8

    Remote Control Battery installation Insert the batteries while observing the correct (+) and (-) polarities. Service life of batteries The batteries normally last for about one year although this depends on how often and for what operations the remote control is used. ...

  • Page 9

    Basic operation (For TV Opeartion) Connect the power supply. Connect the power, then press the STANDBY button on the front panel to turn on the unit. Press the SOURCE button to select TV mode, then press RIGHT button to confirm. Adjust the volume.

  • Page 10

    Sleep function Press SLEEP button to set up the sleep time to shut down your monitor. You can select 15, 30, 45, 60, 90, or 120 minutes and off by pressing the SLEEP button continually. Viewing the AV SOURCE such as DVD\VCR\CAMCORDER Press the SOURCE button Select the suitable input to pickup the AV signal.

  • Page 11

    Navigating the Menu Press MENU button on the remote control, the on-screen menu will appear on the screen. Use the UP/DOWN buttons to select your main menu option. PICTURE MENU Make agjustments to your picture settings. TIME MENU Set up a varity of time options. LOCK MENU Set up a varity of features.

  • Page 12

    PICTURE Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the PICTURE menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual PICTURE option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit .

  • Page 13

    SOUND Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the SOUND menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual SOUND option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit The SOUND menu includes the following options: Sound Mode...

  • Page 14

    CHANNEL Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the CHANNEL menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual CHANNEL option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit The CHANNEL menu includes the following options: Antenna...

  • Page 15

    SETUP Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the SETUP menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual SETUP option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit.

  • Page 16

    TIME Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the TIMEmenu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual TIME option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit The TIME menu includes the following options: Sleep timer...

  • Page 17

    LOCK Settings Press the MENU button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the LOCKmenu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual LOCK option, use the LEFT and RIGHT buttons to change the setting, and press the MENU to exit.

  • Page 18

    Basic DVD Operation Connect the power supply. Connect the power ,then press the STANDBY button to turn on the unit. Press SOURCE button to select DVD input mode and press RIGHT button to confirm. Press EJECT on the remote control to open the disc tray, then insert a disc correctly. Press the PLAY button to start play.

  • Page 19

    Random playback Press RANDOM during playback. In random mode, if you press RANDOM again to return normal playback. To Scan at Fast Forward or Fast Reverse playback You can press button on the remote control during playback.  [Screen display] The speed of advance (reverse) is relatively slow at first.

  • Page 20

    Viewing from another Angle Some DVDs may contain scenes which have been shot simultaneously from a number of different angles. For these discs, the same scene can be viewed from each of these different angles using the ANGLE button. (The recorded angles differ depending on the disc used.) Press ANGLE repeatedly until the desired angle is selected.

  • Page 21

    GENERAL Settings Press the SETUP button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the GENERAL SETUP menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual GENERAL SETUP option and to change the setting. Press the SETUP to exit the menu.

  • Page 22

    PREFERENCE Settings Press the SETUP button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the PREFERENCE menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual PREFERENCE option and to change the setting. Press the SETUP to exit the menu.

  • Page 23

    ANALOG AUDIO Settings Press the SETUP button on the remote control to display the Main menu, and use the LEFT/RIGHT/UP/DOWN buttons to select the ANALOG AUDIO SETUP menu. Use the LEFT/RIGHT/UP/DOWN buttons to highlight an individual ANALOG AUDIO option and to change the setting. Press the SETUP to exit the menu.

  • Page 24: Specifications

    Specifications Size Resolution Lcd panel Brightness Contrast ratio Viewing angle VIDEO COMPONENT INPUT VGA/ VGA AUDIO AUDIO(L/R) HDMI POWER SOURCE Standard Note : Design and specifications are subject to change without notice. Weight and Dimensions shown are approximate. 19 ’’ 1440 x 900 800:1...
