Summary of Contents for Art Phantom II Pro

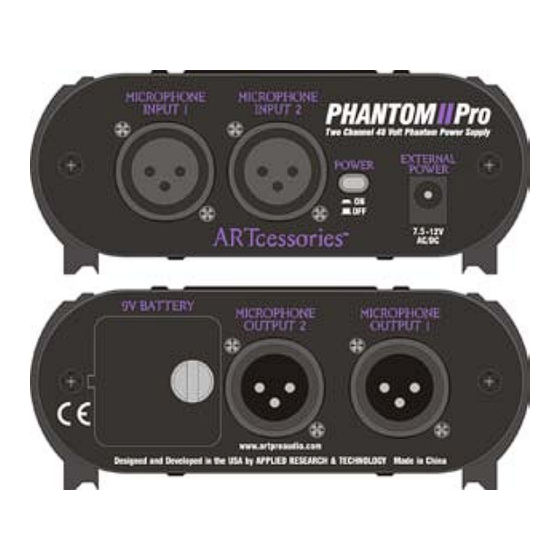

- Page 1 Two Channel 48 Volt Phantom Power Supply Artcessories User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
- Page 3 Installation: Install the unit in accordance with the instructions printed in the user guide.
- Page 4 INTRODUCTION: Thanks purchasing Applied Research Technology’s PHANTOMIIPRO offering a superb level of sound quality.The PHANTOMIIPro is designed to do one thing and do it well. It provides clean, reliable phantom power for one or two condenser microphones in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life.
- Page 5 FEATURES: • XLR connectors for balanced inputs and outputs • Low power, high efficiency CMOS circuitry for long battery life using a standard 9-Volt battery (Alkaline recommended) • Can be powered with an external power supply for operation from AC mains •...
-
Page 6: Installation And Operation
INSTALLATION and OPERATION: Install a battery in the unit by unscrewing the knurled fastener open BATTERY compartment and snapping the connector on to the battery. Alternatively, connect an external power supply to the EXTERNAL POWER jack. The PHANTOMIIPro is protected in case both sources of power are applied at the same time. - Page 8 Signal Flow Chart...
-
Page 9: Specifications
SPECIFICATIONS: Input Connections: Female XLR (2) Output Connections: Male XLR (2) Phantom Power Voltage: 48 Volts DC typical Current Limiting Resistors: 6.98k Ohms (1%) Power Source: 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) or external supply 7.5- 12 V AC/DC, Any Polarity, <... -
Page 10: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 11 specific rights and you may have other rights, which vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor of Applied Research and Technology will provide service.
- Page 12 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
- Page 14 www.artproaudio.com E-mail: support@artproaudio.com © 2014 Applied Research & Technology PHANTOMIIPro P2P-5004-101 V1.1...
