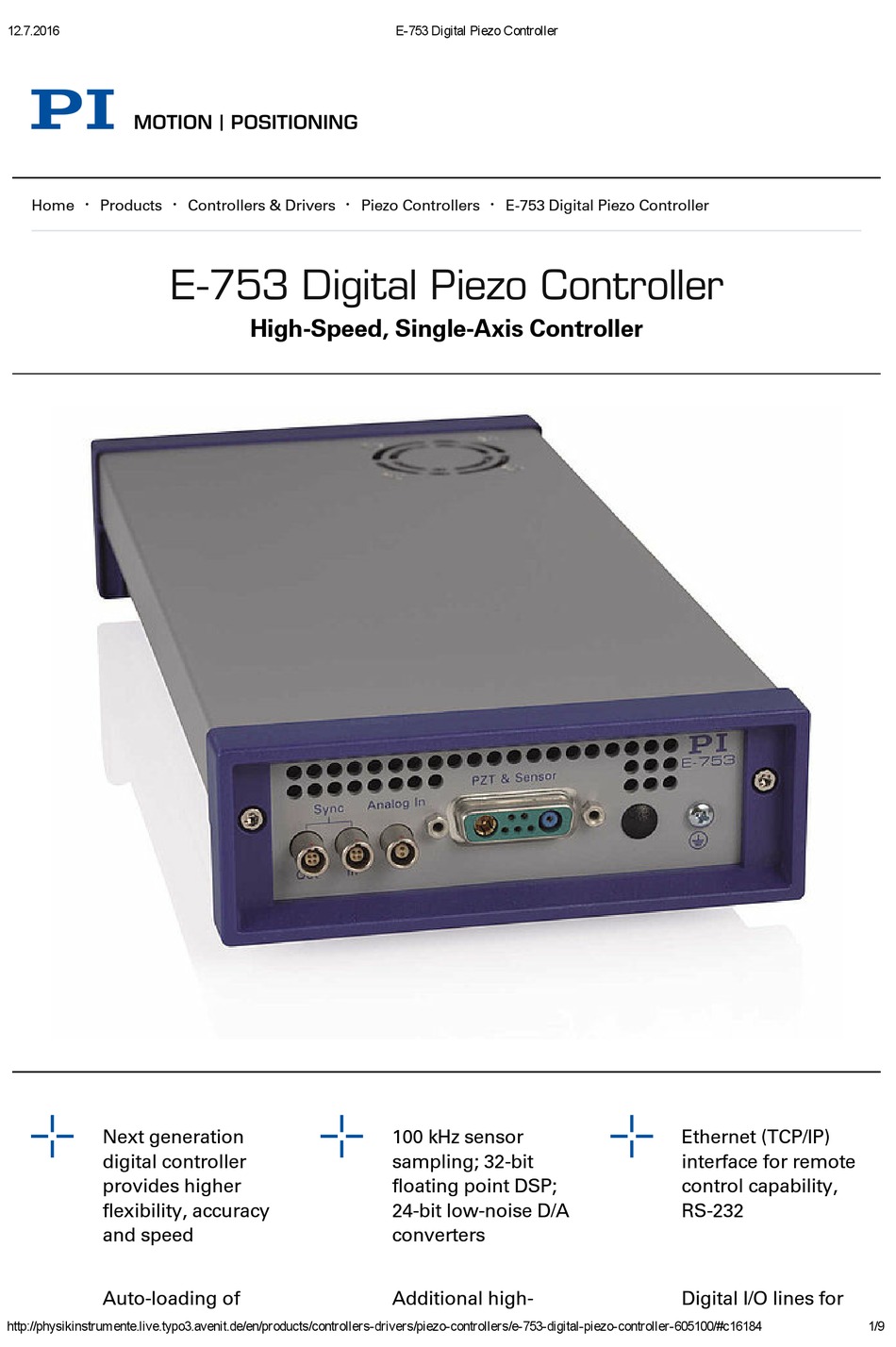

12.7.2016
MOTION | POSITIONING
Home
Products
E-753 Digital Piezo Controller
Next generation
digital controller
provides higher
flexibility, accuracy
and speed
Auto-loading of
http://physikinstrumente.live.typo3.avenit.de/en/products/controllersdrivers/piezocontrollers/e753digitalpiezocontroller605100/#c16184
Controllers & Drivers
High-Speed, Single-Axis Controller
E753 Digital Piezo Controller
Piezo Controllers
E-753 Digital Piezo Controller
100 kHz sensor
sampling; 32-bit
floating point DSP;
24-bit low-noise D/A
converters
Additional high-
Ethernet (TCP/IP)
interface for remote
control capability,
RS-232
Digital I/O lines for
1/9
