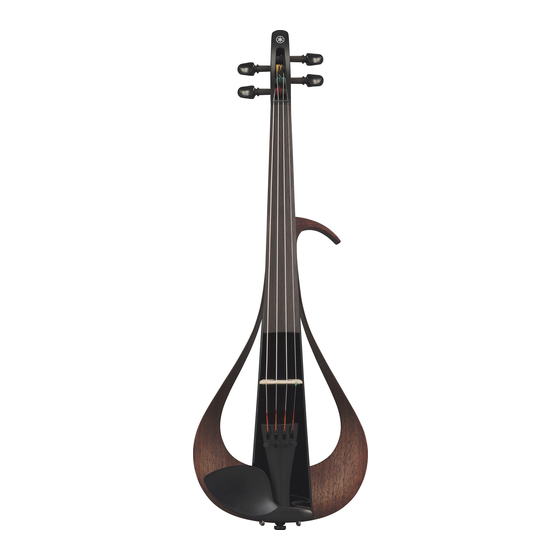

- Page 1 Electric Violin YEV104/YEV105 取扱説明書 Owner’s Manual Bedienungsanleitung Mode d’emploi Manuale dell’utente Manual del propietario Manual do Usuário 使用手册 사용 설명서 YEV105...
-
Page 2: Table Of Contents
Owner’s Manual YEV104/YEV105 Thank you for purchasing the Yamaha Electric Violin. The YEV104 and YEV105 are a new generation of Electric Violins delivering high performance that meet the demands of stage use. The instrument incorporates a beautiful, unique shape crafted with Yamaha’s advanced wood processing technologies, and utilizes a... -
Page 3: Special Message Section
Yamaha. If a cart, etc., is used, please observe all safety tally friendly. We sincerely believe that our products and... -
Page 4: Precautions
Yamaha service personnel. CAUTION Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:... -
Page 5: Parts Diagram
Selector Switch Volume Control Output Jack Bridge Body Frame Adjuster Tailpiece Chin rest The YEV105 (5-string model) is used in the illustration. The number of strings/tuners, and the shape of the fingerboard and tailpiece are different on the YEV104 (4-string model). -
Page 6: Output Jack
Rear Control Section ● q Output Jack This is the pickup’s passive signal output jack. Connect this jack to a device with a high-impedance input such as a preamplifier, direct box, or musical instrument amplifier. * The input impedance of the first device (preamp, direct box, etc.) the instrument connects to has a major influence on the sound quality produced by the speakers. -
Page 7: Set Up
• The lower side of the bridge supports the 1st string (E), the higher side supports the 4th string (G)/5th string (C). Please note the bridge orientation and center the bridge over the pickup cable hole as shown in the illustration below. YEV104 YEV105 Groove... - Page 8 CAUTION Make sure that the strings are resting in their appropriate grooves in the bridge when playing the instrument. Strings may come out of their grooves when adjusting the bridge or changing strings. Since the 1st (E) and 4th (G)/5th (C) strings tend to come out of their grooves easily, use your fingers to hold the strings gently in place when tuning the instrument.
-
Page 9: The Shoulder Rest
1st string (E) 5th string (C) 1st string (E) 4th string (G) YEV105 YEV104 ■ The Shoulder Rest Shoulder rest A commercially available violin shoulder rest (4/4 size) can be attached to the instrument. * Some shoulder rests are incompatible (air cushion... -
Page 10: Specifications
String Length 328 mm (12-15/16”) Dimensions YEV104 : 592 (L) x 204 (W) x 111 (H) mm 23-5/16” (L) x 8-1/16” (W) x 4-3/8” (H) YEV105 : 607 (L) x 204 (W) x 120 (H) mm 23-7/8” (L) x 8-1/16” (W) x 4-3/4” (H) Weight YEV104 : approximately 550 g (1 lbs. - Page 11 〒430-8650 静岡県浜松市中区中沢町10-1 ZR53760 版次：1603 R2 Printed in China...
