CD RECEIVER
KDC-5080R/RY,
KDC-6016R
SERVICE MANUAL

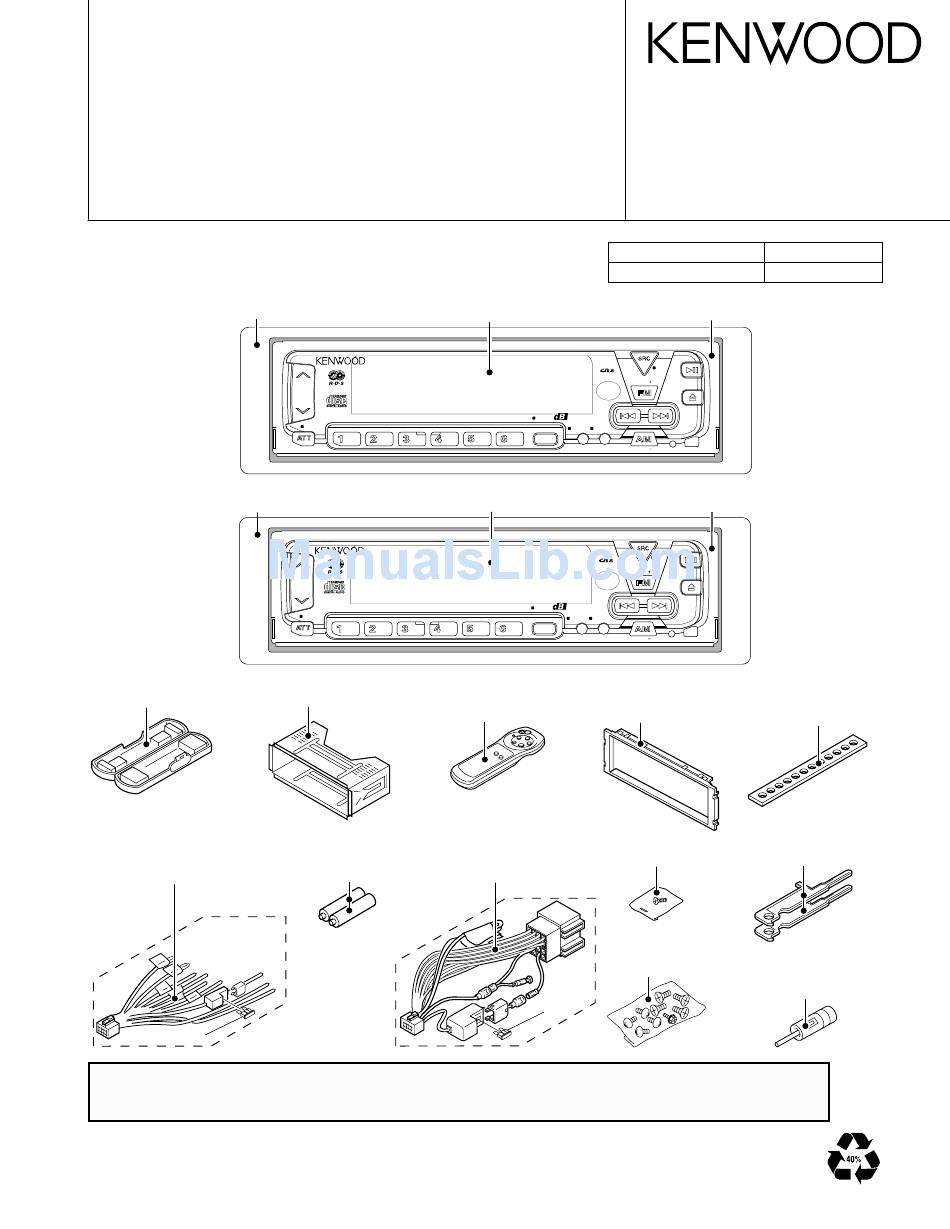

Escutcheon assy
(B07-2195-08)
KDC-5080R/RY
Escutcheon assy
(B07-2195-08)
KDC-6016R
Plastic cabinet assy
Mounting hardware assy
(A02-1494-08)
(J21-9585-08)
DC cord
(E30-4868-08)
:KDC-6016R
F1
The MECHANISM OPERATION DESCRIPTION is the same as model KDC-S3007 and KDC-5050RG.
Please refer to the service manual for model KDC-S3007(B51-7029-00) or KDC-5050RG(B51-7099-00).
Front glass assy
(B10-3215-08)
KDC-5080R
SCAN
RDM
REP
D.SCN
LOUD
Front glass assy
(B10-3214-08)
KDC-6016R
45W 4
X
SCAN
RDM
REP
D.SCN
LOUD
Remote controller assy
(A70-0883-05)
:KDC-6016R
DC cord
Battery(size:AAA)
(E30-4869-08)
Not supplied as
service parts
:KDC-5080R/RY
© 2000-2 PRINTED IN JAPAN
B51-7593-00 ( N ) 2209
Extension cord
CD mechanism(22P)
Panel assy
(A64-2092-08)
PWR
OFF
45W 4
X
DISC
DAB
M.RDM
MENU
TI
DISP
VOL ADJ
NAME.S
AUD
DISC
Panel assy
(A64-2092-08)
PWR
OFF
DISC
DAB
EJECT
M.RDM
MENU
TI
DISP
VOL ADJ
NAME.S
AUD
DISC
Escutcheon(J CAR)
(B07-2186-08)
:KDC-6016R
Screw set
(N99-1688-08)
Screw set
(N99-1689-08)
:KDC-6016R
F1
Parts No.
W05-0618-00
PTY
EJECT
PTY
Stay
(J54-0611-08)
:KDC-6016R
Lever
(D10-4514-08)x2
Ant adapter
(T90-0523-05)
:KDC-5080R/RY

Advertisement

Table of Contents
loading

Related Manuals for Kenwood KDC-5080R/RY

Summary of Contents for Kenwood KDC-5080R/RY

  • Page 1 CD RECEIVER KDC-5080R/RY, KDC-6016R SERVICE MANUAL © 2000-2 PRINTED IN JAPAN B51-7593-00 ( N ) 2209 Extension cord Parts No. CD mechanism(22P) W05-0618-00 Escutcheon assy Front glass assy Panel assy (B07-2195-08) (B10-3215-08) (A64-2092-08) KDC-5080R/RY KDC-5080R 45W 4 DISC EJECT SCAN D.SCN...
