- Page 1 NS-LCD32F TV-8888-98...
- Page 2 1. Summarize 2. Main features 3. Appearance picture of complete set 4. Appearance picture of chassis 5. Interface definition 6. Factory mode instruction 7. Transportation, storage and usage requirements 8. Appendix 9. Circuit Diagram...
-
Page 3: Main Features

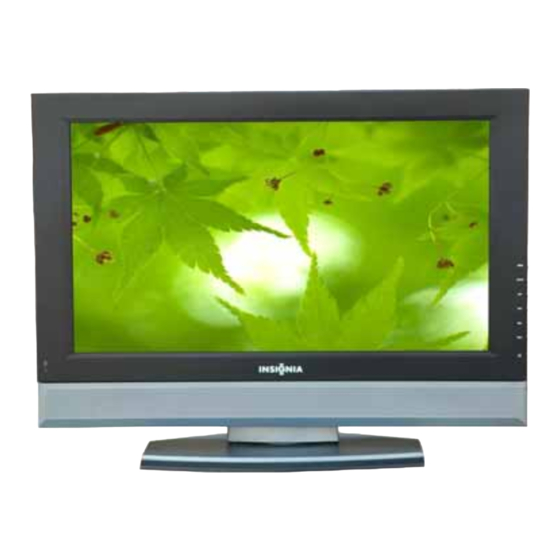

1、Summarize this chassis is used to match and connect the big screen LCD TV, it supports multi-system TV input signal , it can stored 128 TV programs at most, at the same time the highest resolution of this chassis can be up to SXGA or appear R, G, B input signal of WXGA of 16:9 again, color appear again can support 24 bit, and it can realize synchronous automatic check. - Page 4 3、Appearance picture of complete set...
- Page 5 4、Appearance picture of chassis TV input Speaker Output Earphone Output AV2(Side-AV) input AV audio output DVD S-video input DVD +12V AV video output power input AV1 audio input DVD +5V power input AV1 video input DVD Remote S-Video input signal input (Up)HDTV audio input Upgrade Interface (Down)HDTV input...
- Page 6 Backlight Control Interface LVDS output...
-
Page 7: Debug Menu
5、Interface definition(See appendix) 1. Power input：Supply the working power to chassis from power board. 2. Background light control panel interface ： Control the switch and brightness of screen background light. 3. Remote board interface：Support NEC receiving negotiation. 4. Control panel interface：7 button control. 5. - Page 8 7、 Transportation, storage and usage requirements 1. Never press heavily and bend 2. Eliminated static 3. Relative humidity: below 80% 4. Storage temperature: -10℃～40℃ 5. Usage temperature: 0℃～40℃ 8、Appendix Interface definition table: ： XP600(9PIN/2.5mm) Power input Pin NO. Def. Description Power-on signal(high-level is available) Ground CPU working voltage(standby power not off)
- Page 9 ： XP502(4PIN/2.0mm) Control panel interface Pin NO. Def. Description KEY1 Control panel signal 1 Ground KEY0 Control panel signal 1 Ground（No connect） （ ） 、 （ ） ： CON9 Right CON12 Left (2PIN/2.5mm) Sound output Pin NO. Def. Description SPK+ Sound output signal + SPK- Sound output signal -...
