Philips PS27FHDER User Manual

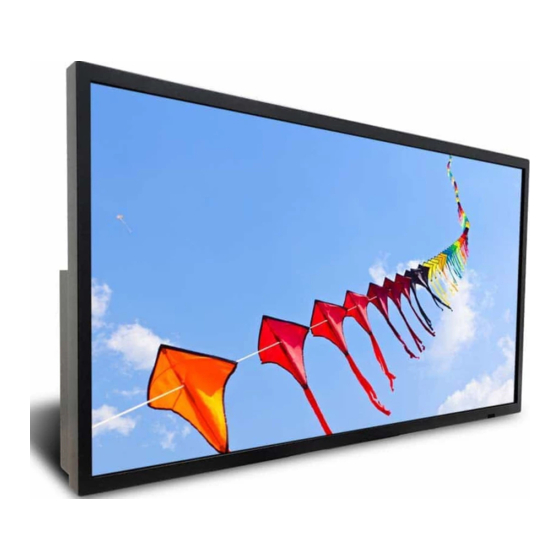

27'' fhd color lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide

PS27FHDER
27" FHD Color LCD Monitor

Advertisement

Table of Contents
loading

Related Manuals for Philips PS27FHDER

Summary of Contents for Philips PS27FHDER

  • Page 1: User Guide

    User Guide PS27FHDER 27” FHD Color LCD Monitor...
  • Page 2 Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Printed in Italy...

  • Page 3: Table Of Contents

    Technical specifications ..................31 K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 4 Table of contents K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 5: Welcome

    1. Welcome! 1. WELCOME! Introduction The PS27FHDER monitor is a 27” color LCD monitor to be used in a system for diagnostic and interven- tional X-ray applications. Type of equipment: stationary (on a stable mechanical array structure) Intended location: inside of patient area The monitor has not applied parts, but the front side of the LCD panel and the plastic enclosure have been treated as applied part because considered accidentally touchable by the patient for a time <1 minute.
  • Page 6 100 - 240 VAC mains power input (IEC C14) DVI 1 Single Link input DisplayPort 1.1 input DVI 2 Single Link input +5 VDC, 500 mA power output USB-B 2.0 upstream connector USB-A 2.0 downstream connector K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 7: Monitor Installation

    2. Connect the USB upstream connector to a USB host if you want to make use of any of the monitor USB downstream connectors (e.g. to connect a keyboard, mouse or other peripheral). 3. Connect the mains power input to a grounded power outlet. K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 8 1. Slide the 4 position clips on top of the cable cover in the matching fixation holes at the back of the monitor. 2. Attach the cable cover by pushing the bottom into the monitor until you hear a “click” sound at both ends of the cover. Image 2-5 K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 9: Vesa Mount Installation

    7.8 mm. Caution: Use an arm that is approved by VESA. Caution: Use an arm according to clause 9.8 of IEC 60601-1, considering that the product weight is 8.9 kg. Image 2-6 K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 10 2. Monitor installation K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 11: Daily Operation

    3. Daily operation 3. DAILY OPERATION On/Off switching About The PS27FHDER monitor automatically turns on as soon as the power cord is connected to the mains plug. The monitor requires at maximum 30 seconds to power-up. Status LED About During start-up, the monitor performs a self-test and sync-test before going into normal operation mode.

  • Page 12: Brightness Adjustment

    When brightness is at 100%, by keeping the Up / Brightness increase key ( ) pressed for at least 3 seconds, the brightness is forced to the MAX brightness mode, which adds up 20 cd/m² to the default stabilized brightness value. Press the Menu / Enter key ( ) to exit the MAX brightness mode. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 13: Advanced Operation

    4. Advanced operation 4. ADVANCED OPERATION OSD menu structure Below is an overview of the PS27FHDER OSD menu structure. Detailed info about the different menus and settings is available in the next sections. Settings Info Model: PS2XXHDXR OSD Position Serial Number...

  • Page 14: Image Source Selection

    Native: Input pixel to LCD pixel mapping, no scaling, aligned to the screen center. • Aspect: Fill the screen on largest dimension, no modification in image aspect-ratio • Full Screen: Fill the screen, image aspect-ratio can be altered K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 15: Color Temperature

    1. Bring up the OSD main menu. 2. Navigate to the Image > Color Temperature menu. 3. Select one of the available color temperature settings. Source DVI2 Info Aspect Ratio Full Screen Color Temperature Calibrated Display Function Native Image Settings Image 4-5 K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 16: Display Function

    There’s choice from a number of predefined positions. To change the position of the OSD menu 1. Bring up the OSD main menu. 2. Navigate to the Settings > OSD Position menu. 3. Select one of the available OSD menu positions. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 17: Osd Menu Time-Out

    This setting allows you to prevent the access to the OSD and to the brightness control when enabled. To fully lock/unlock the OSD 1. Bring up the OSD main menu. 2. Navigate to the Settings > OSD Lock menu. 3. Select On to enable or Off to disable the OSD lock. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 18: Factory Reset

    Power (5V) over DVI2: PIN 14 ON • +5 VDC power output: On Brightness setting: 100% To reset the OSD menu settings 1. Bring up the OSD main menu. 2. Navigate to the Settings menu. 3. Select Factory reset. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 19: Power Over Dvi

    OSD Lock Factory Reset Image DVI1 5V DVI2 5V Settings 5V Output Image 4-11 OSD Position Center Info OSD Timeout 240 sec. OSD Lock Factory Reset Image DVI1 5V DVI2 5V Settings 5V Output Image 4-12 K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 20: Vdc Power Output

    3. Select On to enable or Off to disable the +5 VDC power output connector. OSD Position Center Info OSD Timeout 240 sec. OSD Lock Factory Reset Image DVI1 5V DVI2 5V Settings 5V Output Image 4-13 K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 21: Cleaning Your Display

    LCD. AUTION Do not apply or spray liquid directly to the display as excess liquid may cause damage to internal electronics. Instead, apply the liquid to a cleaning cloth. K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 22 5. Cleaning your display K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 23: Important Information

    Power requirements: The equipment must be powered by the AC mains voltage. • The equipment is intended for continuous operation. Transient over-voltage To fully disengage the power to the device, please disconnect the power cord from the AC inlet. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 24: Power Cords

    IEC 62471: 2006; EN 62471: 2008 (Photobiological Safety Of Lamps And Lamp System) FCC class B ICES-001 Level B RoHS (2011/65/EC) National Scandinavian Deviations for CL. 1.7.2: Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag" K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 25: Environmental Information

    Electronic Information Products”. 零件项目(名称) 有毒有害物质或元素 Component name Hazardous substances and elements 铅 镉 汞 六价铬 多溴联苯 多溴二苯 醚 Cr6+ PBDE 印制电路配件 Printed Circuit Assemblies 液晶面板 LCD panel 外接电(线)缆 External Cables 內部线路 Internal wiring 金属外壳 Metal enclosure K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 26: Biological Hazard And Returns

    However, normal use shall exclude biological contaminated environments, to prevent spreading of infec- tions. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 27: Regulatory Information

    Regulatory information Indications for use The PS27FHDER is intended to be used as a tool in displaying and viewing digital images (excluding digital mammography) for review and analysis by trained medical practitioners. Caution (USA): Federal law restricts this device to sale by or on the order of a physician. (Details & exemptions are in the Code of Federal Regulations Title 21, 801 Part D).
  • Page 28 Consult the dealer or an experienced technician for help. Electromagnetic immunity The PS27FHDER is intended for use in the electromagnetic environment specified below. The customer or the user of the PS27FHDER should assure that it is used in such an environment. Immunity test IEC 60601-1-2...
  • Page 29 150 kHz to 80 MHz equipment should be Radiated RF 3 V/m 3 V/m used no closer to any part of the PS27FHDER, IEC 61000-4-3 80 MHz to 2.5 GHz including cables, than the recommended separation distance calculated from the...
  • Page 30 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the PS27FHDER is used exceeds the applicable RF compliance level above, the PS27FHDER should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the PS27FHDER.

  • Page 31: Explanation Of Symbols

    Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations Indicates the USB connectors on the device Indicates the DisplayPort connectors on the device Indicates the legal manufacturer Indicates the manufacturing date K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 32: Legal Disclaimer

    Our goal is to provide you with the most accurate and usable documentation possible; if you discover errors, please let us know. 5. Values for xx and yy can be found in the technical specifications paragraph. K5902101 (451920611531) PS27FHDER 21/05/2015...

  • Page 33: Technical Specifications

    Dimensions (W x H x D) 648.5 x 387 x 86.4 mm Dimensions packaged (W x H 730 x 200 x 560 mm x D) Net weight 8.9 ± 0.5 kg Net weight packaged 10.6 ± 0.5 kg K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 34 10°C to 40°C (10°C to 35°C within specs) Storage temperature -20°C to 60°C Operating humidity 20% - 80% (non-condensing) Storage humidity 10% - 90% (non-condensing) Operation altitude 0 - 3000 m Storage altitude 0 - 3000 m K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 35 6. Important information Dimensions 648.5 mm 86.4 mm 597.9 mm 274.3 mm 100.0 mm Image 6-1 Identification label position The product identification label is located at the back of the monitor under the cable cover as illustrated below. K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 36 6. Important information Image 6-2 K5902101 (451920611531) PS27FHDER 21/05/2015...
  • Page 40 K5902101-00 (451920611531) May 2015 FIMI S.r.l. Saronno - Italy Barco n.v. President Kennedypark 35 8500 Kortrijk Belgium www.barco.com...
