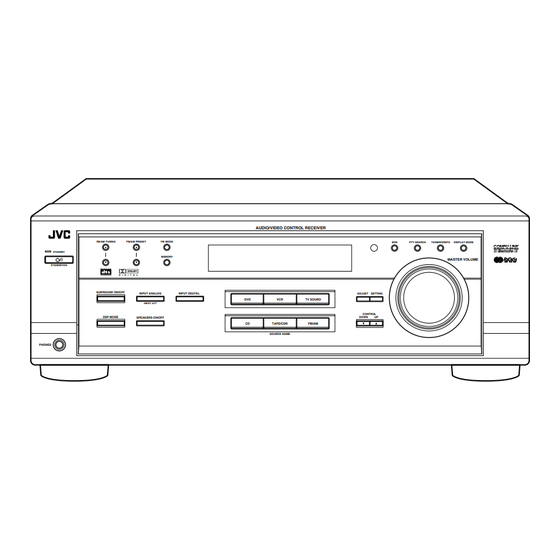

RX-6010RBK/RX-6012RSL SERVICE MANUAL AUDIO/VIDEO CONTROL RECEIVER RX-6010RBK RX-6012RSL Area Suffix RX-6010RBK Continental Europe Northern Europe RX-6010RSL U.K. Continental Europe Northern Europe SLEEP AUDIO SURROUND TEST – SUBWOOFER + SURROUND MODE EFFECT – CENTER + AUDIO/VIDEO CONTROL RECEIVER SOUND – VCR CH + –...
Page 2
RX-6010RBK/RX-6012RSL 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.
Page 3
RX-6010RBK/RX-6012RSL Disassembly method Top cover Removing the top cover (See Fig.1) Remove the four screws A attaching the top cover on both sides of the body. Remove the three screws B on the back of the body. Remove the top cover from behind in the direction of Fig.1...
Page 4
RX-6010RBK/RX-6012RSL Removing each board connected to the rear side of the audio board (See Fig.5 to 8) Prior to performing the following procedure, remove Audio the top cover and the rear panel. board Cut off the tie band fixing the harness.
Page 5
RX-6010RBK/RX-6012RSL Removing the audio board CN385 Relay board (See Fig.9) Prior to performing the following procedure, remove the top cover and the rear panel. power supply board Disconnect the card wire from connector CN402 on CN473 the audio board. CN291...
Page 6
RX-6010RBK/RX-6012RSL Removing the power transformer (See Fig.13) Prior to performing the following procedures, remove the top cover. Power Power transformer Unsolder the two harnesses connected to the power supply board board transformer. FW201 Disconnect the harness from connector CN251 and...
Page 7
RX-6010RBK/RX-6012RSL Removing the system control board / Operation switch panel Front panel assembly power switch board (See Fig.16 to 18) Prior to performing the following procedure, remove the top cover and the front panel assembly. Pull out the volume knob on the front side of the front panel and remove the nut attaching the system control board.
Page 8
RX-6010RBK/RX-6012RSL Adjustment method Tuner section 1.Tuner range 87.5MHz~108.0MHz AM (MW) 522kHz~1629kHz (LW) 144kHz~ 288kHz Power amplifier section Adjustment of idling current Measurement location TP301(Lch) , TP302(Rch) Adjustment part VR301(Lch) , VR302(Rch) Attention This adjustment does not obtain a correct adjustment value immediately after the amplifier is used (state that an internal temperature has risen).
Page 9
RX-6010RBK/RX-6012RSL Description of major ICs SAA6588 (IC191) : RDS detector 2.Pin Function 1.Terminal Layout Symbol Function Multi-path rectifier output Non connect Test control input pin SCOUT Oscillator output OSCO OSCO Vref Oscillator input OSCI OSCI Digital ground (0V) VSSD Digital power supply (5V)
RX-6010RBK/RX-6012RSL 2.Pin Function Pin No. Symbol Descriptions SURROUND SURROUND control terminal BASS BOOST BASS BOOST control terminal INPUT-ATT Input attenuator control terminal MUTING control terminal MUTING AVDD Analog positive power supply terminal SUB Woofer volume signal input terminal SWIN A.GND...
Page 16
RX-6010RBK/RX-6012RSL MN101C35DHK1 (IC701) : System controller Pin function (1/2) Symbol Function Pin No. TXD/SB00/P00 VOL.JOG IN_1 RXD/SBI0/P01 VOL.JOG IN_2 SBT0/P02 DATA (PLL) SB01/P03 (PLL) SBI1/P04 (PLL) SBT1/P05 VIDEO S/C DVD BUZZER/P06 VIDEO S/C VCR Power supply +5V 9,10 OSC1,2 OSC (8MHz)
Page 17
RX-6010RBK/RX-6012RSL Pin function (2/2) Symbol Function Pin No. (DSP) SBT2/P32 READY (DSP) RESET (DSP) RELAY S RELAY C RELAY L/R 1 RELAY L/R 2 DGT17/P67 RELAY HEADPHONE DGT16/P66 FL GRID SIGNAL CONTROL OUT FL SEGMENT SIGNAL CONTROL OUT No Connect...
RX-6010RBK/RX-6012RSL TC9446F-014 (IC631) : Digital signal processor for dolby digital (AC-3) / MPEG2 audio decode Pin No. Symbol Function Reset signal input terminal (L:reset H:Operation usually) MIMD Microcomputer interface mode selection input terminal (L:serial H:IC bus) Microcomputer interface chip select input terminal...
Page 19
RX-6010RBK/RX-6012RSL UPD784215AGC103 (IC671) : UNIT CPU 1.Pin layout 2.Pin function Pin No. Symbol Function Non connect Power supply terminal Connecting the crystal oscillator for system main clock Connecting the crystal oscillator for system main clock Connect to GND Connecting the crystal oscillator for system sub clock...
Page 20
RX-6010RBK/RX-6012RSL VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan (No.20932) 200104(V)
RX-6010RBK/RX-6012RSL PARTS LIST [ RX-6010RBK ] [ RX-6012RSL ] * All printed circuit boards and its assemblies are not available as service parts. Area suffix B ------------------------------- U.K. E ----------- Continental Europe EN ------------ Northern Europe - Contents - Exploded view of general assembly and parts list...
Page 37
RX-6010RBK/RX-6012RSL Exploded view of general assembly and parts list Block No. Power trans board Power trans board Speaker board Power/Fuse board Relay board Main board Audio board Power supply board power switch board System control board...
Page 38
RX-6010RBK/RX-6012RSL Parts list (General assembly) Block No. M1MM Parts list (General assembly) Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area LV10457-009A FRONT PANEL RX-6010RBK QYSBSG3006Z T.SCREW H.S-C.B LV10457-010A FRONT PANEL...
Page 39
RX-6010RBK/RX-6012RSL Block No. 01 Electrical parts list (Power amp board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 201 QFLC2AJ-104Z M CAPACITOR .10MF 5% 100V C 812 QCS31HJ-100Z C CAPACITOR 10PF 5% 50V...
Page 40
RX-6010RBK/RX-6012RSL Block No. 01 Electrical parts list (Power amp board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area D 220 1SR139-400-T4 DIODE Q 311 KTC3200/GL/-T TRANSISTOR D 221 1SS133-T2 SI DIODE Q 312 KTC3200/GL/-T...
Page 41
RX-6010RBK/RX-6012RSL Electrical parts list Block No. 01 (Power amp board) Item Remarks Item Remarks Parts number Parts name Area Parts number Parts name Area R 315 QRJ146J-271X UNF C RESISTOR 270 5% 1/4W R 808 QRE141J-302Y C RESISTOR 3.0K 5% 1/4W...
Page 42
RX-6010RBK/RX-6012RSL Block No. 01 Electrical parts list (Power amp board) Item Parts number Parts name Remarks Area R 929 QRE141J-471Y C RESISTOR 470 5% 1/4W R 931 QRJ146J-100X UNF C RESISTOR 10 5% 1/4W R 933 QRJ146J-100X UNF C RESISTOR...
Page 43
RX-6010RBK/RX-6012RSL Block No. 02 Electrical parts list (Main board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 419 QCBB1HK-223Y C CAPACITOR .022MF 10% 50V C1373 QFLC1HJ-223Z M CAPACITOR .022MF 5% 50V C 420...
Page 44
RX-6010RBK/RX-6012RSL Block No. 02 Electrical parts list (Main board) Item Parts number Parts name Remarks Area R 440 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W R 441 QRE141J-104Y C RESISTOR 100K 5% 1/4W R 442 QRE141J-104Y C RESISTOR 100K 5% 1/4W...
Page 45
RX-6010RBK/RX-6012RSL Block No. 03 Electrical parts list (System control & Audio board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area BK701 LV42093-001A FL HOLDER(L) C1428 QFLC1HJ-153Z M CAPACITOR .015MF 5% 50V BK702 LV42092-001A FL HOLDER(R)
Page 46
RX-6010RBK/RX-6012RSL Block No. 03 Electrical parts list (System control & Audio board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area Q 709 DTC114YKA-X D TRANSISTOR R 712 NRSA63J-103X MG RESISTOR Q 711 DTA144EKA-X TRANSISTOR...
Page 47
RX-6010RBK/RX-6012RSL Block No. 03 Electrical parts list (System control & Audio board) Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R 789 NRSA63J-221X MG RESISTOR R1474 NRSA63J-102X MG RESISTOR R 790 NRSA63J-221X MG RESISTOR...
Page 48
RX-6010RBK/RX-6012RSL (DSP board) Block No. 04 Electrical parts list Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 601 NCB31HK-102X C CAPACITOR C2514 NCB31HK-122X C CAPACITOR C 602 NCB31HK-102X C CAPACITOR C2515 NCS31HJ-121X C CAPACITOR...
Page 49
RX-6010RBK/RX-6012RSL (DSP board) Block No. 04 Electrical parts list Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area IC683 RN5RZ33BA-X R 681 NRSA63J-103X MG RESISTOR IC690 BA15218F-XE R 682 NRSA63J-103X MG RESISTOR IC691 BA15218F-XE R 683...
Page 50
RX-6010RBK/RX-6012RSL Block No. 04 Electrical parts list (DSP board) Item Parts number Parts name Remarks Area R2568 NRSA63J-103X MG RESISTOR R2575 NRSA63J-102X MG RESISTOR R2576 NRSA63J-102X MG RESISTOR R2577 NRSA63J-104X MG RESISTOR R2578 NRSA63J-104X MG RESISTOR R2581 NRSA63J-104X MG RESISTOR...
Page 51
RX-6010RBK/RX-6012RSL (Tuner board) Block No. 05 Electrical parts list Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area AT101 QNB0014-001 ANT TERMINAL Q 102 2SC535/BC/-T TRANSISTOR BK 1 LV31618-001A SHIELD BKT Q 103 2SC461/BC/-T TRANSISTOR...
Page 52
RX-6010RBK/RX-6012RSL Packing materials and accessories parts list Block No. Block No. Ver.E/EN A2~A8 Ver.B A2~A8 3-18...
Page 53
RX-6010RBK/RX-6012RSL Parts list (Packing) Block No. M2MM Item Parts number Parts name Q'ty Description Area QPA02503505P POLY BAG FOR INST LV20983-006A PACKING CASE RX-6012RSL LV20983-005A PACKING CASE RX-6012RSL LV20983-003A PACKING CASE RX-6010RBK LV20925-001A PACKING PAD LV20926-001A PACKING PAD LV30385-004A SHEET...
