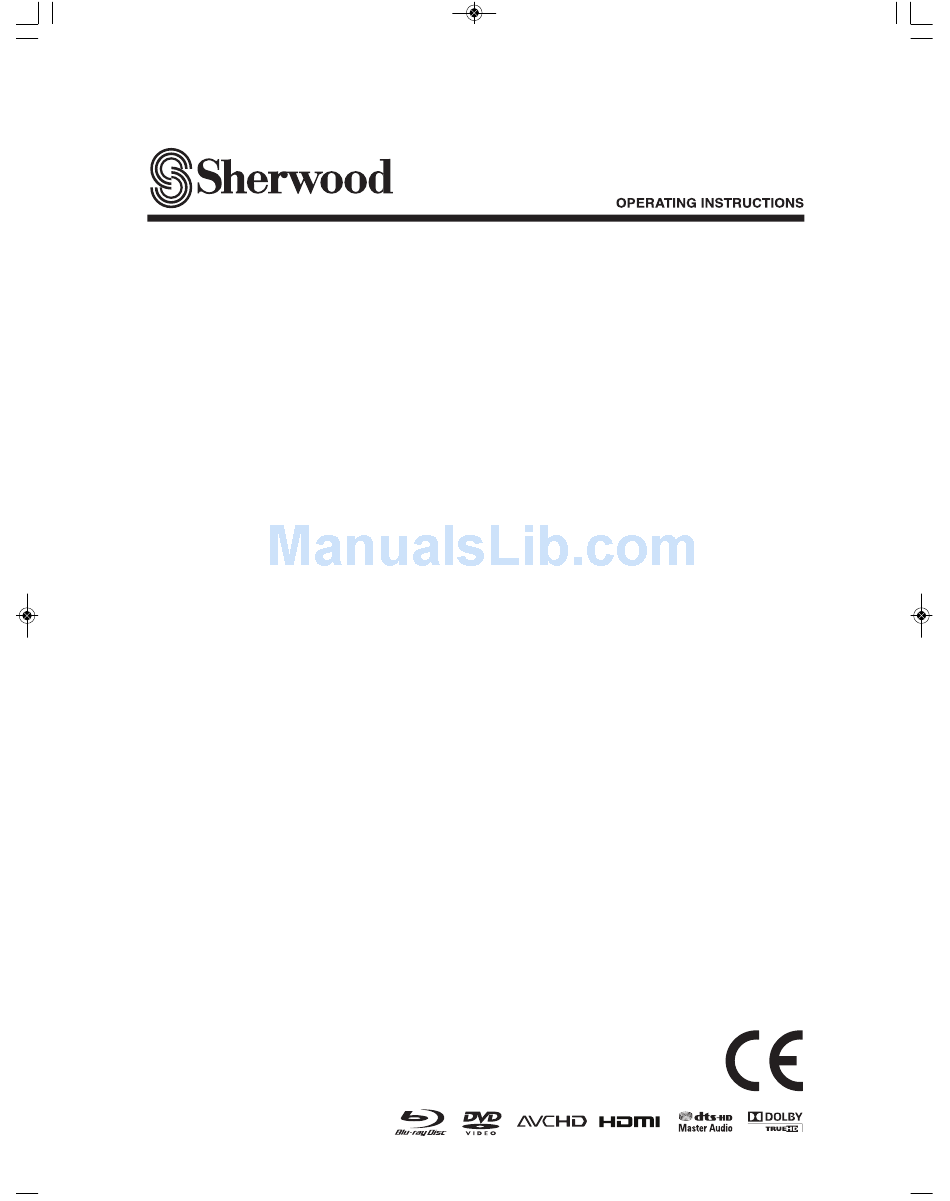

  • Page 1 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 1 BDP-904 BLU-RAY DISC PLAYER...

  • Page 2: Introduction

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 2 Introduction READ THIS BEFORE OPERATING YOUR UNIT This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 3 PRECAUTIONS ■Moisture condensation Moisture may form on the lens in the following conditions. • Immediately after a heater has been turned on. • In a steamy or very humid room. • When this unit is moved from a cold place to a warm one.

  • Page 4: Table Of Contents

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 4 cONTENTS • Introduction READ THIS BEFORE OPERATING YOUR UNIT ..................2 • System Connections CONNECTING TO A/V AMPLIFIER OR RECEIVER .................. 5 CONNECTING TO TV WITH HDMI IN CONNECTOR ................7 CONNECTING TO NETWORK ........................8 •...

  • Page 5: System Connections

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 5 System Connections • Do not connect the AC input cord into the AC outlet when plugging and unplugging connection cords. • Since different components often have different terminal names, carefully read the operating instructions of the component connected.
  • Page 6 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 6 ■About video/HDMI OUT jacks 1. Connecting AUDIO OUTs • You don’t need to make all kinds of video connections • Connect these jacks to the AUDIO IN jacks of BD(DVD, between components. (e/ g., this unit to A/V amplifier, A/V CD, etc.) of your amplifier.

  • Page 7: Connecting To Tv With Hdmi In Connector

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 7 cONNEcTING TO TV WITH HDMI IN cONNEcTOR • If you have a HDMI IN connector equipped TV or projector, etc., connected it to the HDMI OUT connector of this unit using a commercially available HDMI cord.

  • Page 8: Connecting To Network

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 8 cONNEcTING TO NETWORK • You can enjoy a variety of content with interactive functions by connecting to the internet when playing BD-LIVE compatible discs. • Connect the LAN connector of this unit to your internet source.
  • Page 9 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 9 ■ Video output resolution • The video output resolution differs depending on the Resolution setting. (For details, refer to “SETTING THE DISPLAY” on page 30.) Video OUTs Resolution setting (Composite) VIDEO OUT COMPONENT OUTs...
  • Page 10 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 10 ■ Audio output signals • The audio output differs as follows, depending on the audio format, output jack and Digital Output settings. (For details, refer to “SETTING THE AUDIO” on page 31.) Digital Analog...

  • Page 11: Front Panel Controls

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 11 Front Panel Controls 1. POWER switch 9. RANDOM button 2. POWER ON/STANDBY button/indicator 10. DISC TRAY 3. OPEN/CLOSE( ) button 11. REMOTE SENSOR 4. PLAY/PAUSE(▶■■ ) button 12. FLUORESCENT DISPLAY 5. STOP(■) button For details, see below.

  • Page 12: Remote Controls

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 12 Remote Controls POWER ON button STANDBY button NUMERIC buttons CLEAR button GO TO button STEP( ) button SLOW( ) button PLAY/PAUSE(▶/ ■■ ) button STOP(■) button FORWARD/BACKWARD FORWARD/BACKWARD SEARCH(▶ ▶ /◀ ◀) buttons SKIP(▶ ▶ ■ / ■ ■ ◀ ◀) buttons...

  • Page 13: Remote Control Operation Range

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 13 REMOTE cONTROL OPERATION RANGE • Use the remote control within a range of about 7 meters (23 feet) and angles of up to 30 degrees aiming at the remote sensor. LOADING BATTERIES Remove the cover.

  • Page 14: Preliminary Knowledge About Discs

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 14 Preliminary Knowledge About Discs PLAYABLE DISc TYPES REGION cODE This unit supports the following discs. • Blu-ray Disc player and BD-ROM or DVD Video discs are assigned region codes according to the region in which...

  • Page 15: Notes On Copyright

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 15 ■JPEG (“.jpg”, “.jpeg”) NOTES ON cOPYRIGHT • Maximum resolution : 4,272x2,848 pixels. • JPEG format images stored in progressive format cannot be played back. • Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the ■AVI (“.avi”)

  • Page 16: Operations

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 16 Operations ■Before starting playback • First set this unit as desired for optimum performance, doing the system setting procedures. (For details, refer to "System Settings" on page 28.) • For explanation purposes, this instructions explains the OSD(On-Screen Display) language displayed on TV in English.
  • Page 17 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 17 Slow playback To start playback from the menu • To select the preferred item, press the CURSOR buttons and press the OK button or press the NUMERIC buttons. • Each time the SLOW ( ) button is pressed, you can play back the disc slowly at 3 step speeds.
  • Page 18 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 18 Displaying disc information At the desired search mode, enter the number to be played, pressing the NUMERIC buttons. • During playback, ■When entering title, chapter, track number Examples : For “3” : For “11” : •...
  • Page 19 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 19 Playing in random order Playing repeatedly • You can play the tracks in random order. • You can play a current title, chapter, disc or track • During playback, press the RANDOM button. repeatedly.
  • Page 20 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 20 ■Using the top menu. Switching the audio soundtrack During playback, press the POPUP MENU button. For discs on which multiple audio streams are recorded, audio streams can be switched during playback. Also use this procedure to switch the secondary audio for BD video on which secondary audio is recorded.
  • Page 21 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 21 Switching the subtitles Switching the camera angles For discs on which multiple subtitles are recorded, the • For discs on which multiple angles are recorded, the angles subtitles can be switched during playback. Also use this can be switched during playback.

  • Page 22: Enjoying Bonusview Or Bd-Live

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 22 ENJOYING BONUSVIEW OR BD-LIVE This unit is compatible with additional functions of BD Video, Press the CURSOR RIGHT button to enter the BONUSVIEW (BD-ROM Profile 2.0) and BD-LIVE. For BD PIP mode menu. Video discs compatible with BONUSVIEW, the functions of Picture in Picture and Virtual Package are available.

  • Page 23: Playing Files

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 23 PLAYING FILES • You can play music files such as MP3 and WMA, picture Select the desired file using the CURSOR files such as JPEG and video files such as AVI and WMV buttons, then press the OK button or the recorded onto a CD-R/-RW or a USB memory device.
  • Page 24 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 24 Selecting an item in the play menu To stop playback • The items listed in the play menu may vary depending on the operation status and the selected media, etc. ■Note: • Then the playback will be stopped and the play mode, •...
  • Page 25 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 25 Frame advance playback Displaying file information • During playback, • Each time the STEP( ) button is pressed, the video • Then the file information is displayed on the TV screen. file is advanced by one frame.
  • Page 26 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 26 Continued ■When entering the elapsed time Playing in random order You can play from the desired by specifying the elapsed time from the beginning of the current file. • You can play the files in random order.
  • Page 27 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 27 Playing both the music files and the JPEG files simultaneously During playback of music files, press the OK button. • Then the play menu, etc are displayed. In the play menu, press the CURSOR UP/DOWN buttons to select the “Browse Pictures”, then...

  • Page 28: System Settings

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 28 System Settings • The OSD (On-Screen Display) menu enables various audio/visual settings and adjustments. In the stop mode, press CURSOR UP/DOWN buttons to select “Settings” in the main menu, then press the CURSOR RIGHT button.

  • Page 29: Setting The System

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 29 SETTING THE SYSTEM • For how to select the setting items and options, refer to “System Settings” on page 28. • Settings with* are the default. Setting items Options Optical Disc AutoPlay On* : Set whether to automatically play a disc or not Starts play automatically.

  • Page 30: Setting The Display

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 30 SETTING THE DISPLAY • For how to select the setting items and options, refer to “System Settings” on page 28. • Settings with* are the default. Setting items Options NTSC : Select this when the video signal format of your TV and the discs is NTSC color system for U.S.A., Canada, etc..

  • Page 31: Setting The Audio

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 31 SETTING THE AUDIO • For how to select the setting items and options, refer to “System Settings” on page 28. • Settings with* are the default. Setting items Options 96 kHz : Outputs audio signals at 96 kHz sampling frequency.

  • Page 32: Setting The Language

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 32 SETTING THE LANGUAGE • For how to select the setting items and options, refer to “System Settings” on page 28. • Settings with* are the default. Setting items Options Set the language for unit’s OSD (On-Screen...

  • Page 33: Setting The Parental Control

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 33 SETTING THE PARENTAL cONTROL The parental control allows you to set a limit, which prevents your children from viewing inappropriate materials. If the ratings exceed the levels you set, playback will be stopped, or inappropriate scenes such as violent scenes can be cut or replaced with other scenes depending on the disc type.

  • Page 34: Setting The Network

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 34 SETTING THE NETWORK • To access BD-LIVE contents from websites, you should connect this unit to the internet and set the communication settings. (For details, “CONNECTING TO NETWORK” on page 8.) • When you set the communication setting manually, the following information of the connected router or modem is required.
  • Page 35 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 35 Continued When selecting the Network Test Press the CURSOR UP/DOWN buttons to select “Apply”, then press the OK button. • Then the network test is automatically performed and the result is displayed. ■When selecting the Manual or the Dynamic •...

  • Page 36: Definition Of Terms

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 36 Definition Of Terms AVCHD (Advanced Video Codec High Definition) BonusView The AVCHD is a high definition(HD) digital video camera Some BD-ROMs have bonus contents and other data that recorder format recording high-definition onto certain media can be downloaded to the external memory(local storage) for by using highly efficient codec technologies.
  • Page 37 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 37 HDMI Progressive format HDMI (High Definition Multimedia Interface) is a new Compared to the Interlace format that alternately shows connection format that supports both video and audio on a every other line of an image (field) to create one frame, the single digital connection.

  • Page 38: Troubleshooting Guide

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 38 Troubleshooting Guide If a fault occurs, run through the table below before taking your unit for repair. If the fault persists, attempt to solve it by switching the unit off and on again. If this fails to resolve the situation, consult your dealer.

  • Page 39: Specifications

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 39 Specifications SYSTEM • Type | Blu-ray Disc Player • Laser | Semiconductor laser • Video Signal System | PAL / NTSC AUDIO SECTION • Frequency response BD (Linear PCM), Sampling frequency : 48 kHz...

  • Page 40: License

    BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 40 License • This product uses some software programs which are distributed under the GPL license. Accordingly, the following GPL software source codes that have been used in this product can be provided after asking at http://www.sherwoodamerica.com.
  • Page 41 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 41 1.You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty;...
  • Page 42 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 42 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
  • Page 43 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 43 NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 44 BDP-904(A)_091204:BDP-904(A) 2009-12-07 오후 2:17 페이지 44 BDP-904 BLU-RAY DISC PLAYER 5707-00000-276-0S...
