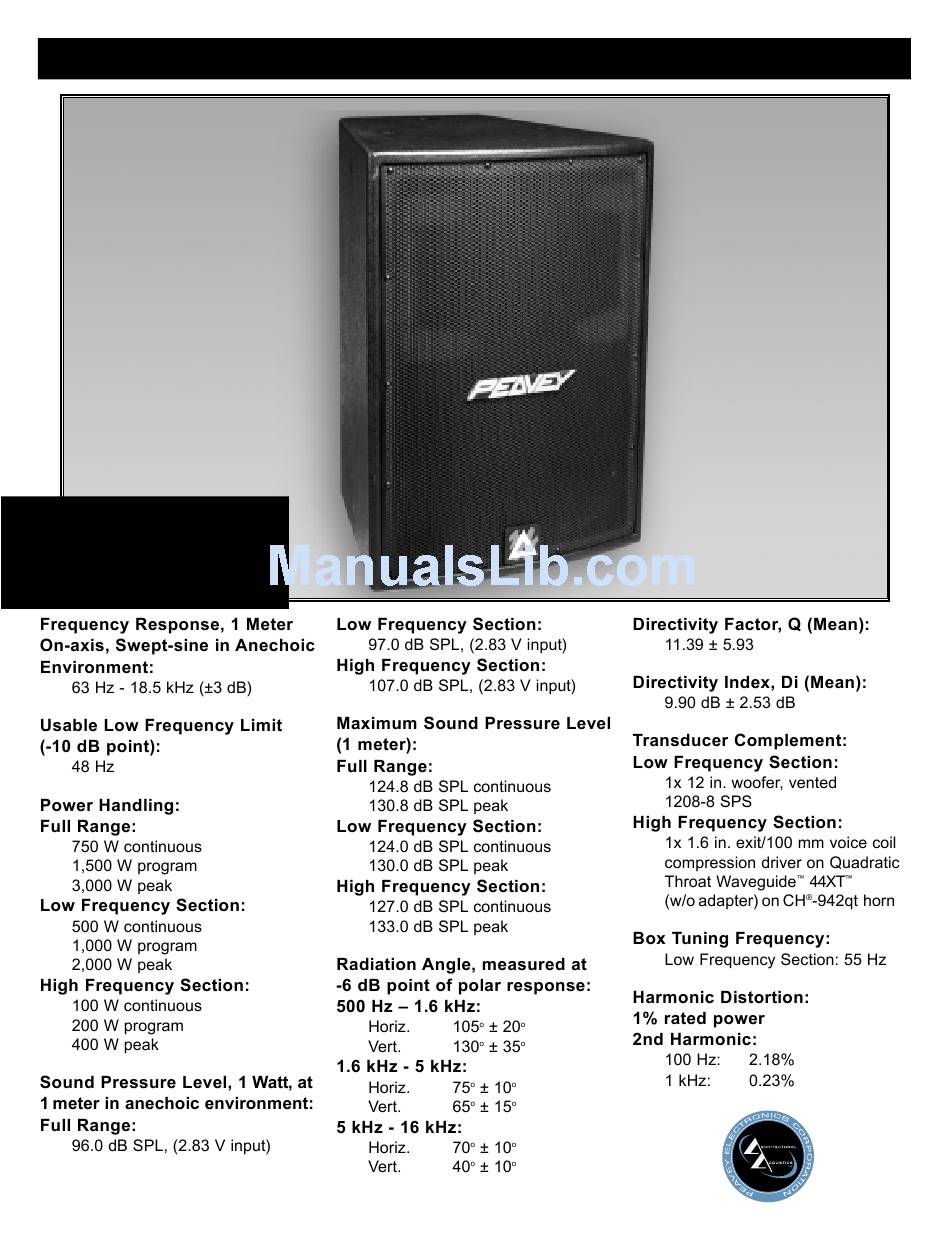

- Page 1 ™ 1294V...
- Page 2 Amplitude Response (1W 1m On-Axis) Frequency (Hz) Figure 1 Impedance Frequency (Hz) Figure 2 Beamwidth Horizontal Vertical Frequency (Hz) Figure 3 Q & Directivity Index Frequency (Hz) Figure 4...
- Page 3 Harmonic Distortion : 10% Rated Power Frequency (Hz) Figure 5 Harmonic Distortion : 1% Rated Power Frequency (Hz) Figure 6 2nd Harmonic 3rd Harmonic 2nd Harmonic 3rd Harmonic...
- Page 9 10.723 2.220 17.712 8.704 10.955 19.356 2.220 2.220 2.220 26.940 9.017 22.500 8.283 View A-A...
- Page 10 ILS 1 294V A PRODUCT OF PEAVEY ELECTRONICS CORP. FULL RANGE 1+ & 2+ (+) 1- & 2- (-) BIAMP 1+: LF+ 1-: LF- 2+: HF+ 2-: HF- ALL CONNECTORS ARE WIRED IN PARALLEL INTERNALLY. CHANGE INTERNAL JUMPER FOR BIAMP OR FULL RANGE OPERATION.
