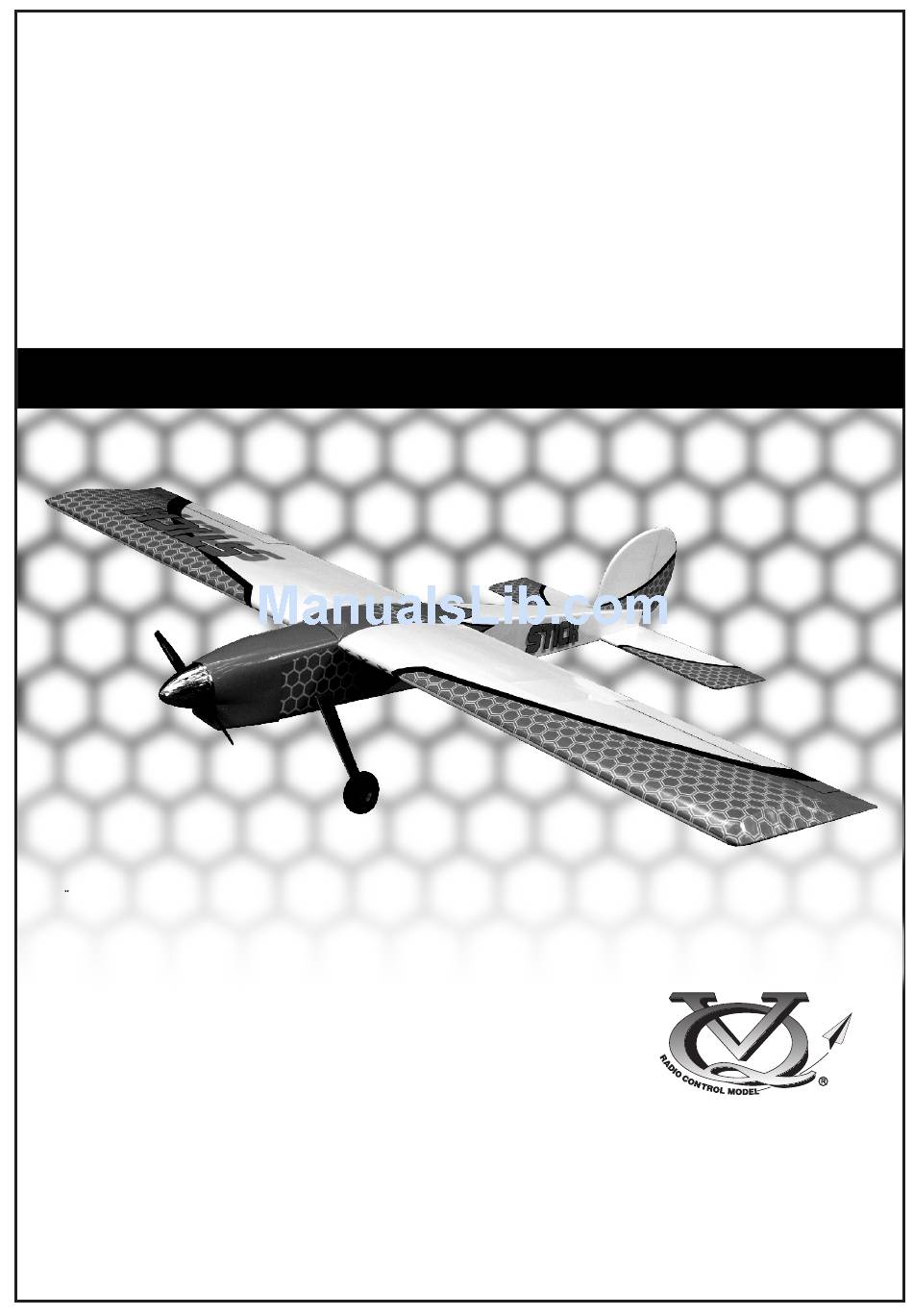

Radio control model Stick Sport 90 Instruction Manual

90 class - 2 cycle engine 120 class - 4 cycle engine

Advertisement

Quick Links

Radio control model - RC Flugmodell
STICK
INSTRUCTION MANUAL / Montageanleitung
TECHNISCHE DATEN
Spannweiter
Lange
Elektroantrieb
1000 Watt (BOOST 90)
Verbrennerantrieb
Fernsteuerung
SPECIFICATIONS
Wingspan
Length
Electric Motor
1000 Watt (BOOST 90)
Glow Engine
Radio
5 Channel / 5 Servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
ACHTUNG! Dieses ferngesteuerte Modell ist KEIN Spielzeug! Es ist für fortgeschrittene Modellflugpiloten bestimmt,
die ausreichende Erfahrung im Umgang mit derartigen Modellen besitzen Bei unsachgemäßer Verwendung kann
hoher Personen- und/oder Sachschaden entstehen. Fragen Sie in einem Modellbauverein in Ihrer Nähe um
professionelle Unterstützung, wenn Sie Hilfe im Bau und Betrieb benötigen. Der Zusammenbau dieses Modells ist
durch die vielen Abbildungen selbsterklärend und ist für fortgeschrittene, erfahrene Modellbauer bestimmt.
1940mm
1460mm
15cc 2-T / 20cc 4-T
5 Kanal / 5 Servos
1940mm
1460mm
15cc 2-T / 20cc 4-T
90 Class - 2 Cycle engine
120 Class - 4 Cycle engine
SPORT
90
