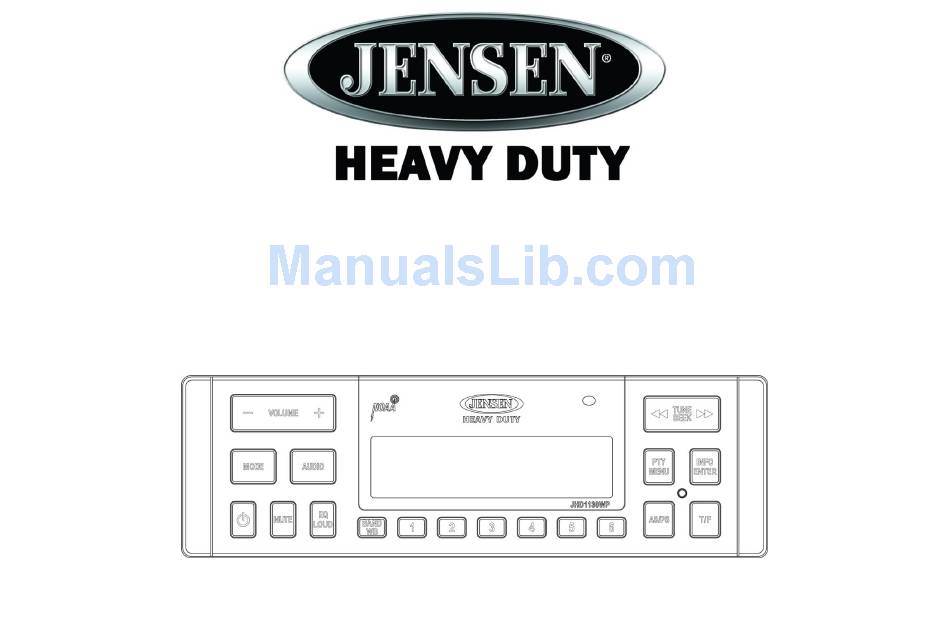

- Page 1 JHD1130WP AM/ FM/ WB/ AUX-IN Heavy Duty Radio Installation and Operation Manual...
-
Page 2: Table Of Contents
JHD1130WP CONTENTS Introduction ..........................1 Safety Information ........................2 Installation ..........................3 Wiring ............................4 Basic Operation ........................5 Tuner Operation........................7 Care and Maintenance ......................9 Troubleshooting ........................9 Specifications ......................... 10... -
Page 3: Introduction
JHD1130WP INTRODUCTION Content List System Features Jensen Heavy Duty Radio Features of Jensen JHD1130WP mobile audio system include: Hardware Kit 10 Character Alpha-Numeric Segmented LCD 10AMP Fuse AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM) Installation Manual ... -
Page 4: Safety Information
JHD1130WP SAFETY INFORMATION When Driving Keep the volume level low enough to be aware of the road and traffic conditions. When Washing Your Vehicle Do not expose the product to water or excessive moisture. Moisture can cause electrical shorts, fire or other damage. -
Page 5: Installation
JHD1130WP INSTALLATION Place the radio in front of the dashboard opening so the wiring can be brought through the mounting sleeve. This unit is designed for installation in vehicle cabs with an existing 1-DIN radio opening. In Follow the wiring diagram carefully and make certain all connections are secure and many cases, a special installation kit will be required to mount the radio to the dashboard. -
Page 6: Wiring
JHD1130WP WIRING DETAIL A WARNING! SHOWN FROM PIN VIEW Do not connect the +12VDC ACC switched PIN NO. DESCRIPTION wire to the battery. This wire MUST be RIGHT REAR SPEAKER (+) connected to the Accessory/ Ignition wire RIGHT FRONT SPEAKER (+) or a +12 volts switched power source. -
Page 7: Basic Operation
JHD1130WP BASIC OPERATION Function buttons do not operate Error symbol on the display Use a ball point pen or thin metal object to press the RESET button (17). This may be necessary should the unit display an error code. -
Page 8: Auxiliary Input
JHD1130WP PREONLY (On / Off): Turn preset-only tuning On/ Off. BAT ALRM (Off / On): When ON, the radio will alert when the voltage of vehicle battery is below 10.8 VDC. BAT OFF (Off / On): When ON, the radio will automatically turn off when the voltage of vehicle battery is below 10.8 VDC. -
Page 9: Tuner Operation
JHD1130WP TUNER OPERATION Automatically Store/ Preset Scan (AS/PS) Automatically Store Select an AM or FM band. Press and hold the AS/PS button (15) for more than 2 seconds to automatically select 18 strong stations (12 for AM). “FM STORE” or “AM STORE” will appear on the screen and the new stations will replace any stations previously stored. - Page 10 JHD1130WP Weather Band Operation What is the NOAA Weather Radio/ Weatheradio Canada? NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that broadcasts local weather emergency information 24 hours a day via the National Weather Service (NWS) network. The U.S. network has more than 530 stations covering the 50 states as well as the adjacent coastal waters, Puerto Rico, the U.S.
-
Page 11: Care And Maintenance
JHD1130WP CARE AND MAINTENANCE TROUBLESHOOTING Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Symptom Cause Solution Keep the product away from dust and dirt, which can cause premature wear of parts. -
Page 12: Specifications
JHD1130WP SPECIFICATIONS FM Radio Frequency Coverage (USA) ......... 87.5 to 107.9 MHz Frequency Coverage (Europe) . - Page 13 ASA Electronics Corporation www.asaelectronics.com www.jensenheavyduty.com ©2016 ASA Electronics Corporation v.280916...
