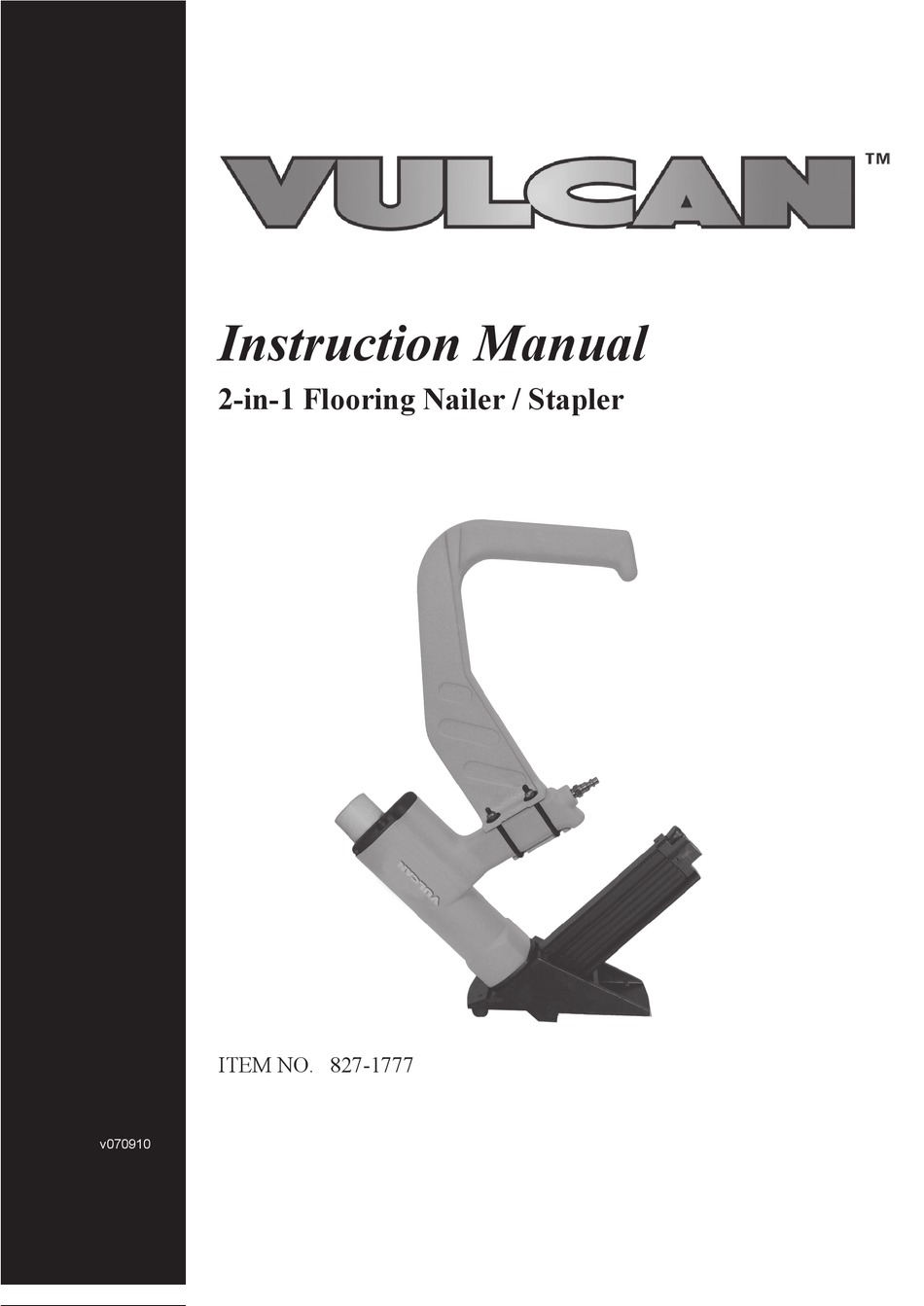

Page 1: Instruction Manual

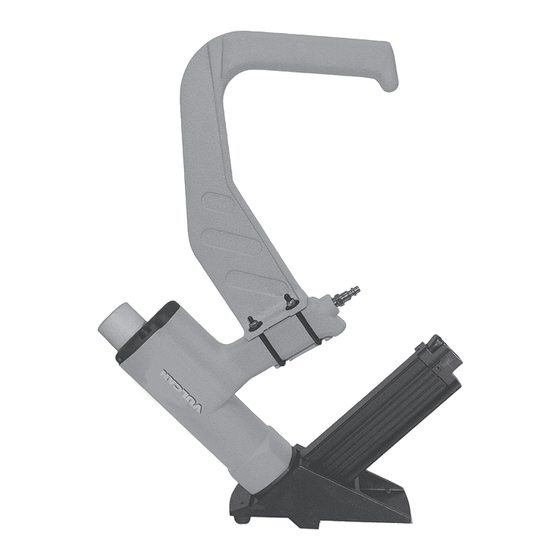

Instruction Manual Manual de instrucciones 2-in-1 Flooring Nailer / Stapler ITEM NO. 827-1777 ARTÍCULO No. v070910... - Page 2 THANK YOU for your purchase of this Vulcan Air Tool. With proper care and use you can expect your purchase to provide years of trouble free service! SHOULD YOU HAVE A QUESTION OR A PROBLEM WITH YOUR VULCAN TOOL, PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT TOLL FREE AT: 1-800-482-0131 Please have the tool, model number and instruction manual at hand before calling.
-
Page 3: Safety Rules For All Tools
SAFETY RULES FOR ALL TOOLS Read and understand all instructions. Failure to follow all instructions listed WARNING below may result in serious personal injury. SAVE THESE INSTRUCTIONS Work Area Employers must enforce compliance with the safety warnings and all other instructions Keep work area clean and well lit. - Page 4 User service. Some user-serviceable components When servicing tool, use only identical are described in the Troubleshooting section. We replacement parts. Follow instructions in cannot guarantee repairs made or attempted by the Maintenance section of this manual. Use anyone other than authorized agencies. of unauthorized parts or failure to follow Maintenance instructions may create a risk of Tool service must be performed only by...
- Page 5 Fire fasteners into work surface only and never Do not drive fasteners on top of other fasteners, or with the tool at too steep an angle: into materials too hard to penetrate the fasteners can ricochet causing personal injury. Grip tool firmly to maintain control while Do not drive fasteners too close to the edge allowing the tool to recoil away from the work of the workpiece.
-
Page 6: Specifications
Nomenclature for No. 827-1777 Flooring Nailer / Stapler SPECIFICATIONS Hammer Face Characteristic Value Long Arm Minimum Operating Air Pressure 60 PSI Air Inlet Maximum Operating Air Pressure 100 PSI Magazine Lock Nail Standard flooring cleat nails Fixed Magazine Nail Length 1-1/2”... -
Page 7: Setup And Operation
OPERATION & USE INSTRUCTIONS WARNING BE SURE THAT YOU READ, UNDERSTAND AND FOLLOW THE SAFETY RULES THAT ACCOMPANY THIS MANUAL. THIS WILL ALLOW FOR BEST USE AND MAXIMUM USER SATISFACTION. SETUP & OPERATION UNPACKING Check and make sure one of each of the following are all included. Hammer Nailer/Stapler S3 Hex Key... -
Page 8: Loading The Fasteners
CAUTION All air line components (including hoses, pipe, connectors, filters, & regulators, etc.) must be rated for a minimum working pressure of 150 psi or 150% of the maximum system pressure, whichever is greater. Disconnect the tool from the air supply before performing maintenance, clearing a jammed fastener, leaving the work area, moving the tool to another location, or handing it to another person. - Page 9 1b. Adjust the regulator to supply air at a higher pressure if increase drive depth is desired. Decreasing supplied air pressure will result in the fastener driven depth also being decreased. 1c. Test fire another fastener and check depth again. CAUTION Keep tool pointed in a safe direction at all times.
-
Page 10: Maintenance
MAINTENANCE DAILEY MAINTENANCE CAUTION Disconnect tool from air supply before cleaning and inspection. Correct all problems before putting the tool back in service. Wipe tool clean and inspect for wear or damage. Use non-flamable cleaning solutions to wipe exterior of tool only if necessary. Do Not Soak tool with cleaning solutions. Such solutions can damage internal parts. -
Page 11: Parts List
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Lack of power, slow to cycle. Tool is too dry Place 2 drops of oil into the Poor power of shooting and air plug returning Air pressure too low Check air supply equipment Exhaust blocked Clean exhaust channel Shooting no fastener or Damaged pusher spring Replace spring... - Page 12 PARTS LIST Please refer to the schematic drawing on page 13 ITEM DESCRIPTION ITEM DESCRIPTION Limited Nail Plate Spring Washer 4 Shoe Bushing Joint Guider Spring Pin 3 x 12 Bushing Washer 4 Screw M6 x 16 Pothook 25/32” Spacer Screw M3 x 5 1/2”...
-
Page 13: Schematic Drawing
SCHEMATIC DRAWING...
