Summary of Contents for CoPilot cpdvr4gps

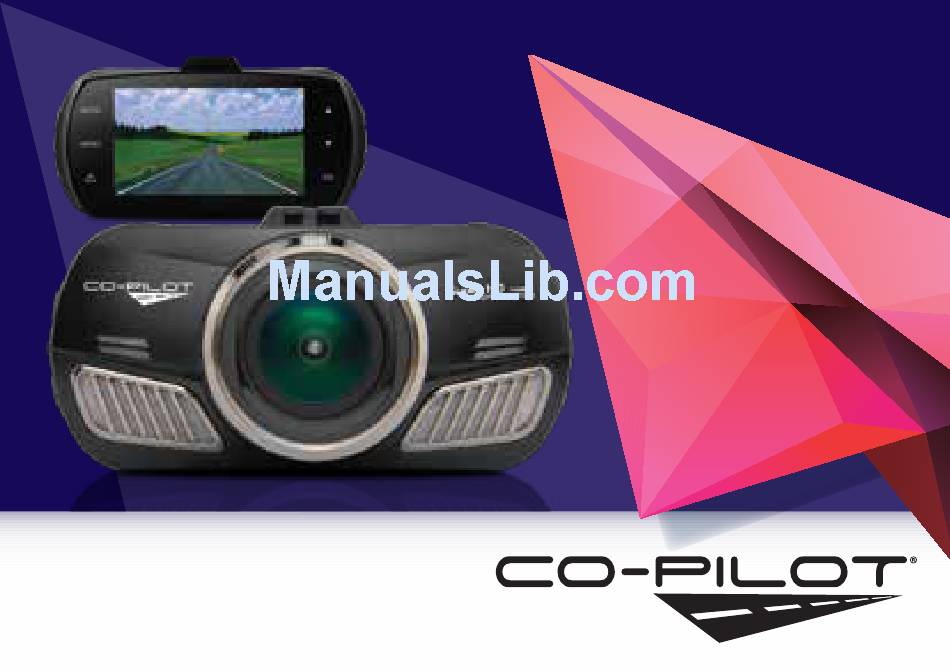

- Page 1 CPDVR4GPS...
- Page 2 To register your 2 year warranty, please visit www.copilotdashcams.com/warranty...
-
Page 3: Unit Maintenance
Unit Maintenance: • Avoid contact with water and other liquid as the unit is not waterproof • Do not attempt to open the unit, doing so will void your warranty • Clean with a soft damp cloth only, do not use any chemical cleaners If the video is unclear or blurry: •... - Page 4 Unit Structure Chart 1 MODE Button 4 MODE Button 7 Speaker 2 MENU Button 5 MENU Button 8 Radiator Shutter 3 SOS Emergency 6 SOS Emergency 9 HD Camera...
- Page 5 Unit Structure Chart 10 LCD 13 Holder Connector 16 MIC 11 AV-OUT GPS 14 USB interface 17 TF Slot 12 HDMI Interface 15 Power/Photo taking button 18 Reset...
- Page 6 Button & interface instructions Button Name Button Function Instructions Power/ Power on/off Short Press: Power on, red light turn off. Photo Button Take photos Long Press: Power off, red light will turn off Reset Reset Short Press: Restarts the unit when in standby mode Video start/stop/ In video mode, start/stop recording photograph Menu selection...
- Page 7 Button & interface instructions Button Name Button Function Instructions TF card Slot TF card Slot Insert the TF card into this Slot HDMI Interface High definition output Connect the HD television by HDMI cable, in the video mode, view the video/photos;...
-
Page 8: Video Mode
Photograph/Video/Playback basic operation instruction Video Mode Video Time Resolution TF Card Image Frames Connected Power Image Quality Loop Video Time Audio System time/ Date/Driver ID Before installation, operate instructions by hand: Power on/off by hand. Short press Power button, the red indication light will on. Enter the video mode, Long press Power button again, the red indication light will off. - Page 9 Photograph/Video/Playback basic operation instruction Video Mode Video Time Resolution TF Card Image Frames Connected Power Image Quality Loop Video Time Audio System time/ Date/Driver ID Video Mode: Short press mode button to switch to video mode, there is a video recording icon shown on the top left corner of the LCD;...
-
Page 10: Photo Mode
Photo Mode Photo Mode Photo Resolution Image Quality Photo Quality Prompt Short press MODE button to switch to photo mode, there is a photo shooting icon shown on the top left corner of the LCD, short press Power or Photo Taking button to take photos, when photography is finished, the LCD will be flash one time. -
Page 11: Video/Photo Playback
Video/Photo Playback Normal File Locked File Video File Short press MODE button twice to switch playback mode, the playback icon will be shown on the LCD top left corner: 1. Short press up/down button to selecting the file section(locked section/ regular file section); 2. -
Page 12: System Settings
Menu Setting Instructions System Settings Operation: 1. Short press Up/Down button to switch the setting options. 2. Short press OK button to enter the setting, short press up/down button to modify the setting. 3. Short press OK button to confirm the modification, if no save the modification, just press menu button to exit. -
Page 13: Photo Resolution
Menu Setting Instructions Photograph Settings: After power on, short press MODE button to switch the photograph mode, the photo icon will be shown on the LCD top left corner, press MENU button to enter the settings, there are 2 setting options: Photo resolution, Image quality;... -
Page 14: Playback Setting
Menu Setting Instructions Playback setting After power on, short press MODE button twice to switch the playback setting, the photo icon will be shown on the LCD top left corner, press MENU button one time to enter setting, there are 2 setting options (Play mode setting, Delete the file);... -
Page 15: Product Specifications
Product Specifications Product Feature HD Camera, HD Recording G-sensor Built-in(to save the file emergency, and cannot be deleted anymore if the collision of vehicles happen) LCD Size 2.7 LTPS 16:9 Lens 170 Degree A+ HD ultra wide angle Photo Pixel 1800W Video Pixel 500W... - Page 16 Product Specifications Product Feature HD Camera, HD Recording Motion Detection Support Year/Month/Day/Hour/ Support Minute Photo Pixel 4M/8M/14M/16M Photo Format JPEG Memory card TF (Support Max 512GB ) Support Built-in Speaker Support Support Optional(With GPS no AV, or With AV no GPS) ) ADAS Function LDWS, FCWS USB Function...
- Page 17 GPS player software Installation and Using Instruction(Only suitable for the units with GPS function) If need check the GPS information, the professional player must be installed firstly Please install the file provided in the unit: Please copy the file to computer and install. Using the player software: 1.
-
Page 18: Troubleshooting
Quick install instruction: • Make sure the location is clean and dry before mounting the unit • Connect to your 12v power socket via the cable connected to the USB socket on the unit • You should see a blue light to indicate the unit is charging, once the unit is fully charged the light will turn off •... - Page 20 CPDVR4GPS...
