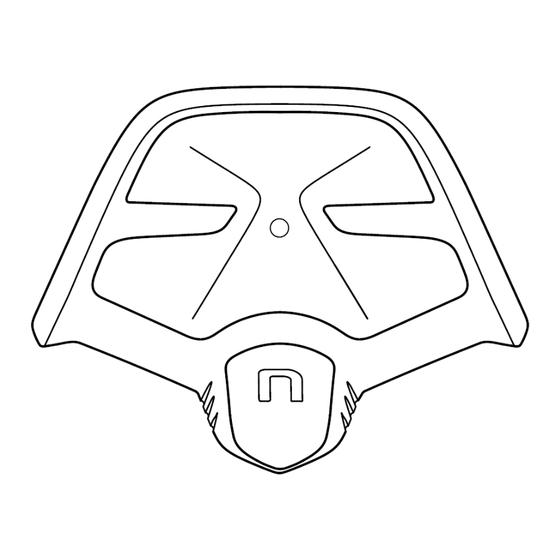

N-Com ESS User Instructions

Presence and braking signalling indicator with a led light
Hide thumbs
Table of Contents

Advertisement

Quick Links

EN

Advertisement

Table of Contents
loading

Related Manuals for N-Com ESS

Summary of Contents for N-Com ESS

  • Page 2 Congratulations on your purchase of an N-Com product. N-Com ESS was made using the most advanced technologies and the best materials. The system can only be installed on the pre-set Nolan N-Com helmets. Check on the website www.n-com.it the updated list of compatible helmets.

  • Page 3: Table Of Contents

    1.6. Disposal ................................ 7 CONTENT OF THE PACKAGING ......................8 INSTALLATION............................9 3.1. Removing the ESS system from the helmet ................14 BASIC FUNCTION ..........................15 4.1. Auto On / Off function ........................16 EMERGENCY STOP SIGNAL (mode 1) ....................17 REAR LIGHT (mode 2)........................18 POOR VISIBILITY LIGHT (mode 3)....................18...

  • Page 4: Warnings And Safety

     Make sure that the use of the emergency brake light (ESS – Emergency Stop Signal) is not in conflict with the regulations in force in the country where you will be travelling.

  • Page 5: Switching On The System In Safe Environments

    Do not turn on the N-Com system whenever their use is forbidden or when the devices can cause  interference or dangerous situations.  Turn off while refueling. Do not use the N-Com system in filling stations. Do not use the device near combustible materials or chemical products. Turn off in proximity to explosive materials. ...

  • Page 6: Accessories And Batteries

    Do not wear the helmet while the battery is recharging.  The helmet should never be left within the reach of unsupervised children in order to prevent damage to their health caused by access to the batteries. Battery ESS system Li-Po 523450P Lithium 3,7 – 1000 mAh...

  • Page 7: Disposal

    1.6. Disposal Refer to this user manual and to manuals related to other parts of the N-Com system in order to disassemble the system from the helmet. Once the system has been disassembled, dispose of it according to the following...

  • Page 8: Content Of The Packaging

    CONTENT OF THE PACKAGING FUNCTION KEY ESS system Mini USB wire HELMET MODEL Helmet adapters Helmet adapter double-sided adhesive tape...

  • Page 9: Installation

     Remove the “N-Com” plug located at the back on the shell edge gasket. Fig. 1  Prior to installing the N-Com system, remove the rear foam filling, if any. N.B.: Keep the filling material in case you wish to use the helmet without the N-Com system in the future.
  • Page 10  Select the specific adapter for your helmet (the compatible helmet model is shown on the back of the support). N.B.: The installation of the ESS system on an N87 helmet requires no adapter.  Remove the protective film from the double-sided adhesive tape located in the rear of the system ESS (Fig.
  • Page 11  Insert the FLEX cable of the ESS system in the hole of the selected adapter as illustrated, in the direction shown in the image (Fig. 4); Fig. 4  Rotate the adapter until it is in a horizontal position like the ESS system, then press the two components together until they stick one onto the other (Fig.
  • Page 12 (Fig. 6). Important: Make sure the Flex cable is not pulled too tightly. Fig. 6  Open the rubber cap of the ESS system.  Reassemble the edge gasket, securing it with the special screw (Fig. 7).
  • Page 13 (Fig. 8) and apply the ESS system to the shell (Fig. 9). Attention: Position the “ n ” of the ESS system at the shell edge gasket screw, so that the adapter is lined up with the helmet lines.

  • Page 14: Removing The Ess System From The Helmet

    3.1. Removing the ESS system from the helmet Proceed as follows to remove the ESS system from the helmet:  Remove the ESS light from the shell (Fig. 10). Fig. 10  Remove the cheek padding and the shell gasket;...

  • Page 15: Basic Function

    BASIC FUNCTION The ESS system features a menu with 3 operating modes: EMERGENCY STOP SIGNAL, REAL LIGHT, POOR VISIBILITY LIGHT. To scroll through this menu, briefly press the function key. Every time you press the key, the system switches to the next mode.

  • Page 16: Auto On / Off Function

    Switch off is confirmed by the upper LED Switching off flashing 4 times. N.B.: It is recommended to turn off the ESS system on the Rider helmet in case of a passenger. 4.1. Auto On / Off function The system does not have to be turned on and off every time you use the motorcycle: thanks to the triaxial accelerometer, if the helmet does no move for more than 60 seconds, the ESS system goes into “deep sleep”...

  • Page 17: Emergency Stop Signal (Mode 1)

    EMERGENCY STOP SIGNAL (mode 1) The ESS system is equipped with a LED system to assist emergency braking. In case of sudden braking, the LEDs on the ESS flash for a few seconds. The sensitivity of the stop signal can be adjusted in 3 different levels: Low: the stop signal turns on during sudden braking only ...

  • Page 18: Rear Light (Mode 2)

    REAR LIGHT (mode 2) The tail light makes it possible to activate the bottom LEDs of the ESS system, keeping them on during the entire ride. If the emergency brake light is activated during braking, all LEDs will start flashing.

  • Page 19: Battery And Recharge

     To charge the system, hook it up to a USB outlet powered with the USB-mini USB cable supplied as standard equipment.  During the charge, the LEDs of the ESS system flash.  The LEDs turn off once the battery has been charged.

  • Page 20: Limited Warranty

    Nolangroup.  Negligence and normal wear of internal and external parts.  Any damage caused by an accident;  Any change or modification made to the helmet or to the N-Com system by the user or by third parties.
  • Page 21  The internal helmet components are not and cannot be waterproof. Consequently, any improper exposure to rain, humidity, food spillages or other liquids can result in damages to the N-Com electronic devices, damages for which Nolan shall not be responsible.

  • Page 22: Validity Of This Limited Warranty

    9.3. Validity of this limited warranty This warranty is valid only if the enclosed warranty form is duly and completely filled out with the following information: Product identification code   Name and stamp of the authorized dealer.  Product purchase date. ...

  • Page 23: Product Identification

    Legislative Decree 2 February 2002 n. 24. 9.5. Product identification N-Com products are identified by means of a code that allows product traceability and identification. The identification code is listed on the adhesive label applied to the B5 system and on the...

  • Page 24: 10. Warranty Registration Form

    10. WARRANTY REGISTRATION FORM Product name: Identification code Buyer’s Information Name Last name Address Phone e-mail Dealer’s stamp Date of purchase...
