Patton electronics ForeFront 2616RC Specifications

The Patton Model 2616RC is a software-programmable, non-blocking digital cross connect with 16 channelized
T1/E1 ports and flexible any-to-any DS0 mapping.
Clock Synchronization
Any port can serve as master or secondary
clock source for the entire ForeFront chassis
Nx64 Speeds from 64 to 2048 kbps
Each port is independently selectable for any
required bandwidth including clear channel (32
time slots)
Independent T1/E1 Port Mapping
Ports can be configured independently, sup-
porting T1 & E1 ports on the same card
Port Fallback
A fallback port can be configured for any port
to ensure non-stop switching of data
Fault-Tolerant Processing
Each module independently sustains switching
with its own built-in processor for non-stop
operation
SNMP/HTTP Management
SNMP/HTTP manageable from anywhere in the
world including attached CPE units
Complete Alarm Facilities
Configurable alarm reporting with SNMP Traps,
front panel LEDs, 3-contact relay, and syslog
Special Rates Available
Call for Details
ForeFront ™
16-Port T1/E1 T-DAC
Digital Cross Connect
Model 2616RC
P
atton's Model 2616RC TDM-Digital Access
Concentrator (T-DAC) card provides afford-
able, high density access concentration
and cross connection of DS0 time slots for most
network applications. Patton combines 16 soft-
ware-programmable T1/E1 ports that have inte-
grated CSU/DSUs with a fully non-blocking, any-to-
any DS0 switching fabric for implementing power-
ful multi-module systems in Patton's ForeFront
Access Platforms.
Each T1/E1 port of the Model 2616RC supports
user-selectable data rates from 64 to 2048 kbps.
With a built-in cross connect, each data channel or
channel group can be multiplexed onto any other
T1/E1 port—even ports on other T-DACS (such as
the Patton Model 3196 or 3096) in the same chas-
sis.
Rear access card provides
any-to-any DS0 connectivity
Interoperable with other
ForeFront front resource cards
AIS
Support for HDB3 and AMI line coding on E1
(G.703/G.704) ports and AMI and B8ZS line coding
on T1 ports, makes the 2616RC one of the most
flexible cross connects available.
Every 2616RC T-DAC has its own processing capa-
bility, ensuring continuous operation and manage-
ability even in the presence of multiple network
outages. Support for primary and secondary sys-
tem clock sources guarantee continuous synchro-
nization with the other modules as well as the TDM
network. To add to fault tolerance and reliability,
fallback ports are configurable for any port to
ensure that if the attached circuit fails, channels
being carried on the failed circuit can be re-routed
to another port. An integrated SNMP/HTTP-based
management system allows for easy configuration
via any SNMP-enabled NMS or via a web browser.
Visit www.patton.com for more information.

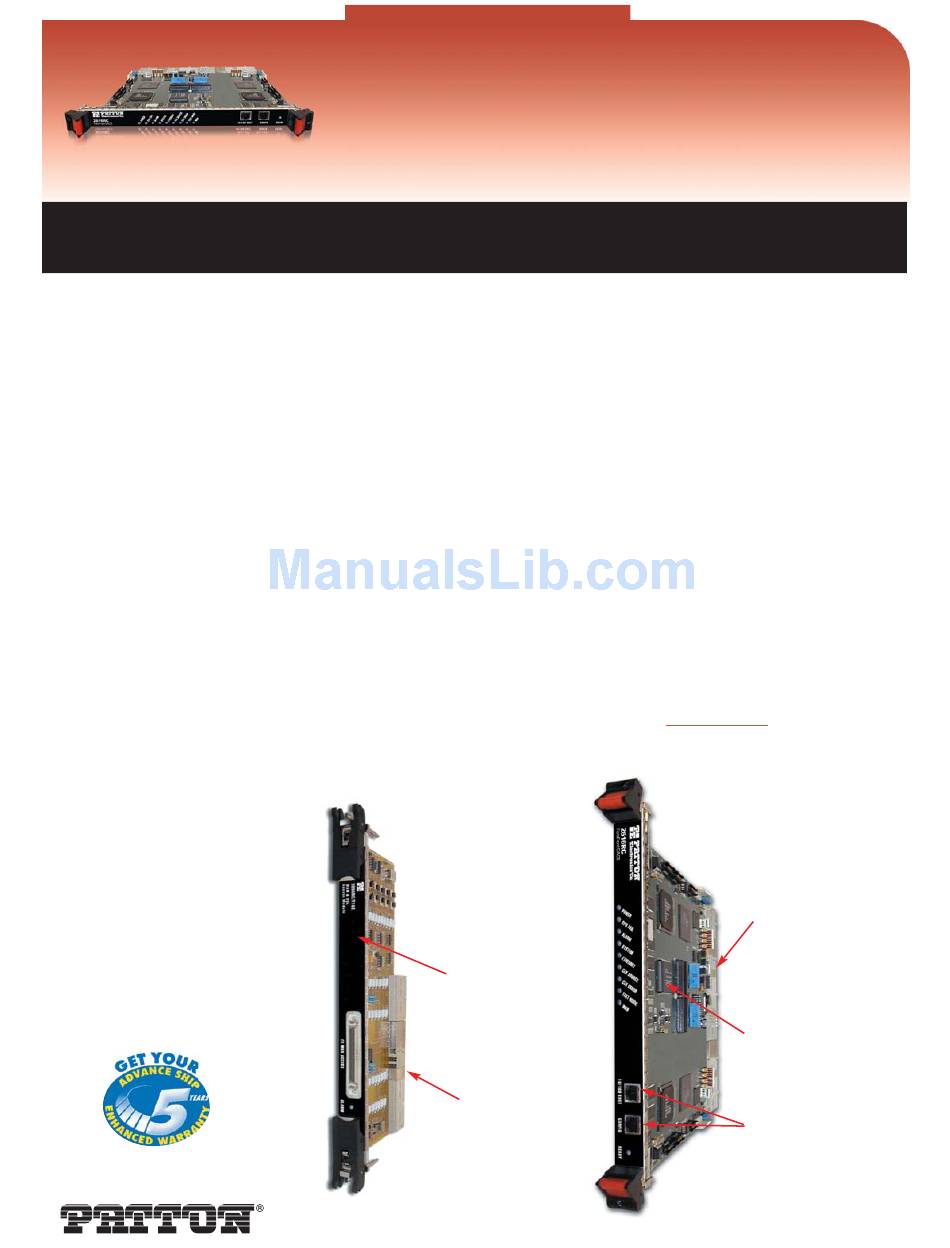

Model 2616RC T-DAC
Provides 16 T1/E1 links at rates
from 64 to 2048 kbps.
RISC processor ensures non-stop
operation and manageability even
during multiple network outages
10/100 Ethernet and craft ports
easily accessible from front panel
