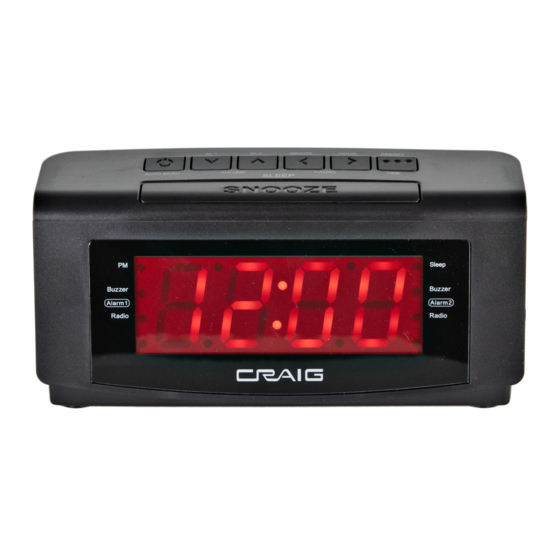

Craig CR45372 Owner's Manual

CRAIG CR45372 (40018) / IM (FRONT) / COLOUR: GRAYSCALE / SIZE: W290 x H210 (MM) / Scale 1:1 / DATE: 22 NOVEMBER 2012
1.2 inch
1.2 inch
DUAL ALARM
DUAL ALARM
CLOCK DIGITAL
CLOCK DIGITAL
PLL AM/FM RADIO
PLL AM/FM RADIO
IMPORTANT SAFETY INSTRUCTION
21) Replacement parts
When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire or electric shock or other hazard.
22) Safety check
Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operation condition.
23) Wall or ceiling mounting
The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
24) Damage requiring service
Unplug this product from the wall outlet and refer service to qualified service personnel under
the following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions, as an adjustment
of other controls may result in damage and will and require extensive work by a qual ified
technician to restore in the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance-this indicates a need for service.
25) Note to CATV system installer
This reminder is provided to call the CATV system installer 's attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and in particular, specifies that the
cable ground shall be connected to the grounding system of the building, as close to the point
of cable entry practical.
NOTE : Refer all servicing to qualified service personnel. Servicing is required when the unit
has been damaged in any way such as the following: the power -supply cord or plug has been
damaged, liquid has been spilled into the unit, the unit has been exposed to rain or moisture,
the unit has been dropped or the unit does not operate normally.
4
IMPORTANT SAFETY INSTRUCTION
CAUTION : USE OF CONTROLS,
CAUTION
ADJUSTMENTS OR
RISK OF ELECTRIC SHOCK
PERFORMANCE PROCEDURE
DO NOT OPEN
HEREIN MAY RESULT IN
HAZARDOUS RADIATION
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR BACK). NO EXPOSURE..
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL
I
NFORMATION :
DANGEROUS VOLTAGE:
This equipment has been tested and
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to found to comply with the limits for a
alert the user to the presence of
Class B digital device, pursuant to Part
uninsulated dangerous voltage within the
15 of the FCC Rules. These limits are
product's enclosure that may be of
designed to provide reasonable
sufficient magnitude to constitute a risk of
electric shock to persons. protection against harmful interference
in a residential installation. This
equipment generates, uses and can
ATTENTION:
The exclamation point within an equilateral radiate radio frequency energy and, if
triangle is intended to alert the user to the
not installed and used in accordance
presence of important operating and
with the instructions, may cause
maintenance (servicing) instructions in the
harmful interference to radio
literature accompanying the appliance.
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
FCC WARNING:
equipment does cause harmful
This equipment may generate or use radio frequency energy.
interference to radio or television
Changes or modifications to this equipment may cause harmful
reception, which can be determined by
interference unless the modications are expressly approved in the
turning the equipment off and on, the
instruction manual. Modifications not authorized by the
user is encouraged to try to correct the
manufacturer may void users authority to operate this device.
interference by one or more of the
following measures:
 Reorient or relocate the receiving
antenna.
WARNING:
 Increase the separation between the
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
equipment and receiver.
NOT EXPOSE THIS PRODUCT TO RAINOR MOISTURE.
 Connect the equipment into an outlet
WARNING:
on a circuit different from that to
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND
which the receiver is connected.
ANNOYING INTERFERENCE, USE THE RECOMMENDED
 Consult the dealer or an experienced
.
ACCESSORIES ONLY
radio/TV technician or help.
1
PREPARATION FOR USE
Power Source:
Connect the small plug of supplied AC/DC adapter to the DC Jack on the rear of the unit then plug the
AC/DC Adaptor to a wall outlet having AC 120V~, 60Hz.
NOTES:
The AC/DC Adaptor is intended to be correctly orientated in a vertical or floor mount

position.
If the AC/DC Adaptor is disconnected or if there is a power failure, this electronic clock is

designed to continue operating internally (without showing the time on the Clock Display) with 2
x AAA size batteries (not included). Install the batteries as follows:
~ Open the battery door at the rear of unit by sliding it out and then lifting it.
~ Insert two (2) "AAA" size batteries (not included) according to the polarity diagram inside the
battery compartment. (Alkaline batteries are recommended.)
~ Replace the battery door.
BATTERY PRECAUTIONS:
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery
compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries
with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from possible batt ery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and
rupture. (Follow battery manufacturer's instructions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
5
IMPORTANT SAFETY INSTRUCTION
Before using the unit, be sure to read all operating instructions carefully. Please note that these are
general precautions and may not pertain to your unit.
1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.
2) Keep these instructions.
The safety and operating instructions should be retained for future reference.
3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.
4) Follow all instructions.
All operating and use instructions should be followed.
5) Do not use this apparatus near water.
Do not use this product near water and moisture, for example: near a bathtub, washbowl,
kitchen sink or laundry tub; in a wet basement; or near a swimming pool.
6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation to
ensure reliable operation of the product and to protect it from overheating. These openings
must not be blocked or covered. The openings should never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This product should never be placed near or over a
radiator or heat source. This product should not be placed in a built -in installation such as a
bookcase or rack unless proper ventilation is provided or the manufactur er's instructions have
been adhered to.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an el ectrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the ma nufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stops, excess force and uneven surfaces may cause the appliance and cart combination
to overturn.
2
OPERATION
OPERATION
LOCATION OF CONTROLS:
1 2 3 4 5 6 7
9 8
10 12
11 13
14
16 15 17
1. SOURCE/AL. (Alarm) OFF Button
2. VOL (Volume) - / AL (Alarm) 2 Button
3. VOL (Volume) + / AL (Alarm) 1 Button
4. SNOOZE / SLEEP Button
5. TUN (Tune) - / MIN (Minute set) Button
6. TUN (Tune) + / HR (Hour set) Button
7. MEM/M+/TIME (Memory/Memory +/Time set) Button
8. LED DISPLAY
9. PM Indicator
10. AL1 - B (Alarm 1 – Buzzer) Indicator
11. AL1 - R (Alarm 1 – Radio) Indicator
12. AL 2 - B (Alarm 2 – Buzzer) Indicator
13. AL 2 - R (Alarm 2 – Radio) Indicator
14. DC IN Jack
15. Battery Compartment
16. FM Antenna
17. Speaker
6
IMPORTANT SAFETY INSTRUCTION
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line surges.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power -supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15) Power source
This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supply to your home, consult your appliance
dealer or local power company. For products intended to operate from battery power, or other
source. Refer to the operation instructions.
16) Power lines
An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
17) Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric
shock.
18) Object and liquid entry
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short out parts that could result in fire or electric shock. Never
spill or spray any type of liquid on the product.
19) Outdoor antenna grounding
If an outside antenna is connected to the product, be sure
the antenna system is grounded so as to provide some
protection against voltage surges and built up static
charges. Section 810 of the National Electric Code
ANSI/NFPA 70 provides information with respect to
proper to grounding of the mast and supporting structure,
ground of the lead-in wire to an antenna discharge product
size of grounding conductors, location of
antenna-discharge product, connection to ground electrodes and requirements for the
grounding electrodes.
20) Service
Do not attempt to service this product yourself as opening or removing covers may expo se you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
3
OPERATION:
To set or reset the actual time:
1. Make sure the unit is in power off (standby) mode before setting.
2. Press and hole the MEM/M+/TIME Button on the top of unit until the time on display were blink.
Press the TUN-/MIN or TUN+/HR Buttons to set minute and/or hour. (Make sure the PM
Indicator on the display is light if the time is PM and not light if the time is AM).
Radio reception
1. Press the SOURCE/AL. OFF Button to turn on the Radio.
2. The radio frequency will appear on the display. Press the SOURCE/AL. OFF Button repeatedly to
select AM or FM band as desire.
3. Press and hold the TUN-/MIN or TUN+/HR Buttons until the displayed frequency starts running
then release the button to auto searching available radio station.
A. When a radio station is found, the frequency on display will stop running and start
playback automatically.
B. If reception is no good, press the TUN-/MIN or TUN+/HR Buttons repeatedly to fine
tune).
4. Repeat the same procedures unit the desired radio station was found.
5. Adjust the volume to the desired level by pressing VOL -/AL 2 OR VOL +/AL 1 Button.
6. When finished listening, press and hold the SOURCE/AL. OFF Button to turn the unit to power
off (standby) mode
ANTENNAS
AM – This unit has a build in ferrite rod antenna, which provides adequate reception in most
areas. If reception is weak, turn the unit to improve reception.
FM – The FM Antenna wire is for FM unit reception. If reception is weak, unwound and extended
the wire or relocation the wire to improve the radio reception.
Radio stations presetting:
1. Receive the desired radio station as the previously procedures.
2. Press and hold the MEM/M+/TIME Button until "P XX" appear on the display. ("XX" is
program number you will stored in).
3. Repeat the same procedures until all the desired radio stations were stored into the
program list.
Notes:
 Total 10 of radio stations in AM band and 10 in FM band can be stored into the program
list.
 If the backup batteries had not installed. When the power supply is failure, the preset
program will be erased.
 The stored radio station only can be deleted by store another new radio station.
7
