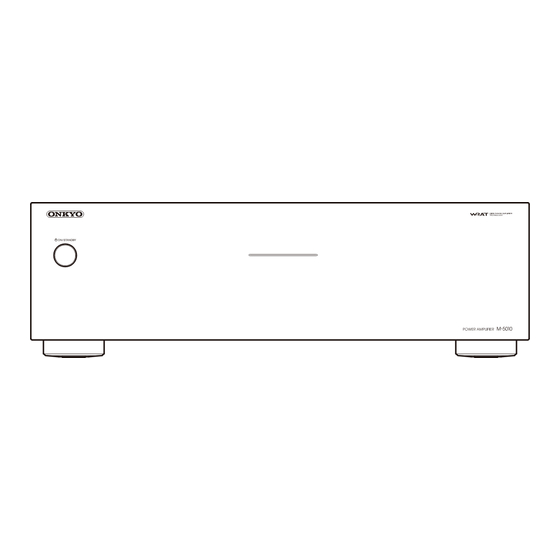

- Page 1 M-5010 Ref. No. 4429 112012 POWER AMPLIFIER M-5010(B) MODEL Black model B MDC 120V AC, 60Hz...
-
Page 2: Service Procedure
A-9030 / 9050 / M-5010 / ADM-20.4 Service Procedure Setting for shipping 1-1. Initialization of memories [A-9050, A-9030] Push PURE DIRECT button and Standby at same time. 1-2. Initial setting [A-9050, A-9030] SELECTOR SPEAKERS BASS TREBLE BALANCE VOLUME PURE DIRECT RI MODE 4ohm/8ohm Auto Standby... - Page 3 A-9030/9050/M-5010/ADM-20.4 Operation Check - 1 1-1. Confirm Relay operation Confirm that the relay of SP A and the relay of SP B operate normally respectively by SPEAKER A/B TRIM. It is confirmed that the relay cuts at once if becoming POWER OFF. Confirm no-sound from SWpreOUT when you insert HP JACK.
- Page 4 A-9030/9050/M-5010/ADM-20.4 Operation Check - 2 2-1. Voltage protection The unit receives the remote control signal, it goes into the test mode 1-02. The speaker relay become OFF immediately after "D.C. 1.5V inputs" to CD SELECTOR to check L and R. The same as above when "D.C.
- Page 5 A-9030/9050/M-5010/ADM-20.4 Operation Check - 3 TEST Function Analog Input Speaker Volume Balance Bass Treble Direct PMBass AMUTE 1-00 All LED light up. LINE1 SPEAKER A CENTER 1-01 Thermal test mode. LINE1 SPEAKER A CENTER 1-02 Protect test mode. LINE1 SPEAKER A CENTER 1-03 Idling timer mode.
-
Page 6: U0020
M-5010 EXPLODED VIEW T901 P902 A230 U0014 A101 P901 U0013 U0012 U0021 U0022 A212 A002 A202 X 4PCS. A003 A211 U0010 X 4PCS. U0020 Q530 A204 Q527 Q528 Q529 A210 D900 A201 Q526 Q524 Q525 Q523... -
Page 7: Schematic Diagrams
A-9030/9050/M-5010/ADM-20.4 SCHEMATIC DIAGRAMS - 1 BLOCK DIAGRAM Model No. A-9050 / A-9030 / M-5010 / ADM-20.4 SCHEMATIC DIAGRAM (PART-1) BLOCK DIAGRAM BCAF-1267 R2S15211FP SP-A +29dB LEFT PHONO BASS CONTOUR TONE SP-B +29dB TONE For M-5010/ADM20.4 SP-A LINE1 RIGHT Pre OUT SPRELAY_A SP-B SPRELAY_B... -
Page 8: Bcetc
A-9030/9050/M-5010/ADM-20.4 SCHEMATIC DIAGRAMS - 2 AUDIO SECTION Model No. A-9050 / A-9030 / M-5010 / ADM-20.4 SCHEMATIC DIAGRAM (PART-2) ASP Section U0012 (15) BAETC-1278 For A-9050 only to P701A to P7001A to P710A to P701A Thermal Sensor PC BOARD (BADIS-1268 Part-4) (BADG-1269 Part-5) NSCT-31P2124 (BADIS-1268 Part-4) -
Page 9: Bcetc
A-9030/9050/M-5010/ADM-20.4 SCHEMATIC DIAGRAMS - 3 POWER AMPLIFIER SECTION M't or No M't List Model No. A-9050 / A-9030 / M-5010 / ADM-20.4 SCHEMATIC DIAGRAM (PART-3) AMP Section U0010 * M't choice 9030 9050 20.5/5010 MAIN PC BOARD C907/C908 8200/56V 10000/69V 10000/69V C525/C526/C527/C529 100u/50V... -
Page 10: Table Of Contents
A-9050/9030/M-5010/ADM-20.4 SCHEMATIC DIAGRAMS - 4 DISPLAY SECTION U0020 Set of destination Model No. A-9050 / A-9030 / M-5010 / ADM-20.4 SCHEMATIC DIAGRAM (PART-4) Display Section Selector PC BOARD A-9030 A-9010 M-5010 ADM20.4 BADIS-1268 BAETC-1274 BCDIS-1268 A-9050/A-9030ONLY BCSW-1272 BCSW-1271 U0020 BCETC-1273 Display PC BOARD C7076 102J BCETC-1274... - Page 11 A-9050/9030/M-5010/ADM-20.4 SCHEMATIC DIAGRAMS - 5 DIGITAL SECTION Model No. A-9050 / A-9030 / M-5010 / ADM-20.4 SCHEMATIC DIAGRAM (PART-5) Digital Section THIS SYMBOL LOCATED NEAR THE FUSE INDICATES NPT-1293P NPT-1625 THAT THE FUSE USED IS SLOW OPERATING TYPE FOR CONTINUED PROTECTION AGAINST FIRE FUSE HAZARD,REPLACE WITH SAME TYPE FUSE.
- Page 12 1/24 PAGE M-5010(B)MDC <Note> Parts marked by "NSP" are generally unavailable because <Notes> they are not in our Master Spare Parts List. (B) : Black color model <MDC> : 120V,Canadian/USA/(Mexico) model NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ! ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
- Page 13 2/24 PAGE A010 HEAT SINK 27160676A A011 RETAINER (HEATSINK) 27142294 A012 RETAINER (HS-2) 27141530A A013 RETAINER (HEATSINK)B 27142300 A015 SCREW 3SMS8W.SW+14B(CU) 801634 A016 SCREW 3TTB+8B(3BC) 838430088GR A020 SCREW 4TTC+8C(3BC)SR 801658 A050 SCREW 3TTB+8B(3BC) 838430088GR A051 WIRE TIE BSK-1 260208 A052 CLAMP HL-38-0 27301779...
-
Page 14: Badis
Display pc board AS BADIS-1268-1G 1B2805268-1G U0021 Switch pc board AS BASW-1271-1G 1B2805271-1G U0022 ETC. pc board AS BAETC-1276-1G 1B2805276-1G M-5010(B)MDC PACKING PROCEDURES PARTS LIST REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [PACKING] A017 TAPE TAPE(CLOTH-16U) 29110083... -
Page 15: Pc Board Parts List
4/24 PAGE M-5010(B)MDC PC BOARD PARTS LIST U001 BAAF-1267-2A CIRCUIT NO.PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS [SEMI CONDUCTOR] D300 C-DIODE KDS4148U 223283R2 D300 or C-DIODE 1SS352 ( 1) 223234R2 D300 or C-DIODE 1SS355 ( 1) 223269R2 D305 ZENER D UDZS3.3B... - Page 16 5/24 PAGE D325 or C-DIODE 1SS355 ( 1) 223269R2 D380 C-DIODE S1NB60-4062 22380318R2 D501 ZENER D UDZS5.6B 224550560R2 D502 ZENER D UDZS5.6B 224550560R2 D503 C-DIODE KDS4148U 223283R2 D503 or C-DIODE 1SS352 ( 1) 223234R2 D503 or C-DIODE 1SS355 ( 1) 223269R2 D504 C-DIODE...
- Page 17 6/24 PAGE D953 or C-DIODE 1SS355 ( 1) 223269R2 D954 ZENER D UDZS5.1B 224550510R2 D955 C-DIODE KDS4148U 223283R2 D955 or C-DIODE 1SS352 ( 1) 223234R2 D955 or C-DIODE 1SS355 ( 1) 223269R2 D956 DIODE RL1N4003 22380260T D957 DIODE RL1N4003 22380260T Q306 78M12HF(NJM78M12FA) 222780125JRC...
- Page 18 7/24 PAGE Q508 2SA949-Y(TPE6_F) 2211354T Q508 or 2SA949-O(TPE6_F) ( 1) 2211353T Q509 2SA949-Y(TPE6_F) 2211354T Q509 or 2SA949-O(TPE6_F) ( 1) 2211353T Q510 2SA949-Y(TPE6_F) 2211354T Q510 or 2SA949-O(TPE6_F) ( 1) 2211353T Q511 2SA949-Y(TPE6_F) 2211354T Q511 or 2SA949-O(TPE6_F) ( 1) 2211353T Q512 2SA949-Y(TPE6_F) 2211354T Q512 or 2SA949-O(TPE6_F)
- Page 19 8/24 PAGE Q552 2SC2712-GR 2213145R2 Q552 or KTC3875-GR ( 1) 2216175R2 Q553 2SC2712-GR 2213145R2 Q553 or KTC3875-GR ( 1) 2216175R2 Q561 KRC105S 2217290R2 Q561 or RN1405 ( 1) 2214500R2 Q561 or DTC123JKA ( 1) 2216690R2 Q900 KRC105S 2217290R2 Q900 or RN1405 ( 1) 2214500R2...
- Page 20 9/24 PAGE C322 or UTSP C CE04W50V-10M(UTSP) ( 1) 397581007AT C323 UTSP C CE04W50V-10M(UTSP) 397581007T C323 or UTSP C CE04W50V-10M(UTSP) ( 1) 397581007AT C324 UTSP C CE04W50V-10M(UTSP) 397581007T C324 or UTSP C CE04W50V-10M(UTSP) ( 1) 397581007AT C325 UTSP C CE04W10V-220M(UTSP) 397532217AT C326 UTSP C...
- Page 21 10/24 PAGE C504 UPZ C 2AUPZTF331JE 376333314T C505 UTSP C CE04W25V-220M(UTSP) 397552217T C506 UTSP C CE04W25V-220M(UTSP) 397552217T C507 UTSP C CE04W50V-22M(UTSP) 397582207T C507 or UTSP C CE04W50V-22M(UTSP) ( 1) 397582207AT C508 UTSP C CE04W50V-22M(UTSP) 397582207T C508 or UTSP C CE04W50V-22M(UTSP) ( 1) 397582207AT C509...
- Page 22 11/24 PAGE C535 or UTSP C CE04W50V-22M(UTSP) ( 1) 397582207AT C536 UTSP C CE04W50V-22M(UTSP) 397582207T C536 or UTSP C CE04W50V-22M(UTSP) ( 1) 397582207AT C541 TF C ECQ-V50V-104J 374721044T C542 TF C ECQ-V50V-104J 374721044T C551 MKT C B32529C0102J289 376491024T C552 TF C ECQ-V50V-103J 374721034T C553...
- Page 23 12/24 PAGE R301 C-CARBON R RN72K1J-224JE 435032244R1 R302 C-CARBON R RN72K1J-271JE 435032714R1 R303 C-CARBON R RN72K1J-271JE 435032714R1 R304 C-CARBON R RN72K1J-101JE 435031014R1 R305 C-CARBON R RN72K1J-101JE 435031014R1 R312 C-CARBON R RN72K1J-224JE 435032244R1 R313 C-CARBON R RN72K1J-224JE 435032244R1 R314 C-CARBON R RN72K1J-102JE 435031024R1 R316...
- Page 24 13/24 PAGE R399 C-CARBON R RN72K1J-103JE 435031034R1 R4000 VARI R N09RGL10KB14F 5112484 R421 C-CARBON R RN72K1J-331JE 435033314R1 R422 C-CARBON R RN72K1J-331JE 435033314R1 R423 C-CARBON R RN72K1J-104JE 435031044R1 R424 C-CARBON R RN72K1J-104JE 435031044R1 R437 C-CARBON R RN72K1J-331JE 435033314R1 R438 C-CARBON R RN72K1J-331JE 435033314R1 R439...
- Page 25 14/24 PAGE R518 CARBON R R16J-1K 417341024T R519 CARBON R R16J-1K 417341024T R520 CARBON R R16J-1K 417341024T R521 METAL O R RS1/2WBJ-82 443528204T R522 METAL O R RS1/2WBJ-82 443528204T R523 METAL O R RS1/2WBJ-82 443528204T R524 METAL O R RS1/2WBJ-82 443528204T R525 METAL O R...
- Page 26 15/24 PAGE R562 CARBON R R16J-1.8K 417341824T R563 CARBON R R16J-100K 417341044T R564 CARBON R R16J-100K 417341044T R569 METAL O R RS1WBJ-220 443622214T R571 METAL O R RS1WBJ-470 443624714T R572 C-CARBON R RN72K1J-000JE 435030004R1 R575 C-CARBON R RN72K1J-000JE 435030004R1 R577 C-CARBON R RN72K1J-000JE 435030004R1...
- Page 27 16/24 PAGE R610 C-CARBON R RN72K1J-473JE 435034734R1 R611 C-CARBON R RN72K1J-473JE 435034734R1 R612 C-CARBON R RN72K1J-473JE 435034734R1 R613 METAL R RNU1WCJ-8.2 453630824T R614 METAL R RNU1WCJ-8.2 453630824T R615 C-CARBON R RN72K1J-473JE 435034734R1 R617 METAL O R RS1/2WBJ-15 443521504T R618 METAL O R RS1/2WBJ-15 443521504T R619...
- Page 28 17/24 PAGE R979 C-CARBON R RN72K1J-223JE 435032234R1 R980 C-CARBON R RN72K1J-223JE 435032234R1 R981 C-CARBON R RN72K1J-223JE 435032234R1 [SW TRM] F900A FUSE HOL NSCT-1P2031 25052133T F900B FUSE HOL NSCT-1P2031 25052133T F902A FUSE HOL NSCT-1P2031 25052133T F902B FUSE HOL NSCT-1P2031 25052133T F951A FUSE HOL NSCT-1P2031 25052133T...
- Page 29 18/24 PAGE P961 TRM-423(SCREW) NEJITANSI ST3 25060495 P962 TRM-423(SCREW) NEJITANSI ST3 25060495 RL300 RELAY NRL-2P2A-DC12-178 25065664 RL501 RELAY NRL-2P5A-DC24-129 25065563A RL501 or RELAY NRL-2P8A-DC24-144 ( 1) 25065590 RL501 or RELAY NRL-2P5A-DC24-193 ( 1) 25065703 RL900 RELAY NRL-1P10A-DC12-196 25065707 RL901 RELAY NRL-1P10A-DC12-196 25065707 RL951...
- Page 30 19/24 PAGE D7011 or C-DIODE 1SS352 ( 1) 223234R2 D7011 or C-DIODE 1SS355 ( 1) 223269R2 Q7001 S-812C33AUA-C2N 22242222R2 Q7002 KRA102S 2216220R2 Q7002 or RN2402 ( 1) 2214530R2 Q7002 or DTA114EKA ( 1) 2217050R2 Q7004 TA4805BF(TE16L_NQ) 22278005DBR2TO Q7005 KRC102S 2216190R2 Q7005 or RN1402 ( 1)
- Page 31 20/24 PAGE C7039 C-CERA C CC725CH1H-102J1 342101024R1 C7040 C-CERA C CC725CH1H-102J1 342101024R1 C7041 C-CERA C CK725F1E-104Z1 332161040R1 C7070 C-CERA C CK725F1E-104Z1 332161040R1 C7071 C-CERA C CC725CH1H-102J1 342101024R1 C7075 C-CERA C CC725CH1H-102J1 342101024R1 C7076 C-CERA C CC725CH1H-102J1 342101024R1 C7078 C-CERA C CC725CH1H-102J1 342101024R1 C7079...
- Page 32 21/24 PAGE R7053 C-CARBON R RN72K1J-470JE 435034704R1 R7054 C-CARBON R RN72K1J-470JE 435034704R1 R7056 C-CARBON R RN72K1J-470JE 435034704R1 R7060 C-CARBON R RN72K1J-470JE 435034704R1 R7063 C-CARBON R RN72K1J-103JE 435031034R1 R7070 C-CARBON R RN72K1J-470JE 435034704R1 R7072 C-CARBON R RN72K1J-470JE 435034704R1 R7077 C-CARBON R RN72K1J-272JE 435032724R1 R7078...
- Page 33 22/24 PAGE R7206 C-CARBON R RN72K1J-000JE 435030004R1 R7207 C-CARBON R RN72K1J-000JE 435030004R1 R7208 C-CARBON R RN72K1J-000JE 435030004R1 R7209 C-CARBON R RN72K1J-000JE 435030004R1 R7210 C-CARBON R RN72K1J-000JE 435030004R1 R7211 C-CARBON R RN72K1J-000JE 435030004R1 R7212 C-CARBON R RN72K1J-000JE 435030004R1 R7213 C-CARBON R RN72K1J-000JE 435030004R1 R7214...
- Page 34 23/24 PAGE R7252 C-CARBON R RN72K1J-000JE 435030004R1 R7253 C-CARBON R RN72K1J-000JE 435030004R1 R7254 C-CARBON R RN72K1J-000JE 435030004R1 R7255 C-CARBON R RN72K1J-000JE 435030004R1 R7256 C-CARBON R RN72K1J-000JE 435030004R1 R7257 C-CARBON R RN72K1J-000JE 435030004R1 R7258 C-CARBON R RN72K1J-000JE 435030004R1 R7259 C-CARBON R RN72K1J-000JE 435030004R1 R7260...
- Page 35 24/24 PAGE P7011 SOCKET AS NSAS-6P2069 200EE390625UL P7013A SOCKET AS NSAS-14P2086 2004C391410UL P7013B PLUG NPLG-7P354 25055371 P7017A SOCKET AS NSAS-18P2085 2004C391810UL P7017B PLUG NPLG-9P356 25055373 P701A SOCKET AS NSAS-14P2052 2003B201415UL S7002 PUSH SW NPS-111-S681 25035718T...
