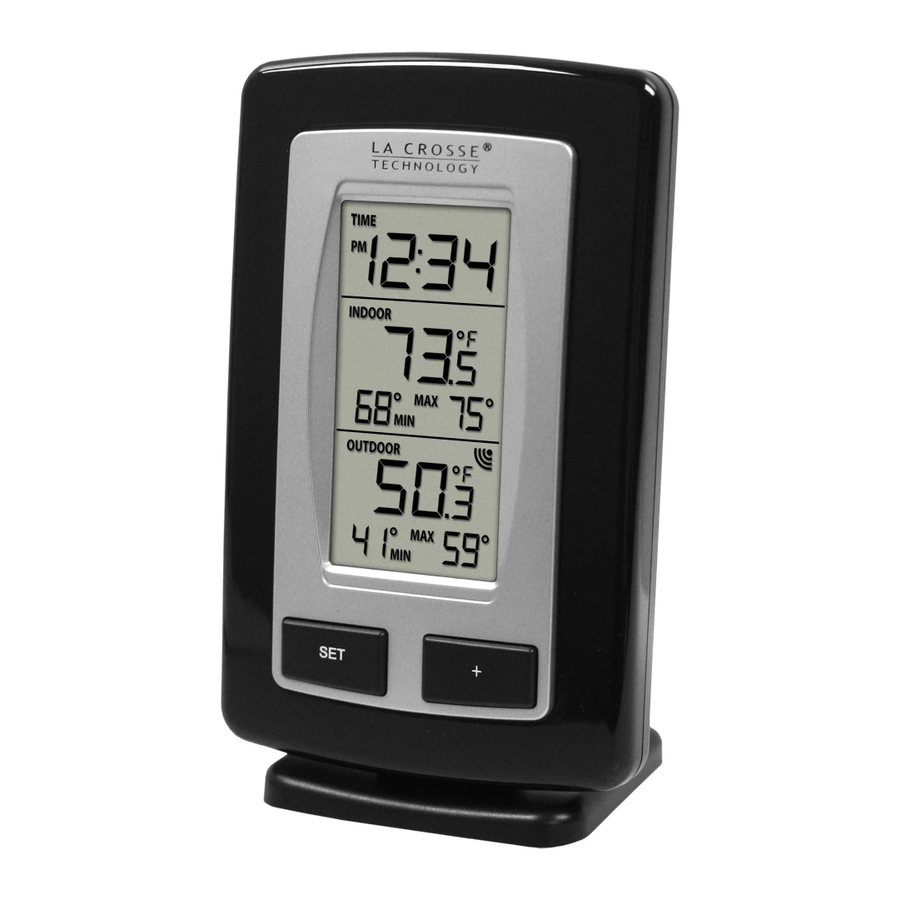

Wireless Temperature Station
Time
Indoor Temperature
+ MIN/MAX
temperature
Outdoor Temperature
+ MIN/MAX
temperature
Buttons
Buttons
SET
Note: This station reads in °F
and 12 hour time format only.
Get Started
Step 1: Insert 2 fresh AAA, LR3 1.5 volt batteries into the
TX40U-IT sensor according to polarity markings.
Step 2: Insert 2 fresh AA, LR6 1.5 volt Alkaline batteries
into the temperature station according to the
polarity markings.
Restart: If the outdoor temperature is not displayed after
3 minutes, remove batteries from the temperature station
and outdoor sensor. Press any button on the temperature
station 20 times. After 15 minutes, return to Step 1
above.
WS-9245BK-IT
+
www.lacrossetechnology.com/support
Model: WS-9245BK-IT
Instruction Manual
TX40U-IT
Sensor
2 -AAA
batteries
Battery
Cover
DC: 060414
Hanging hole
Battery compartment
2 "AA" Batteries
Removable Stand
Page | 1
Advertisement
Related Manuals for La Crosse Technology 060414
Summary of Contents for La Crosse Technology 060414
- Page 1 Model: WS-9245BK-IT Instruction Manual DC: 060414 Wireless Temperature Station Hanging hole Time Indoor Temperature + MIN/MAX temperature Battery compartment 2 “AA” Batteries Outdoor Temperature + MIN/MAX temperature Buttons Removable Stand TX40U-IT Buttons Sensor 2 -AAA batteries Note: This station reads in °F...
- Page 2 Set Time 1. Hold the SET button and the hour will flash. Press the + button to set the hour. 2. Press the SET button and the minutes will flash. Press the + button to set the minutes. Press the SET button to exit.
-
Page 3: Battery Life
Specifications Indoor: 14.5°F to +139.5°F Temperature Range: -9.9ºC to +37.7ºC Outdoor: -39.8°F to +139.8°F Temperature Range: -39.9ºC to +59.9ºC Over 200 ft. (60 meters) Distance: RF 915MHz (open air) Interval: About every 4 seconds Power: 3-AA, IEC, LR6 batteries Temperature station (not included) 2-AA, IEC, LR6 batteries TX40U-IT Sensor:... - Page 4 Warranty and Support Information La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. View full warranty details online at: www.lacrossetechnology.com/warranty_info.pdf For warranty work, technical support or other information...
