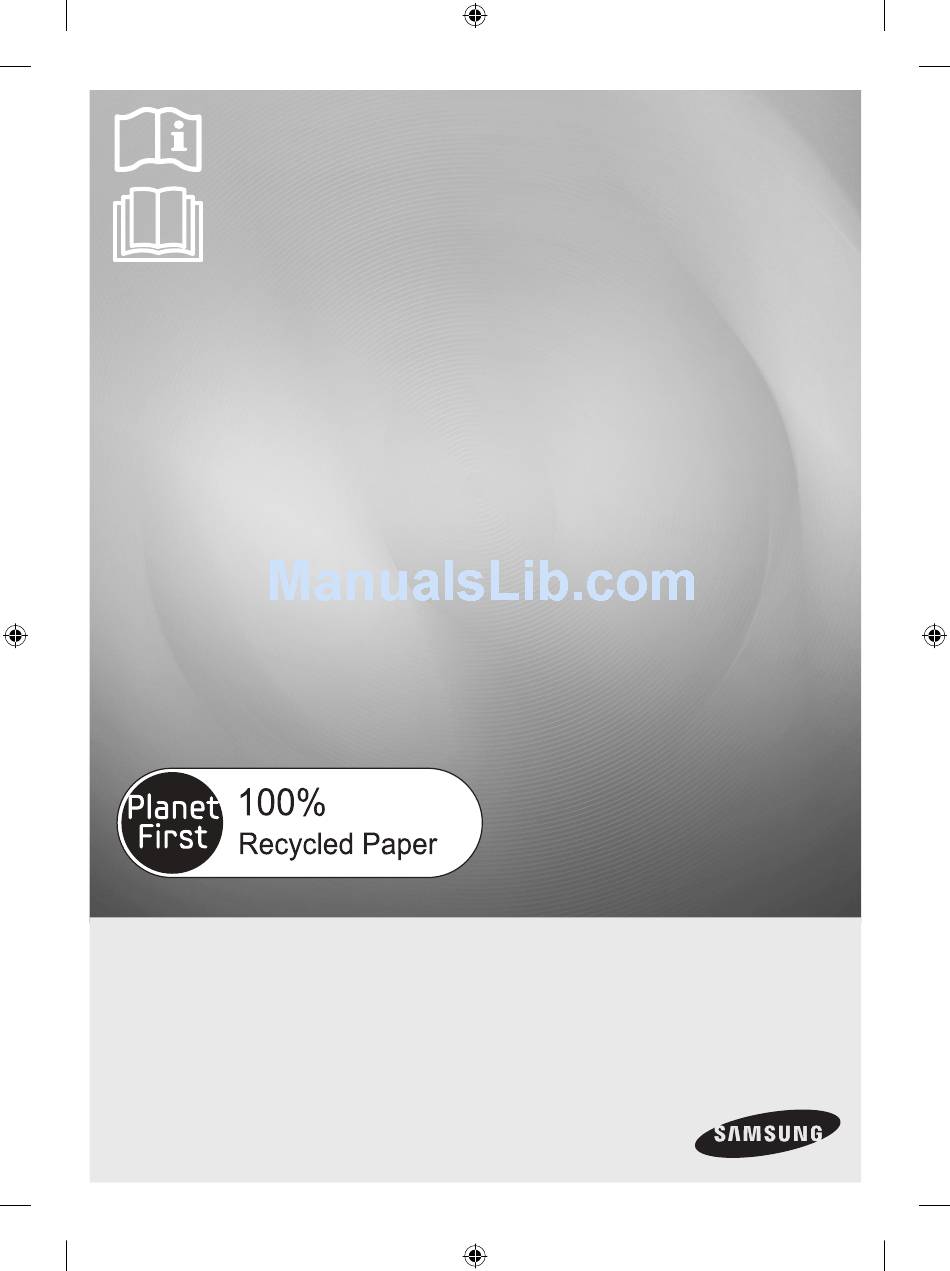

Fully Automatic Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register Code No. DC68-02596J-02_EN SW75V5W-02596J-02_EN.indd 1...
features • Air Turbo Drying System Air Turbo technology spins hard and fast so you can spend less time drying. Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40% faster than line drying alone. Especially during the rainy season and in high-humid weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters, and thick blankets are dried more rapidly.
safety instructions Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety. When using hot water in washing, please make sure that the water should not exceed 50 °C. •...
Page 4
Never connect the w ire to a telephone line, lightning rod, or gas pipe. • The product you have purchased is designed for domestic use only. The use for business purposes qualifi es as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse. 4_safety instructions SW75V5W-02596J-02_EN.indd 4 2012-05-16 11:58:37...
contents SETTING UP YOUR WASHER Description of part Control Panel MANUAL FUNCTIONS 10 Manual functions INSTALLATION & MAINTENANCE 11 Environment 11 Levelling 11 Connecting the water supply hose 12 How to connect the drain hose 12 Assembling the rat protection panel 12 How to put the detergent in 13 How to add the fabric softener 13 Water supply connector filter 13 Cleaning the filter TROUBLESHOOTING 14 Troubleshooting WASHING MACHINE WON’T 14 Washing machine won’t work? WORK? SPECIFICATION 15 Specification...
setting up your washer DESCRIPTION OF PART The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. Be sure to keep the lid closed during washing and spinning. Water supply hose (Hot) Filter Water supply hose (Cold) Drain hose (Pump) Lint will be collected in...
CONTROL PANEL For more details, see control panel of your washing machine. Press this button once to operate. POWER BUTTON Press it again to turn the power off. Use to pause and restart the operation. START/PAUSE BUTTON To change the washing procedure during an operation, press this button to stop, and again to restart after changing the procedure.
Page 8
setting up your washer FUZZY PROGRAM Selects the best washing program automatically. Press the Power button to “On”. Press the Start/Pause button. Water level is selected automatically. Washing rinsing, and spinning follow. If you want to pause, press the Start/Pause button again. You can change the program when paused. Close the lid.
ENERGY SAVING PROGRAM Use this course to save energy. Press the Power button to “On”. Press the Program Select button four times Press the Start/Pause button and put the proper amount of detergent into tub. Close the lid. KEEPING THE TUB CLEAN When using the machine under humid conditions for an extended time, various bacteria from the air may stick to the tub and form black dirt (fungi), causing damage to the human body.
manual functions Possible to select the function for each program. Ex) If you want to wash in the quick program : Power - Select quick program - Press function button once - Start/Pause button WASH ONLY Press the Power button. Press the Function Select button once.
installation & maintenance The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. ENVIRONMENT Leave some space - Maintain at least 10cm between the washer and the wall. Place the washer on a sturdy flat surface. - If the washer is placed on an uneven or weak surface, noise or vibration occurs.
installation & maintenance HOW TO CONNECT THE DRAIN HOSE IN CASE OF PUMP-DRAINED WASHER Take out the cap-hose and connect the outlethose. Be sure to join tightly the drain hose into the drainoutlet on the back of the machine. Be sure to join tightly the drain hose into the Install the drain hose in the position of about drainoutlet on the side of the machine.
ASSEMBLING THE RAT PROTECTION PANEL Label Insert the rat protection panel to the assembling For easy to insert the protection panel should hole on back side to the end. push to in front a little.Next,insert the rat protection panel from back side to the end. Leg lock hook of shutter Check the rat protection panel was inserted into Fix screw(option) between the rat protection panel...
troubleshooting PROBLEM CHECK Washing machine Is the water tap opened? won’t work Is the washer plugged in? Is the power cut off? Is there enough water? Water dose not drain Is the drain hose down?(No pump) Is the drain hose frozen? Is the drain hose clogged? If the water dose not drain in 15 minutes, a buzzer will sound, and the remaining time indicator will show “5E”.
720 rpm ✽ The energy label specifications have been determined by using the following program accordiing to SASO 2692 and SASO 2693. - The program for SW65V5 / SW75V5 is Energy Saving + High Water Level + Cold&Hot. specification_15 SW75V5W-02596J-02_EN.indd 15...
Page 16
QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT Saudi Arabia 9200-21230 www.samsung.com Code No. DC68-02596J-02_EN SW75V5W-02596J-02_EN.indd 16 2012-05-16 11:58:41...
Page 17
