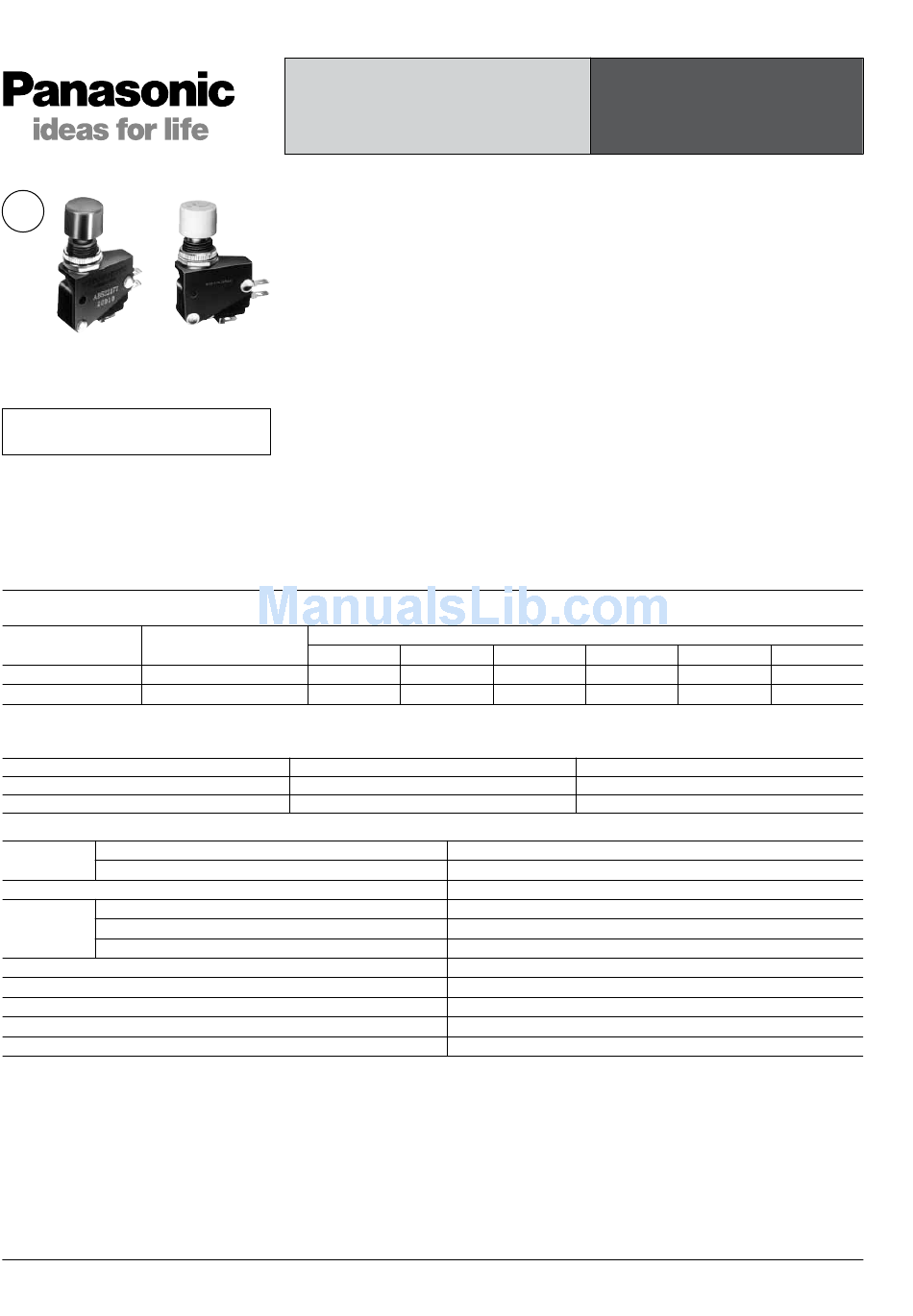

Panasonic ACE AB5 Specification Sheet

AB5
12 dia.
Push type
RoHS Directive compatibility information
http://www.nais-e.com/
PRODUCT TYPES
Type
Push type
Lock type

SPECIFICATIONS

1. Contact rating
Kind of load
Resistive load (cos nearly equal 1.0)
Inductive load(cos nearly equal 0.4)
2. Characteristics
Mechanical
Expected life
Electrical
Insulation resistance
Between non-continuous terminals
Breakdown
Between each terminal and other exposed metal parts
voltage
Between each terminal and ground
Contact resistance
Allowable operation speed (No load)
Max. switching frequency (No load)
Ambient temperature
Contact material
PUSH-BUTTON SWITCHES
FEATURES
1. High performance and excellent
characteristics.
An AH7 snap action switch is used in the
switch body and since the installation
frame is made of molded plastic,
dimensional accuracy is now on a new
level.
2. Two series: push type and lock type
Lock type
Lock type also available that locks when
rotated.
3. Six push-button colors
You can use colors in accordance with
sequence functions.
4. The switch body uses an AH7 snap
action switch (O.F. 3.92 N max. type).
Also, if dirt and water resistant
properties are required of the internal
switch, a V type turquoise switch
(sealed type snap action switch) can
be built in. Please inquire.
Part No.
Black
AB5∗2177F 1
AB5∗2277F 1
15A 125V AC,15A 250V AC
10A 125V AC,10A 250V AC
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
Push-button color (Number replaces asterisk in part number.)
Red Green
2 3
2 3
AC rating
Min. 10 7 (60 cpm)
Min. 10 (20 cpm) at rated load
5
Min. 100 MΩ (at 500 V DC measured by insulation resistive meter)
1000 Vrms for 1 min. (at detection current: 10mA)
1500 Vrms for 1 min. (at detection current: 10mA)
1500 Vrms for 1 min. (at detection current: 10mA)
Max. 50 mΩ (By voltage drop at 1 A, 6 to 8 V DC)
0.1 to 1,000 mm/s
600 cpm
–25°C to +85 °C (Not freezing below 0 °C)
Movable: AgSnO alloy; Fixed: AgZnO alloy
2
ACE PUSH-BUTTON
SWITCHES (AB5)
PRECAUTIONS WHEN
USING CADMIUM-FREE
CONTACT TYPE
Models with cadmium-free contacts have
been introduced in order to reduce
environmentally harmful substances. ("F"
is affixed to the end of the part number.)
We ask customers who are currently
using products with cadmium-containing
contacts (no "F" at the end of the part
number) to please make the switch to
models with cadmium-free contacts.
When switching, operating life may differ
depending on the load. Please be sure to
verify this by conducting an evaluation
using actual equipment.
Yellow White
4 5
4 5
DC rating
0.6A 125V DC
0.6A 125V DC
Blue
6
6
