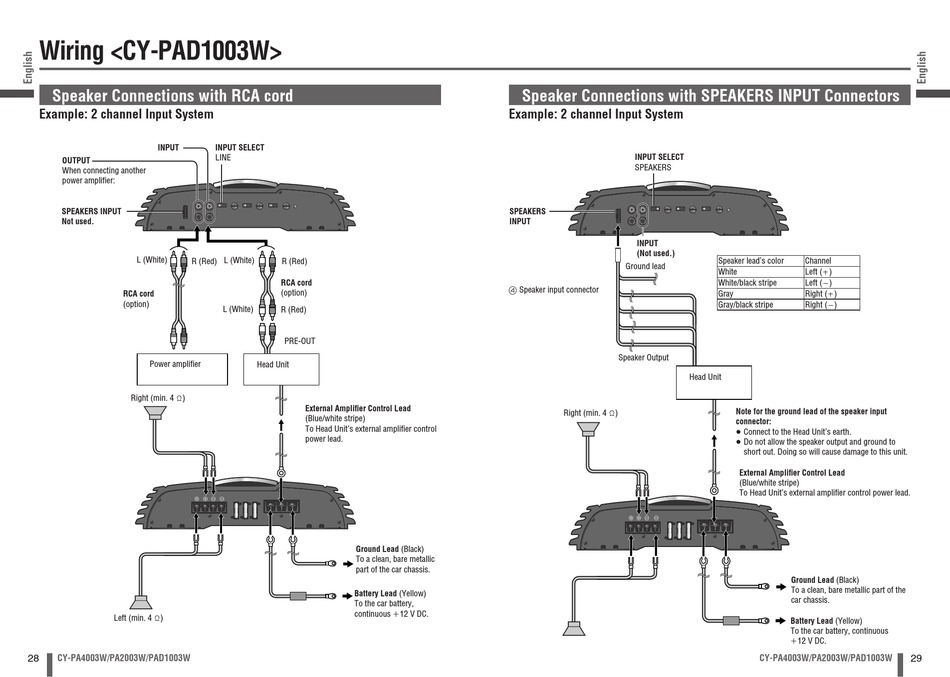

Wiring <CY-PAD1003W>
Speaker Connections with RCA cord
Example: 2 channel Input System
INPUT
OUTPUT
When connecting another
power amplifi er:

SPEAKERS INPUT

Not used.
L (White)
R (Red)
RCA cord
(option)
Power amplifi er
Right (min. 4 )
Left (min. 4 )
28 CY-PA4003W/PA2003W/PAD1003W
INPUT SELECT
LINE
L (White)
R (Red)
RCA cord
(option)
L (White) R (Red)
PRE-OUT
Head Unit
External Amplifi er Control Lead
(Blue/white stripe)
To Head Unit's external amplifi er control
power lead.
Ground Lead (Black)
To a clean, bare metallic
part of the car chassis.
Battery Lead (Yellow)
To the car battery,
continuous 12 V DC.
Speaker Connections with SPEAKERS INPUT Connectors
Example: 2 channel Input System
INPUT SELECT
SPEAKERS
SPEAKERS
INPUT
INPUT
(Not used.)
Ground lead
 Speaker input connector
Speaker Output
Right (min. 4 )
Speaker lead's color Channel
White Left ()
White/black stripe Left ()
Gray Right ()
Gray/black stripe Right ()
Head Unit
Note for the ground lead of the speaker input
connector:
 Connect to the Head Unit's earth.
 Do not allow the speaker output and ground to
short out. Doing so will cause damage to this unit.
External Amplifi er Control Lead
(Blue/white stripe)
To Head Unit's external amplifi er control power lead.
Ground Lead (Black)
To a clean, bare metallic part of the
car chassis.
Battery Lead (Yellow)
To the car battery, continuous
12 V DC.
CY-PA4003W/PA2003W/PAD1003W 29
