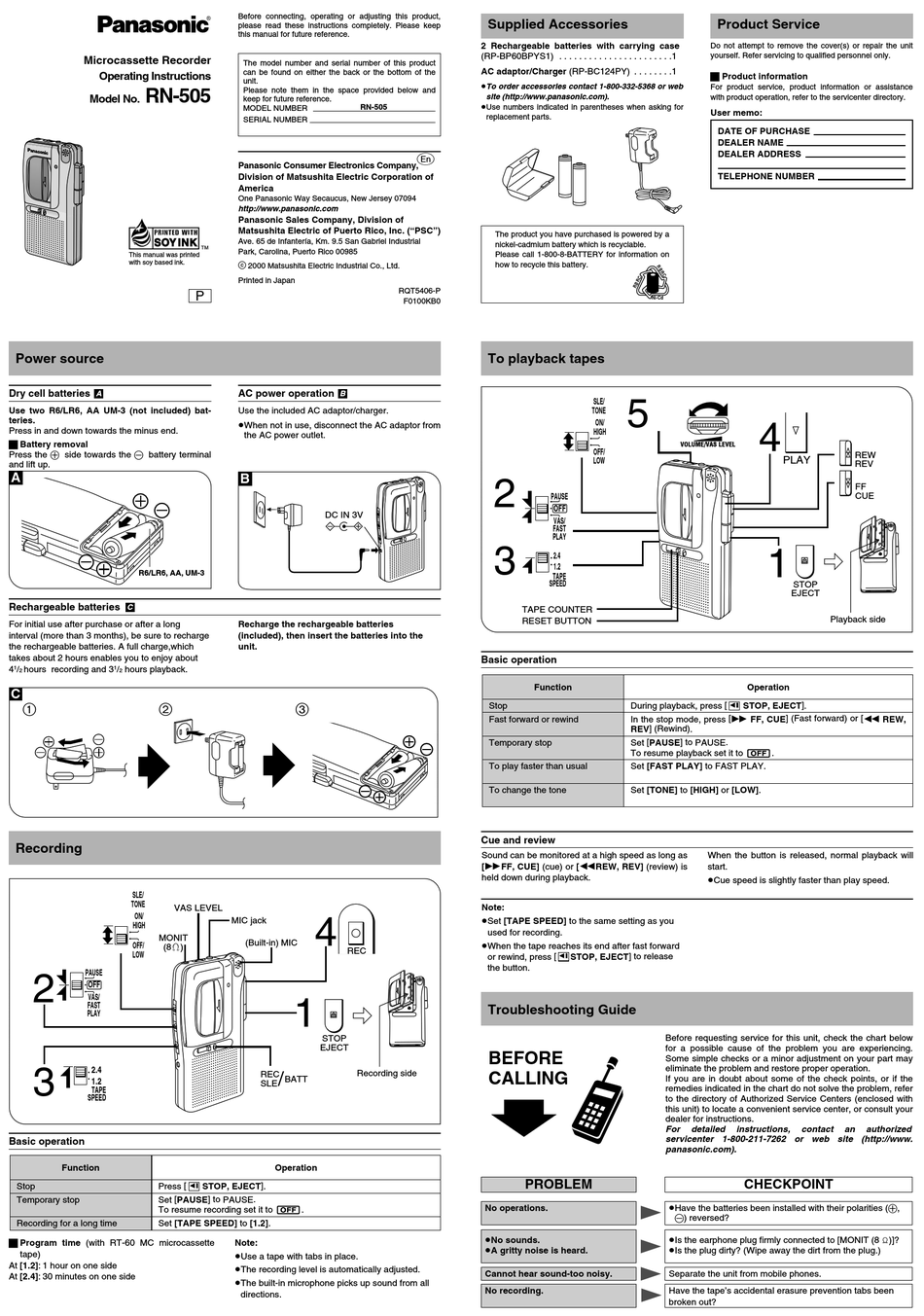

Panasonic RN-505 Operating Instructions

Microcassette Recorder
Operating Instructions
RN-505
Model No.
This manual was printed
with soy based ink.
Power source
Dry cell batteries
A
Use two R6/LR6, AA UM-3 (not included) bat-
teries.
Press in and down towards the minus end.
ª Battery removal
Press the + side towards the - battery terminal
and lift up.
A
R6/LR6, AA, UM-3
Rechargeable batteries
C
For initial use after purchase or after a long
interval (more than 3 months), be sure to recharge
the rechargeable batteries. A full charge,which
takes about 2 hours enables you to enjoy about
4 1 / hours recording and 3 1 / hours playback.
2 2
C
1 2
Recording
SLE/
TONE
VAS LEVEL
ON/
HIGH
MONIT
OFF/
(8Ω)
LOW
PAUSE
2
OFF
VAS/
FAST
PLAY
3 2.4
1.2
TAPE
SPEED
Basic operation
Function
Press [
Stop
Temporary stop Set [ PAUSE ] to PAUSE .
To resume recording set it to °.
Recording for a long time Set [TAPE SPEED] to [1.2].
ª Program time (with RT-60 MC microcassette
tape)
At [1.2]: 1 hour on one side
At [2.4]: 30 minutes on one side
Before connecting, operating or adjusting this product,
please read these instructions completely. Please keep
this manual for future reference.
The model number and serial number of this product
can be found on either the back or the bottom of the
unit.
Please note them in the space provided below and
keep for future reference.
RN-505
MODEL NUMBER
SERIAL NUMBER
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of
America
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company, Division of
Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial
Park, Carolina, Puerto Rico 00985
c 2000 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
P
AC power operation
B
Use the included AC adaptor/charger.
≥When not in use, disconnect the AC adaptor from
the AC power outlet.
B
DC IN 3V
Recharge the rechargeable batteries
(included), then insert the batteries into the
unit.
3
MIC jack 4
(Built-in) MIC
REC
1
STOP
EJECT
Recording side
REC
/
SLE BATT
Operation
STOP, EJECT ] .
G
Note:
≥Use a tape with tabs in place.
≥The recording level is automatically adjusted.
≥The built-in microphone picks up sound from all
directions.

Supplied Accessories

2 Rechargeable batteries with carrying case
(RP-BP60BPYS1) . . . . . . . . . . . . . . . . . . . . . . .1
AC adaptor/Charger (RP-BC124PY) . . . . . . . .1
≥To order accessories contact 1-800-332-5368 or web
site (http://www.panasonic.com).
≥Use numbers indicated in parentheses when asking for
replacement parts.
p
The product you have purchased is powered by a
nickel-cadmium battery which is recyclable.
Please call 1-800-8-BATTERY for information on
how to recycle this battery.
RQT5406-P
F0100KB0
To playback tapes
2
PAUSE
OFF
VAS/
FAST
PLAY
3
2.4
1.2
TAPE
SPEED
TAPE COUNTER
RESET BUTTON
Basic operation
Function
Stop
Fast forward or rewind
Temporary stop
To play faster than usual
To change the tone
Cue and review
Sound can be monitored at a high speed as long as
[5FF, CUE] (cue) or [6REW, REV] (review) is
held down during playback.
Note:
≥Set [TAPE SPEED] to the same setting as you
used for recording.
≥When the tape reaches its end after fast forward
or rewind, press [ STOP, EJECT ] to release
G
the button.

Troubleshooting Guide

BEFORE
CALLING
PROBLEM
No operations.
≥No sounds.
≥A gritty noise is heard.
Cannot hear sound-too noisy.
No recording.

Product Service

Do not attempt to remove the cover(s) or repair the unit
yourself. Refer servicing to qualified personnel only.
ª Product information
For product service, product information or assistance
with product operation, refer to the servicenter directory.
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
Ni-Cd
SLE/ 5
TONE
ON/
4
HIGH
VOLUME/VAS LEVEL
OFF/
LOW
Operation
During playback, press [ STOP, EJECT ] .
G
In the stop mode, press [ 5 FF, CUE ] (Fast forward) or [ 6 REW,
REV ] (Rewind) .
Set [ PAUSE ] to PAUSE .
To resume playback set it to °.
Set [FAST PLAY] to FAST PLAY.
Set [TONE] to [HIGH] or [LOW].
When the button is released, normal playback will
start.
≥Cue speed is slightly faster than play speed.
Before requesting service for this unit, check the chart below
for a possible cause of the problem you are experiencing.
Some simple checks or a minor adjustment on your part may
eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the
remedies indicated in the chart do not solve the problem, refer
to the directory of Authorized Service Centers (enclosed with
this unit) to locate a convenient service center, or consult your
dealer for instructions.
For detailed instructions,
servicenter 1-800-211-7262 or web site (http://www.
panasonic.com).
CHECKPOINT
≥Have the batteries been installed with their polarities (+,
-) reversed?
≥Is the earphone plug firmly connected to [MONIT (8 h)]?
≥Is the plug dirty? (Wipe away the dirt from the plug.)
Separate the unit from mobile phones.
Have the tape's accidental erasure prevention tabs been
broken out?
REW
PLAY
REV
FF
CUE
1
STOP
EJECT
Playback side
contact an authorized
