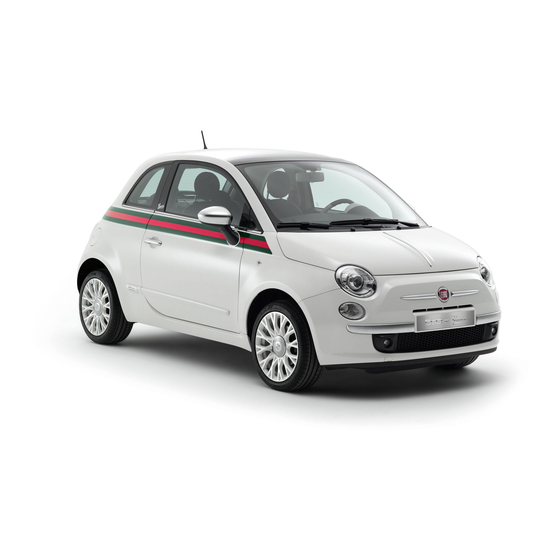

Fiat 2011 500 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

INTRODUCTION
Congratulations on selecting your new Fiat vehicle. Be
assured that it represents precision workmanship, dis-
tinctive styling, and high quality - all essentials that are
traditional to our vehicles.
This Owner's Manual has been prepared with the assis-
tance of service and engineering specialists to acquaint
you with the operation and maintenance of your vehicle.
It is supplemented by Warranty Information, and various
customer-oriented documents. Please take the time to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
The enclosed Warranty Information lists the services that
Fiat offers to its customers:
• the Warranty Certificate with terms and conditions for
maintaining its validity
• the range of additional services available to Fiat
customers
NOTE:
After reviewing the owner information, it
should be stored in the vehicle for convenient referenc-
ing and remain with the vehicle when sold.
When it comes to service, remember that your authorized
dealer knows your vehicle best, has factory-trained tech-
nicians and genuine parts, and cares about your satisfac-
tion.
1

Advertisement

Table of Contents
loading

Related Manuals for Fiat 2011 500

Summary of Contents for Fiat 2011 500

  • Page 1 - all essentials that are maintaining its validity traditional to our vehicles. • the range of additional services available to Fiat This Owner’s Manual has been prepared with the assis- customers tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle.

  • Page 2: How To Use This Manual

    HOW TO USE THIS MANUAL The detailed index at the back of this Owner’s Manual Consult the Table of Contents to determine which section contains a complete listing of all subjects. contains the information you desire. Consult the following table for a description of the Since the specification of your vehicle depends on the symbols that may be used on your vehicle or throughout items of equipment ordered, certain descriptions and...

  • Page 3: Warnings And Cautions

    WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.

  • Page 4: Vehicle Identification Number

    VEHICLE IDENTIFICATION NUMBER The Vehicle Identification Number (VIN) is found on the left front corner of the instrument panel, visible through the windshield. This number also appears on the vehicle registration and title. Vehicle Identification Number...

  • Page 5: Vehicle Modifications/Alterations

    VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a accident resulting in serious injury or death.

  • Page 6: A Word About Your Keys

    A WORD ABOUT YOUR KEYS The authorized dealer that sold you your new vehicle has The key fob contains the Remote Keyless Entry (RKE) the key code numbers for your vehicle locks. These transmitter with an integrated key (metal bladed key for numbers can be used to order duplicate keys.
  • Page 7 Locking Doors With A Key Key-In-Ignition Reminder You can insert the key with either side up. To lock the Opening the driver’s door when the key is in the ignition door, turn the key to the right. To unlock the door, turn and the ignition switch position is OFF/LOCK, sounds a the key to the left.

  • Page 8: Sentry Key

    SENTRY KEY If the Vehicle Security Light turns on during normal The Sentry Key Immobilizer System prevents unauthor- vehicle operation (vehicle running for longer than 10 sec- ized vehicle operation by disabling the engine. The onds), it indicates that there is a fault in the electronics. system does not need to be armed or activated.

  • Page 9: Remote Keyless Entry (Rke) - If Equipped

    REMOTE KEYLESS ENTRY (RKE) — IF NOTE: The line of transmission must not be blocked EQUIPPED with metal objects. This system allows you to lock or unlock the doors and To Unlock The Doors And Liftgate liftgate from distances up to approximately 66 ft (20 m) Press and release the UNLOCK button on the RKE using a hand-held Remote Keyless Entry (RKE) transmit- transmitter once to unlock the driver’s door, or twice...
  • Page 10 General Information 2. Closeness to a radio transmitter such as a radio station This device complies with Part 15 of FCC rules and with tower, airport transmitter, military base, and some mobile RS-210 of Industry Canada. Operation is subject to the or CB radios.
  • Page 11 3. Take out the battery case and remove and replace the 4. Refit the battery case inside the key and lock it by battery observing its polarity. turning the screw.

  • Page 12: Door Locks

    DOOR LOCKS WARNING! The door locks can be manually locked or unlocked from inside the vehicle by using the door handle. If the door • Do not leave children or animals inside parked handle is pushed (red lock indicator showing) when the vehicles in hot weather.
  • Page 13 Automatic Door Locks — If Equipped Automatic Door Locks Programming The doors will lock automatically on vehicles with power The Auto Close feature can be enabled or disabled with door locks if all of the following conditions are met: the Electronic Vehicle Information Center (EVIC), refer to “Electronic Vehicle Information Center (EVIC) —...

  • Page 14: Power Windows

    POWER WINDOWS Power Window Switches There are single window controls located on the shifter bezel below the climate controls, which operate the driver and passenger door windows. The window con- trols will operate when the ignition switch is in the ON/RUN position.
  • Page 15 LIFTGATE WARNING! To unlock the liftgate, use the Remote Keyless Entry (RKE) transmitter or by activating the power door lock • Driving with the liftgate open can allow poison- switches located on the front door handles. ous exhaust gases into your vehicle. You and your passengers could be injured by these fumes.

  • Page 16: Occupant Restraints

    OCCUPANT RESTRAINTS • All seat belt systems (except the driver’s) include Some of the most important safety features in your Automatic Locking Retractors (ALRs), which lock the vehicle are the restraint systems: seat belt webbing into position by extending the belt all the way out and then adjusting the belt to the •...
  • Page 17 4. Do not lean against the door or window. Your vehicle WARNING! has Supplemental Side Airbag Inflatable Curtains (SABIC) or Supplemental Seat-Mounted Side Airbags • Relying on the airbags alone could lead to more (SAB), and deployment occurs, the SABIC and SAB severe injuries in a collision.
  • Page 18 WARNING! WARNING! (Continued) • Wearing your belt in the wrong place could make • It is dangerous to ride in a cargo area, inside or your injuries in an accident much worse. You outside of a vehicle. In an accident, people riding might suffer internal injuries, or you could even in these areas are more likely to be seriously slide out of part of the belt.
  • Page 19 WARNING! WARNING! (Continued) • A belt that is worn under your arm is dangerous. • A belt that is buckled into the wrong buckle will Your body could strike the inside surfaces of the not protect you properly. The lap portion could vehicle in an accident, increasing head and neck ride too high on your body, possibly causing injury.
  • Page 20 6. To release the belt, push the red button on the buckle. Lap/Shoulder Belt Untwisting Procedure The belt will automatically retract to its stowed position. Use the following procedure to untwist a twisted lap/ If necessary, slide the latch plate down the webbing to shoulder belt.
  • Page 21 How To Engage The Automatic Locking Mode WARNING! 1. Buckle the combination lap and shoulder belt. • The belt and retractor assembly must be replaced 2. Grasp the shoulder portion and pull downward until if the seat belt assembly Automatic Locking Re- the entire belt is extracted.
  • Page 22 are fastened. In reverse gear, if the driver or front seat NOTE: After entering the Menu, an action must be passenger is unbelted, the Seat Belt Reminder Light will taken within 45 seconds or the Menu will disappear. turn on (solid) and remain on until both front seatbelts 1.
  • Page 23 Supplemental Restraint System (SRS) — Airbags This vehicle has Advanced Front Airbags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s Advanced Front Air- bag is mounted in the center of the steering wheel. The passenger’s Advanced Front Airbag is mounted in the instrument panel, above the glove compartment.
  • Page 24 • Supplemental Driver Side Knee Airbag WARNING! • Knee Impact Bolster • No objects should be placed over or near the • Driver Advanced Front Airbag airbag on the instrument panel, because any such objects could cause harm if the vehicle is in a •...
  • Page 25 WARNING! • Your vehicle is equipped with left and right SABIC, do not stack luggage or other cargo up high enough to block the location of the SABIC. The area where the side curtain airbag is located should remain free from any obstructions. •...
  • Page 26 The Advanced Front Airbags and Supplemental Driver Seat belts are necessary for your protection in all acci- Side Knee Airbag will not deploy in all frontal collisions, dents, and also are needed to help keep you in position, including some that may produce substantial vehicle away from an inflating airbag.
  • Page 27 The Advanced Front Airbag gas is vented through the Supplemental Seat-Mounted Side Airbag (SAB) vent holes in the sides of the airbag. In this way, the Inflator Units airbags do not interfere with your control of the vehicle. The Supplemental Seat-Mounted Side Airbags (SAB) are designed to activate only in certain side collisions.
  • Page 28 Enhanced Accident Response System • Unlock the doors automatically. In the event of an impact causing airbag deployment, if After the event occurs, when the system is active, the the communication network remains intact, and the message Fuel Cutoff See Handbook is displayed. power remains intact, depending on the nature of the event the ORC will determine whether to have the Carefully check the vehicle for fuel leaks in the engine...
  • Page 29 NOTE: Front and/or side airbags will not deploy in all airbag inflation. These airborne particles may irritate collisions. This does not mean something is wrong with the skin, eyes, nose, or throat. If you have skin or eye the airbag system. irritation, rinse the area with cool water.
  • Page 30 Airbag Warning Light Controller (ORC) may also be disabled. The airbags may You will want to have the airbags ready to not be ready to inflate for your protection. Promptly inflate for your protection in a collision. The check the fuse block for blown fuses. Refer to the label Airbag Warning Light monitors the internal located on the inside of the fuse block cover for the circuits and interconnecting wiring associated...
  • Page 31 Refer to LATCH — Child Seat Anchorage System WARNING! (Lower Anchors and Tether for CHildren) . In a collision, an unrestrained child, even a tiny baby, • The infant carrier is only used rearward-facing in the can become a projectile inside the vehicle. The force vehicle.
  • Page 32 NOTE: additional information, refer children who weigh 20 to 40 lbs (9 to 18 kg) and who www.seatcheck.org call 1–866–SEATCHECK. are older than one year. These child seats are also held Canadian residents, should refer Transport in the vehicle by the lap/shoulder belt or the LATCH Canada’s website additional...
  • Page 33 vehicle’s seat belt for the outboard position. If your child restraints are not LATCH-compatible, you can only in- stall the child restraints using the vehicle’s seat belts. Please refer to “Installing the Child Restraint System” for typical installation instructions. WARNING! You should never install LATCH-compatible child seats so that two seats share a common anchorage.
  • Page 34 restraint rearward and downward into the seat, remov- WARNING! ing slack in the straps according to the child restraint manufacturer’s instructions. Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or NOTE: child restraint.
  • Page 35 To attach a child restraint tether strap: • If necessary, move the seat forward to provide better access to the tether anchor. • Route the tether strap to provide the most direct path for the strap between the anchor and the child seat, •...

  • Page 36: Engine Break-In Recommendations

    ENGINE BREAK-IN RECOMMENDATIONS The engine oil installed in the engine at the factory is a A long break-in period is not required for the engine and high-quality energy conserving type lubricant. Oil drivetrain (transmission and axle) in your vehicle. changes should be consistent with anticipated climate conditions under which vehicle operations will occur.

  • Page 37: Safety Tips

    SAFETY TIPS WARNING! (Continued) Transporting Passengers • Be sure everyone in your vehicle is in a seat and NEVER TRANSPORT PASSENGERS IN THE CARGO using a seat belt properly. AREA. Exhaust Gas WARNING! WARNING! • Do not leave children or animals inside parked vehicles in hot weather.
  • Page 38 authorized dealer. If the light stays on, flickers, or comes WARNING! on while driving, have the system checked by an autho- rized dealer. Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious per- Defroster sonal injury.
  • Page 39 Door Latches Check for positive closing, latching, and locking. Fluid Leaks Check area under vehicle after overnight parking for fuel, engine coolant, oil, or other fluid leaks. Also, if gasoline fumes are detected or if fuel, power steering fluid, or brake fluid leaks are suspected, the cause should be located and corrected immediately.
  • Page 40 MIRRORS Inside Day/Night Mirror The mirror can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window. Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
  • Page 41 Power Mirrors The power mirror controls consist of mirror select switch The power mirror controls are located on the driver’s and a four-way mirror control switch. To adjust a mirror, door trim panel. press the mirror select switch to either the L (left) or R (right) to select the mirror you need to adjust.
  • Page 42 Sun Visors Courtesy Mirrors The driver and passenger sun visors are located on the The passenger side sun visor comes equipped with a headliner, near the front windshield. The sun visor can be courtesy mirror. rotated downward or up against the door glass. Sun Visor (Driver’s Side)

  • Page 43: Hands-Free Phone - If Equipped

    This implies that the system is nearly equally performing with different persons, i.e.: the Overview voice recognition system is of the “speaker independent” Windows Mobile™-based Fiat Blue&Me™ is a personal type. telematic system enabling to use communication and entertainment applications expressly designed for use in With this system you can also play your favorite music the car.

  • Page 44: Mobile Phones

    For further details on the mobile phones supported by list or directly pronouncing the phone number, to Blue&Me™, refer to section Blue&Me™ SUPPORTED answer a call and also to answer another incoming MOBILE PHONES. phone call. • To interact with Blue&Me™ you can use either buttons To get started with Blue&Me™...
  • Page 45 hands-free phone, the audio output of a phone conver- Message reader functions are managed by the control sation is heard through your car sound speakers. buttons on the steering wheel or by the Blue&Me™ voice commands. Message Reader The Blue&Me™ message reader enables automatic read- The Blue&Me™...
  • Page 46 • To use the media player, you have to simply connect WARNING! (Continued) (directly or by an extension lead) your USB device to • Read and Follow Instructions: before using your the car USB port. Turning the ignition key to ON, system, read and follow all instructions and safety Blue&Me™...
  • Page 47 SEATS Seats are a part of the Occupant Restraint System of the vehicle. WARNING! • It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.
  • Page 48 Seat Height Adjustment EZ Entry Feature The driver’s seat height can be raised or lowered by The driver and front passenger seats have an EZ entry using a lever, located on the outboard side of the seat. feature for rear seat passengers. Pull forward on the Pump the lever upward to raise the seat height, or pump release lever, located on the outboard side of the seatback, the lever downward to lower the seat height.
  • Page 49 NOTE: The head restraints should only be removed by qualified technicians, for service purposes only. If either of the head restraints require removal, see your autho- rized dealer. WARNING! Do not place items over the top of the Active Head Restraint, such as coats, seat covers or portable DVD players.

  • Page 50: To Open And Close The Hood

    TO OPEN AND CLOSE THE HOOD To open the hood, two latches must be released. 1. Pull the bottom of the RED hood release lever, located on the left kick panel, rearward. Safety Latch Location Lift the hood prop rod that clips to the right side (left side when standing in front of the hood) of the engine compartment.
  • Page 51 LIGHTS Multifunction Lever The multifunction lever, located on the left side of the steering wheel, controls the operation of the headlights, headlight beam selection, passing light and turn signals. NOTE: The external lights can only be turned on with the ignition in the ON/RUN position. Headlights Rotate the end of the multifunction lever up- ward to the first detent for headlight operation.
  • Page 52 Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times then automatically turn off. Follow Me Home/Headlight Delay When this feature is selected the driver can choose to have the headlights remain on for a preset period of time.
  • Page 53 Interior Light Timing (Off Position) There are two modes of operation in this position: • When all doors are closed, a three minute timer is activated. NOTE: The timer is deactivated when the key is moved into the ON/RUN position. •...

  • Page 54: Windshield Wipers And Washers

    WINDSHIELD WIPERS AND WASHERS The windshield wiper/washer lever is located on the right side of the steering column. NOTE: The windshield wipers/washers will only oper- ate with the ignition in the ON/RUN position. Front Windshield Wiper Operation There are five different modes of operation for the front windshield wipers.
  • Page 55 from a passing vehicle. This operation will continue until REVERSE, the rear wiper will automatically operate at the lever is released. When the lever is released, the Low Speed and return to normal operation when the wipers will return to the off position and automatically transmission is shifted out of REVERSE.

  • Page 56: Tilt Steering Column - If Equipped

    TILT STEERING COLUMN — IF EQUIPPED Push down on the lever to unlock the column. With one This feature allows you to tilt the steering column hand firmly on the steering wheel, move the steering upward or downward. The tilt control lever is located on column up or down as desired.

  • Page 57: Electronic Speed Control

    ELECTRONIC SPEED CONTROL NOTE: In order to ensure proper operation, the Elec- When engaged, the Electronic Speed Control takes over tronic Speed Control system has been designed to shut accelerator operations at speeds greater than 25 mph down if multiple Speed Control functions are operated at (40 km/h).
  • Page 58 Pressing the RES (+) button once will result in a 1 mph Using Electronic Speed Control On Hills (2 km/h) increase in set speed. Each subsequent tap of The transmission may downshift on hills to maintain the the button results in an increase of 1 mph (2 km/h). vehicle set speed.

  • Page 59: Rear Park Assist - If Equipped

    REAR PARK ASSIST — IF EQUIPPED corners of the rear fascia/bumper, depending on the The Rear Park Assist system provides an audible indica- location, type and orientation of the obstacle. tion of the distance between the rear fascia/bumper and If several obstacles are detected, the rear park assist a detected obstacle when backing up, e.g.
  • Page 60 While audible signals are emitted, the audio system is not The sensors and wiring are tested continuously when the muted. ignition is in the ON/RUN position. Failures are indi- cated immediately if they occur when the system is ON. The audible signal is cut out immediately if the distance increases.
  • Page 61 WARNING! WARNING! (Continued) • Before using the Rear Park Assist System, it is • Drivers must be careful when backing up even strongly recommended that the ball mount and when using the Rear Park Assist system. Always hitch ball assembly is disconnected from the ve- check carefully behind your vehicle, look behind hicle when the vehicle is not used for towing.

  • Page 62: Power Sunroof - If Equipped

    POWER SUNROOF — IF EQUIPPED WARNING! The power sunroof roof switch is located in the overhead console. • Never leave children in a vehicle with the key in the ignition switch. Occupants, particularly unat- tended children, can become entrapped by the power sunroof while operating the power sunroof switch.
  • Page 63 Sun Shade — If Equipped For vehicles equipped with either a power sunroof or a fixed glass roof, there is a sun shade that can be open or closed. To open the sun shade press the tab and move the shade to a full open position.

  • Page 64: Electrical Power Outlets

    ELECTRICAL POWER OUTLETS Power is available when the ignition switch is in the There is a standard 12 Volt (13 Amp) power outlet, ON/RUN or START position. Insert the cigar lighter or located in the floor console, for added convenience. This accessory plug into the outlet for use.
  • Page 65 CAUTION! • Many accessories that can be plugged in draw power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent the engine from starting.

  • Page 66: Cigar Lighter - If Equipped

    CIGAR LIGHTER — IF EQUIPPED WARNING! When the cigar lighter is in use it becomes very hot. To avoid serious injury, handle the cigar lighter with care. Always check that the cigar lighter has turned off.

  • Page 67: Cup Holders

    CUPHOLDERS For rear passengers, there are cupholders located on the For the driver and front passenger, cupholders are lo- floor between the front driver and passenger seats. cated on the floor console between the front seats. Rear Cupholders Front Cupholders...
  • Page 68 STORAGE Passenger Seat Storage — If Equipped Some models may be equipped with storage under the Glove Box Compartment front passenger seat. Pull outward on the latch to open The glove box is located on the right side of the instru- the storage compartment.

  • Page 69: Cargo Area Features

    CARGO AREA FEATURES The rear seatbacks have a fold down feature to allow increased cargo capacity. Push down the release button, located at the outboard top of the seatback and move the seatback to its folded- down position to provide a flat load floor cargo area. When returning the seatback to its upright position, push rearward until the seatback is properly latched.

  • Page 70: Rear Window Features

    REAR WINDOW FEATURES CAUTION! (Continued) Rear Window Defroster • Use care when washing the inside of the rear The rear window defroster button is located in the window. Do not use abrasive window cleaners on center of the instrument panel, below the radio. the interior surface of the window.

  • Page 71: Instrument Panel Features

    INSTRUMENT PANEL FEATURES 1 — Side Vent 7 — Passenger Air Bag 13 — Storage Compartment 2 — Multifunction Lever – Light Control 8 — Glove Compartment 14 — Shift Lever 3 — Instrument Cluster And Warning Lights 9 — Rear Defrost Button 15 —...

  • Page 72: Instrument Cluster

    INSTRUMENT CLUSTER...

  • Page 73: Instrument Cluster Descriptions

    INSTRUMENT CLUSTER DESCRIPTIONS 2. Rear Defrost Button Press and release this button to turn on the rear 1. Glow Plug Light — If Equipped window defroster. This indicator will illuminate The Glow Plug light will flash during engine oil when the rear window defroster is on. The rear window viscosity sensor measurement in cold weather.
  • Page 74 9. Airbag Warning Light Reminder Light will illuminate and the chime will sound. This light will turn on for four seconds as a Refer to “Occupant Restraints” in “Things To Know bulb check when the ignition switch is first Before Starting Your Vehicle” for further information. turned to ON/RUN.
  • Page 75 Accordingly, when the low tire pressure telltale illumi- illuminated. This sequence will continue upon subse- nates, you should stop and check your tires as soon as quent vehicle start-ups as long as the malfunction exists. possible, and inflate them to the proper pressure. Driving When the malfunction indicator is illuminated, the sys- on a significantly under-inflated tire causes the tire to tem may not be able to detect or signal low tire pressure...
  • Page 76 Certain conditions such as a loose or missing gas cap, WARNING! poor fuel quality, etc., may illuminate the MIL after engine start. The vehicle should be serviced if the light A malfunctioning catalytic converter, as referenced stays on through several of your typical driving cycles. In above, can reach higher temperatures than in normal most situations, the vehicle will drive normally and will operating conditions.
  • Page 77 Vehicles equipped with the Anti-Lock Brake System 21. Electronic Stability Control (ESC) OFF Indicator (ABS), are also equipped with Electronic Brake Force Light — If Equipped Distribution (EBD). In the event of an EBD failure, the This light indicates the Electronic Stability Con- Brake Warning Light will turn on along with the ABS trol system (ESC) has been turned off by the Light.
  • Page 78 26. Temperature Gauge WARNING! The temperature digital scale shows engine coolant tem- perature. Any reading within the normal range indicates A hot engine cooling system is dangerous. You or that the engine cooling system is operating satisfactorily. others could be badly burned by steam or boiling coolant.

  • Page 79: Electronic Vehicle Information Center

    ELECTRONIC VEHICLE INFORMATION CENTER • System Status (EVIC) • Vehicle Information Warning Message Displays The Electronic Vehicle Information Center (EVIC) fea- tures a driver-interactive display that is located in the • Personal Settings (Customer-Programmable Features) instrument cluster. • Outside Temperature Display •...
  • Page 80 • Button Volume Selecting An Option Of The Main Menu With Submenu: • Hill Start • Briefly press the MENU ESC button to display the first • Daylights (D.R.L.) submenu option; • Exit Menu • Press the + or – button (by single presses) to scroll all Selecting An Option Of The Main Menu Without the submenu options;...
  • Page 81 Trip Functions NOTE: “Trip B” functions may be excluded (see “Trip B Both trip functions are resettable (reset — start of new on”). “Range” and “Instantaneous consumption” cannot trip). be reset. “Trip A” can be used to display the figures relating to: Values Displayed •...
  • Page 82 concerning the “Trip A” makes it possible to reset only Personal Settings (Customer-Programmable the information associated with this function. Features) • The reset operation in the presence of the screens Dimmer concerning the “Trip B” makes it possible to reset only The EVIC display is provided with a light sensor capable the information associated with this function.
  • Page 83 • Briefly press the MENU ESC button to go back to the Set Time (Clock) menu screen or press and hold the MENU ESC button This function may be used to set the clock through two (approximately one seconds) to go back to the main sub-menu items: “Time”...
  • Page 84 • Briefly press the MENU ESC button “day” will flash • CD audio, CD MP3: track number; on the display; To activate (On) or to deactivate (Off) sound system info • Press the + or – button for setting. displaying proceed as follows: NOTE: The setting will increase or decrease by one unit •...
  • Page 85 • Briefly press the MENU ESC button to go back to the Indication) menu screen or press and hold the MENU ESC button This function will only be displayed after a FIAT Dealer- (approximately one seconds) to go back to the main ship has deactivated the S.B.R. system.
  • Page 86 Hill Start Assist Proceed as follows to switch this function on or off: This function is used when starting a vehicle from a stop • Briefly press the MENU ESC button to display the on a hill by maintaining the same level of brake pressure three sub-menus;...

  • Page 87: Sales Code (Rab) Radio

    SALES CODE (RAB) RADIO The instructions for use are given below and we recom- mend you to read them carefully. Suggestions Road Safety Please, learn how to use all different radio functions (e.g. store stations) before beginning to drive. Reception Conditions Reception conditions change constantly while driving.
  • Page 88 player cannot be guaranteed to play all protected • two 100 mm diameter full range speakers, one speaker discs. The fact that the CD is protected from being in each of the rear side panels; copied is often shown in very small letters or is •...
  • Page 89 available) in CD, BUTTON RADIO FUNC- MODE Media Player TIONS and Satellite (if Radio Station Search: Automatic search: so equipped) buttons • Automatic Search Toggles RDS in- press (long formation in FM • Manual Search press for fast for- MENU Advanced func- Menu activation: ward) Manual...
  • Page 90 • CD Display function: display of track number and on • Fast forward/rewind through tracks; mp3 discs (song title, artist) and time elapsed since • MP3 Display function: display of folder name, ID3- start of the track; TAG information, (time elapsed since the start of the •...
  • Page 91 wording “TUNER Mute” will be shown on the display Use the buttons to scroll through the Menu (in radio mode) or “CD Pause” (in CD mode). functions. To change the setting of the selected function, use the buttons. Press the button again to deactivate the MUTE function.
  • Page 92 • press the button to increase the sound coming Preset/User*/Classic/Rock/Jazz Functions — If Equipped from the rear speakers or the button to increase The built-in equalizer can be activated/deactivated. the sound coming from the front speakers. When the equalizer function is off, the audio settings can By pressing the buttons briefly, the levels only be changed by adjusting the “Bass”...
  • Page 93 • System Reset On Volume Limit This function makes it possible to activate/deactivate the • Speed Volume maximum volume limit when turning the radio on. • On Volume Limit The display shows the function status: Press the MENU button again to exit the Menu function. •...
  • Page 94 Radio Each time the button is pressed the following bands are selected cyclically: (Tuner) Introduction When the car radio is turned on, the last function that • AM, FM or SAT (if equipped) was selected before turning it off (Radio, CD,CD MP3, Each band is highlighted by the corresponding wordings AUX) is activated.
  • Page 95 You can find SIRIUS’ current terms and conditions at CAUTION! http://www.sirius.com. Neither SIRIUS nor FIAT is responsible for any Re-Subscribe To SIRIUS Satellite Radio errors in accuracies in the SIRIUS data services or its New vehicle purchasers or lessees will receive a free use in vehicles.
  • Page 96 Adjustments” chapter. The following are instructions for retrieving the ESN CD Player Selection from FIAT 500 NAFTA model radios: To activate the CD player built into the equipment, To retrieve the Electronic Serial Number of Sirius Satellite proceed as follows: Receiver Module tune to Channel 0.
  • Page 97 A CD which cannot be read will not be ejected until these beginning. In this case, if you want to play the previous functions are over. At the end, with the CD mode track, press the button twice consecutively. activated, the display will show the wording “CD Disc Track Fast Forward/Rewind error”...
  • Page 98 NOTE: When the function is activated the radio may Selection Of Next/Previous Folder take a few seconds to start playing. While checking the Press the button to select a next folder or the button disc the display will show “CD Reading”. If no MP3 files to select the previous folder.
  • Page 99 iPod /USB/MEDIA PLAYER CONTROL — IF Refer to the appropriate Blue&Me™ radio User’s Manual EQUIPPED for iPod or external USB device support capability. This feature allows an iPod or external USB device to be plugged into the USB port, located in the glove compart- ment.

  • Page 100: Steering Wheel Audio Controls

    STEERING WHEEL AUDIO CONTROLS The right-hand control is a rocker-type switch with a The remote sound system controls are located on the rear pushbutton in the center and controls the volume and surface of the steering wheel. Reach behind the wheel to mode of the sound system.

  • Page 101: Cd/Dvd Disc Maintenance

    CD/DVD DISC MAINTENANCE NOTE: If you experience difficulty in playing a particu- To keep a CD/DVD in good condition, take the following lar disc, it may be damaged (i.e., scratched, reflective precautions: coating removed, a hair, moisture or dew on the disc) oversized, or have protection encoding.

  • Page 102: Radio Operation And Mobile Phones

    RADIO OPERATION AND MOBILE PHONES Under certain conditions, the mobile phone being on in your vehicle can cause erratic or noisy performance from your radio. This condition may be lessened or eliminated by relocating the mobile phone antenna. This condition is not harmful to the radio.

  • Page 103: Climate Controls

    CLIMATE CONTROLS 1. Temperature Control The Air Conditioning and Heating System is designed to Rotate this control to regulate the temperature of the air make you comfortable in all types of weather. inside the passenger compartment. Rotating the dial left into the blue area of the scale indicates cooler tempera- Single-Zone Manual Heating and Air Conditioning tures while rotating right into the red area indicates...

  • Page 104: Economy Mode

    • Defrost ECONOMY MODE Air is directed through the windshield and side If economy mode is desired, press the A/C button to turn window demist outlets. Use this mode with maxi- OFF the indicator light and the A/C compressor. Then, mum blower and temperature settings for best wind- move the temperature control to the desired temperature.
  • Page 105 Single-Zone Automatic Temperature Control (ATC) — If Equipped • The Automatic Temperature Control (ATC) allows the driver to select individual comfort settings. • The system provides set-and-forget operation for op- timum comfort and convenience. • The system can be controlled manually, if desired. The ATC system automatically maintains the interior comfort level desired by the driver and passenger.
  • Page 106 9. Blower Control Down Button • When the Auto indicator is on and the Recirculation There are 12 blower speeds, the blower speed decreases indicator is off, the Recirculation is in auto mode. If the as you press this button. Performing this function will Recirculation indicator is on, the Recirculation setting cause the ATC to switch into manual mode.
  • Page 107 are selected. This allows the front occupants to control Bi-Level the volume of air circulated in the vehicle and cancel the Air is directed through the panel and floor outlets. Auto mode. Press and release the Panel mode button and Floor mode button to enter Bi-Level mode, the indicators The operator can also select the direction of the airflow illuminate when ON.
  • Page 108 Operating Tips Regular cleaning of the inside of the windows with a non-filming cleaning solution (vinegar and water works Window Fogging very well) will help prevent contaminates (cigarette Windows will fog on the inside when the humidity inside smoke, perfumes, etc.) from sticking to the windows. the vehicle is high.

  • Page 109: Starting Procedures

    STARTING PROCEDURES Automatic Transmission – If Equipped Before starting your vehicle, adjust your seat, adjust both The shift lever must be in the PARK or NEUTRAL inside and outside mirrors, and fasten your seat belts. position before you can start the engine. Apply the brakes before shifting to any driving gear.
  • Page 110 WARNING! (Continued) CAUTION! • Do not attempt to push or tow your vehicle to get To prevent damage to the starter, do not continuously it started. Vehicles equipped with an automatic crank the engine for more than 15 seconds at a time. transmission cannot be started this way.

  • Page 111: Manual Transmission - If Equipped

    MANUAL TRANSMISSION — IF EQUIPPED Five–Speed Manual Transmission WARNING! You or others could be injured if you leave the vehicle unattended without having the parking brake fully applied. The parking brake should al- ways be applied when the driver is not in the vehicle, especially on an incline.
  • Page 112 CAUTION! If you skip more than one gear while downshifting or downshift at too high a vehicle speed, you could damage the engine, transmission, or clutch. To maintain a safe speed and prolong brake life, shift down to second or first gear when descending a steep grade.

  • Page 113: Automatic Transmission - If Equipped

    AUTOMATIC TRANSMISSION — IF EQUIPPED WARNING! CAUTION! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle Damage to the transmission may occur if the follow- speed. If your foot is not firmly on the brake pedal, ing precautions are not observed: the vehicle could accelerate quickly forward or in •...
  • Page 114 the parking brake when leaving the vehicle in this range. WARNING! (Continued) Always apply the parking brake first, and then place the • Never leave children alone in a vehicle. Leaving shift lever in the PARK position. unattended children in a vehicle is dangerous for a number of reasons.

  • Page 115: Autostick - If Equipped

    AUTOSTICK — IF EQUIPPED NOTE: In AutoStick mode, the transmission will only AutoStick is a driver-interactive feature providing shift up or down when the driver moves the shift lever manual shift control, giving you more control of the rearward (+) or forward (-), except as noted below. vehicle.

  • Page 116: Driving On Slippery Surfaces

    DRIVING ON SLIPPERY SURFACES Traction When driving on wet or slushy roads, it is possible for a Acceleration wedge of water to build up between the tire and road Rapid acceleration on snow covered, wet, or other slip- surface. This is known as hydroplaning and may cause pery surfaces may cause the front wheels to pull errati- partial or complete loss of vehicle control and stopping cally to the right or left.

  • Page 117: Driving Through Water

    DRIVING THROUGH WATER Shallow Standing Water Driving through water more than a few inches/ Although your vehicle is capable of driving through centimeters deep will require extra caution to ensure shallow standing water, consider the following Caution safety and prevent damage to your vehicle. and Warning before doing so.

  • Page 118: Power Steering

    POWER STEERING WARNING! The standard power steering system will give you good vehicle response and increased ease of maneuverability Continued operation with reduced or no power steer- in tight spaces. The system will provide mechanical ing assist could pose a safety risk to yourself and steering capability if power assist is lost.

  • Page 119: Parking Brake

    PARKING BRAKE Before leaving the vehicle, make sure that the parking brake is fully applied. Also, be certain to leave manual transmission in REVERSE or first gear. The parking brake lever is located in the center console. To apply the parking brake, pull the lever up as firmly as possible.

  • Page 120: Sport Mode

    SPORT MODE Manual Transmission – If Equipped The Sport mode increases steering feedback to the driver with slight increases in effort and throttle pedal to engine response. This driving mode is useful while driving on twisty roads where more steering precision is desired in spirited cornering.

  • Page 121: Brake System

    BRAKE SYSTEM Four-Wheel Anti-Lock Brake System (ABS) In the event power assist is lost for any reason (for The Four-Wheel ABS is designed to aid the driver in example, repeated brake applications with the engine maintaining vehicle control under adverse braking con- off), the brakes will still function.

  • Page 122: Electronic Brake Control System

    ELECTRONIC BRAKE CONTROL SYSTEM system detects an emergency braking situation by sens- Your vehicle is equipped with a advanced electronic ing the rate and amount of brake application and then brake control system that includes Anti-Lock Brake Sys- applies optimum pressure to the brakes. This can help tem (ABS), Brake Assist System (BAS), Traction Control reduce braking distances.
  • Page 123 HSA Activation Criteria WARNING! The following criteria must be met in order for HSA to activate: There may be situations on minor hills (i.e., less than 8%), with a loaded vehicle, or while pulling a trailer, • Vehicle must be stopped. when the system will not activate and slight rolling •...
  • Page 124 mode. This mode should be used for most driving situations. ESC should only be turned to “Partial Off” for specific reasons as noted below. Partial Off This mode is entered by momentarily pressing the “ESC Off” switch. This mode is intended to be used if the vehicle is in deep snow, sand or gravel conditions and more wheel spin than ESC would normally allow is required to gain traction.
  • Page 125 The “ESC Activation/Malfunction Indicator Light” (lo- • Each time the ignition is turned ON, the ESC system cated in the instrument cluster) starts to flash as soon as will be ON even if it was turned off previously. the tires lose traction and the ESC system becomes active. The “ESC OFF Indicator Light”...

  • Page 126: Tire Safety Information

    TIRE SAFETY INFORMATION NOTE: • P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. • European-Metric tire sizing is based on European design standards.
  • Page 127 Tire Sizing Chart EXAMPLE: Size Designation: P = Passenger car tire size based on U.S. design standards ..blank..= Passenger car tire based on European design standards LT = Light truck tire based on U.S. design standards T or S = Temporary spare tire 31 = Overall diameter in inches (in) 215 = Section width in millimeters (mm) 65 = Aspect ratio in percent (%)
  • Page 128 Tire Identification Number (TIN) Look for the TIN on the outboard side of black sidewall The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
  • Page 129 Tire Loading And Tire Pressure Tire and Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle Tire Placard Location 2) total weight your vehicle can carry...
  • Page 130 4. The resulting figure equals the available amount of NOTE: cargo and luggage load capacity. For example, if “XXX” • The following table shows examples on how to calcu- amount equals 1,400 lbs (635 kg) and there will be five late total load, cargo/luggage, and towing capacities 150 lb (68 kg) passengers in your vehicle, the amount of of your vehicle with varying seating configurations...
  • Page 131 WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them.

  • Page 132: Tires - General Information

    TIRES — GENERAL INFORMATION WARNING! (Continued) Tire Pressure • Unequal tire pressures can cause steering prob- Proper tire inflation pressure is essential to the safe and lems. You could lose control of your vehicle. satisfactory operation of your vehicle. Three primary •...
  • Page 133 Tire pressures change by approximately 1 psi (7 kPa) per loading may be required for high-speed vehicle opera- 12°F (7°C) of air temperature change. Keep this in mind tion. Refer to original equipment or an authorized tire when checking tire pressure inside a garage, especially in dealer for recommended safe operating speeds, loading the Winter.
  • Page 134 CAUTION! WARNING! Because of the reduced ground clearance, do not take Fast spinning tires can be dangerous. Forces gener- your vehicle through an automatic car wash with the ated by excessive wheel speeds may cause tire dam- compact spare installed. Damage to the vehicle may age or failure.
  • Page 135 Replacement Tires WARNING! The tires on your new vehicle provide a balance of many characteristics. They should be inspected regularly for Tires and the spare tire should be replaced after six wear and correct cold tire inflation pressure. The manu- years, regardless of the remaining tread.

  • Page 136: Tire Chains

    TIRE CHAINS CAUTION! (Continued) Use only compact chains, or other traction aids that meet • Because of restricted chain clearance between tires SAE type “Class S” specifications. Chains must be the and other suspension components, it is important proper size for the vehicle, as recommended by the chain that only chains in good condition are used.

  • Page 137: Tire Rotation Recommendations

    TIRE ROTATION RECOMMENDATIONS The suggested rotation method is shown in the following The tires on the front and rear of your vehicle operate at diagram. different loads and perform different steering, driving, and braking functions. For these reasons, they wear at unequal rates and tend to develop irregular wear pat- terns.

  • Page 138: Tire Pressure Monitoring System (Tpms)

    TIRE PRESSURE MONITORING SYSTEM (TPMS) The TPMS will warn the driver of a low tire pressure if The Tire Pressure Monitor System (TPMS) will warn the the tire pressure falls below the low-pressure warning driver of a low tire pressure based on the vehicle recom- limit for any reason, including low temperature effects, or mended cold placard pressure.
  • Page 139 NOTE: • Seasonal temperature changes will affect tire pressure, • The TPMS is not intended to replace normal tire care and the TPMS will monitor the actual tire pressure in and maintenance or to provide warning of a tire failure the tire.
  • Page 140 3. Snow or ice around the wheels or wheel housings. 3. However, after driving the vehicle for up to 20 min- utes above 15 mph (24 km/h), the Tire Pressure Moni- 4. Using tire chains on the vehicle. toring Telltale Light will flash on and off for 75 seconds 5.

  • Page 141: Fuel Requirements

    FUEL REQUIREMENTS Reformulated Gasoline Your vehicle is designed to meet all emis- Many areas of the country require the use of cleaner sion regulations and provide satisfactory burning gasoline referred to as “Reformulated Gasoline.” fuel economy and performance when us- Reformulated gasoline contains oxygenates and are spe- ing high-quality unleaded gasoline having cifically blended to reduce vehicle emissions and im-...
  • Page 142 MMT In Gasoline Materials Added To Fuel MMT is a manganese containing metallic additive that is All gasoline sold in the United States is required to blended into some gasoline to increase the octane num- contain effective detergent additives. Use of additional ber.
  • Page 143 WARNING! (Continued) • Guard against carbon monoxide with proper maintenance. Have the exhaust system inspected every time the vehicle is raised. Have any abnor- mal conditions repaired promptly. Until repaired, drive with all side windows fully open. • Keep the liftgate closed when driving your vehicle to prevent carbon monoxide and other poisonous exhaust gases from entering the vehicle.

  • Page 144: Adding Fuel

    ADDING FUEL CAUTION! Fuel Filler Cap (Gas Cap) • Damage to the fuel system or emission control The gas cap is located on the passenger side of the system could result from using an improper fuel vehicle. If the gas cap is lost or damaged, be sure the cap (gas cap).

  • Page 145: Trailer Towing

    TRAILER TOWING Trailer towing with this vehicle is not recommended.

  • Page 146: Recreational Towing (Behind Motorhome, Etc.)

    RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Wheels OFF the Towing Condition Manual Transmission Automatic Transmission Ground Flat Tow • Transmission in NEUTRAL NONE • Key in MAR (ACC/ON/RUN) Front Dolly Tow Rear On Trailer NOTE: Vehicles equipped with manual transmissions may be recreationally towed (flat towed) at any legal highway speed, for any distance, if the manual transmis- sion is in NEUTRAL and the ignition key is in the MAR...

  • Page 147: Hazard Warning Flashers

    HAZARD WARNING FLASHERS Do not use this emergency warning system when the The Hazard Warning flasher switch is located on the vehicle is in motion. Use it when your vehicle is disabled instrument panel below the radio. and it is creating a safety hazard for other motorists. Press the switch to turn on the Hazard Warning If it is necessary to leave the vehicle to go for service, the flashers.

  • Page 148: If Your Engine Overheats

    IF YOUR ENGINE OVERHEATS CAUTION! In any of the following situations, you can reduce the potential for overheating by taking the appropriate ac- Driving with a hot cooling system could damage tion. your vehicle. If the pointer rises to the H (red) mark, the instrument cluster will sound a chime.

  • Page 149: Tirefit Kit - If Equipped

    TIREFIT KIT — IF EQUIPPED TIREFIT Kit Components And Operation Small punctures up to ⁄ in (6 mm) in the tire tread can be sealed with TIREFIT. Foreign objects (e.g., screws or nails) should not be removed from the tire. TIREFIT can be used in outside temperatures down to approximately -4°F (-20°C).

  • Page 150: Tirefit Kit

    TIREFIT Usage Precautions • For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the • Replace the TIREFIT Sealant Bottle (1) and Sealant TIREFIT kit. Hose (6) prior to the expiration date (printed on the bottle label) to assure optimum operation of the sys- •...
  • Page 151 WARNING! (Continued) WARNING! (Continued) • Take care not to allow the contents of TIREFIT to • Use the gloves provided in the Accessory Storage come in contact with hair, eyes, or clothing. TIRE- Compartment (located on the bottom of the air FIT is harmful if inhaled, swallowed, or absorbed pump) when operating the TIREFIT kit.
  • Page 152 If the sealant (white fluid) does not flow within 0 – NOTE: If the Mode Select Knob (5) is on Air Mode and 10 seconds through the Sealant Hose (6): the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6).
  • Page 153 If tire pressure is less than 19 psi (1.3 Bar) , the tire is too WARNING! badly damaged. Do not attempt to drive the vehicle further. Call for assistance. TIREFIT is not a permanent flat tire repair. Have the tire inspected and repaired or replaced after using If the tire pressure is 19 psi (1.3 bar) or higher: TIREFIT.

  • Page 154: Jacking And Tire Changing

    JACKING AND TIRE CHANGING WARNING! (Continued) • The jack is designed to be used as a tool for WARNING! changing tires only. The jack should not be used to • Do not attempt to change a tire on the side of the lift the vehicle for service purposes.
  • Page 155 3. Pull the spare tire out from under the vehicle. Lowering/Raising Spare Tire Spare Tire CAUTION! 4. When the spare is clear, remove the knob or plastic The winch mechanism is designed for use with the molded nut by rotating it counter-clockwise. jack wrench tool only.
  • Page 156 6. Block both the front and rear of the WARNING! wheel diagonally opposite the jacking position. For example, if changing the Do not attempt to change a tire on the side of the right front tire, block the left rear vehicle close to moving traffic, pull far enough off wheel.
  • Page 157 CAUTION! Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle. 1. Remove the scissors jack and tool bag from under the driver’s seat. 2. Loosen, but do not remove, the wheel bolts by turning them to the left one turn while the wheel is still on the ground.
  • Page 158 WARNING! WARNING! Raising the vehicle higher than necessary can make To avoid the risk of forcing the vehicle off the jack, the vehicle less stable. It could slip off the jack and do not fully tighten the wheel bolts until the vehicle hurt someone near it.
  • Page 159 WARNING! CAUTION! A loose tire thrown forward in a collision or hard The winch mechanism is designed for use with the stop could injure the occupants in the vehicle. Have jack wrench extension tool only. Use of air wrench or the deflated (flat) tire repaired or replaced immedi- power tool may damage the winch.

  • Page 160: Jump-Starting Procedure

    JUMP-STARTING PROCEDURE CAUTION! If your vehicle has a discharged battery, it can be jump- started using a set of jumper cables and a battery in Do not use a portable battery booster pack or any another vehicle or by using a portable battery booster other booster source with a system voltage greater pack.
  • Page 161 3. If using another vehicle to jump-start the battery, park CAUTION! the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. Failure to follow these procedures could result in damage to the charging system of the booster vehicle WARNING! or the discharged vehicle.

  • Page 162: Freeing A Stuck Vehicle

    FREEING A STUCK VEHICLE NOTE: If your vehicle is equipped with Traction Con- If your vehicle becomes stuck in mud, sand or snow, it trol or Electronic Stability Control (ESC), turn the system can often be moved by a rocking motion. Turn your OFF before attempting to “rock”...

  • Page 163: Towing A Disabled Vehicle

    TOWING A DISABLED VEHICLE • Vehicle can be towed on a flatbed truck (all wheels off the ground). With Ignition Key All Transmissions Automatic Transmission If it is necessary to use the accessories while being towed • Vehicle can be towed with the front wheels elevated. (wipers, defrosters, etc.), the key must be in the ON/ RUN position.

  • Page 164: Enhanced Accident Response System

    ENHANCED ACCIDENT RESPONSE SYSTEM Carefully check the vehicle for fuel leaks in the engine In the event of an impact causing airbag deployment, if compartment and on the ground near the engine com- the communication network remains intact, and the partment and fuel tank before resetting the system and power remains intact, depending on the nature of the starting the engine.

  • Page 165: Shift Lever Override

    SHIFT LEVER OVERRIDE If a malfunction occurs and the shift lever cannot be moved out of the PARK position, you can use the following procedure to temporarily move the shift lever: 1. Firmly set the parking brake. 2. Remove the shift lever override access cover located on the right side of the shift lever housing.

  • Page 166: Engine Compartment - 1.4L

    ENGINE COMPARTMENT — 1.4L 1 — Engine Coolant Reservoir 5 — Battery 2 — Engine Oil Dipstick 6 — Air Cleaner Filter 3 — Brake Fluid Reservoir 7 — Engine Oil Fill 4 — Integrated Power Module (Fuses) 8 — Washer Fluid Reservoir...
  • Page 167 EMISSIONS INSPECTION AND MAINTENANCE Your vehicle has a simple ignition key-actuated test, PROGRAMS which you can use prior to going to the test station. To In some localities, it may be a legal requirement to pass check if your vehicle’s OBD II system is ready, you must an inspection of your vehicle’s emissions control system.

  • Page 168: Replacement Parts

    REPLACEMENT PARTS Use of genuine MOPAR parts for normal/scheduled maintenance and repairs is highly recommended to en- sure the designed performance. Damage or failures caused by the use of non-MOPAR parts for maintenance and repairs will not be covered by the manufacturer’s warranty.

  • Page 169: Dealer Service

    DEALER SERVICE WARNING! Your authorized dealer has the qualified service person- nel, special tools, and equipment to perform all service You can be badly injured working on or around a operations in an expert manner. Service Manuals are motor vehicle. Only do service work for which you available which include detailed service information for have the knowledge and the proper equipment.

  • Page 170: Maintenance Procedures

    MAINTENANCE PROCEDURES CAUTION! (Continued) The pages that follow contain the required maintenance • Your vehicle has been built with improved fluids services determined by the engineers who designed your that protect the performance and durability of vehicle. your vehicle and also allow extended maintenance Besides those maintenance items specified in the fixed intervals.
  • Page 171 Engine Oil Selection CAUTION! For best performance and maximum protection for all engines under all types of operating conditions, the Do not use chemical flushes in your engine oil as the manufacturer recommends engine oils that are API Cer- chemicals can damage your engine. Such damage is tified and meet the requirements of Chrysler Material not covered by the New Vehicle Limited Warranty.
  • Page 172 Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. You will never have to add water, nor is periodic main- The air induction system (air cleaner, hoses, etc) can tenance required. provide a measure of protection in the case of engine backfire.
  • Page 173 Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner should be checked and serviced by an authorized dealer • Use only refrigerants and compressor lubricants at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
  • Page 174 from a dry windshield. Avoid using the wiper blades to remove frost or ice from the windshield. Make sure that they are not frozen to the glass before turning them on to avoid damaging the blade. Keep the blade rubber out of contact with petroleum products such as engine oil, gasoline, etc.
  • Page 175 Exhaust System WARNING! The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust • Exhaust gases can injure or kill. They contain system. carbon monoxide (CO), which is colorless and odorless. Breathing it can make you unconscious If you notice a change in the sound of the exhaust system;...
  • Page 176 To minimize the possibility of catalytic converter dam- Cooling System age: WARNING! • Do not shut off the engine or interrupt the ignition, when the transmission is in gear and the vehicle is in • When working near the radiator cooling fan, dis- motion.
  • Page 177 Please review these recommendations for using Organic CAUTION! (Continued) Additive Technology (OAT) engine coolant (antifreeze). • Do not use water alone or alcohol based engine When adding engine coolant (antifreeze): coolant (antifreeze) products. Do not use addi- • The manufacturer recommends using MOPAR tional rust inhibitors or antirust products, as they Antifreeze/Coolant 10 Year/152,000 Mile Formula may not be compatible with the radiator engine...
  • Page 178 Disposal Of Used Engine Coolant As long as the engine operating temperature is satisfac- Used ethylene glycol-based engine coolant (antifreeze) is tory, the coolant bottle need only be checked once a a regulated substance requiring proper disposal. Check month. with your local authorities to determine the disposal When additional engine coolant (antifreeze) is needed to rules for your community.
  • Page 179 when the pads are replaced. However, low fluid level WARNING! may be caused by a leak and a checkup may be needed. Riding the brakes can lead to brake failure and NOTE: If your vehicle is equipped with a manual possibly a collision.
  • Page 180 Manual Transmission – If Equipped WARNING! (Continued) Lubricant Selection • Do not allow petroleum based fluid to contami- Use only the manufacturers recommended transmission nate the brake fluid. Brake seal components could fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in be damaged, causing partial or complete brake “Maintaining Your Vehicle”...
  • Page 181 Fluid Level Check hot or cold weather and other extreme conditions will The automatic transmission has no dipstick and is dealer have an adverse effect on paint, metal trim, and under- serviced only. body protection. Fluid and Filter Changes The following maintenance recommendations will enable Refer to the “Maintenance Schedule”...
  • Page 182 • If you detect any stone chips or scratches in the paint, Wheel And Wheel Trim Care touch them up immediately. The cost of such repairs is All wheels and wheel trim, especially aluminum and considered the responsibility of the owner. chrome-plated wheels, should be cleaned regularly with a mild soap and water to prevent corrosion.
  • Page 183 Cleaning Headlights Glass Surfaces Your vehicle has plastic headlights that are lighter and All glass surfaces should be cleaned on a regular basis less susceptible to stone breakage than glass headlights. with MOPAR Glass Cleaner or any commercial household-type glass cleaner. Never use an abrasive type Plastic is not as scratch resistant as glass and, therefore, cleaner.
  • Page 184 FUSES Cavity Vehicle Mini Fuse Description Fuse Interior Fuses Number The interior fuse panel is part of the Body Control 7.5 Amp Right Low Beam Module (BCM) and is located on the driver’s side under Brown the instrument panel. 5 Amp Tan Front and Rear Ceiling Lights Trunk and Door...
  • Page 185 Underhood Fuses Cavity Maxi Fuse Mini Fuse Description A second fuse panel is located on the right side of the 60 Amp Body Controller engine compartment, next to the battery. To access the Blue fuses, press the release tabs and remove the cover. 20 Amp Audio Amplifier Yellow...
  • Page 186 Cavity Maxi Fuse Mini Fuse Description Blue 30 Amp Sunroof/ Green Convertible Top 10 Amp Transmission 15 Amp Rear Defroster, Blue Heated Mirrors 5 Amp Tan Lights 5 Amp Tan Heated Mirrors...

  • Page 187: Vehicle Storage

    VEHICLE STORAGE If you are leaving your vehicle dormant for more than 21 days, you may want to take these steps to protect your battery. • Disconnect the negative cable from the battery. • Anytime you store your vehicle, or keep it out of service (i.e., vacation) for two weeks or more, run the air conditioning system at idle for about five minutes in the fresh air and high blower setting.

  • Page 188: Replacement Bulbs

    REPLACEMENT BULBS NOTE: Numbers refer to commercial bulb types that can be purchased from your authorized dealer. Interior Lights Bulb Type If a bulb needs to be replaced, visit your authorized Overhead Lamp ......C5W dealer or refer to the applicable Service Manual.

  • Page 189: Bulb Replacement

    BULB REPLACEMENT Front Turn Signal, Parking and Daytime Running Lamps Headlamps 1. Turn the steering wheel completely to the left or right. 1. Remove the plastic cap from the back of the headlamp housing. 2. Open the wheel housing access door. 2.
  • Page 190 Rear Tail, Stop, Backup and Turn Signal Lamps 4. Remove the tail, stop, or turn signal bulbs by pushing them slightly and turning counter-clockwise. 1. Open the liftgate. 5. Remove the backup lamp bulb by pulling straight out. 2. Remove the two screws and remove the tail lamp 6.

  • Page 191: Fluid Capacities

    FLUID CAPACITIES U.S. Metric Fuel (Approximate) 10.5 Gallons 40 Liters Engine Oil with Filter 1.4 Liter Engine 4 Quarts 3.8 Liters Cooling System 1.4 Liter Engine (MOPAR Antifreeze/Engine Coolant 10 4.6 Quarts 4.4 Liters Year/152,000 Mile Formula or equivalent) — with Manual Transmission 1.4 Liter Engine (MOPAR Antifreeze/Engine Coolant 10 5.8 Quarts...

  • Page 192: Fluids, Lubricants And Genuine Parts

    FLUIDS, LUBRICANTS, AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant MOPAR Antifreeze/Coolant 10 Year/152,000 Mile Formula OAT (Or- ganic Additive Technology) or equivalent meeting the requirements of Chrysler Material Standard MS-12106. Engine Oil Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.

  • Page 193: Maintenance Schedule

    MAINTENANCE SCHEDULE if it has been 6 months since your last oil change even The Scheduled Maintenance services listed in this if the oil change indicator message is NOT illumi- manual must be done at the times or mileages specified nated.

  • Page 194: Service Schedule

    8,000 Miles (13,000 km) or 16,000 Miles (26,000 km) or 12 Months Maintenance Service 6 Months Maintenance Service Schedule Schedule Included in the Maintenance Program J Change the engine oil and engine oil filter. Included in the Maintenance Program J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before J Change the engine oil and engine oil fil- 16,000 miles (26 000 km).
  • Page 195 32,000 Miles (52,000 km) or 24 Months Maintenance Service Schedule Included in the Maintenance Program J Change the engine oil and engine oil filter. J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 32,000 miles (52 000 km). J Inspect exhaust system.
  • Page 196 56,000 Miles (91,000 km) or 64,000 Miles (104,000 km) or 48 Months Maintenance Service 42 Months Maintenance Schedule J Change the engine oil and engine oil filter. Service Schedule J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before J Change the engine oil and engine oil 64,000 miles (104 000 km).
  • Page 197 88,000 Miles (143,000 km) or 96,000 Miles (156,000 km) or 72 Months Maintenance Service 66 Months Maintenance Schedule J Change the engine oil and engine oil filter. Service Schedule J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before J Change the engine oil and engine oil 96,000 miles (156 000 km).
  • Page 198 120,000 Miles (195,000 km) or 128,000 Miles (208,000 km) or 96 Months Maintenance Service 90 Months Maintenance Schedule J Change the engine oil and engine oil filter. Service Schedule J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before J Change the engine oil and engine oil 128,000 miles (208 000 km).
  • Page 199 152,000 Miles (247,000 km) or 114 Months Maintenance Service Schedule J Change the engine oil and engine oil filter. J Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 152,000 miles (247 000 km). J Flush and replace engine coolant.

  • Page 200: Suggestions For Obtaining Service For Your Vehicle

    SUGGESTIONS FOR OBTAINING SERVICE FOR Be Reasonable With Requests YOUR VEHICLE If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with Prepare For The Appointment the service advisor and list the items in order of priority. If you’re having warranty work done, be sure to have the At many authorized dealers, you may obtain a rental right papers with you.

  • Page 201: If You Need Assistance

    • Vehicle delivery date and mileage This is why you should always talk to an authorized FIAT Roadside And Customer Assistance Center dealer’s service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process.
  • Page 202 We appreciate that you have made a major investment WARNING! when you purchased the vehicle. An authorized dealer has also made a major investment in facilities, tools, and Engine exhaust, some of its constituents, and certain training to assure that you are absolutely delighted with vehicle components contain, or emit, chemicals the ownership experience.

  • Page 203: Warranty Information

    WARRANTY INFORMATION See the Warranty Information Booklet, located on the DVD, for the terms and provisions of Chrysler Group LLC warranties applicable to this vehicle and market.

  • Page 204: Reporting Safety Defects

    REPORTING SAFETY DEFECTS To contact NHTSA, you may either call the Auto Safety Hotline toll free at 1–888–327–4236 (TTY: 1–800–424– In the 50 United States and Washington, D.C. 9153), or go to http://www.safercar.gov; or write to: If you believe that your vehicle has a defect that could Administrator, NHTSA, 1200 New Jersey Avenue, SE., cause a crash or cause injury or death, you should West Building, Washington, D.C.

  • Page 205: Publication Order Forms

    PUBLICATION ORDER FORMS • Diagnostic Procedure Manuals To order the following manuals, you may use either the Diagnostic Procedure Manuals are filled with dia- website or the phone numbers listed below. Visa, Mas- grams, charts and detailed illustrations. These practi- tercard, American Express, and Discover orders are ac- cal manuals make it easy for students and technicians cepted.

  • Page 206: Department Of Transportation Uniform Tire Quality Grades

    DEPARTMENT OF TRANSPORTATION UNIFORM significantly from the norm due to variations in driving TIRE QUALITY GRADES habits, service practices, and differences in road charac- The following tire grading categories were established by teristics and climate. the National Highway Traffic Safety Administration. The Traction Grades specific grade rating assigned by the tire’s manufacturer The Traction grades, from highest to lowest, are AA, A, B,...

Table of Contents
