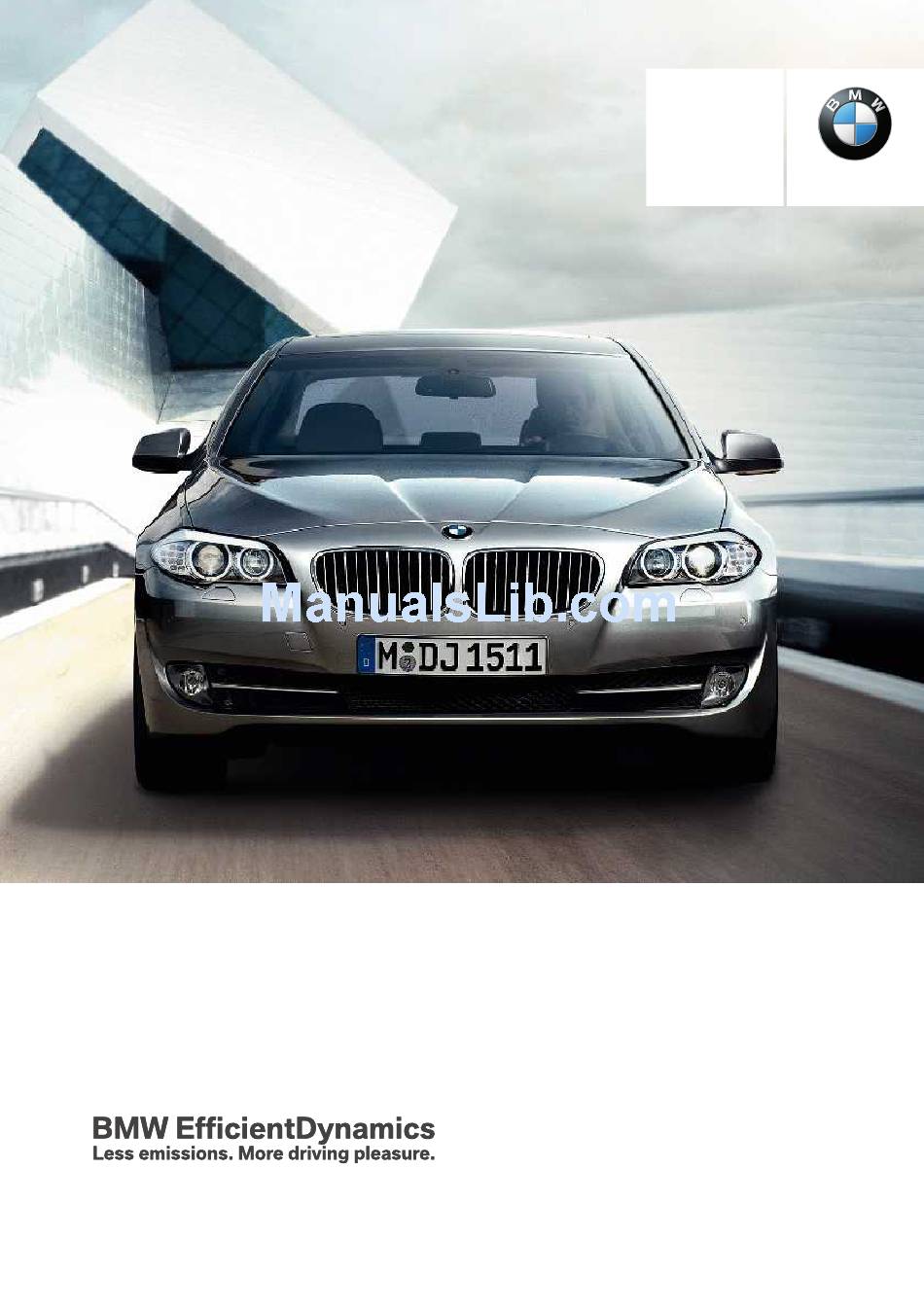

Page 1 Contents Owner's Manual for Vehicle The Ultimate Driving Machine THE BMW 5 SERIES SEDAN. THE BMW 5 SERIES SEDAN. OWNER'S MANUAL. OWNER'S MANUAL. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 3 Also use the Integrated Owner's Manual in your vehicle. It con‐ tains important information on vehicle operation that will help you make full use of the technical features available in your BMW. The manual also contains information designed to enhance operating reliability and road safety, and to contribute to maintaining the value of your BMW.
Page 4 © 2012 Bayerische Motoren Werke Aktiengesellschaft Munich, Germany Reprinting, including excerpts, only with the written consent of BMW AG, Munich. US English II/13, 03 13 490 Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 5: Table Of Contents
Contents Mobility The fastest way to find information on a partic‐ ular topic or item is by using the index, refer to Refueling page 236. Fuel Wheels and tires Engine compartment Notes Engine oil Coolant At a glance Maintenance Cockpit Replacing components iDrive Breakdown assistance...
Page 6: Vehicle Equipment
Owner's Manuals. center will be glad to advise you at any time. On right-hand drive vehicles, some controls are Information on BMW, e.g., on technology, is arranged differently than shown in the illustra‐ available on the Internet: bmwusa.com. tions.
Page 7: For Your Own Safety
We recommend that you read this publication on a BMW safely and without risk to either the thoroughly. Your vehicle is covered by the fol‐ vehicle, its operation, or its occupants. Genuine lowing warranties: BMW Parts, BMW Accessories and other prod‐...
Page 8 — possibly with the assistance of an damage to the vehicle. Such damage is not cov‐ expert. ered by the BMW New Vehicle Limited War‐ ranty. Additional functions that are contractually agreed with the customer, such as vehicle lo‐...
Page 9: Event Data Recorder Edr
Highway Traffic Safety Administration period of time, typically 30 seconds or less. NHTSA, in addition to notifying BMW of North America, LLC, P.O. Box 1227, Westwood, New The EDR in this vehicle is designed to record...
Page 10 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 11: At A Glance
At a glance These overviews of buttons, switches and displays are intended to familiarize you with your vehicle. You will also become quickly acquainted with the available control concepts and options. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 12: Cockpit
At a glance Cockpit Cockpit Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 13 Cockpit At a glance Front fog lamps 97 Increase distance 128 Parking lamps 94 Reduce distance 128 beams 94 Cruise control rocker switch 133, 127 11 Instrument cluster 75 Automatic headlamp con‐ 12 Steering wheel buttons, right trol 95 Entertainment source Daytime running lights 95 Adaptive Light Control 96 Volume High-beam Assistant 96 Instrument lighting 98...
Page 14 At a glance Cockpit Open the trunk lid 37 19 Unlocking the hood All around the center console Headliner 15 Parking brake 66 Control Display 16 Glove compartment 164 Auto Hold 67 Ventilation 151 Hazard warning system 220 PDC Park Distance Control 134 View 139 Central locking system 37 Backup camera 136 Parking assistant 142 Radio/CD/Multimedia, see user's manual for...
Page 15 Cockpit At a glance Driving Dynamics Control 123 12 Transmission selector lever DSC Dynamic Stability Con‐ trol 119 All around the headliner Emergency Request 220 Reading lamps 98 Glass sunroof, powered 45 Interior lamps 98 Indicator lamp, front passenger airbag 101 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 16: Idrive
At a glance iDrive iDrive Vehicle equipment Control Display All standard, country-specific and optional Hints equipment that is offered in the model series is ▷ To clean the Control Display, follow the care described in this chapter. Therefore, equipment instructions. is also described that is not available in a vehicle, ▷...
Page 17 iDrive At a glance Operating concept Press. Opening the main menu Press the button. Move in four directions. The main menu is displayed. All iDrive functions can be called up via the main menu. Selecting menu items Menu items shown in white can be selected. Turn the controller until the desired menu Buttons on controller item is highlighted.
Page 18: Options Menu
At a glance iDrive The current panel is closed and the previous Additional options: move the controller to the panel is displayed. right repeatedly until the "Options" menu is dis‐ played. The previous panel is opened again by pressing the BACK button. In this case, the Options menu current panel is not closed.
Page 19 iDrive At a glance Example: setting the clock Turn the controller to set the hours and press the controller. Setting the clock Turn the controller to set the minutes and press the controller. Press the button. The main menu is displayed.
Page 20 At a glance iDrive Switching the split screen on and off Symbol Meaning Text message was received. Press the button. "Split screen" Check the SIM card. SIM card is blocked. Selecting the display SIM card is missing. Press the button. Enter the PIN.
Page 21 iDrive At a glance Running a function Symbol Function Press the button. Press the controller: delete the letter The function will run immediately. This or number. means, for example, that the number is dialed Press the controller for an extended when a phone number is selected.
Page 22: Voice Activation System
At a glance Voice activation system Voice activation system Vehicle equipment Wait for the signal. Say the command. All standard, country-specific and optional The command is displayed in the instrument equipment that is offered in the model series is cluster. described in this chapter.
Page 23: Adjusting The Volume
Voice activation system At a glance Setting the voice dialog List of short commands of the voice activation system, see Navigation, Entertainment, Com‐ You can set whether the system should use the munication Owner's Manual. standard dialog or a shorter version. Help dialog for the voice activation In the shorter variant of the voice dialog, the an‐...
Page 24 At a glance Voice activation system Environmental conditions ▷ Say the commands, numbers, and letters smoothly and with normal volume, empha‐ sis, and speed. ▷ Always say commands in the language of the voice activation system. ▷ Keep the doors, windows, and glass sunroof closed to prevent noise interference.
Page 25: Integrated Owner's Manual In The Vehicle
Integrated Owner's Manual in the vehicle At a glance Integrated Owner's Manual in the vehicle Vehicle equipment Select components All standard, country-specific and optional Press the button. equipment that is offered in the model series is Turn the controller: open "Vehicle Info". described in this chapter.
Page 26 At a glance Integrated Owner's Manual in the vehicle Opening via the iDrive Programmable memory buttons To move directly from the application on the General information Control Display to the options menu: The Owner's Manual can be stored on the pro‐ grammable memory buttons and called up di‐...
Page 27 Integrated Owner's Manual in the vehicle At a glance Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 28 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 29: Controls
Controls This chapter is intended to provide you with information that will give you complete control of your vehicle. All features and accessories that are useful for driving and your safety, comfort and convenience are described here. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 30: Opening And Closing
Controls Opening and closing Opening and closing Vehicle equipment Integrated key All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e.
Page 31 Opening and closing Controls Take the used battery to a recycling cen‐ button within 10 seconds while pressing the ter or to your service center. brake. Manual transmission: if a corresponding Check Control message appears, hold the remote con‐ New remote controls trol, as shown, against the marked area on the You can obtain new remote controls from your steering column and press the Start/Stop button...
Page 32: Profile Management
Controls Opening and closing Profile management Resetting profiles The settings of the active profile are reset to Opening the profiles their default values. A different profile can be called up than the one Switch on the ignition. associated with the remote control currently in "Settings"...
Page 33: Central Locking System
Opening and closing Controls Using the guest profile ▷ Head-up Display: selection, brightness, po‐ sition and rotation of the display. The guest profile can be used to make individual settings without affecting the three Personal ▷ Headlamp courtesy delay feature: time set‐ Profiles.
Page 34: Using The Remote Control
Controls Opening and closing Opening and closing: from the Operating from the outside outside ▷ Via the remote control. ▷ Via the driver's door lock. Using the remote control ▷ Via the door handles. ▷ Via the button in the trunk lid. General information The following takes place simultaneously when Take the remote control with you...
Page 35 Opening and closing Controls Press and hold the button on the re‐ During opening, the trunk lid pivots back and up. mote control. Ensure that adequate clearance is available be‐ fore opening. The windows and the glass sunroof open. In some vehicle equipment variants, the trunk lid Releasing the button stops the motion.
Page 36 Controls Opening and closing Using the door lock Activating the setting "Settings" General information "Doors/key" "Last seat position auto." Malfunction If the vehicle can no longer be locked or un‐ locked with the remote control, the battery may be discharged or there may be interference from external sources such as mobile phones, metal objects, overhead power lines, transmission towers, etc.
Page 37: Automatic Locking
Opening and closing Controls Automatic locking ▷ Lock the driver's door using the integrated key in the door lock, or The setting is stored for the remote control cur‐ ▷ Press down the lock button of the front rently in use. passenger door and close the door from "Settings"...
Page 38: Locking The Vehicle
Controls Opening and closing Opening from the outside control is locked inside the vehicle when the trunk lid is closed.◀ Locking the vehicle ▷ Press the button on the trunk lid. ▷ Press the button on the remote control for approx. 1 second. Press the button on the inside of the trunk lid.
Page 39 Opening and closing Controls ▷ By pressing the button in the driver's foot‐ well. ▷ By pressing the button on the inside of the trunk lid. Closing Without Comfort Access: ▷ Press the button on the exterior of the trunk lid.
Page 40 Controls Opening and closing ▷ Trunk lid secured, arrow 1. ▷ Unlocking of the trunk lid separately. ▷ Trunk lid not secured, ar‐ ▷ Open trunk lid with no-touch activation. row 2. ▷ Start the engine. Functional requirements Slide the switch into the arrow 1 position. This ▷...
Page 41 Opening and closing Controls Locking Open trunk lid with no-touch activation With Comfort Access, the trunk lid can be opened with no-touch activation using the re‐ mote control you are carrying. A sensor detects a directed foot motion in the center of the area at the rear of the car and the trunk lid opens.
Page 42: Alarm System
Controls Opening and closing Trunk lid and armed alarm system such as mobile phones, metal objects, overhead power lines, transmission towers, etc. The trunk lid can be opened even when the In this case, open or close the vehicle using the alarm system is armed.
Page 43: Power Windows
Opening and closing Controls ▷ The indicator lamp flashes after locking: The tilt alarm sensor and interior motion sensor are switched off until the vehicle is locked again. The doors, hood or trunk lid is not closed properly, but the rest of the vehicle is se‐ cured.
Page 44: Roller Sunblinds
Controls Opening and closing The window closes while the switch is held. Pull the switch past the resistance point again within approx. 4 seconds and hold it there. ▷ Pull the switch beyond the resistance point. The window closes without pinch protec‐ tion.
Page 45 Opening and closing Controls Driver's door controls Take the remote control with you Take the remote control with you when leaving the vehicle so that children, for example, cannot operate the roof and injure themselves.◀ Roller blind for rear window Press the button.
Page 46 Controls Opening and closing Opening/closing the glass sunroof and Closing from the raised position sliding visor together without pinch protection If there is an external danger, push the switch Briefly press the switch twice in forward past the resistance point and hold it. succession in the desired direc‐...
Page 47: Adjusting
Adjusting Controls Adjusting Vehicle equipment Semi-electrically adjustable seats All standard, country-specific and optional At a glance equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e.
Page 48 Controls Adjusting Forward/backward Electrically adjustable seats At a glance Pull the lever and slide the seat in the desired direction. Lumbar support After releasing the lever, move the seat forward or back slightly to make sure it engages prop‐ Backrest width erly.
Page 49: Lumbar Support
Adjusting Controls Lumbar support Height. The curvature of the seat backrest can be ad‐ justed in such a way that it supports the lumbar region of the spine. The lower back and the spine are supported for upright posture. ▷ Press the front/rear section of the switch.
Page 50 Controls Adjusting Press the button. The LED lights up. Select the required seat. Front seat heating Turn the controller to set the temperature distribution. Rear seat heating Switching on Press the button once for each temper‐ ature level. The maximum temperature is reached when three LEDs are lit.
Page 51 Adjusting Controls The ventilation cools the seat, e. g., if the vehicle Although airbags enhance safety by providing interior is overheated or for continuous cooling added protection, they are not a substitute for at high temperatures. safety belts. ▷ The shoulder strap's anchorage point will be correct for adult seat occupants of every build if the seat is correctly adjusted.
Page 52 Do not hang objects, e.g., clothes hangers, Damage to safety belts on the head restraints. ▷ Only attach accessories approved by BMW In the case of strain caused by accidents or to the seat or head restraint. damage: Otherwise, the protective function of the active...
Page 53: Head Restraints
Adjusting Controls Adjusting the height: manual head Distance to back of head: electrical restraints head restraints The head restraint is automatically repositioned when the shoulder support is adjusted. Adjusting the side extensions ▷ To raise: pull. ▷ To lower: press the button, arrow 1, and push the head restraint down.
Page 54 Controls Adjusting Adjusting the height Press the button, arrow 1, and pull the head restraint out completely. Before transporting passengers Reinstall the head restraint before trans‐ porting anyone in the seat; otherwise, the pro‐ tective function of the head restraint is unavail‐ able.◀...
Page 55 Adjusting Controls Mirrors Calling up settings Do not retrieve the memory while driving Exterior mirrors Do not retrieve the memory setting while driving, as an unexpected movement of the seat At a glance or steering wheel could result in an accident.◀ Comfort function Open the driver's door.
Page 56 Controls Adjusting Saving positions Automatic heating Seat, mirror, and steering wheel memory, refer Both exterior mirrors are automatically heated to page 54. whenever the engine is running. Adjusting manually Automatic dimming feature If an electrical malfunction occurs, for example, Both exterior mirrors are automatically dimmed. press the edges of the mirror glass.
Page 57: Steering Wheel
Adjusting Controls Functional requirement Power steering wheel adjustment For proper operation: ▷ Keep the photocells clean. ▷ Do not cover the area between the inside rearview mirror and the windshield. Steering wheel General information The steering wheel can be adjusted in four di‐ Do not adjust while driving rections.
Page 58: Transporting Children Safely
Controls Transporting children safely Transporting children safely Vehicle equipment tomatic deactivation of front passenger airbags, refer to page 101. All standard, country-specific and optional equipment that is offered in the model series is Note described in this chapter. Therefore, equipment Deactivated front passenger airbags is also described that is not available in a vehicle, If a child restraint fixing system is used in...
Page 59: Deactivating Airbags
Transporting children safely Controls On the front passenger seat Locking the safety belt Pull out the belt webbing completely. Deactivating airbags Secure the child restraint fixing system with After installing a child restraint fixing system in the belt. the front passenger seat, make sure that the Allow the belt webbing to be pulled in and front, knee and side airbags on the front pas‐...
Page 60 Controls Transporting children safely Child restraint fixing systems with a Before mounting the LATCH child restraint fix‐ tether strap ing system, pull the belt away from the child re‐ straint fixing system. Mounting points Without a through-loading system: Position Depending on the vehicle equipment, there are two outer or three mounting points for child re‐...
Page 61: Rear Doors
Transporting children safely Controls Safety switch for the rear Mounting point/eye Press the button on the driver's door if Rear window shelf children are being transported in the Seat backrest rear. Upper retaining strap This locks various functions so that they cannot be operated from the rear: safety switch, refer to Attaching the upper retaining strap to page 44.
Page 62: Driving
Controls Driving Driving Vehicle equipment ▷ Shortly before the battery is discharged completely, so that the engine can still be All standard, country-specific and optional started. equipment that is offered in the model series is described in this chapter. Therefore, equipment Note is also described that is not available in a vehicle, If the engine is switched off and the ignition is...
Page 63 Driving Controls ▷ While the driver's seat belt is unbuckled, if Repeated starting in quick succession the driver's door is open and the low beams Avoid repeated unsuccessful attempts to are switched off. start the vehicle or starting the vehicle several When the ignition is switched off, by opening or times in quick succession.
Page 64: Automatic Mode
Controls Driving Automatic mode Set the parking brake and further secure the vehicle as required The Auto Start/Stop function is operational after Set the parking brake firmly when parking; oth‐ each engine start. erwise, the vehicle could roll. On steep upward This function is activated at speeds faster than and downward inclines, further secure the vehi‐...
Page 65 Driving Controls ▷ The external temperature is high and auto‐ The engine can only be started via the Start/ matic climate control is running. Stop button. ▷ The passenger compartment has not yet Note been heated or cooled to the required level. Even if driving away was not intended, the de‐...
Page 66: Automatic Deactivation
Controls Driving Automatic deactivation ▷ Then press the brake pedal with normal braking force. In certain situations, the Auto Start/Stop func‐ tion is deactivated automatically for safety rea‐ Activating/deactivating the system sons, such as when the driver is detected to be manually absent.
Page 67 Driving Controls cle, for example, by turning the steering wheel in Inadvertent operation of the accelerator the direction of the curb. ◀ pedal Make sure that the accelerator pedal is not op‐ While driving erated unintentionally; otherwise, the vehicle is set in motion and there is a risk of an accident.◀...
Page 68 Controls Driving Leaving the vehicle with the engine run‐ Before driving into a car wash ning Deactivate Automatic Hold; otherwise, the Before leaving the vehicle with the engine run‐ parking brake will be set when the vehicle is sta‐ ning, engage position P of the automatic trans‐ tionary and the vehicle will no longer be able to mission and ensure that the parking brake is set.
Page 69: Headlamp Flasher
Driving Controls Turn signal, high beams, Signaling briefly headlamp flasher Press the lever to the resistance point and hold it there for as long as you want the turn signal to flash. Turn signal High beams, headlamp flasher Using turn signals ▷...
Page 70: Rain Sensor
Controls Driving Switching on Rain sensor The concept The rain sensor automatically controls the time between wipes depending on the intensity of the rainfall. The sensor is located on the wind‐ shield, directly behind the interior rearview mir‐ ror. Activating/deactivating Press the wiper levers up.
Page 71: Washer Fluid
Follow the usage cally heated while the ignition is switched on. instructions on the washer fluid container. Use BMW’s Windshield Washer Concentrate or the Fold-out position of the wipers equivalent.◀ Required when changing the wiper blades or under frosty conditions, for example.
Page 72: Automatic Transmission With
Controls Driving Automatic transmission with Steptronic Transmission positions D Drive, automatic position Position for normal vehicle operation. All for‐ ward gears are available. All washer nozzles are supplied from one reser‐ R is Reverse voir. Select only when the vehicle is stationary. Fill with a mixture of windshield washer concen‐...
Page 73 Driving Controls Engaging the transmission position Engaging P ▷ Transmission position P can only be disen‐ gaged if the engine is running and the brake pedal is pressed. ▷ With the vehicle stationary, press on the brake pedal before shifting out of P or N; otherwise, the shift command will not be executed: shift lock.
Page 74 Controls Driving Switching to manual mode Shift paddles for Sport automatic transmission ▷ To shift down: press the selector lever for‐ ward. ▷ To shift up: pull the selector lever rearwards. Gears will only be shifted at appropriate engine and road speeds, e.g., downshifting is not pos‐ sible if the engine speed is too high.
Page 75: Displays
Displays Controls Displays Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 76 Controls Displays Overview, instrument cluster with enhanced features Fuel gauge 84 Engine oil temperature 84 Speedometer Electronic displays 77 Indicator/warning lamps 81 Display/reset miles 84 Tachometer 84 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 77 Displays Controls Electronic displays Overview, instrument cluster Miles/trip miles 84 Speed limit detection 86 External temperature 84 Transmission display 74 Time 84 Current fuel consumption 85 Date 85 Energy recovery 85 Range 85 Service requirements 85 Selection list, e.g., radio 88 Messages, e.g. Check Control 81 Navigation display, see user's manual for Navigation display, see user's manual for Navigation, Entertainment and Communi‐...
Page 78 Controls Displays Overview, instrument cluster with enhanced features Messages, e.g. Check Control 81 Service requirements 85 Time 84 Miles/trip miles 84 Range 85 Selection list, for i nstance radio 88 Computer 88 Current fuel consumption 85 Date 85 Energy recovery 85 Speed limit detection 86 External temperature 84 Navigation display Transmission display 74 Multifunctional instrument ance is changed to reflect the new driving mode.
Page 79 Displays Controls At a glance Fuel gauge 84 Selection lists 88 Indicator/warning lamps 81 ECO PRO displays 179 Speedometer temperature 84 Variable displays Computer 88 Tachometer 84 Reset miles 84 Switching the change of display on and off You can set whether the instrument display "Info display" changes to the ECO PRO displays or Sport dis‐ "Driving mode view"...
Page 80 Controls Displays ECO PRO displays Speedometer Transmission display 74 Variable displays: ECO PRO Tips, Deceler‐ ▷ Blue: bonus range ation assistant instructions, Driver assist ▷ Gray: range system displays Efficiency display 179 In ECO PRO driving mode, the instrument dis‐ fuel consumption with more prominent repre‐ play switches to the ECO PRO displays.
Page 81: Check Control
Displays Controls Sport displays Speedometer Transmission display 74 Tachometer Variable displays In the Sport and Sport+ modes, the instrument In addition, an acoustic signal may be output and display switches to the sport displays. This dis‐ a text message may appear on the Control Dis‐ play supports a sporty driving style with more play.
Page 82 Controls Displays Instrument display Symbol Function or system Active Cruise Control Vehicle detection, Active Cruise Control Cruise control The indicator and warning lamps can light up in Lane departure warning a variety of combinations and colors. Several of the lamps are checked for proper DSC Dynamic Stability Control functioning and light up temporarily when the engine is started or the ignition is switched on.
Page 83 Displays Controls Hiding Check Control messages Symbol Function or system ABS Antilock Brake System ABS Antilock Brake System in Cana‐ dian models At least one Check Control message is displayed or is stored Press the computer button on the turn signal Text messages lever.
Page 84 Controls Displays Fuel gauge Odometer and trip odometer The vehicle inclination may ▷ Odometer, arrow 1. cause the display to vary. ▷ Trip odometer, arrow 2. US models: the arrow beside the fuel pump symbol shows which side of the vehicle the fuel filler flap is on.
Page 85: Service Requirements
Displays Controls Date Displaying the current fuel consumption The date is displayed in the in‐ "Settings" strument cluster. "Info display" Setting the date and date format, "Additional indicators" refer to page 91. The bar display for the current fuel consumption is displayed in the instrument cluster.
Page 86: Gear Shift Indicator
Controls Displays Required maintenance procedures and le‐ Open "Options". gally mandated inspections are displayed. "Last Service Request" Select an entry to call up detailed informa‐ tion. Gear shift indicator Symbols The concept Symbols Description The system recommends the most fuel efficient gear in the current driving situation.
Page 87 Displays Controls the information stored in the navigation system Keep the windshield in the area behind the in‐ and also displays speed limits present on routes terior rear view mirror clean and clear. without signs. Switching on/off No Passing Information "Settings"...
Page 88 Controls Displays System limits ▷ Current audio source. The system may not be fully functional and may ▷ Redial on telephone. provide incorrect information in the following ▷ Activation of the voice activation system. situations: ▷ In heavy fog, rain or snowfall. Activating a list and adjusting the ▷...
Page 89: Information At A Glance
Displays Controls Calling up information on the info Adjusting the info display display You can select what information from the on‐ board computer is to be displayed on the info display of the instrument cluster. "Settings" "Info display" Select the desired displays. Information in detail Range Press the onboard computer button on the turn...
Page 90 Controls Displays Time of arrival "Warning" Press the controller. The estimated time of arrival is displayed if a destination is en‐ Setting your current speed as the limit tered in the navigation system before the trip is started. "Settings" The time must be correctly set. "Speed"...
Page 91 Displays Controls Resetting the fuel consumption or "Time:" speed "Vehicle Info" "Onboard info" "Cons." or "Speed" Turn the controller until the desired hours are displayed. Press the controller. Turn the controller until the desired minutes are displayed. "Yes" Press the controller. The time is stored.
Page 92 Controls Displays Setting the date format Units of measure "Settings" Setting the units of measure "Time/Date" To set the units for fuel consumption, route/dis‐ "Format:" tance and temperature: Select the desired format. "Settings" "Language/Units" Select the desired menu item. The date format is stored. Language Select the desired unit.
Page 93 Displays Controls The setting is stored for the remote control cur‐ rently in use. Depending on the light conditions, the bright‐ ness control may not be clearly visible. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 94: Lamps
Controls Lamps Lamps Vehicle equipment If the driver door is opened with the ignition switched off, the exterior lighting is automati‐ All standard, country-specific and optional cally switched off at these switch settings. equipment that is offered in the model series is described in this chapter.
Page 95: Daytime Running Lights
Lamps Controls Headlamp courtesy delay feature Daytime running lights The low beams stay lit for a short while after the With the ignition switched on, the daytime run‐ ignition is switched off, if the lamps are switched ning lights light up in position 0, off and the headlamp flasher is switched on.
Page 96: Headlamp Range Control
Controls Lamps Switching off Adaptive light control is malfunctioning or has failed. Have the system checked as soon as pos‐ Briefly press the lever to the resistance point in sible. the opposite direction. Headlamp range control Adaptive light control With halogen headlamps, the headlamp range of The concept the low beams can be manually adjusted for the Adaptive Light Control is a variable headlamp...
Page 97 Lamps Controls The indicator lamp in the instrument ▷ In very unfavorable weather conditions, cluster lights up. such as fog or heavy precipitation. When the lights are switched on, the ▷ In detecting poorly-lit road users, such as high beams are switched on and off automati‐ pedestrians, cyclists, horseback riders and cally.
Page 98: Instrument Lighting
Controls Lamps Reading lamps on automatically when you switch on the front fog lamps. Press the button. Reading lamps are located at the front and rear Instrument lighting next to the interior lamps. When the interior lamps are switched off per‐ Adjusting manently, the reading lamps cannot be switched The parking lamps or low beams...
Page 99: Safety
Safety Controls Safety Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 100 Controls Safety Protective action ▷ Never modify either the individual compo‐ nents or the wiring in the airbag system. This Airbags are not triggered in every impact situa‐ also applies to steering wheel covers, the tion, e.g., in less severe accidents or rear-end dashboard, the seats, the roof pillars and the collisions.
Page 101: Deactivation System
Safety Controls When there is a malfunction, have the air‐ less they are specifically recommended by bag system checked immediately the manufacturer of your vehicle. When there is a malfunction, have the airbag ▷ Do not place any electronic devices on the system checked immediately;...
Page 102: Tire Pressure Monitor Tpm
Controls Safety sure that the indicator lamp for the front pas‐ a significant loss of pressure in one or more tires. senger airbags lights up. This indicates that the For this purpose, sensors in the tire valves child seat has been detected and the front pas‐ measure the tire pressure and tire temperature.
Page 103 Safety Controls One wheel is yellow The trip can be interrupted at any time. If you drive away again, the reset resumes automati‐ A flat tire or major drop in inflation pressure in cally. the indicated tire. Low tire pressure message All wheels are yellow The yellow warning lamp lights up.
Page 104 Controls Safety If an identification is not possible, please actual distance may be smaller or greater de‐ contact the service center. pending on the driving speed, road conditions, external temperature, cargo load, etc. Rectify the flat tire. Continued driving with a flat tire Use of tire sealant, e.g., the Mobility System, may damage the TPM wheel electronics.
Page 105 Safety Controls Malfunction pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low The yellow warning lamp flashes and tire pressure telltale. Your vehicle has also been then lights up continuously. A Check equipped with a TPMS malfunction indicator to Control message is displayed.
Page 106 Controls Safety Status display Do not continue driving without run-flat tires The current status of the Flat Tire Monitor can be displayed on the Control Display, e.g., Do not continue driving if the vehicle is not whether or not the FTM is active. equipped with run-flat tires;...
Page 107 Safety Controls Run-flat tires A loss of tire inflation pressure results in a change in the handling characteristics, e.g., re‐ Maximum speed duced lane stability during braking, a longer braking distance and altered self-steering prop‐ You can continue driving with a damaged tire at erties.◀...
Page 108 Controls Safety Switching on/off The acute warning prompts the driver to inter‐ vene and, if there is the danger of a collision, is Switching the warning function on/off accompanied by a braking intervention. The braking intervention is executed with lim‐ ited braking force and for a brief period only.
Page 109 Safety Controls Collision warning Adapting your speed and driving style The display does not relieve the driver of The concept the responsibility to adapt his or her driving speed and style to the traffic conditions.◀ If the vehicle does not include Active Cruise Control with Stop &...
Page 110 Controls Safety Switching the warning function on/off Warning stages Symbol Measure The vehicle lights up red: prewarn‐ ing. Increase distance. The vehicle flashes red and an acoustic signal sounds: acute warn‐ ing. You are requested to intervene by Press the button braking or making an evasive maneu‐...
Page 111 Safety Controls Night Vision with pedestrian Functional limitations detection The system may not be fully functional in the following situations: The concept ▷ In heavy fog, rain, sprayed water or snowfall. Night Vision with pedestrian detection is a night ▷ In tight curves.
Page 112 Controls Safety Warning of people in danger For safety reasons, when driving at speeds above approx. 3 mph/5 km/h and in low ambient light, the image is only displayed when the low beams are switched on. A still image is displayed at regular intervals for a fraction of a second.
Page 113 Safety Controls arrow 1, immediately in front of the vehicle. ▷ Cyclists on unconventional bicycles (e.g., recumbent bicycles). The yellow symbol is displayed when a ▷ After physical damage to the system, e.g., person detected in the extended area, after an accident. arrow 2, is moving from the right or left to the central area.
Page 114: Lane Departure Warning
Controls Safety Camera In the event of a warning, do not jerk the steering wheel, as you may lose control of the vehicle.◀ At a glance Button in the vehicle Rain, dirt, snow, or ice can impair camera oper‐ ation. The camera is automatically heated when the external temperatures are low.
Page 115 Safety Controls Display in the instrument cluster ▷ When driving toward bright lights. ▷ When the windshield behind the interior ▷ Lines: system is activated. rearview mirror is fogged over, dirty or cov‐ ▷ Arrows: at least one lane marking ered with stickers, etc.
Page 116: Radar Sensors
Controls Safety At a glance Display Radar sensors Information stage The radar sensors are located under the rear The dimmed lamp in the mirror housing indi‐ bumper. cates when there are vehicles in the blind spot or approaching from behind. Switching on/off Warning If the turn signal is set while a vehicle is in the...
Page 117: Brake Force Display
Safety Controls PreCrash ▷ NBG009014A. Compliance statement: The concept This device complies with part 15 of the FCC The system is used to detect critical driving sit‐ Rules. Operation is subject to the following two uations that might lead to an accident. In these conditions: situations, preventative protection measures ▷...
Page 118 Controls Safety If the belt tension does not loosen automatically, stop the vehicle and unbuckle the belt using the red button in the buckle. Fasten the belt before continuing on your trip. PostCrash If an accident above a certain degree of severity, the system automatically brakes the vehicle to a standstill.
Page 119: Driving Stability Control Systems
Driving stability control systems Controls Driving stability control systems Vehicle equipment Drive-off assistant All standard, country-specific and optional This system supports driving away on gradients. equipment that is offered in the model series is The parking brake is not required. described in this chapter.
Page 120 Controls Driving stability control systems DTC Dynamic Traction Indicator/warning lamps Control The indicator lamp flashes: DSC con‐ trols the drive forces and brake forces. The concept The indicator lamp lights up: DSC has failed. The DTC system is a version of the DSC in which forward momentum is optimized.
Page 121: Hdc Hill Descent Control
Driving stability control systems Controls The indicator lamp lights up: DTC Dy‐ namic Traction Control is activated. xDrive xDrive is the all-wheel-drive system of your ve‐ hicle. Concerted action by the xDrive and DSC further optimize traction and driving dynamics. The xDrive all-wheel-drive system variably dis‐...
Page 122 Controls Driving stability control systems Display in the instrument cluster SPORT Sporty tuning for greater driving agility. The selected speed is displayed in the speedometer. COMFORT ▷ Green: the system is actively Comfort-oriented tuning for optimal comfort. braking the vehicle. ▷...
Page 123: Using Snow Chains
Driving stability control systems Controls COMFORT At speeds up to approx. 37 mph/60 km/h, e.g., in curves, the steering angle is increased, i.e., Balanced tuning of the Integral Active Steering steering becomes more direct. for optimal traveling comfort. The rear axle steering acts to increase maneu‐ Malfunction verability by turning the rear wheels slightly in a direction opposite to the front wheels.
Page 124 Controls Driving stability control systems ▷ The vehicle has a flat tire. The program can be configured to individual specifications. DSC OFF The configuration is stored for the remote con‐ When DSC OFF, refer to page 120, is active, trol currently in use. driving stability is limited during acceleration Activating SPORT and when driving in bends.
Page 125 Driving stability control systems Controls Activating COMFORT+ Displays in the instrument cluster Press the button repeatedly until COM‐ Selected program FORT+ appears in the tachometer. The selected program is dis‐ played in the tachometer. ECO PRO ECO PRO, refer to page 179, provides consis‐ tent tuning to minimize fuel consumption for maximum range with maximum driving stabili‐...
Page 126: Driving Comfort
Even if some time passes before the vehicle hicle. drives away again, the BMW can still be accel‐ erated automatically and simply. As soon as the road is clear, it accelerates to the desired speed.
Page 127 Driving comfort Controls Interrupting the system Press the button on the steering wheel. If interrupting the system while stationary, press on the brake pedal at the same time. The system is automatically interrupted in the following situations: ▷ When the brakes are applied. A dirty or covered sensor may hinder the detec‐...
Page 128 Controls Driving comfort It is displayed in the speedometer and briefly creases or decreases by approx. displayed in the instrument cluster, Displays in 1 mph/1 km/h. the instrument cluster, refer to page 129. ▷ Each time the rocker switch is pressed past When cruise control is maintained or stored, the point of resistance, the desired speed DSC Dynamic Stability Control is switched on, if...
Page 129 Driving comfort Controls While standing ▷ The marking does not light up: the system is switched off. Before leaving the vehicle, secure it against rolling. With instrument display: the symbol is Before leaving the vehicle with the engine run‐ displayed in the speedometer similarly ning, engage position P of the automatic trans‐...
Page 130 Controls Driving comfort Indicator/warning lamps Detection range Personal responsibility The indicator and warning lamps do not relieve the driver of the responsibility to adapt his or her desired driving speed and style to the traffic conditions.◀ The vehicle symbol lights up orange: A vehicle has been detected ahead of you.
Page 131 Driving comfort Controls Swerving vehicles Cornering A vehicle driving in front of you is not detected If the desired speed is too high for a curve, the until it is completely within the same lane as your speed is reduced slightly in the curve, although vehicle.
Page 132: Cruise Control
Controls Driving comfort Radar sensor Unfavorable conditions Do not use the system if unfavorable con‐ For US owners only ditions make it impossible to drive at a constant The transmitter and receiver units comply with speed, for instance: part 15 of the FCC/Federal Communication ▷...
Page 133 Driving comfort Controls Press the button on the steering wheel. When cruise control is maintained or stored, DSC Dynamic Stability Control is switched on, if necessary. ▷ If active: press twice. ▷ If interrupted: press once. Changing/maintaining speed The displays go out. The stored desired speed The rocker switch can be pressed while the sys‐...
Page 134 Controls Driving comfort PDC Park Distance Control resistance point causes the vehicle to ac‐ celerate more rapidly. The concept Resuming the desired speed PDC supports you when parking. Objects that Press the button. you are approaching slowly in front of or behind your vehicle are indicated by: The stored speed is reached and maintained.
Page 135 Driving comfort Controls At a glance Display Button in the vehicle Signal tones When approaching an object, an intermittent tone is sounded that indicates the position of the object. For example, if an object is detected to the left rear of the vehicle, a signal tone sounds from the left rear speaker.
Page 136 Controls Driving comfort Malfunction The range of the sensors is represented in col‐ ors: red, green and yellow. A Check Control message is displayed. If the backup camera image was selected last, it The range of the sensors is shown as a shaded again appears on the display.
Page 137 Driving comfort Controls At a glance Switching on/off manually Press the button. Button in the vehicle ▷ On: the LED lights up. ▷ Off: the LED goes out. The PDC is shown on the Control Display. Switching on the backup camera via the iDrive With PDC activated: "Rear view camera"...
Page 138 Controls Driving comfort Pathway lines Obstacle marking ▷ Can be shown in the backup camera image ▷ Spatially-shaped markings can be shown in when in transmission position R. the backup camera image. ▷ Help you to estimate the space required Their colored steps match the markings of the when parking and maneuvering on level PDC.
Page 139: Display Settings
Driving comfort Controls Display settings Notes Check the traffic situation as well Brightness Check the traffic situation around the ve‐ With the backup camera switched on: hicle with your own eyes. Otherwise, an accident could result from road users or objects located Select the symbol.
Page 140 Controls Driving comfort The Top View and PDC images are displayed if the system is switched on via iDrive. Automatic deactivation during forward travel The system switches off when a certain driving distance or speed is exceeded. Switch the system back on if necessary. The display appears as soon as Top View is ac‐...
Page 141: Side View
Driving comfort Controls At a glance The pathway line is dependent on the cur‐ rent steering angle and is continuously ad‐ Button in the vehicle justed with the steering wheel movement. "Parking aid lines" Turning circle and pathway lines are displayed. System limits Top View cannot be used in the following situa‐...
Page 142: Parking Assistant
Controls Driving comfort Parking assistant Switch the system back on if necessary. Display The concept The traffic area to the left and right is displayed on the Control Display. This system assists the driver in parking parallel to the road. Guidelines at the bottom of the image show the Ultrasound sensors measure parking spaces on position of the front of the vehicle.
Page 143 Driving comfort Controls At a glance Transporting loads Loads that extend beyond the perimeter Button in the vehicle of the vehicle are not taken into account by the system during the parking procedure. Therefore, always be alert and ready to inter‐ vene;...
Page 144 Controls Driving comfort Switching on with reverse gear The parking procedure is active. Shift into reverse. Steering control has been seized. The current status of the parking space search is indicated on the Control Display. Activate: "Parking Assistant" Select the symbol in the Control Display.
Page 145 Driving comfort Controls Interrupting automatically ▷ The parking procedure is ac‐ tive. Steering control has The system is interrupted automatically in the been seized. following situations: ▷ If the driver grasps the steering wheel or if he takes over steering. ▷...
Page 146 Controls Driving comfort Limits of ultrasonic measurement Display visibility The detection of objects can reach the physical The visibility of the displays in the Head-up Dis‐ limits of ultrasonic measurement, e.g., in the fol‐ play is influenced by: lowing circumstances: ▷...
Page 147: Adjusting The Height
Driving comfort Controls Selecting displays in the Head-up Special windshield Display The windshield is part of the system. "Settings" The shape of the windshield makes it possible "Head-Up Display" to display a precise image. "Displayed information" A film in the windshield prevents double images from being displayed.
Page 148: Climate Control
Controls Climate control Climate control Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 149 Climate control Controls Climate control functions in detail At the same time, a condensation sensor con‐ trols the program so as to prevent window con‐ Manual air distribution densation as much as possible. Press the button repeatedly to select a Intensity of the AUTO program program: With the AUTO program switched on, automatic...
Page 150: Rear Window Defroster
Controls Climate control Air flows out of the vents for the upper body re‐ The air is cooled and dehumidified and, depend‐ gion. The vents need to be open for this. ing on the temperature setting, warmed again. Air is cooled as quickly as possible: Depending on the weather, the windshield may ▷...
Page 151 Climate control Controls Ventilation is shown on the display of the automatic cli‐ mate control. Front ventilation The interior temperature, air volume and air dis‐ tribution can be adjusted with the ignition switched on. Switching off At the lowest fan speed, press the left side of the button on the driver's side.
Page 152 Controls Climate control Rear automatic climate Ventilation in rear, center control At a glance ▷ Thumbwheels to vary the temperature, ar‐ row 1. Toward blue: colder. Temperature Toward red: warmer. AUTO program ▷ Lever for changing the air flow direction, ar‐ row 2.
Page 153 Climate control Controls Intensity of the AUTO program Switching the system on/off With the AUTO program switched on, automatic Switching off control of the air flow and air distribution can be adjusted. Press and hold the left button. Press the left or right side of the button: decrease or increase the intensity.
Page 154 Controls Climate control "Climate" "Activate parked-car vent." The symbol on the automatic climate control flashes if the system is switched on. The system continues to run for some time after being switched off. Preselecting the switch-on time "Settings" "Climate" "Timer 1:" or "Timer 2:" Set the desired time.
Page 155: Interior Equipment
Interior equipment Controls Interior equipment Vehicle equipment patible with the integrated universal remote control. All standard, country-specific and optional If you have any questions, please contact: equipment that is offered in the model series is ▷ Your service center. described in this chapter. Therefore, equipment is also described that is not available in a vehicle, ▷...
Page 156 Controls Interior equipment rearview mirror. The required distance de‐ For systems with an alternating-code system, pends on the manual transmitter. the integrated universal remote control and the system also have to be synchronized. Simultaneously press and hold the button of the desired function on the hand-held trans‐...
Page 157 Interior equipment Controls Ashtray/cigarette lighter can then be controlled by the button on the interior rearview mirror. Manual transmission: Front If the LED does not flash faster after at least 60 seconds, change the distance and repeat Opening the step. Several more attempts at different distances may be necessary.
Page 158 Controls Interior equipment Automatic transmission: Front Replace the cover after use Reinsert the lighter or socket cover after Opening use, otherwise objects may get into the lighter socket or fixture and cause a short circuit.◀ Rear Opening Press on the cover. Emptying Take out the insert.
Page 159 Interior equipment Controls Front center console: Replace the cover after use Reinsert the lighter or socket cover after use, otherwise objects may get into the lighter socket or fixture and cause a short circuit.◀ Connecting electrical devices Hints Do not plug chargers into the socket Press on the cover.
Page 160 Controls Interior equipment In the front passenger footwell Without Professional navigation system or TV: at a glance Socket is located below the glove compartment. The USB interface is located in the glove com‐ To access the socket: fold open the cover. partment.
Page 161 Interior equipment Controls middle section is folded down. Otherwise, injury Pull the corresponding lever in the cargo or damage may result.◀ area to release the rear seat backrest. Lock the rear seat backrests in position Before mounting child restraint fixing sys‐ tems, place the seat backrest as far as possible at an angle at which the child seat is resting firmly against the backrest and all backrests can...
Page 162 Controls Interior equipment Ski bag Insert the tongue plate into the belt buckle. Capacity The ski bag can be used to transport up to four pairs of skis with a length of up to 6 ft/2.10 m or, depending on the binding, up to two snow‐ boards with a length of up to 5 ft/1.60 m.
Page 163 Interior equipment Controls More information on the various inserts available can be obtained from your service center. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 164: Storage Compartments
Controls Storage compartments Storage compartments Vehicle equipment ▷ Pockets on the backrests of the front seats. ▷ Net in the front passenger footwell. All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment Glove compartment is also described that is not available in a vehicle, e.
Page 165: Center Armrest
Storage compartments Controls Driver's side Locking the storage compartment Opening The storage compartment in the armrest can be locked with an integrated key to separately se‐ Pull the handle. cure the trunk lid, refer to page 39, for example. After the storage compartment is locked, the re‐ Close the glove compartment again im‐...
Page 166 Controls Storage compartments Opening To use as a storage compartment, fold the insert back in. Automatic transmission: Front Pull on the handle and fold open the cover. Cupholders To open: press on the cover. Notes Rear Shatter-proof containers and no hot In the front center armrest.
Page 167: Remote Control Storage
Storage compartments Controls Remote control storage No heavy objects compartment Do not hang heavy objects from the hooks; otherwise, they may present a danger to pas‐ sengers during braking and evasive maneu‐ Opening vers.◀ Storage compartments in the cargo area Smaller objects can be stored in the net on the side of the cargo area.
Page 168: Lashing Eyes
Controls Storage compartments Storage compartment on the side A storage compartment is located at the side of the cargo area. Lashing eyes To secure the cargo, refer to page 176, there are lashing eyes in the cargo area. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 169 Storage compartments Controls Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 170 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 171: Driving Tips
Driving tips This chapter provides you with information useful in dealing with specific driving and operating modes. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 172: Things To Remember When Driving
Driving tips Things to remember when driving Things to remember when driving Vehicle equipment Brake system Brakes require an initial break-in period of ap‐ All standard, country-specific and optional prox. 300 miles/500 km to achieve optimized equipment that is offered in the model series is contact and wear patterns between brake discs described in this chapter.
Page 173: Driving Through Water
Things to remember when driving Driving tips Hot exhaust system vehicle without connecting them directly to the external antenna. Otherwise, the vehicle elec‐ Hot exhaust system tronics and mobile communication devices can High temperatures are generated in the interfere with each other. In addition, there is no exhaust system.
Page 174 Driving tips Things to remember when driving Pulsation of the brake pedal and sounds from Do not drive in neutral the hydraulic circuits indicate that ABS is in its Do not drive in neutral or with the engine active mode. stopped, as doing so disables engine braking.
Page 175: Loading
Loading Driving tips Loading Vehicle equipment hicle and unstable driving situations may result. All standard, country-specific and optional Determine the combined weight of the equipment that is offered in the model series is driver and passengers that will be riding in described in this chapter.
Page 176: Stowing Cargo
Driving tips Loading Stowing cargo Securing cargo Always position and secure the cargo as ▷ Cover sharp edges and corners on the described above; otherwise, it can endanger the cargo. car's occupants if sudden braking or swerving ▷ Heavy cargo: stow as far forward as possi‐ becomes necessary.
Page 177 Loading Driving tips ▷ Do not exceed the approved roof/axle loads and the approved gross vehicle weight. ▷ Distribute the roof load uniformly. ▷ The roof load should not be too large in area. ▷ Always place the heaviest pieces on the bot‐ tom.
Page 178: Saving Fuel
Driving tips Saving fuel Saving fuel Vehicle equipment Close the windows and glass sunroof All standard, country-specific and optional equipment that is offered in the model series is Driving with the glass sunroof and windows described in this chapter. Therefore, equipment open results in increased air resistance and is also described that is not available in a vehicle, raises fuel consumption.
Page 179: Online Edition For Part No. 01 40 2 917 522 - Ii/13
On a downhill gradient, take your foot off the ac‐ ice center. celerator and let the vehicle roll. Please also note the BMW Maintenance Sys‐ The flow of fuel is interrupted while coasting. tem, refer to page 210. Switch off the engine during...
Page 180: Online Edition For Part No. 01 40 2 917 522 - Ii/13
Driving tips Saving fuel ECO PRO climate control ▷ ECO PRO tips driving instruction, refer to page "ECO PRO climate control" ▷ ECO PRO climate control, refer to The climate control is adjusted to be fuel-effi‐ page cient. By making a slight change to the set tempera‐ Activating ECO PRO ture, or adjusting the rate of heating or cooling Press button repeatedly until ECO PRO...
Page 181: Driving Style
Saving fuel Driving tips Driving style ECO PRO tip - Symbols An additional symbol and a text instruction are displayed. Symbol Measure For efficient driving style, back off the accelerator or delay accelerating to allow time to assess road conditions. Reduce speed to the selected ECO PRO speed.
Page 182: Online Edition For Part No. 01 40 2 917 522 - Ii/13
Driving tips Saving fuel Resetting fuel consumption history Open "Options". "Reset consumption history" Displaying EfficientDynamics info The current efficiency can be displayed. "EfficientDynamics Info" The following systems are displayed: ▷ Automatic engine Start/Stop function. ▷ Energy recovery. ▷ Climate control output. Display ECO PRO tips "ECO PRO Tips"...
Page 183: Online Edition For Part No. 01 40 2 917 522 - Ii/13
Saving fuel Driving tips Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 184: Online Edition For Part No. 01 40 2 917 522 - Ii/13
Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 185: Mobility
Mobility To ensure that you remain mobile at all times, this chapter supplies you with important information on the topics of fuels and lubricants, wheels and tires, service, maintenance, and Roadside Assistance. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 186: Refueling
Mobility Refueling Refueling Vehicle equipment Turn the fuel cap counterclockwise. All standard, country-specific and optional equipment that is offered in the model series is described in this chapter. Therefore, equipment is also described that is not available in a vehicle, e.
Page 187 Refueling Mobility Pull the green knob with the fuel pump symbol. This releases the fuel filler flap. Observe the following when refueling The fuel tank is full when the filler nozzle clicks off the first time. Do not overfill the fuel tank Do not overfill the fuel tank;...
Page 188: Fuel
Mobility Fuel Fuel Vehicle equipment Recommended fuel quality BMW recommends AKI 91. All standard, country-specific and optional equipment that is offered in the model series is Minimum fuel grade described in this chapter. Therefore, equipment BMW recommends AKI 89. is also described that is not available in a vehicle, e.
Page 189: Wheels And Tires
Wheels and tires Mobility Wheels and tires Vehicle equipment Pressure specifications The tire inflation pressure table, refer to All standard, country-specific and optional page 190, contains all pressure specifications equipment that is offered in the model series is for the specified tire sizes at the ambient tem‐ described in this chapter.
Page 190 Mobility Wheels and tires Tire inflation pressure values up to Tire size Pressure specifications 100 mph/160 km/h in bar/PSI Front: 245/35 R 20 2.4 / 35 528i 95 Y XL RSC 2.9 /42 Tire size Pressure specifications Rear: in bar/PSI 275/30 R 20 97 Y XL Specifications in bar/PSI with cold...
Page 191 Wheels and tires Mobility Tire size Pressure specifications Tire size Pressure specifications in bar/PSI in bar/PSI Front: 245/40 R 19 2.4 / 35 Front: 245/40 R 19 2.4 / 35 94 Y RSC 94 Y RSC 2.6 / 38 2.6 / 38 Rear: Rear: 275/35 R 19 96 275/35 R 19 96 Y...
Page 192 Mobility Wheels and tires Tire size Pressure specifica‐ Tire size Pressure specifications tions in bar/PSI in bar/PSI Front: 245/40 R 19 94 2.5 / 36 Front: 245/35 R 20 2.5 / 36 Y RSC 95 Y XL RSC 2.6 / 38 3.0 / 44 Rear: 275/35 R 19 96 Rear: 275/30 R 20 97...
Page 193 Wheels and tires Mobility Tire inflation pressures at max. speeds Tire size Pressure specifications above 100 mph/160 km/h in bar/PSI Speeds above 100 mph/160 km/h Front: 245/40 R 19 2.4 / 35 In order to drive at maximum speeds in ex‐ 94 Y RSC 2.6 / 38 cess of 100 mph/160 km/h, please observe, and,...
Page 194 Mobility Wheels and tires Tire size Pressure specifications Tire size Pressure specifications in bar/PSI in bar/PSI Front: 245/35 R 20 2.7 / 39 Front: 245/35 R 20 2.4 / 35 95 Y XL RSC 95 Y XL RSC 3.2 / 46 2.9 /42 Rear: Rear: 275/30 R 20 97...
Page 195 Wheels and tires Mobility Tire size Pressure specifications Tire size Pressure specifica‐ in bar/PSI tions in bar/PSI Front: 245/35 R 20 2.7 / 39 Front: 245/40 R 19 94 2.5 / 36 95 Y XL RSC Y RSC 3.2 / 46 2.6 / 38 Rear: Rear: 275/35 R 19 96...
Page 196 Mobility Wheels and tires 528i xDrive Tire size Pressure specifications Without high-speed tuning feature in bar/PSI Tire size Pressure specifica‐ Specifications in tions in bar/PSI bar/PSI with cold tires Specifications in bar/ PSI with cold tires 225/55 R 17 97 H M 2.8 / 41 3.3 / 48 +S RSC...
Page 197 Wheels and tires Mobility Tire size Pressure specifications Tire size Pressure specifications in bar/PSI in bar/PSI Specifications in bar/ Specifications in PSI with cold tires bar/PSI with cold tires 245/45 R 18 100 V M 2.5 / 36 2.9 /42 245/45 R 18 96 Y 2.8 / 41 3.3 / 48...
Page 198: Tire Identification Marks
Mobility Wheels and tires Tire size Pressure specifica‐ Tire size Pressure specifications tions in bar/PSI in bar/PSI Specifications in bar/ Front: 245/45 R 18 2.9 /42 PSI with cold tires 96 Y RSC 2.9 /42 Rear: 275/40 R 18 99 Y 245/45 R 18 100 V M 2.6 / 38 3.0 / 44...
Page 199: Tire Age
Wheels and tires Mobility Traction xxxx: manufacturer code for the tire brand xxx: tire size and tire design The traction grades, from highest to lowest, are AA, A, B, and C. 3510: tire age Those grades represent the tire's ability to stop Tires with DOT codes meet the guidelines of the on wet pavement as measured under controlled U.S.
Page 200: Tire Tread
Mobility Wheels and tires Notes Winter and all-season tires with better cold Driving over rough or damaged road surfaces, as weather performance than summer tires. well as debris, curbs and other obstacles can cause serious damage to wheels, tires and sus‐ pension parts.
Page 201 Wheels and tires Mobility Changing wheels and tires Recommended tire brands Mounting Information on mounting tires Have mounting and balancing performed only by a service center or tire specialist. If this work is not carried out properly, there is the danger of subsequent damage and related safety hazards.◀...
Page 202: Snow Chains
Mobility Wheels and tires Run-flat tires Maximum speed of winter tires If the maximum speed of the vehicle is higher Label than the permissible speed for the winter tires, then display a corresponding sign in the field of vision. You can obtain this sign from the tire spe‐ cialist or from your service center.
Page 203 Wheels and tires Mobility Automatic detection ▷ 225/55 R 17. ▷ 245/45 R 18. If functioning properly: ▷ 245/40 R 19. ▷ Snow chains are mounted. The setting is not activated Follow the chain manufacturer's instructions. After you drive a short distance, a Check Make sure that the snow chains are always suf‐...
Page 204: Engine Compartment
Mobility Engine compartment Engine compartment Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 205 Engine compartment Mobility Closing the hood Never reach into the engine compartment Never reach into the intermediate spaces or gaps in the engine compartment. Otherwise, there is risk of injury, e.g. from rotating or hot parts.◀ Pull the lever. Let the hood drop from a height of approx. 16 in/40 cm and push down on it to lock it fully.
Page 206: Engine Oil
Mobility Engine oil Engine oil Vehicle equipment "Engine oil level" All standard, country-specific and optional Oil level display messages equipment that is offered in the model series is Different messages appear on the display de‐ described in this chapter. Therefore, equipment pending on the oil level.
Page 207: Adding Engine Oil
Some types of oils in some cases are not avail‐ able in all countries. Approved oil types Gasoline engine BMW High Performance SAE 5W-30 BMW Longlife-01 BMW Longlife-01 FE Only replenish the maximum oil amount of 1 US quart/liter if the message is displayed in the...
Page 208 Mobility Engine oil Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 209: Coolant
Coolant Mobility Coolant Vehicle equipment Checking Let the engine cool. All standard, country-specific and optional Turn the cap of the coolant reservoir slightly equipment that is offered in the model series is counterclockwise to allow any excess pres‐ described in this chapter. Therefore, equipment sure to dissipate, and then open it.
Page 210: Maintenance
This also applies for changing the engine oil and the microfilter/acti‐ safety-related functions and systems. vated-charcoal filter. BMW Maintenance System Service and Warranty The maintenance system directs you to re‐ Information Booklet for US quired maintenance measures and thereby sup‐...
Page 211 Maintenance Mobility Socket for OBD Onboard Diagnosis Position There is an OBD socket on the driver's side for checking the primary components in the vehicle emissions. Emissions ▷ The warning lamp lights up: Emissions are deteriorating. Have the vehicle checked as soon as pos‐ sible.
Page 212: Replacing Components
Mobility Replacing components Replacing components Vehicle equipment Replacing the wiper blades To change the wiper blades, fold up, refer to All standard, country-specific and optional page 71, the wiper arms. equipment that is offered in the model series is Fold up the wipers. described in this chapter.
Page 213 Replacing components Mobility the service center if you are unfamiliar with them Do not remove the covers or they are not described here. Do not remove the covers, and never stare You can obtain a selection of replacement bulbs into the unfiltered light for several hours; other‐ at the service center.
Page 214 Mobility Replacing components Xenon headlamps 55-watt bulb, H7 Corner-illuminating lamps Unscrew the cap, remove it, and change the bulb. Parking lamp, daytime running lights Low beams/high beams Turn signal Turn signal Follow the general instructions on Lamps and bulbs, refer to page 212. Halogen headlamps The illustration shows the left side of the engine compartment.
Page 215 For checking and adjusting headlamp aim, please contact your BMW center. Unscrew the cap and remove it. Parking lamps and roadside parking lamps, turn signal lamp Follow the general instructions on lamps and bulbs, refer to page 212.
Page 216: Front Fog Lamps
Mobility Replacing components 55-watt bulb, H7 35-watt bulb, H8 Fold open the cover in the engine compart‐ Carefully pull out the grill toward the front. ment. Remove the screws. Unscrew the cap and remove it. Pull the lamp out toward the front. Unscrew the bulb holder counterclockwise.
Page 217: License Plate Lamps
Replacing components Mobility Outside brake lamp Rear reflector Turn signal, outer brake, tail, and license plate lamps Follow the general instructions on lamps and bulbs, refer to page 212. These lights feature LED technology. The illustration shows the position of the bulb in Contact your service center in the event of a the installed bulb holder.
Page 218: Vehicle Battery
Mobility Replacing components Vehicle battery Maintenance The battery is maintenance-free, i.e., the elec‐ trolyte will last for the life of the battery. Your service center will be glad to advise you on questions regarding the battery. Battery replacement Squeeze the clips together and remove the bulb Use approved vehicle batteries only holder.
Page 219 Replacing components Mobility Starting aid terminals In the glove compartment In the vehicle, only charge the battery via the starting aid terminals, refer to page 222, in the engine compartment with the engine off. Power failure After a temporary power loss, some equipment needs to be reinitialized.
Page 220: Breakdown Assistance
Service contract Hazard warning flashers ▷ After your contract with BMW Assist has ex‐ pired, the BMW Assist system can be deac‐ tivated by the service center without you having to visit a workshop. After deactivation, an Emergency Request is no longer possible.
Page 221: First Aid Kit
BMW Response Center, the BMW Re‐ sponse Center contacts you and takes fur‐ ther steps to help you. Even if you are unable to respond, the BMW Response Center can take further steps to help you under certain circumstances.
Page 222 Switch off any electronic systems/power Connecting the cables consumers in both vehicles. Pull off the cap of the BMW starting aid ter‐ Bodywork contact between vehicles minal. Make sure that there is no contact be‐ Attach one terminal clamp of the positive tween the bodywork of the two vehicles;...
Page 223 Breakdown assistance Mobility Towing Let both engines run for several minutes. Disconnect the jumper cables in the reverse When the parking brake is blocked order. The parking brake cannot be released Check the battery and recharge if necessary. manually. Do not tow the vehicle with the parking brake blocked, or the vehicle can be damaged.
Page 224 It can be screwed in at the fitting; connecting it to other vehicle parts may front or rear of the BMW. It is located in the con‐ cause damage.◀ tainer on the inside of the trunk lid.
Page 225 Breakdown assistance Mobility Tow-starting Automatic transmission Do not tow-start the vehicle. Due to the automatic transmission, the engine cannot be started by tow-starting. Have the cause of the starting difficulties rem‐ edied. Manual transmission If possible, do not tow-start the vehicle but start the engine by jump-starting, refer to page 221.
Page 226: Care
Mobility Care Care Vehicle equipment Intense soiling and road salt can damage the ve‐ hicle. All standard, country-specific and optional equipment that is offered in the model series is Automatic car washes described in this chapter. Therefore, equipment is also described that is not available in a vehicle, Notes e.
Page 227: Vehicle Care
Engage transmission position N. BMW recommends using cleaning and care Switch the engine off. In this way, the igni‐ products from BMW, since these have been tion remains switched on, and a Check-Con‐ tested and approved. trol message is displayed.
Page 228 Mobility Care Fine wood parts Clean light-colored leather more frequently be‐ cause soiling on such surfaces is substantially Clean fine wood facing and fine wood compo‐ more visible. nents only with a moist rag. Then dry with a soft Use leather care products; otherwise, dirt and cloth.
Page 229 Care Mobility Do not place additional floor mats over existing mats or other objects. Only use floor mats that have been approved for the vehicle and can be properly fixed in place. Ensure that the floor mats are securely fastened again after they were removed for cleaning, for example.◀...
Page 230 Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 231: Reference
Reference This chapter contains the technical data and an index that will quickly take you to the information you need. Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 232: Technical Data
Reference Technical data Technical data Vehicle equipment is also described that is not available in a vehicle, e. g., because of the selected optional equip‐ All standard, country-specific and optional ment or country variant. This also applies for equipment that is offered in the model series is safety-related functions and systems.
Page 233 Technical data Reference Length, wheel base Wheel base: 116.9 inches / 2,968 mm M550d Vehicle height: 193.5 inches/ 4,916 mm Length: 193.1 inches / 4,905 mm Smallest turning circle without active steering: 39 ft 2 in/11.95 m with active steering: 37 ft 6 in/11.45 m Weights The values preceding the slash apply to vehicles the slash apply to vehicles with automatic trans‐...
Page 234 Reference Technical data 535i Approved gross vehicle weight 5,159/5,181 2,340/2,350 Load lbs/kg 1,058/480 Approved front axle load lbs/kg 2,491/1,130 Approved rear axle load 2,888/2,910 1,310/1,320 Approved roof load capacity lbs/kg 220/100 Cargo area capacity cu ft/l 18.36/520 550i Approved gross vehicle weight lbs/kg 5,401/2,450 Load...
Page 235 Technical data Reference 535i xDrive Approved front axle load lbs/kg 2,701/1,225 Approved rear axle load lbs/kg 2,910/1,320 Approved roof load capacity lbs/kg 220/100 Cargo area capacity cu ft/l 18.36/520 550i xDrive Approved gross vehicle weight lbs/kg 5,600/2,540 Load lbs/kg 1,036/470 Approved front axle load lbs/kg 2,800/1,270...
Page 236: Everything From A To Z
Beverage holder, cu‐ tion Automatic Cruise Control with pholder Alarm system Stop & Go Blinds, sun protection Alarm, unintentional Automatic Curb Monitor BMW Assist, see user's manual for Navigation, Enter‐ Online Edition for Part no. 01 40 2 917 522 - II/13...
Page 237 Care, displays Cleaning, displays tion Care, vehicle Climate control BMW Homepage Cargo Climate control wind‐ BMW Internet page Cargo area, enlarging shield BMW maintenance sys‐ Cargo area lid Clock Cargo area, storage compart‐ Closing/opening from in‐ Bonus range, ECO PRO...
Page 238 Reference Everything from A to Z Corrosion on brake discs Doors, Automatic Soft Clos‐ Emergency release, fuel filler Cruise control flap Cruise control, active with Downhill control Emergency Request Stop & Go Drive-off assistant Emergency service, refer to Cruising range Drive-off assistant, refer to Roadside Assistance Cupholder...
Page 239 Everything from A to Z Reference External start Fuel cap Headlamp washer system External temperature dis‐ Fuel consumption, current Headliner play Fuel consumption, refer to Head restraints External temperature warn‐ Average fuel consump‐ Head restraints, front tion Head restraints, rear Eyes for securing cargo Fuel filler flap Head-Up Display...
Page 240 Reference Everything from A to Z Individual settings, refer to Lock, door Personal Profile Locking/unlocking from in‐ Inflation pressure, tires Key/remote control side Inflation pressure warning Keyless Go, refer to Comfort Locking/unlocking via door FTM, tires Access lock Info display, refer to Com‐ Key Memory, refer to Personal Locking/unlocking with re‐...
Page 241 Everything from A to Z Reference Manual operation, Park Dis‐ Opening/closing via door tance Control PDC lock Manual operation, Side Navigation, see user's manual Opening/closing with remote View for Navigation, Entertain‐ control Manual operation, Top ment and Communication Opening the trunk lid with no- View Neck restraints, front, refer to touch activation...
Page 242 Reference Everything from A to Z Power sunroof, glass Reporting safety defects Screen, refer to Control Dis‐ Power windows RES button play Pressure, tire air pres‐ Reserve warning, refer to Screwdriver sure Range Screw thread for tow fit‐ Pressure warning FTM, Reset, Tire Pressure Monitor ting tires...
Page 243 Everything from A to Z Reference Smallest turning circle Storage compartment, remote Text message, supplemen‐ Smoker's package control tary Snow chains Storage compartments Theft alarm system, refer to Socket Storage compartments, loca‐ Alarm system Socket, OBD Onboard Diag‐ tions Theft protection, refer to Cen‐ nostics Storage, tires tral locking system...
Page 244 Reference Everything from A to Z Truck for tow-starting/tow‐ Vehicle identification number, Windshield wipers, fold-out refer to Identification number position Trunk lid in the engine compart‐ Winter storage, care Trunk lid, automatic ment Winter tires, suitable tires Trunk lid, emergency unlock‐ Vehicle jack Winter tires, tread Vehicle paint...
Page 246 More about BMW The Ultimate Driving bmwusa.com Machine *BL291752200U* Online Edition for Part no. 01 40 2 917 522 - II/13...

BMW 5 Series Owner's Manual

Table of Contents

Cockpit

Quick Links

Chapters

Related Manuals for BMW 5 Series

Summary of Contents for BMW 5 Series

Table of Contents
