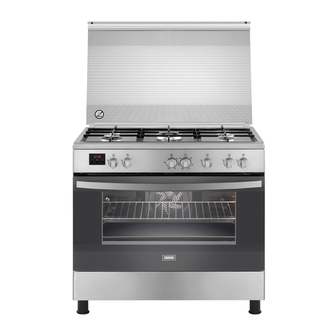

- Page 1 User Manual Cooker ZCG92386...
-
Page 2: Table Of Contents
Cleaning and user maintenance shall not be made by children • without supervision. General Safety Only a qualified person must install this appliance and replace • the cable. Do not operate the appliance by means of an external timer or • separate remote-control system. www.zanussi.com... -
Page 3: Safety Instructions
Always wear door or the window is opened. safety gloves. • Do not pull the appliance by the handle. • The kitchen cabinet and the recess must have suitable dimensions. www.zanussi.com... -
Page 4: Electrical Connection
• This appliance is not connected to a device, – do not put water directly into the hot which evacuates the products of appliance. combustion. Make sure to connect the www.zanussi.com... -
Page 5: Care And Cleaning
• Keep children away when the grill is in use. Authorised Service Centre. • Do not put the oven shelf with food on the • Be careful when you remove the door from highest shelf level. the appliance. The door is heavy! www.zanussi.com... -
Page 6: Product Description
Hob integrated ignition on the control knob Hob ignition on the spark generator button Oven integrated ignition on the control knob Oven ignition on the spark generator button Hob thermocouple Oven thermocouple Oven cleaning Enamel Catalytic Pan support Enamel Cast iron www.zanussi.com... -
Page 7: Before First Use
For roasting larger joints of meat and poultry. • Storage compartment The storage compartment is below the oven cavity. To use the compartment, lift the lower front door then pull it down. Before first use WARNING! Refer to Safety chapters. www.zanussi.com... -
Page 8: Hob - Daily Use
Ignition of a the hob burner without the try to light the burner again after thermocouple minimum 1 minute. • For all hobs without thermocouple first turn the knob and then push the knob down. Release knob when the burner lights. www.zanussi.com... -
Page 9: Hob - Hints And Tips
Do not put unstable or damaged pots on the burners to prevent from spill and injury. Cookware CAUTION! WARNING! Make sure that pot handles are not Do not put the same pan on two burners. above the front edge of the cooktop. www.zanussi.com... -
Page 10: Hob - Care And Cleaning
Cleaning the spark plug Speak to your local Authorised Service Centre periodically to check the conditions of the gas This feature is obtained through a ceramic supply pipe and the pressure adjuster, if fitted. ignition candle with a metal electrode. Keep www.zanussi.com... -
Page 11: Oven - Daily Use
15 seconds or less to let the thermocouple warm up. If not, the gas flow CAUTION! is interrupted. Make sure that the lid is opened. When using the oven the lid has to Manual ignition of oven gas burner be opened to avoid over-heating. www.zanussi.com... -
Page 12: Using The Grill
To put out the flame, turn the knob to the off position Turning off the oven burner To put out the flame, turn the knob to the off position Using the grill CAUTION! Always keep the appliance door closed when the grill operates. www.zanussi.com... -
Page 13: Oven - Clock Functions
3. Put the baking tray on the lowest shelf level. Make sure it does not touch the back wall of the 4. Snap out one end of the support hook from oven. the oven ceiling A and let it hang on the other end. www.zanussi.com... -
Page 14: Oven - Hints And Tips
With this system you can cook in a Baking steamy environment and keep the food soft • Your oven can bake or roast differently to the inside and crusty outside. It decreases the appliance you had before. Adapt your usual www.zanussi.com... -
Page 15: Cooking Times
Lasagna Cannelloni 2.5 - 4.0 45 - 50 Potato gratin 2.5 - 3.0 60 - 65 Macaroni oven 4.0 - 4.5 40 - 45 Kebab Hala 3.5 - 4.0 40 - 50 1) Preheat the oven for 15 minutes. www.zanussi.com... - Page 16 25 - 30 Pizza Food Quantity (kg) Thermostat Time (min) Shelf position position Thin 1.5 - 2.5 20 - 30 Thick 1.5 - 2.0 20 - 25 Calzone 1.5 - 2.5 30 - 35 1) Preheat the oven for 15 minutes. www.zanussi.com...
- Page 17 1) Preheat the oven for 10 minutes. Revolving frying Food Quantity (kg) Grill position Time (min) Shelf position Sheep on skewer 3.0 - 4.0 max. 100 - 120 Turnspit Chicken on skew- 3.0 - 3.5 max. 120 - 145 Turnspit www.zanussi.com...
-
Page 18: Oven - Care And Cleaning
6. Use a spatula made of wood or plastic or 1. Open the door fully and hold the two door equivalent to open the inner door. Hold the hinges. outer door, and push the inner door against the top edge of the door. Lift the inner door. www.zanussi.com... -
Page 19: Troubleshooting
The flame ring is uneven. Burner crown is blocked with Make sure that the injector is not food residues. blocked and the burner crown is clean. The burners do not work. There is no gas supply. Check the gas connection. www.zanussi.com... - Page 20 Do not remove yourself, contact your dealer or an Authorised the rating plate from the appliance cavity. Service Centre. We recommend that you write the data here: Model (MOD.) ......... Product number (PNC) ......... Serial number (S.N.) ......... www.zanussi.com...
-
Page 21: Installation
850 - 870 Width Depth Appliance class Other technical data Appliance category: II2H3B/P LPG: G30 (3B/P) 28-30 mbar Natural Gas: G20 (2H) 20 mbar Bypass diameters BURNER Ø BYPASS 1/100 mm Auxiliary 29 / 30 Semi-rapid Rapid Triple Crown www.zanussi.com... - Page 22 Use a fixed connections or use a flexible stainless steel pipes in compliance with the regulation in force. If you use flexible metallic pipes, make sure they do not come in touch with mobile parts and they are not squeezed. www.zanussi.com...
- Page 23 To check the seal use a soap solution, not a flame. 4. Replace injectors with the ones necessary for the type of gas you use. The gas supply ramp is on the rear side of the control panel. www.zanussi.com...
- Page 24 1. Fully tighten the bypass screw. 2. Put the knob back. Changing from liquid gas to natural gas 1. Unscrew approximately one turn the bypass screw position A. 2. Put the knob for the hob back. 3. Connect the appliance to the electricity. www.zanussi.com...
- Page 25 4. Release the burner injector with a 7 mm socket spanner and replace it with a right one. Changing from natural gas to liquid gas 1. Fully tighten the bypass screw. 2. Put the knob back. 3. Connect the appliance to the electricity. www.zanussi.com...
- Page 26 2. Put the appliance on the sidewall on a clean and smooth surface. Place each foot into a 2. Release the burner injector with a 7 mm separate hole, in the plinth, and rotate it socket spanner and replace it with a right counterclockwise. one. www.zanussi.com...
-
Page 27: Electrical Installation
