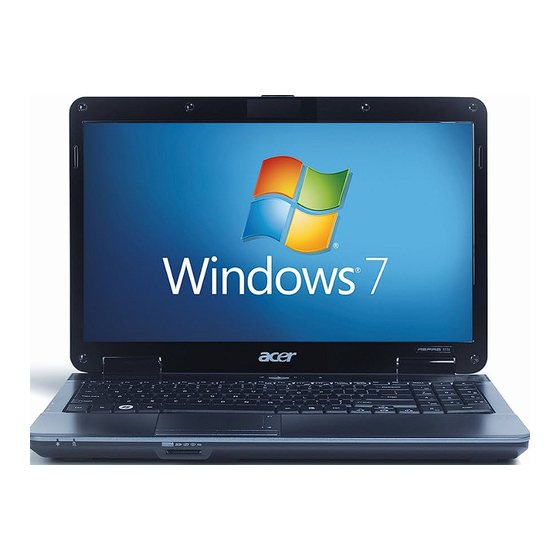

Acer ASPIRE 5532 Service Manual

Acer laptop user manual.
Also See for ASPIRE 5532:
Service manual - 203 pages
Aspire 5532
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to
http://csd.acer.com.tw
PRINTED IN TAIWAN

   Also See for Acer ASPIRE 5532

   Related Manuals for Acer ASPIRE 5532

   Summary of Contents for Acer ASPIRE 5532

  • Page 1

    Aspire 5532 Service Guide Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw PRINTED IN TAIWAN...

  • Page 2

    Revision History Please refer to the table below for the updates made on Aspire 5532 service guides. Date Chapter Updates...

  • Page 3

    Copyright Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

  • Page 4

    Conventions The following conventions are used in this manual: SCREEN MESSAGES NOTE WARNING CAUTION IMPORTANT Denotes actual messages that appear on screen. Gives bits and pieces of additional information related to the current topic. Alerts you to any damage that might result from doing or not doing specific actions.

  • Page 5

    DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

  • Page 7: Table Of Contents

    Using the System Utilities ..........16 Acer GridVista (dual-display compatible) ......16 Hardware Specifications and Configurations .

  • Page 8: Table Of Contents

    Table of Contents Removing the Power Board ........63 Removing the Left Speaker Module .

  • Page 9: Table Of Contents

    Aspire 5532 Exploded Diagrams ........

  • Page 10

    Table of Contents...

  • Page 11: System Specifications, Features

    • AMD Athlon™ 64 single-core processor • AMD M780G Chipset • Acer InviLink™ 802.11b/g* • Acer InviLink™ Nplify™ 802.11b/g/Draft-N* System Memory • Low-latency, high-bandwidth • 128-bit DDR2 SDRAM controller operating at up to 333 MHz • On-board memory with up to 2 unbuffered SO-DIMM slots supporting DDR II 667/800.

  • Page 12

    Audio • Realtek ALC272X-GR for High Definition Audio Codec with Dolby Digital Live • Internal speakers x2 (2W) • Mic-in jack • Headphone/Line out jack Dimensions and Weight • 372.3mm x 246.5mm x 26.8mm/40.6mm with ID • Weight < than 3100g (15.6" LCD/6-cell battery/super-multi ODD) Communication •...

  • Page 13

    I/O interface • VGA port, 15 pins • DC-IN port for adapter • RJ-45 Ethernet port for LAN • 2 USB port • Headphone out / Line-out • Microphone-in • Multi-in-1 card reader (SD™, MMC, MS, MS PRO, xD • Kensington Lock (7.5mm) Environment •...

  • Page 14: System Block Diagram

    System Block Diagram Chapter 1...

  • Page 15: Your Acer Notebook Tour, Front View

    Your Acer Notebook tour After knowing your computer features, let us show you around your new computer. Front View Icon Chapter 1 Item Acer Crystal Eye Web camera for video communication webcam (for selected models). Display screen Also called Liquid-Crystal Display (LCD), displays computer output.

  • Page 16: Closed Front View

    Icon Closed Front View Icon NOTE: The front panel indicators are visible even when the computer cover is closed Item Click buttons (left The left and right buttons function like the left and right) and right mouse buttons. Palmrest Comfortable support area for your hands when you use the computer.

  • Page 17: Rear View, Left View

    Rear View Icon Left View Icon Chapter 1 Item Ventilation slots Enable the computer to stay cool, even after prolonged use. Item DC-in jack Connects to an AC adapter Ethernet (RJ-45) Connects to an Ethernet 10/100-based port network. External display Connects to a display device (VGA) port (e.g.

  • Page 18: Right View, Bottom View

    Right View Item Optical drive Optical disk access indicator Optical drive eject button Emergency eject hole Kensington lock slot Bottom View Icon 2 3 4 Description Internal optical drive; accepts CDs or DVDs. Lights up when the optical drive is active. Ejects the optical disk from the drive.

  • Page 19

    Icon Chapter 1 Item Battery lock Locks the battery in position. Hard disk bay Houses the computer's hard disk (secured with screws). Memory Houses the computer's main memory. compartment Ventilation slots Enable the computer to stay cool, even after and cooling fan prolonged use.

  • Page 20: Indicators

    Indicators The computer has several easy-to-read status indicators. The front panel indicators are visible even when the computer cover is closed. Icon Power Battery Num Lock Caps Lock NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

  • Page 21: Touchpad Basics

    TouchPad Basics The following items show you how to use the TouchPad: • Move your finger across the TouchPad (1) to move the cursor. • Press the left (2) and right (3) buttons located beneath the TouchPad to perform selection and execution functions.

  • Page 22: Using The Keyboard, Lock Keys And Embedded Numeric Keypad

    Using the Keyboard The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function and special keys. Lock Keys and embedded numeric keypad The keyboard has three lock keys which you can toggle on and off. Lock key Caps Lock When Caps Lock is on, all alphabetic characters typed are in uppercase.

  • Page 23: Windows Keys

    Windows Keys The keyboard has two keys that perform Windows-specific functions. Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the Start menu. It can also be used with other keys to provide a variety of functions: <...

  • Page 24: Hot Keys

    <Fn> + <F8> <Fn> + < > <Fn> + < > <Fn> + < > <Fn> + < > Function Acer eSettings Launches Acer eSettings Management in Acer Management Empowering Technology. Bluetooth Enables/disables the Bluetooth function. (only for certain models) Sleep Puts the computer in Sleep mode.

  • Page 25: Special Key

    Special Key You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard. The Euro symbol Open a text editor or word processor. Hold <Alt Gr> and then press the <5> key at the upper-center of the keyboard. NOTE: Note: Some fonts and software do not support the Euro symbol.

  • Page 26: Using The System Utilities, Acer Gridvista (dual-display Compatible)

    Apply to confirm the new settings and click OK to complete the process. Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows on the same screen. To access this function, please go to Start...

  • Page 27: Hardware Specifications And Configurations

    BIOS Version BIOS ROM type Chapter 1 Specification Cache Speed Tech Size 638 MHz 65 nm 512K 638 MHz 65 nm Fan Speed (rpm) SPL Spec (dBA) Specification Specification Phoenix BIOS V0.11T04 Flash Core Package Acer P/N Voltage KC.ATF02.200 KC.ATK02.420 Specification...

  • Page 28

    On above table, the configuration of slot 1 and slot 2 could be Specification • Flash ROM 1MB • Supports ISIPP • Supports Acer UI • Supports multi-boot • Suspend to RAM (S3)/Disk (S4) • Various hot-keys for system control •...

  • Page 29

    reversed. LAN Interface Item LAN Chipset Package LAN connector type LAN connector location Wireless Module 802.11b/g/n Item Manufacturer Model Hard Disk Drive Interface Item Specification Vendor & Model Seagate Name ST9160310AS ST9160314AS ST9250315AS ST9320320AS ST9320325AS Capacity (MB) 500, 250 Bytes per sector Data heads 4, 2 Drive Format...

  • Page 30

    Item Transfer rate (MB/sec) Sustained: 3,600 KB/s (24x) max. Buffer Memory Interface Applicable disc formats DVD-ROM: • • • DVD-R: • • • • • DVD-RW: • • DVD-RAM: 1.46GB/side, 4.7GB/side (Ver. • 2.2) DVD+R: 4.7GB (Ver. 1.3) • • DVD+RW: •...

  • Page 31

    Item Supply Current Total number of keypads Windows logo key Hotkeys Battery Item Vendor & model name Battery Type Pack capacity Normal Voltage Package configuration LCD 15.6” Item Vendor/model name Screen Diagonal (mm) Display Area (mm) Display resolution (pixels) Pixel Pitch Display Mode Typical White Luminance (cd/m (also called Brightness)

  • Page 32

    Item General Features Specification • PCI-E interface • Push-push type • Dummy card Chapter 1...

  • Page 33: System Utilities, Bios Setup Utility, Navigating The Bios Utility

    System Utilities BIOS Setup Utility The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/ Output System). Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup.

  • Page 34: Aspire 5532 Bios, Information

    Aspire 5532 BIOS Information The Information screen displays a summary of your computer hardware information. Information M a i n C P U T y p e C P U T y p e C P U S p e e d...

  • Page 35: Main

    Main The Main screen allows the user to set the system time and date as well as enable and disable boot option and recovery. Information M a i n S y s t e m T i m e : S y s t e m T i m e : S y s t e m D a t e : S y s t e m D a t e :...

  • Page 36: Security

    Security The Security screen contains parameters that help safeguard and protect your computer from unauthorized use. Information M a i n S u p e r v i s o r P a s s w o r d I s : S u p e r v i s o r P a s s w o r d I s : U s e r P a s s w o r d I s : U s e r P a s s w o r d I s :...

  • Page 37

    Setting a Password Follow these steps as you set the user or the supervisor password: Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Supervisor Password box appears: Type a password in the “Enter New Password” field. The password length can not exceed 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive).

  • Page 38

    Changing a Password Use the ↑ and ↓ keys to highlight the Set Supervisor Password parameter and press the Enter key. The Set Password box appears. Type the current password in the Enter Current Password field and press Enter. Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

  • Page 39: Boot

    Boot This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the USB diskette drives, the onboard hard disk drive and the DVD drive in the module bay. Select Boot Devices to select specific devices to support boot. Information M a i n B o o t p r i o r i t y o r d e r :...

  • Page 40: Exit

    Exit The Exit screen allows you to save or discard any changes you made and quit the BIOS Utility. Information M a i n E x i t S a v i n g C h a n g e s E x i t S a v i n g C h a n g e s E x i t D i s c a r d i n g C h a n g e s E x i t D i s c a r d i n g C h a n g e s...

  • Page 41: Bios Flash Utilities

    BIOS Flash Utilities The BIOS flash memory update is required for the following conditions: • New versions of system programs • New features or options • Restore a BIOS when it becomes corrupted. Use the Phlash utility to update the system BIOS flash ROM. NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery Diskette before you use the Phlash utility.

  • Page 42: Dos Flash Utility

    DOS Flash Utility Perform the following steps to use the DOS Flash Utility: Press F2 during boot to enter the Setup Menu. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move USB HDD to position 1.

  • Page 43: Winflash Utility

    In flash BIOS, the message Please do not remove AC Power Source displays. Plug in the AC power to continue. Flash is complete when the message Flash programming complete displays. WinFlash Utility Perform the following steps to use the WinFlash Utility: Double-click the WinFlash executable.

  • Page 44: Remove Hdd/bios Password Utilities

    Remove HDD/BIOS Password Utilities This section provides you with details about removing HDD/BIOS password: Remove HDD Password: If you key in the wrong HDD password three times, an error is generated. To reset the HDD password, perform the following steps: An error code is generated for unlocking the HDD.

  • Page 45

    Removing BIOS Passwords: To clear the User or Supervisor passwords through hardware, open the WLAN door and use a metal instrument to short the J1 jumper. Cleaning BIOS Passwords To clean the User or Supervisor passwords using software utilites, perform the following steps: From a DOS prompt, execute clnpwd.exe Press 1 or 2 to clean the desired password shown on the screen.

  • Page 46

    The onscreen message determines whether the function is successful or not. Using Boot Sequence Selector The Boot Sequence Selector allows the boot order to be changed without accessing the BIOS. To use Boot Sequence Selector, perform the following steps: Enter into DOS. Execute BS.exe to display the usage screen.

  • Page 47

    The following examples show the commands and the corresponding output information. Read DMI Information from Memory Input: dmitools /r Output: Manufacturer (Type1, Offset04h): Acer Product Name (Type1, Offset05h): TravelMate xxxxx Serial Number (Type1, Offset07h): 01234567890123456789 UUID String (Type1, Offset08h): xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx Asset Tag (Type3, Offset04h): Acet Asstag...

  • Page 48

    Using the LAN MAC EEPROM Utility You can use the MAC.BAT utility to write the MAC.CFG file to the EEPROM under DOS mode. Use a text editor (for example: Notepad) to open the MAC.CFG file. You can see the MAC.CFG contents as below: WriteData = ‘001122334455' StartAddr=7A...

  • Page 49: Machine Disassembly And Replacement, Disassembly Requirements

    Machine Disassembly and Replacement IMPORTANT: The outside housing and color may vary from the mass produced model. This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting. Disassembly Requirements To disassemble the computer, you need the following tools: Wrist grounding strap and conductive mat for preventing electrostatic discharge •...

  • Page 50: Pre-disassembly Instructions, Disassembly Process

    Pre-disassembly Instructions Before proceeding with the disassembly procedure, make sure that you do the following: 1. Turn off the power to the system and all peripherals. 2. Unplug the AC adapter and all power and signal cables from the system. 3.

  • Page 51: External Module Disassembly Process, External Modules Disassembly Flowchart

    External Module Disassembly Process IMPORTANT: The outside housing and color may vary from the mass produced model. External Modules Disassembly Flowchart The flowchart below gives you a graphic representation of the external module disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the keyboard, you must first remove the switch board.

  • Page 52: Removing The Battery Pack

    Removing the Battery Pack 1. Turn computer over. Slide the battery lock in the direction shown. 2. Slide and hold the battery release latch to the release position (1), then lift out the battery pack from the main unit (2). Chapter 3...

  • Page 53: Removing The Sd Dummy Card

    Removing the SD Dummy Card 1. Push the SD dummy card all the way in to eject it. 2. Pull it out from the slot. Chapter 3...

  • Page 54: Removing The Lower Covers

    Removing the Lower Covers 1. See “Removing the Battery Pack” on page 42. 2. Remove the three (3) screws securing the Memory and HDD Covers. Memory Cover Step Lower Covers M2.5*8 3. Remove the HDD cover as shown. 4. Carefully open the Memory Cover. Size Quantity Cover...

  • Page 55: Removing The Optical Drive Module

    Removing the Optical Drive Module 1. See “Removing the Battery Pack” on page 42. 2. Remove the screw securing the ODD module. Step ODD Module M2.5*8 3. Insert a suitable tool into the access slot in the battery bay as shown. Gently lever the ODD module out of the chassis.

  • Page 56

    5. Remove the two (2) screws securing the ODD bracket and remove the ODD bracket from the optical disk drive module. Step Size Quantity Screw Type ODD Bracket M2*3 6. Remove the ODD bezel by pulling the top edge downward and clear of the module. Chapter 3...

  • Page 57: Removing The Dimm Modules

    Removing the DIMM Modules 1. See “Removing the Lower Covers” on page 44. 2. Push out the release latches on both sides of the DIMM socket to release the DIMM module. 3. Remove the DIMM module. 4. Repeat steps for the second DIMM module if present. Chapter 3...

  • Page 58: Removing The Wlan Module

    Removing the WLAN Module 1. See “Removing the Lower Covers” on page 44. 2. Remove the adhesive tape securing the Antenna cables in place. 3. Disconnect the antenna cables from the WLAN Board. NOTE: Cable placement is Black to the MAIN terminal and White to the AUX terminal. Chapter 3...

  • Page 59

    4. Move the antenna away and remove the two (2) screws to release the WLAN Board. Step Size Quantity Screw Type WLAN Module M2*3 5. Detach the WLAN Board from the WLAN socket. Chapter 3...

  • Page 60: Removing The Hard Disk Drive Module

    Removing the Hard Disk Drive Module 1. See “Removing the Lower Covers” on page 44. 2. Using the pull-tab, slide the HDD Module in the direction of the arrow to disconnect the interface. 3. Lift the HDD Module clear of the HDD bay. NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

  • Page 61

    4. Remove the four (4) screws (two each side) securing the hard disk to the carrier. Step Size Quantity Screw Type HDD Carrier M3*3 5. Remove the HDD from the carrier. Chapter 3...

  • Page 62: Main Unit Disassembly Process, Main Unit Disassembly Flowchart

    Main Unit Disassembly Process Main Unit Disassembly Flowchart Remove External Modules before proceeding Remove Remove Left Speaker Power Board Module Screw List Step LCD Module M2.5*8 LCD Module M2.5*8 Upper Cover M2.5*8 Upper Cover M2.5*8 Power Board M2*3 Left Speaker Module M2*3 Right Speaker Module M2*3...

  • Page 63: Removing The Switch Cover

    Removing the Switch Cover CAUTION: Using metal tools to remove the Switch Cover may cause damage to the outer casing. The use of plastic tools or fingers is recommended to remove the Switch Cover. 1. See “Removing the Battery Pack” on page 42. 2.

  • Page 64: Removing The Keyboard

    Removing the Keyboard 1. See “Removing the Switch Cover” on page 53. 2. Pry up the centre of the Keyboard and rotate it upward away from the Upper Cover. 3. Turn the keyboard over on to the TouchPad area to expose the FFC connector. 4.

  • Page 65: Removing The Lcd Module

    Removing the LCD Module 1. See “Removing the Keyboard” on page 54. 2. Turn the computer over. Remove the two (2) securing screws from the bottom of the chassis. Step LCD Module M2.5*8 3. Remove the Antenna Cables from the cable channel as shown. Ensure that the cables are free from all cable clips.

  • Page 66

    4. Stand the computer on the LCD Panel and pull the Antenna cables completely through the chassis. 5. Disconnect the LCD cable from the Mainboard and remove the cable from the cable channel. 6. Remove the white Antenna cable from the cable channel. Ensure that the cable is completely free of the retaining clips all the way to the hinge well.

  • Page 67

    7. Remove the adhesive tape securing the Antenna cable to the Upper Cover. 8. Remove the black Antenna cable from the cable channel as shown. Ensure that the cable is completely free of the retaining clips all the way to the hinge well. 9.

  • Page 68

    12. Remove the four (4) securing screws (two each side) from the LCD module. Step Size Quantity Screw Type LCD Module M2.5*8 13. Remove the left and right screw covers from on top of the hinges 14. Lift the LCD Module clear of the Upper Cover. Chapter 3...

  • Page 69: Removing The Upper Cover

    Removing the Upper Cover 1. See “Removing the LCD Module” on page 55. 2. Turn the computer over. Remove the eleven screws on the bottom panel. Step Upper Cover M2.5*8 3. Turn the computer over. Remove the three (3) screw caps at the rear of the Upper Cover as shown. Chapter 3 Size Quantity...

  • Page 70

    4. Disconnect the following four (4) cables from the Mainboard. Chapter 3...

  • Page 71

    5. Disconnect A as shown. 7. Release the locking latch on B and remove the FFC cable as shown. 8. Release the locking latch on D and remove the FFC cable as shown. NOTE: Avoid pulling on cables directly to prevent damage to the connectors. NOTE: Use the pull-tabs on FFCs whenever available to prevent damage.

  • Page 72

    9. Remove the nine (9) screws on the top panel. Step Size Quantity Screw Type Upper Cover M2.5*8 10. Starting at the rear left side of the cover, pry apart the Upper and Lower Covers as shown. Work along the back edge of the casing to the right as shown, then lift the Upper Cover clear of the Lower Cover.

  • Page 73: Removing The Power Board

    Removing the Power Board 1. See “Removing the Upper Cover” on page 59. 2. Locate the Power Board on the Upper Cover as shown. 3. Remove the two (2) screws securing the Power Board to the Upper Cover. Step Power Board M2*3 4.

  • Page 74: Removing The Left Speaker Module

    Removing the Left Speaker Module 1. See “Removing the Upper Cover” on page 59. 2. Locate the Left Speaker Module on the Upper Cover as shown. 3. Remove the adhesive tape from the Speaker cable. 4. Remove the Speaker cable from the cable channel. Ensure that the cable is free from all cable clips. Chapter 3...

  • Page 75

    5. Remove the one (1) securing screw from the Left Speaker Module. Step Left Speaker M2*3 Module 6. Lift the Speaker clear of the Upper Cover, left side first as shown. Chapter 3 Size Quantity Screw Type...

  • Page 76: Removing The Right Speaker Module

    Removing the Right Speaker Module 1. See “Removing the Upper Cover” on page 59. 2. Locate the Right Speaker Module on the Upper Cover as shown. 3. Turn the Upper Cover over and remove the Right Speaker Module cable from the cable channel. Ensure that the cable is free from all cable clips.

  • Page 77

    5. Remove the one (1) securing screw from the Right Speaker Module. Step Right Speaker M2*3 Module 6. Lift the Speaker clear of the Upper Cover, right side first as shown. Chapter 3 Size Quantity Screw Type...

  • Page 78: Removing The Touchpad Bracket

    Removing the TouchPad Bracket IMPORTANT: The TouchPad Board cannot be removed individually. To replace the TouchPad Board, replace the entire Upper Cover. 1. See “Removing the Upper Cover” on page 59. 2. Lift the FFC to detach the adhesive securing the cable to the Upper Cover. 3.

  • Page 79

    4. Remove the two (2) screws from TouchPad bracket. Step Size Quantity Screw Type TouchPad Bracket M2*3 5. Lift the rear edge of the TouchPad bracket first to clear the securing clips and remove it as shown. Chapter 3...

  • Page 80: Removing The Mainboard

    Removing the Mainboard 1. See “Removing the Upper Cover” on page 59. 2. Remove the one (1) securing screw from the Mainboard. Step Mainboard M2.5*4 3. Lift the mainboard from the chassis, right edge first, and place it on a clean, dust-free surface. Size Quantity Screw Type...

  • Page 81: Removing The Rtc Battery

    Removing the RTC Battery IMPORTANT:Follow local regulations for disposal of all batteries. The RTC Battery is soldered to the Mainboard. To replace the battery, solder the new battery to the connections shown. Chapter 3...

  • Page 82: Removing The Thermal Module

    Removing the Thermal Module 1. See “Removing the Lower Covers” on page 44. 2. Turn the Mainboard over to access the Thermal Module. 3. Remove the four (4) securing screws (in reverse numerical order from screw 4 to screw 1) from the Thermal Module.

  • Page 83

    4. Using both hands, lift the Thermal Module clear of the Mainboard. Chapter 3...

  • Page 84: Removing The Cpu Fan

    Removing the CPU Fan 1. See “Removing the Thermal Module” on page 72. 2. Disconnect the Fan cable from the Mainboard as shown. 3. Remove the three (3) securing screws from the Fan Module. Step CPU Fan M2*3 Size Quantity Screw Type Chapter 3...

  • Page 85

    4. Lift the CPU Fan clear of the Mainboard as shown. Chapter 3...

  • Page 86: Removing The Cpu

    Removing the CPU IMPORTANT: The pins on the underside of the CPU are very delicate. If they are damaged, the CPU may malfunction. Place the CPU on a clean, dry surface when it is not installed. 1. See “Removing the Thermal Module” on page 72. 2.

  • Page 87: Lcd Module Disassembly Process, Lcd Module Disassembly Flowchart

    LCD Module Disassembly Process LCD Module Disassembly Flowchart Remove LCD Brackets Screw List Step Screw LCD Bezel M2.5*6 LCD Panel M2.5*6 LCD Brackets M2*3 Chapter 3 Remove LCD Panel from Main Unit before proceeding Remove LCD Bezel Remove Camera Module Remove LCD Panel Remove...

  • Page 88: Removing The Lcd Bezel

    Removing the LCD Bezel 1. See “Removing the LCD Module” on page 55. 2. Remove the two (2) upper and two (2) lower bezel screw caps and screws. Step LCD Bezel M2.5*6 3. Starting from the bottom edge of the bezel, pry the bezel upwards and away from the panel. Work along the right side toward the top of the bezel, prying the covers apart.

  • Page 89: Removing The Camera Module

    Removing the Camera Module 1. See “Removing the LCD Bezel” on page 78. 2. Locate the Camera Module at the top of the LCD Module and disconnect the camera cable. 3. Remove the Camera from the module. Chapter 3...

  • Page 90: Removing The Lcd Panel

    Removing the LCD Panel 1. See “Removing the Camera Module” on page 79. 2. Remove the two (2) securing screws from the LCD Panel. Step LCD Panel M2.5*6 3. Remove the adhesive strip holding the cables in place. 4. Remove the Camera cable cluster from the LCD Module as shown. Size Quantity Screw Type...

  • Page 91

    5. Lift the LCD Panel clear of the module. Chapter 3...

  • Page 92: Removing The Lcd Brackets And Fpc Cable

    Removing the LCD Brackets and FPC Cable 1. See “Removing the LCD Panel” on page 80. 2. Remove the six (6) securing screws (three on each side) from the LCD Panel brackets. Step LCD Brackets M2*3 3. Remove the LCD brackets by pulling away from the LCD Panel. Size Quantity Screw Type...

  • Page 93

    4. Turn the LCD panel over to expose the rear. Lift the adhesive protector and disconnect the cable from the LCD Panel. 5. Lift the cable as shown to disengage the adhesive strip securing it in place. 6. Lift the FPC cable to disengage the remaining adhesive and remove the cable from the panel. Chapter 3...

  • Page 94: Removing The Antennas

    Removing the Antennas 1. See “Removing the LCD Panel” on page 80. 2. Remove the adhesive strips holding the left antenna cable in place. Ensure the cable is free from obstructions. 3. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips. 4.

  • Page 95

    5. Lift the left Antenna clear of the cover. 6. Remove the adhesive strips holding the right antenna cable in place. Ensure the cable is free from obstructions. 7. Remove the cable from the cable channel. Ensure that the cable is free from all cable clips and adhesive strips. Chapter 3...

  • Page 96

    8. Remove the adhesive foil securing the right Antenna to the LCD Module. 9. Lift the right Antenna clear of the cover. Chapter 3...

  • Page 97: Lcd Module Reassembly Procedure, Replacing The Antennas

    LCD Module Reassembly Procedure Replacing the Antennas 1. Replace the right Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated. 2. Replace the adhesive foil to secure the Antenna in place. 4. Run the cable along the cable channel as shown, using all available cable clips. Chapter 3 Locating Pin 3.

  • Page 98

    5. Replace the left Antenna as shown. Ensure that the locating pins on the Antenna are correctly seated. Locating Pin Locating Pin 6. Replace the adhesive strip to secure the Antenna 7. Run the cable down the side of the LCD Module in place.

  • Page 99

    9. The Antennas and cables appear as shown when correctly installed. Chapter 3...

  • Page 100: Replacing The Lcd Panel

    Replacing the LCD Panel 1. Connect the LCD cable to the panel connector as shown. 3. Run the cable along the back of the panel and press down as indicated to secure the cable in place. IMPORTANT: Ensure that the LCD cable runs between the green callouts to avoid trapping when the panel is replaced in the LCD Module.

  • Page 101

    5. Align the LCD brackets with the screw holes on the panel. Replace the six (6) screws (three on each side) in the brackets as shown. 6. Place the LCD Panel in the LCD Module, top edge first, and secure the LCD cable with adhesive tape. IMPORTANT: Ensure that the LCD power cable passes through the hinge well and is not trapped under the panel.

  • Page 102: Replacing The Camera Module

    7. Replace the Camera cable cluster in the LCD 8. Secure the LCD module with the two (2) securing Module. screws. Replacing the Camera Module 1. Place the camera in the LCD Module. 2. Connect the cable to the camera module. Chapter 3...

  • Page 103: Replacing The Lcd Bezel

    Replacing the LCD Bezel 1. Replace the bezel and press down until there are no gaps between the bezel and the LCD Module. IMPORTANT: Ensure that the LCD cables pass through the hinge wells and are not trapped by the bezel. Chapter 3...

  • Page 104

    2. Replace the four (4) screws and screw caps provided. Chapter 3...

  • Page 105: Main Module Reassembly Procedure, Replacing The Cpu

    Main Module Reassembly Procedure Replacing the CPU IMPORTANT: The CPU has a Pin1 locator that must be positioned corresponding to the marker on the CPU socket. 1. Place the CPU into the CPU socket as shown, taking note of the Pin1 locator. Socket Pin1 Locator 2.

  • Page 106: Replacing The Cpu Fan, Replacing The Thermal Module

    Replacing the CPU Fan 1. Align the screw holes on the CPU Fan and Mainboard and replace the Fan. 3. Connect the Fan power cable to the Mainboard connector. Replacing the Thermal Module IMPORTANT: Apply a suitable thermal grease and ensure all heat pads are in place before replacing the Thermal Module.

  • Page 107: Replacing The Mainboard

    3. Align the screw holes on the Thermal Module and Mainboard then replace the module. Keep the module as level as possible to spread the thermal grease evenly. Replacing the Mainboard 1. Ensure that the Mainboard is face up (the CPU is not visible). Place the Mainboard in the chassis, left edge first (1), then rotate it downward into position (2).

  • Page 108: Replacing The Touchpad Bracket

    Replacing the TouchPad Bracket 1. Replace the TouchPad bracket top edge first to 2. Press the bracket down to engage the securing engage the securing clips. clips. 3. Replace the two (2) screws to secure the TouchPad Bracket to the Upper Cover. 4.

  • Page 109

    5. Replace the FFC and press down as indicated to secure it to the Upper Cover. Chapter 3...

  • Page 110: Replacing The Right Speaker Module

    Replacing the Right Speaker Module 1. Place the module left side first on the Upper Cover as shown. Ensure that the left side of the module is seated correctly in the securing clip. 3. Pass the cable through the Upper Cover as shown. 4. Turn the Upper Cover over and run the cable along 5.

  • Page 111: Replacing The Left Speaker Module

    Replacing the Left Speaker Module 1. Place the module right side first on the Upper Cover as shown. Ensure that the right side of the module is seated correctly in the securing clip. 3. Run the cable along the cable channel using all available cable clips. 4.

  • Page 112: Replacing The Power Board, Replacing The Upper Cover

    Replacing the Power Board 1. Slide the Power Board in to the Upper Cover front edge first to engage the securing clip. 2. Press the board down to locate the securing pin. Replacing the Upper Cover 1. Place the Upper Cover on the Lower Cover as shown. 3.

  • Page 113

    2. Press down around the edges to secure it in place. 3. Replace the nine (9) screws in the Upper Cover as shown. Chapter 3...

  • Page 114

    4. Replace the three (3) screw caps as shown. 5. Connect the following cables to the Mainboard. Chapter 3...

  • Page 115

    6. Connect A as shown. 7. Connect C as shown. 8. Connect B and close the locking latch to secure the cable in place. 9. Connect D and close the locking latch to secure the cable in place. Chapter 3...

  • Page 116: Replacing The Lcd Module

    10. Turn the computer over and replace the eleven screws as shown. Replacing the LCD Module 1. Align the screw holes on the LCD Module and Upper Cover and replace the LCD Module. 3. Replace the left screw cover as shown. Ensure that the securing tab on the rear of the cover is seated correctly in the Upper Cover.

  • Page 117

    4. Replace the right screw cover as shown. Ensure that the securing tab on the rear of the cover is seated correctly in the Upper Cover. 5. Replace the four (4) screws securing the LCD Module to the Upper Cover. 6.

  • Page 118

    9. Run the black Antenna cable along the cable channel as shown using all available retaining clips. 11. Run the white Antenna cable along the cable channel as shown using all available retaining clips. 12. Run the LCD cable along the cable channel using all available cable clips.

  • Page 119

    14. Stand the computer on the LCD Panel and pass the Antenna cables through the chassis. 15. The Upper Cover appears as shown when the Antenna and LCD cables are correctly installed. 16. Turn the computer over. Run the Antenna cables along the cable channel as shown, using all available cable clips.

  • Page 120

    17. Replace the two (2) screws securing the LCD Module to the Lower Cover. Chapter 3...

  • Page 121: Replacing The Keyboard

    Replacing the Keyboard 1. Connect the Keyboard FFC to the Mainboard and close the locking latch to secure the cable in place. 2. Turn the Keyboard over and insert it front edge first 3. Press down as indicated to secure the Keyboard in into the chassis.

  • Page 122: Replacing The Switch Cover, Replacing The Hard Disk Drive Module

    Replacing the Switch Cover 1. Place the Switch Cover left side first on to the Upper Cover. 2. Press down as indicated to snap the Switch Cover into place. Replacing the Hard Disk Drive Module 1. Place the HDD in the HDD carrier. 2.

  • Page 123

    3. Insert the HDD, as indicated and lower it into 4. Slide the HDD in the direction of the arrow to place. connect the interface. Chapter 3...

  • Page 124: Replacing The Wlan Module, Replacing The Dimm Modules

    Replacing the WLAN Module 1. Insert the WLAN Module into the WLAN socket. 3. Connect the two (2) Antenna cables to the module. NOTE: The black cable connects to the upper terminal (MAIN) and the white cable to the lower terminal (MAIN). Replacing the DIMM Modules 1.

  • Page 125: Replacing The Odd Module, Replacing The Lower Covers

    Replacing the ODD Module 1. Press the bezel into the tray, bottom edge first, to secure it to the ODD Module. 3. Push the ODD Module into the ODD bay until it is flush with the casing. Replacing the Lower Covers 1.

  • Page 126: Replacing The Sd Dummy Card

    3. Replace the three (3) screws to secure the covers in place. Memory Cover Replacing the SD Dummy Card 1. Insert the SD Dummy Card into the slot as shown. Cover 2. Push until the card clicks into place and is flush with the casing.

  • Page 127: Replacing The Battery

    Replacing the Battery 1. Slide and hold the battery release latch to the 2. Slide the battery lock in the direction shown to release position (1), insert the battery pack and secure the battery in place. press down (2). Chapter 3...

  • Page 128

    Chapter 3...

  • Page 129: Troubleshooting, Common Problems

    Common Problems Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses. Obtain the failing symptoms in as much detail as possible.

  • Page 130: Power On Issue

    Power On Issue If the system doesn’t power on, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: Computer Shutsdown Intermittently If the system powers off at intervals, perform the following actions one at a time to correct the problem. Check the power cable is properly connected to the computer and the electrical outlet.

  • Page 131: No Display Issue

    No Display Issue If the Display doesn’t work, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: No POST or Video If the POST or video doesn’t display, perform the following actions one at a time to correct the problem. Make sure that the internal display is selected.

  • Page 132: Random Loss Of Bios Settings

    Abnormal Video Display If video displays abnormally, perform the following actions one at a time to correct the problem. Reboot the computer. If permanent vertical/horizontal lines or dark spots display in the same location, the LCD is faulty and should be replaced. See “Disassembly Process” on page 40. If extensive pixel damage is present (different colored spots in the same locations on the screen), the LCD is faulty and should be replaced.

  • Page 133: Lcd Failure, Built-in Keyboard Failure

    LCD Failure If the LCD fails, perform the following actions one at a time to correct the problem. Do not replace a non- defective FRUs: Built-In Keyboard Failure If the built-in Keyboard fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: Chapter 4...

  • Page 134: Touchpad Failure, Internal Speaker Failure

    TouchPad Failure If the TouchPad doesn’t work, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: Internal Speaker Failure If the internal Speakers fail, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: Chapter 4...

  • Page 135

    Sound Problems If sound problems are experienced, perform the following actions one at a time to correct the problem. Reboot the computer. Navigate to Start Control Panel the Device Manager to determine that: • The device is properly installed. • There are no red Xs or yellow exclamation marks.

  • Page 136: Hdd Not Operating Correctly

    HDD Not Operating Correctly If the HDD does not operate correctly, perform the following actions one at a time to correct the problem. Disconnect all external devices. Run a complete virus scan using up-to-date software to ensure the computer is virus free. Run the Windows OS Startup Repair Utility: insert the Windows Operating System DVD in the ODD and restart the computer.

  • Page 137: Odd Failure

    ODD Failure If the ODD fails, perform the following actions one at a time to correct the problem. Do not replace a non- defective FRUs: ODD Not Operating Correctly If the ODD exhibits any of the following symptoms it may be faulty: •...

  • Page 138

    Double-click lDE ATA/ATAPI controllers. If a device displays a down arrow, right-click on the device and click Enable. Double-click DVD/CD-ROM drives. If the device displays a down arrow, right-click on the device and click Enable. Check that there are no yellow exclamation marks against the items in lDE ATA/ATAPI controllers. If a device has an exclamation mark, right-click on the device and uninstall and reinstall the driver.

  • Page 139

    Double-click IDE ATA/ATAPI controllers, then right-click ATA Device 0. Click Properties and select the Advanced Settings tab. Ensure that the Enable DMA box is checked and click OK. Repeat for the other ATA Devices shown if applicable. Drive Not Detected If Windows cannot detect the drive, perform the following actions one at a time to correct the problem.

  • Page 140: Wireless Function Failure, Thermal Unit Failure

    Wireless Function Failure If the WLAN fails, perform the following actions one at a time to correct the problem. Do not replace a non- defective FRUs: Thermal Unit Failure If the Thermal Unit fails, perform the following actions one at a time to correct the problem. Do not replace a non-defective FRUs: Chapter 4...

  • Page 141: External Mouse Failure, Other Failures

    External Mouse Failure If an external Mouse fails, perform the following actions one at a time to correct the problem. Try an alternative mouse. If the mouse uses a wireless connection, insert new batteries and confirm there is a good connection. See the mouse user manual.

  • Page 142: Intermittent Problems, Undetermined Problems

    Issue” on page 120.): Power-off the computer. Visually check them for damage. If any problems are found, replace the FRU. Remove or disconnect all of the following devices: • Non-Acer devices • Printer, mouse, and other external devices • Battery pack •...

  • Page 143: Post Codes

    Post Codes These tables describe the POST codes and descriptions during the POST. Code Beeps 1-2-2-3 1-3-1-1 1-3-1-3 1-3-4-1 1-3-4-3 1-4-1-1 Chapter 4 POST Routine Description Verify Real Mode Disable Non-Maskable Interrupt (NMI) Get CPU type Initialize system hardware Initialize chipset with initial POST values Set IN POST flag Initialize CPU registers Enable CPU cache...

  • Page 144

    Code Beeps 2-1-2-3 2-2-3-1 POST Routine Description POST device initialization Check ROM copyright notice Check video configuration against CMOS Initialize PCI bus and devices Initialize all video adapters in system QuietBoot start (optional) Shadow video BIOS ROM Display BIOS copyright notice Display CPU type and speed Initialize EISA board Test keyboard...

  • Page 145

    Code Beeps Chapter 4 POST Routine Description Initialize Extended BIOS Data Area Test and initialize PS/2 mouse Initialize floppy controller Determine number of ATA drives (optional) Initialize hard-disk controllers Initialize local-bus hard-disk controllers Jump to UserPatch2 Build MPTABLE for multi-processor boards Install CD ROM for boot Clear huge ES segment register Fixup Multi Processor table...

  • Page 146

    Code Beeps Code Beeps * If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap (xxxx) indicating the address line or bits that failed. For example, "2C 0002" means address line 1 (bit one set) has failed.

  • Page 147: Jumper And Connector Locations, Top View

    Jumper and Connector Locations Top View Chapter 5 Item Description JLVDS1 LCD Connector JP14 Power/B Connector JSPK1 Speaker(Left) Connector JSPK2 Speaker(Right) Connector JKB1 Internal Keyboard Connector JTP1 Touch Pad Connector South Bridge Touch pad (Left) Button Touch pad (Right) Button Chapter 5...

  • Page 148: Bottom View

    Bottom View ITEM DESCRIPTION PJP1 AC-IN Connector JRJ1 RJ45 Connector JCRT1 CRT Connector JP12 Fan Connector JUSB1 USB Connector JUSB2 USB Connector JMIC1 MIC-In Jack JHP1 Head-Phone Jack JSATA2 HDD Connector North Bridge JCPU1 CPU Socket JREAD1 Card Reader Socket PJP2 Battery Connector JDIMM2...

  • Page 149: Power Board

    Power Board Chapter 5 ITEM DESCRIPTION Lid Switch TP Lock Button ON/OFF Button Wireless Button LED1 ON/OFF LED LED3 Media LED LED4 Num LED LED5 Wireless LED LED6 Caps LED LED7 TP Lock LED...

  • Page 150: Clearing Password Check And Bios Recovery, Clearing Password Check, Clear Cmos Jumper

    Clearing Password Check and BIOS Recovery This section provides you with the standard operating procedures of clearing password and BIOS recovery for Aspire 5532. The machine provides one Hardware Open Gap on main board for clearing password check, and one Hotkey for enabling BIOS Recovery.

  • Page 151: Bios Recovery By Crisis Disk

    BIOS Recovery by Crisis Disk BIOS Recovery Boot Block: BIOS Recovery Boot Block is a special block of BIOS. It is used to boot up the system with minimum BIOS initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous BIOS flashing process failed.

  • Page 152

    Chapter 5...

  • Page 153: Fru (field Replaceable Unit) List

    Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

  • Page 154: Aspire 5532 Exploded Diagrams, Main Assembly

    Aspire 5532 Exploded Diagrams Main Assembly Chapter 6...

  • Page 155

    Chapter 6 Description Acer P/N Middle Cover 60.PGT02.002 Assy Hinge Cap 42.N2802.001 Assy Upper Case 60.PGT02.001 Assy Mainboard MB.PGY02.001 Lower Case 60.N2802.002...

  • Page 156: Base Assembly

    Base Assembly Description 23.N2802.001 Thermal Module 60.N6502.001 Mainboard MB.PGY02.001 Acer P/N Chapter 6...

  • Page 157: Rear Assembly

    Rear Assembly Chapter 6 Description RAM Door 42.N2802.004 HDD Door 42.N2802.005 Lower Case 60.N2802.002 Acer P/N...

  • Page 158: Aspire 5532 Fru List

    Aspire 5532 FRU List CATEGORY Board POWER BOARD WLAN CARD-XB63 WLAN CARD-BCM4312 Cable TP FFC POWER CORD US 3 PIN POWER CORD EU 3 PIN POWER CORD AUS 3 PIN POWER CORD UK 3 PIN POWER CORD CHINA 3 PIN...

  • Page 159

    CATEGORY LOWER CASE TP BRACKET MIDDLE COVER ASSY-AS HINGE CAP ASSY UP CAP R-AS UP CAP L-AS RAM DOOR ASSY HDD DOOR ASSY Chapter 6 Description AcerPN 60.N2802.002 33.N2802.001 60.PGT02.002 42.N2802.001 42.PGT02.001 42.PGT02.002 42.N2802.004 42.N2802.005...

  • Page 160

    CATEGORY HDD SEAGATE 2.5" 5400rpm 160GB ST9160310AS Crockett SATA LF F/W:0303 HDD TOSHIBA 2.5" 5400rpm 160GB MK1655GSX Libra SATA LF F/W: FG011J HDD HGST 2.5" 5400rpm 160GB HTS543216L9A300 Falcon-B SATA LF F/W:C40C HDD WD 2.5" 5400rpm 160GB WD1600BEVT-22ZCTO ML160 SATA LF F/W:11.01A11 HDD SEAGATE 2.5"...

  • Page 161

    CATEGORY ODD BEZEL-SUPER MULTI ODD BRACKET Keyboard Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 99KS Black US International Texture Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 99KS Black Greek Texture Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 99KS Black Arabic Texture...

  • Page 162

    CATEGORY Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 100KS Black Nordic Texture Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 100KS Black FR/Arabic Texture Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard 100KS Black US w/ Canadian French Texture Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard...

  • Page 163

    CATEGORY LCD CABLE FOR W/CCD F LCD BRACKET R&L FOR LCD CAMERA 0.3 INVERTER ANTENNA-MAIN+MIMO LCD BEZEL FOR W/O CCD AS LED CABLE FOR W/O CCD F Mainboard Mainboard AS5532 ATI RS780 SB710 8132 W/O 1394 V1.0 LF Memory Memory NANYA SO-DIMM DDRII 667 1GB NT1GT64UH8D0FN-3C LF 64*16 0.07um Memory MICRON SO-DIMM DDRII 667 1GB MT8HTF12864HDY-667G1 LF 64*16 0.065um...

  • Page 164

    CATEGORY Speaker SPEAKER R SPEAKER L Miscellaneous NAME PLATE-AS5532 Description Screw List SCREW M2.48D 4.0L K 5.5D 0.8T ZKNL SCREW M2.48D 6.0L K 5.5D 0.8T ZKNL SCREW M2.45D 8.0L K 5.5D 0.8T ZKNL SCREW M1.98D 3.0L K 4.6D 0.8T ZKNL SCREW M M 3.0D 3.0L K 4.9D NI + SCREW M M 2.5D 3.2L K 6D NI + Description...

  • Page 165

    Chapter 6...

  • Page 166: Model Definition And Configuration

    Spanish AS5332- ACLA- 902G16Mn Spanish AS5332- ACLA- 902G16Mn Portuguese AS5332- ACLA- 902G16Mn Portuguese Appendix A Acer Part No Description LX.PGV02.009 AS5332-903G16Mn W7HP64ATDK2 MC UMACbs2 2G+1G/160/6L2.2/ 5R/CB_bgn_0.3D_HG_ENS1 LX.PGV02.017 AS5332-903G16Mn W7HP64ATNL1 MC UMACbs2 2G+1G/160/6L2.2/ 5R/CB_bgn_0.3D_HG_NL11 LX.PGV02.047 AS5332-303G32Mn W7HP64ATDK2 MC UMACbs2 2G+1G/320/6L2.2/ 5R/CB_bgn_0.3D_HG_ENS1 LX.PGV0C.022...

  • Page 167

    302G25Mn Zealand AS5332- EMEA Russia 903G16Mi AS5332- EMEA South Africa 902G16Mn AS5332- EMEA Ukraine 903G16Mn Acer Part No Description LX.PGV08.006 AS5332-302G25Mn EM W7ST32EMATCL3 MC UMACbs2 2*1G/250/6L2.2/5R/ CB_bgn_0.3D_HG_ES51 LX.PGV08.005 AS5332-302G25Mn EM W7ST32EMATEA4 MC UMACbs2 2*1G/250/6L2.2/5R/ CB_bgn_0.3D_HG_EN31 LX.PGV08.004 AS5332-302G25Mn EM W7ST32EMATEA1 MC UMACbs2 2*1G/250/6L2.2/5R/...

  • Page 168

    Austria 903G16Mn AS5332- EMEA Germany 903G16Mn AS5332- EMEA France 903G16Mn AS5332- EMEA Russia 903G16Mi Appendix A Acer Part No Description LX.PGV02.045 AS5332-304G32Mn W7HP64ATGB1 MC UMACbs2 2*2G/320/6L2.2/5R/ CB_bgn_0.3D_HG_EN11 LX.PGV0C.011 AS5332-902G16Mn LINPUSAME2 UMACbs2 1*2G/160/6L2.2/5R/ CB_bgn_0.3D_HG_EN13 LX.PGV0C.008 AS5332-901G16Mn LINPUSAEU7 UMACbs2 1*1G/160/6L2.2/5R/ CB_bgn_0.3D_HG_ENQ1 LX.PGV0C.009 AS5332-902G25Mn LINPUSAEU7 UMACbs2 1*2G/250/6L2.2/5R/...

  • Page 169

    South Africa 903G16Mn AS5332- EMEA Middle East 903G16Mn AS5332- EMEA Middle East 903G16Mn AS5332- EMEA Turkey 903G16Mn Acer Part No Description LX.PGV02.010 AS5332-903G16Mn W7HP64ATES1 MC UMACbs2 2G+1G/160/6L2.2/ 5R/CB_bgn_0.3D_HG_ES51 LX.PGV02.013 AS5332-903G16Mn W7HP64ATEU5 MC UMACbs2 2G+1G/160/6L2.2/ 5R/CB_bgn_0.3D_HG_RO11 LX.PGV02.011 AS5332-903G16Mn W7HP64ATHU1 MC UMACbs2 2G+1G/160/6L2.2/5R/ CB_bgn_0.3D_HG_HU11...

  • Page 170

    AS5332- EMEA Middle East 903G16Mn AS5332- EMEA Middle East 903G16Mn AS5332- EMEA Czech 903G16Mn Appendix A Acer Part No Description LX.PGV02.039 AS5332-903G16Mn EM W7HP64EMATZA4 MC UMACbs2 2G+1G/160/6L2.2/5R/ CB_bgn_0.3D_HG_ES61 LX.PGV02.020 AS5332-903G16Mn W7HP64ATEU7 MC UMACbs2 2G+1G/160/6L2.2/ 5R/CB_bgn_0.3D_HG_SL11 LX.PGV02.041 AS5332-903G16Mn EM W7HP64EMATME3 MC UMACbs2 2G+1G/160/6L2.2/5R/...

  • Page 171

    Vietnam 302G32Mn AS5332- Vietnam 302G25Mn AS5332- 572G16Mn AS5332- 572G16Mn AS5332- EMEA 303G25Mn AS5332- EMEA 304G32Mn Acer Part No Description LX.PGV0C.010 AS5332-903G32Mn LINPUSAEU7 UMACbs2 2G+1G/320/6L2.2/5R/ CB_bgn_0.3D_HG_ENQ1 LX.PGV0Y.004 AS5332-902G16Mn EM VHB32ATME2 MC UMACbs2 1*2G/ 160/6L2.2/5R/ CB_bgn_0.3D_HG_AR23 LX.PGV0C.003 AS5332-901G16Mn LINPUSAME2 UMACbs2 1*1G/160/6L2.2/5R/ CB_bgn_0.3D_HG_EN13 LX.PGV0C.007...

  • Page 172

    AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-903G16Mn AS5332-302G25Mn Appendix A Acer Part No LX.PGW02.002 AS5332-303G16Mn W7HP64ATGB1 MC UMAbs2 2G+1G/160/6L2.2/5R/ CB_bgn_HG_EN11 LX.PGW02.004 AS5332-303G50Mn W7HP64ATGB1 MC UMAbs2 2G+1G/500_L/6L2.2/5R/ CB_bgn_HG_EN11 LX.PGW02.003 AS5332-903G25Mn W7HP64ATGB1 MC UMAbs2 2G+1G/250/6L2.2/5R/ CB_bgn_HG_EN11 LX.PGW0X.002...

  • Page 173

    Model AS5332-903G16Mi AS5332-902G16Mn AS5332-903G16Mn AS5332-304G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-303G50Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mi AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn...

  • Page 174

    Model AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G16Mn AS5332-901G25Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-312G25Mn AS5332-302G32Mn AS5332-302G25Mn AS5332-572G16Mn AS5332-572G16Mn AS5332-303G25Mn AS5332-304G32Mn AS5332-303G16Mn AS5332-303G50Mn AS5332-903G25Mn AS5332-303G16Mn AS5332-304G32Mn AS5332-572G16Mn Model AS5332-903G16Mn AS5332-903G16Mn AS5332-303G32Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn...

  • Page 175

    Model AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-903G16Mn AS5332-302G25Mn AS5332-903G16Mi AS5332-902G16Mn AS5332-903G16Mn AS5332-304G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-303G50Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mi AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn...

  • Page 176

    Model AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G16Mn AS5332-901G25Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-312G25Mn AS5332-302G32Mn AS5332-302G25Mn AS5332-572G16Mn AS5332-572G16Mn AS5332-303G25Mn AS5332-304G32Mn AS5332-303G16Mn AS5332-303G50Mn AS5332-903G25Mn AS5332-303G16Mn AS5332-304G32Mn AS5332-572G16Mn Model AS5332-903G16Mn AS5332-903G16Mn AS5332-303G32Mn AS5332-302G25Mn...

  • Page 177

    Model AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-902G16Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-302G25Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-903G16Mn AS5332-302G25Mn AS5332-903G16Mi AS5332-902G16Mn AS5332-903G16Mn AS5332-304G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-303G50Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mi AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn...

  • Page 178

    Model AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G16Mn AS5332-903G32Mn AS5332-902G16Mn AS5332-901G16Mn AS5332-902G16Mn AS5332-901G25Mn AS5332-902G25Mn AS5332-901G16Mn AS5332-902G25Mn AS5332-902G16Mn AS5332-312G25Mn AS5332-302G32Mn AS5332-302G25Mn AS5332-572G16Mn AS5332-572G16Mn AS5332-303G25Mn AS5332-304G32Mn AS5332-303G16Mn...

  • Page 179

    Model AS5332-903G25Mn AS5332-303G16Mn AS5332-304G32Mn AS5332-572G16Mn Extra SW1 Card Reader McAfee 5 in 1-Build in 3rd WiFi 1x2 BGN McAfee 5 in 1-Build in 3rd WiFi 1x2 BGN McAfee 5 in 1-Build in 3rd WiFi 1x2 BGN 5 in 1-Build in 3rd WiFi 1x2 BGN Wireless LAN1 Bluetooth...

  • Page 180

    Appendix A...

  • Page 181: Test Compatible Components

    Appendix B Test Compatible Components This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system ® ® functions are tested under Windows Vista and Windows 7 environments. Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

  • Page 182

    Microsoft Windows ® Vendor Adapter DELTA LITE-ON HIPRO DELTA LITE-ON HIPRO DELTA LITE-ON HIPRO DELTA LITE-ON HIPRO DELTA LITE-ON HIPRO DELTA LITE-ON HIPRO Battery SANYO 6CELL2.2 SONY 6CELL2.2 PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2 OS Environment Test ® Type Adapter DELTA 65W 19V 1.7x5.5x11 Yellow ADP-65JH DB A, LV5 LED LF Adapter LITE-ON 65W 19V 1.7x5.5x11 Yellow PA-1650- 22AC LV5 LED LF...

  • Page 183

    Vendor SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SANYO 6CELL2.2 SONY 6CELL2.2 PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SANYO 6CELL2.2 SONY 6CELL2.2 PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SANYO 6CELL2.2 SONY 6CELL2.2 PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2...

  • Page 184

    Vendor PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SANYO 6CELL2.2 SONY 6CELL2.2 PANASONIC 6CELL2.2 SAMSUNG 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 SIMPLO 6CELL2.2 INTEL CMT1600 INTEL CMT1700 INTEL CMT3000 INTEL CMT3100 INTEL CM575 INTEL CM585 INTEL CM900 INTEL CMT1600 INTEL CMT1700...

  • Page 185

    Vendor INTEL PMDT4300 INTEL PMDT4400 INTEL PMDT4200 INTEL PMDT4300 INTEL PMDT4400 INTEL PMDT4200 INTEL PMDT4300 INTEL PMDT4400 SEAGATE N160GB5.4KS TOSHIBA N160GB5.4KS HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST N250GB5.4KS HGST N250GB5.4KS N250GB5.4KS SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE...

  • Page 186

    Vendor HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST N250GB5.4KS HGST N250GB5.4KS N250GB5.4KS SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE N500GB5.4KS HGST N500GB5.4KS N500GB5.4KS SEAGATE N160GB5.4KS TOSHIBA N160GB5.4KS HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST N250GB5.4KS HGST...

  • Page 187

    Vendor SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE N500GB5.4KS HGST N500GB5.4KS N500GB5.4KS SEAGATE N160GB5.4KS TOSHIBA N160GB5.4KS HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST N250GB5.4KS HGST N250GB5.4KS N250GB5.4KS SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE N500GB5.4KS HGST N500GB5.4KS N500GB5.4KS...

  • Page 188

    Vendor TOSHIBA N160GB5.4KS HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST N250GB5.4KS HGST N250GB5.4KS N250GB5.4KS SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE N500GB5.4KS HGST N500GB5.4KS N500GB5.4KS SEAGATE N160GB5.4KS TOSHIBA N160GB5.4KS HGST N160GB5.4KS HGST N160GB5.4KS N160GB5.4KS SEAGATE N250GB5.4KS TOSHIBA N250GB5.4KS HGST...

  • Page 189

    Vendor N250GB5.4KS SEAGATE N320GB5.4KS TOSHIBA N320GB5.4KS HGST N320GB5.4KS N320GB5.4KS SEAGATE N500GB5.4KS HGST N500GB5.4KS N500GB5.4KS N15.6WXGAG N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG Appendix B Type HDD WD 2.5" 5400rpm 250GB WD2500BEVT-22ZCT0 ML160 SATA LF F/W:11.01A11 HDD SEAGATE 2.5"...

  • Page 190

    Vendor N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG SAMSUNG N15.6WXGAG N15.6WXGAG N15.6WXGAG N15.6WXGAG NANYA SO1GBII6 MICRON SO1GBII6 SAMSUNG SO1GBII6 HYNIX SO1GBII6 HYNIX SO1GBII6 NANYA SO2GBII6 MICRON SO2GBII6 SAMSUNG SO2GBII6 HYNIX SO2GBII6 Type CCFL LCD AUO 15.6"W WXGA Glare B156XW01 V0 1A LF 220nit 8ms 500:1 CCFL LCD SAMSUNG 15.6"W WXGA Glare LTN156AT01-...

  • Page 191

    Vendor HYNIX SO2GBII6 NANYA SO1GBII6 MICRON SO1GBII6 SAMSUNG SO1GBII6 HYNIX SO1GBII6 HYNIX SO1GBII6 NANYA SO2GBII6 MICRON SO2GBII6 SAMSUNG SO2GBII6 HYNIX SO2GBII6 HYNIX SO2GBII6 ELPIDA SO1GBIII10 SAMSUNG SO1GBIII10 HYNIX SO1GBIII10 ELPIDA SO2GBIII10 SAMSUNG SO2GBIII10 A-DATA SO2GBIII10 HYNIX SO2GBIII10 ELPIDA SO1GBIII10 SAMSUNG SO1GBIII10 HYNIX SO1GBIII10...

  • Page 192

    Vendor NANYA SO1GBII6 MICRON SO1GBII6 SAMSUNG SO1GBII6 HYNIX SO1GBII6 HYNIX SO1GBII6 NANYA SO2GBII6 MICRON SO2GBII6 SAMSUNG SO2GBII6 HYNIX SO2GBII6 HYNIX SO2GBII6 NANYA SO1GBII6 MICRON SO1GBII6 SAMSUNG SO1GBII6 HYNIX SO1GBII6 HYNIX SO1GBII6 NANYA SO2GBII6 MICRON SO2GBII6 SAMSUNG SO2GBII6 HYNIX SO2GBII6 HYNIX SO2GBII6 Modem External USB...

  • Page 193

    Vendor HLDS NSM8XS SONY NSM8XS PLDS NSM8XS PANASONIC NSM8XS HLDS NSM8XS SONY NSM8XS PLDS NSM8XS PANASONIC NSM8XS HLDS NSM8XS SONY NSM8XS PLDS NSM8XS PANASONIC NSM8XS HLDS NSM8XS SONY NSM8XS PLDS NSM8XS PANASONIC NSM8XS HLDS NSM8XS SONY NSM8XS PLDS NSM8XS PANASONIC NSM8XS HLDS NSM8XS...

  • Page 194

    SB Chipset Intel CS ICH9M SB Chipset Intel CS ICH9M SB Chipset Intel CS ICH9M SB Chipset Intel CS ICH9M Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard Black NONE Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard Black NONE Keyboard ACER EM-7Tv2 HM51 Internal 17 Standard Black...

  • Page 195

    Vendor PIFA PIFA PIFA PIFA PIFA Audio Codec Realtek ALC272X Realtek ALC272X Realtek ALC272X Realtek ALC272X Realtek ALC272X Realtek ALC272X A cover Quanta Wistron Normal wi IMR Quanta Wistron Normal wi IMR Quanta Wistron Normal wi IMR Quanta Wistron Normal wi IMR Quanta Wistron Normal wi IMR B cover...

  • Page 196

    Vendor McAfee McAfee McAfee Wireless LAN Foxconn 3rd WiFi 1x2 Foxconn 3rd WiFi 1x2 Foxconn 3rd WiFi 1x2 Foxconn 3rd WiFi 1x2 Foxconn 3rd WiFi 1x2 Foxconn 3rd WiFi 1x2 Type Antivirus application McAfee Antivirus application McAfee Antivirus application McAfee Foxconn Wireless LAN Atheros HB93 1x2 BGN (HM) Foxconn Wireless LAN Atheros HB93 1x2 BGN (HM) Foxconn Wireless LAN Atheros HB93 1x2 BGN (HM)

  • Page 197: Online Support Information

    This section describes online technical support services available to help you repair your Acer Systems. If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d.

  • Page 198

    Appendix C...

  • Page 199

    AFLASH Utility Antennas Removing Replacing Battery Replacing Battery Pack Removing BIOS ROM type vendor Version 23–31 BIOS Utility Boot Exit Navigating Onboard Device Configuration Save and Exit Security System Security Board Layout Top View brightness hotkeys Camera Module Removing Replacing caps lock on indicator Common Problems...

  • Page 200

    Removing Replacing LCD Brackets Removing Replacing LCD Cable Replacing LCD Failure LCD Module Removing Replacing LCD Module Disassembly Flowchart LCD Module Reassembly Procedure LCD Panel Removing Replacing Left Speaker Module Removing Lower Covers Removing Replacing Main Unit Disassembly Flowchart Mainboard Removing Replacing media access...

  • Page 201

    TouchPad Bracket Removing Replacing TouchPad Failure Troubleshooting Built-in KB Failure EasyTouch Buttons HDTV Switch Internal Speakers LCD Failure No Display Other Failures Power On Thermal Unit TouchPad WLAN Undetermined Problems Upper Cover Removing Replacing utility 23–31 BIOS Windows 2000 Environment Test Wireless Function Failure WLAN Module Removing...

Comments to this Manuals

Symbols: 0
Latest comments:
