Page 1: Instruction Manual

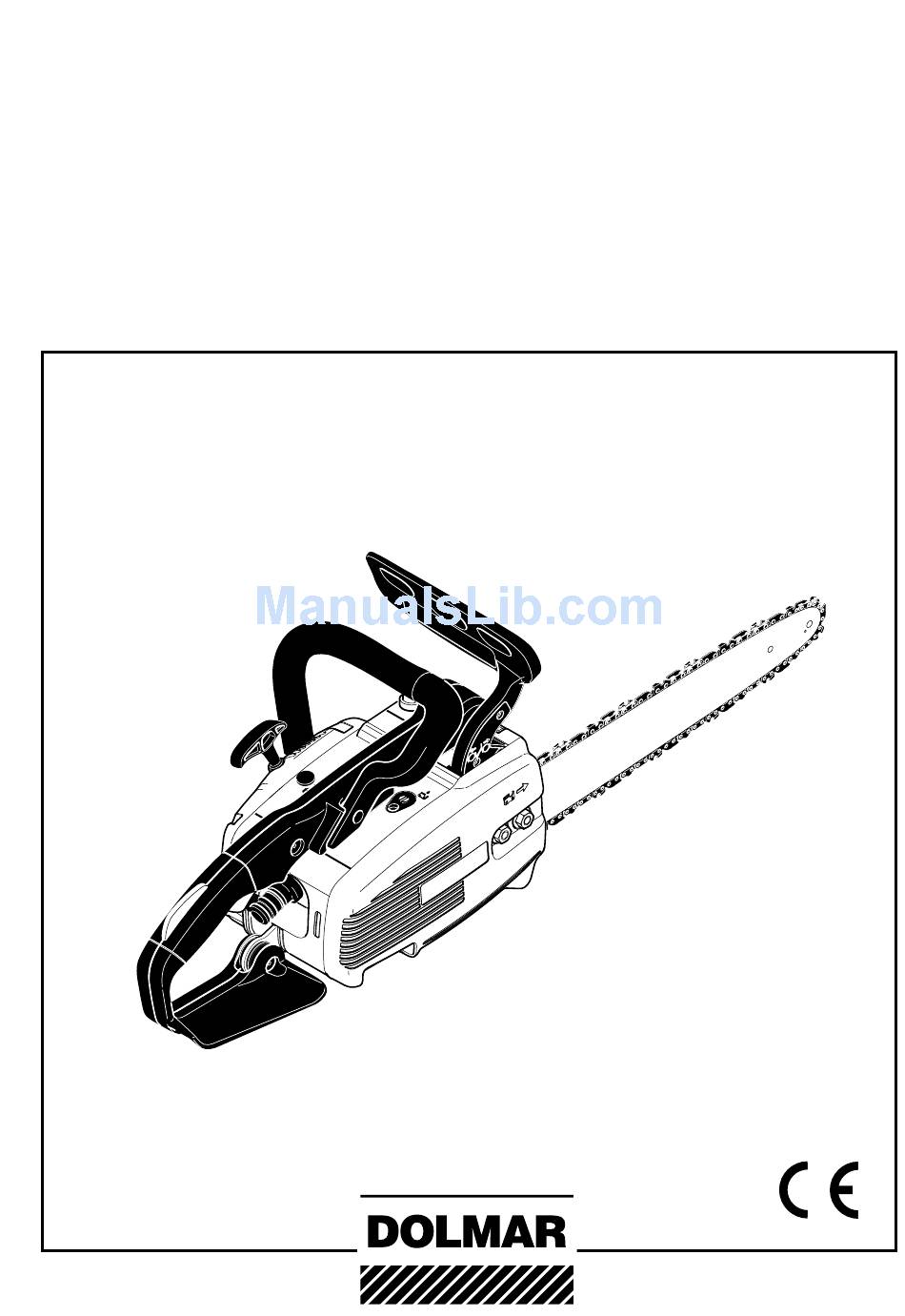

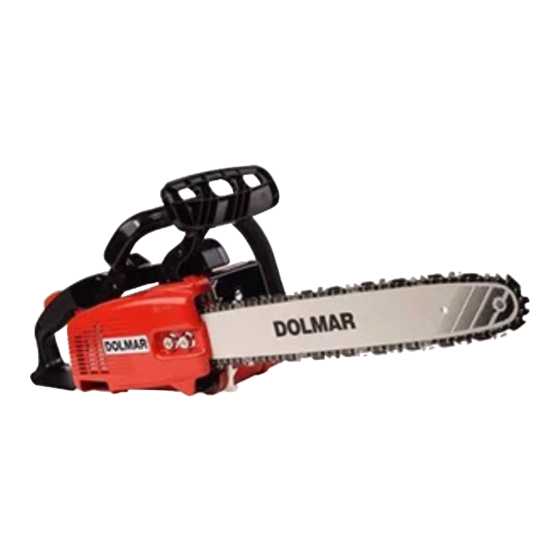

Instruction Manual Original Instruction Manual Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Keep this Instruction Manual! PS-3410 http://www.dolmar.com... -
Page 2: Table Of Contents
This experience shows in every detail of every General precautions ............4 DOLMAR chain saw. Protective equipment ............4 The PS-3410 are very handy and robust chain saws with a Fuels / Refuelling ............5 new Design. Putting into operation ............5 The automatic chain lubrication with variable-ß... -
Page 3: Delivery Inventory
Delivery inventory 1. Chain saw 2. Guide bar 3. Saw chain 4. Chain protection cover 5. Assembly tool In case one of the parts listed should not be included in the 6. Instruction manual (not shown) delivery inventory, please consult your sales agent. Symbols You will note the following symbols on the chain saw and when studying this instruction manual: Read the instruction manual... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Power chain saws This power chain saw may be used only for sawing wood out Protective gloves (6) made of thick leather are part of of doors. It is intended for the followung uses depending on its the prescribed equipment and must always be worn during class: operation of the chain saw. -
Page 5: Fuels / Refuelling
Fuels / Refuelling Stop the engine before refuelling the chain saw. Do not smoke or work near open Þ res (5). Let the engine cool down before refuelling. Fuels can contain substances similar to solvents. Eyes and skin should not come in contact with mineral oil products. Always wear protective gloves when refuelling. -
Page 6: Kickback
Kickback - When working with the chain saw dangerous kickbacks may occur. Kickback occurs when the upper part of the end of the guide bar inadvertently touches wood or other hard objects (10). This causes the saw to be thrown back toward the user with great force and out of control. - Page 7 Be careful when cutting splintery wood. Cut pieces of wood may be pulled along (risk of injuries). When cutting with the upper edge of the guide bar, the chain saw may be pushed in the direction of the user if the chain gets clamped.
-
Page 8: Transport And Storage
All other work must be carried out by DOLMAR Service. Use only original DOLMAR spare parts and accessories. Using spare parts other than original DOLMAR parts or ac- cesories and guide bar/chain combinations or lengths which are not approved bring a high risk of accidents. We cannot... -
Page 9: Technical Data
Fuel tank capacity 0,28 Chain oil tank capacity 0,22 Mix ratio (fuel/two-stroke oil) - when using DOLMAR oil 50 : 1 - when using Aspen Alkylat (two-stroke fuel) 50 : 1 (2%) - when using other oils 50 : 1 (quality grade: JASO FC or ISO EGD) -
Page 10: Putting Into Operation
PUTTING INTO OPERATION CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear pro- tective gloves! CAUTION: Do not start the saw until it has been completely assembled and inspected! Mounting the guide bar and saw chain Use the universal wrench delivered with the chain saw for the... -
Page 11: Tightening The Saw Chain
Lift the chain (9) over the sprocket (10). Using your right hand, guide the chain into the top guide groove (11) on the guide bar. Note that the cutting edges along the top of the chain must point in the direction of the arrow! Pull the chain (9) around the sprocket nose (12) of the guide bar in the direction of the arrow. -
Page 12: Chain Brake
In order to guarantee uniform wear of the guide bar the bar should be turned over whenever replacing the chain. Chain brake The PS-3410 comes with an inertia chain brake as standard equipment. If kickback occurs due to contact of the guide-bar tip with wood (see SAFETY PRECAUTIONS, page 6), the chain brake will stop the chain through inertia if the kickback is sufÞ... - Page 13 20 l order number 980 008 213 The chain oil BIOTOP sold by DOLMAR is made of special vegetable oils and is 100% bio-degradable. BIOTOP has been Bio-degradable oil is stable only for a limited period of granted the „blue angel“...
-
Page 14: Fuels / Refuelling
Important note on bio-degradable chain oils: If you are not planning to use the saw again for an ex- to the oil pump or other parts. tended period of time, empty the oil tank and put in a The next time you use the saw, Þ ll the tank with BIOTOP small amount of regular engine oil (SAE 30), and then chain oil again. -
Page 15: Adjusting The Chain Lubrication
Adjusting the chain lubrication The engine must be switched off. You can adjust the oil pump feed rate with the adjusting screw (1). The amount of oil can be adjusted using the universal wrench. Recommended settings: - 25 cm guide bar - 30 cm guide bar - 35 cm guide bar - 40 cm guide bar... -
Page 16: Starting The Engine
Starting the engine Start the chain saw only after having assembled it com- pletely and inspected! Move at least 10 feet (3 m) away from the place where you fuelled the saw. Make sure you have a good footing, and place the saw on the ground in such a way that the chain is not touching anything. -
Page 17: Checking The Chain Brake
Turn adjusting screw (S) clockwise (screw in): Idle speed increases. Important: If the saw chain still moves during idle even after you have adjusted the idle speed, do NOT use the saw. Take it to a DOLMAR service centre! -
Page 18: Maintenance Sharpening The Saw Chain
MAINTENANCE Sharpening the saw chain CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protective gloves! The chain needs sharpening when: The sawdust produced when sawing damp wood looks like wood ß... - Page 19 All cutters must be sharpened to the same angle, 30°. Different angles result in a roughly, irregularly running chain, increase wear and tear and cause chain beakage. The front rake of the cutter results from the cut depth of the round Þ...
-
Page 20: Cleaning The Brake Band And Sprocket Interior
Cleaning the sprocket interior, checking and replacing the chain catch sleeve CAUTION: Before doing any work on the guide bar or chain, always switch off the engine and pull the plug cap off the spark plug (see „Replacing the spark plug“). Always wear protective gloves! CAUTION: Do not start the saw until it has been completely assembled and inspected! -
Page 21: Replacing The Saw Chain
Replacing the saw chain CAUTION: Use only chains and guide bars designed for this saw (see the Extract from the spare-parts list)! Check the sprocket (7) before mounting a new chain. Remove the sprocket guard (see ”PUTTING INTO OPERATI- ON” A-H) CAUTION: Worn out sprockets (8) may damage the new chain and must therefore be replaced. -
Page 22: Replacing The Spark Plug
Replacing the spark plug CAUTION: Do not touch the spark plug or plug cap if the engine is running (high voltage). Switch off the engine before starting any maintenance work. A hot engine can cause burns. Wear protective gloves! 0,5 mm The spark plug must be replaced in case of damage to the insulator, electrode erosion (burn) or if the electrodes are very dirty or oily. -
Page 23: Replacing The Return Spring Unit
Replacing the return spring unit Remove and reinstall the fan housing and cable drum (see ”Replacing the starter cable”). Carefully remove the return spring unit (9) from the fan housing. CAUTION: Danger of injury! If the spring is broken it can jump out! Carefully Þ... -
Page 24: Instructions For Periodic Maintenance
We therefore recommend that you consult a DOLMAR service centre for all work not described in this instruction manual. The DOLMAR service centres have all the necessary equipment and skilled and experienced personnel, who can work out cost- effective solutions and advise you in all matters. -
Page 25: Troubleshooting
Please bear in mind that if parts other than original DOLMAR spare parts are used, this will automatically invalidate the DOLMAR product guarantee. -
Page 26: Extract From The Spare Parts List
Extract from the spare parts list PS-3410 Use only original DOLMAR parts. For repairs and replacement of other parts, see your DOLMAR service center. Pos. DOLMAR-Nr. Stck. Benennung 412 030 661 Sprocket nose bar 30 cm (12“) 412 035 661 Sprocket nose bar 35 cm (14“) -
Page 27: Eu Conformity Declaration
Chain saw PS-3410 4811004.12002 manufactured by DOLMAR GmbH, Jenfelder Str. 38, 22045 Hamburg, Germany, conforms to the basic safety and health require- ments of the applicable EU Directives: EU Machinery Directive 2006/42/EG, EU EMC Directive 2004/108/ EG, Outdoor Noise Directive 2000/14/EG. - Page 28 To Þ nd your local distributor, please visit www.dolmar.com DOLMAR GmbH SpeciÞ cations subject to change without notice Postfach 70 04 20 D-22004 Hamburg Germany Form: 995 701 991 (2012-06 GB) http://www.dolmar.com...
