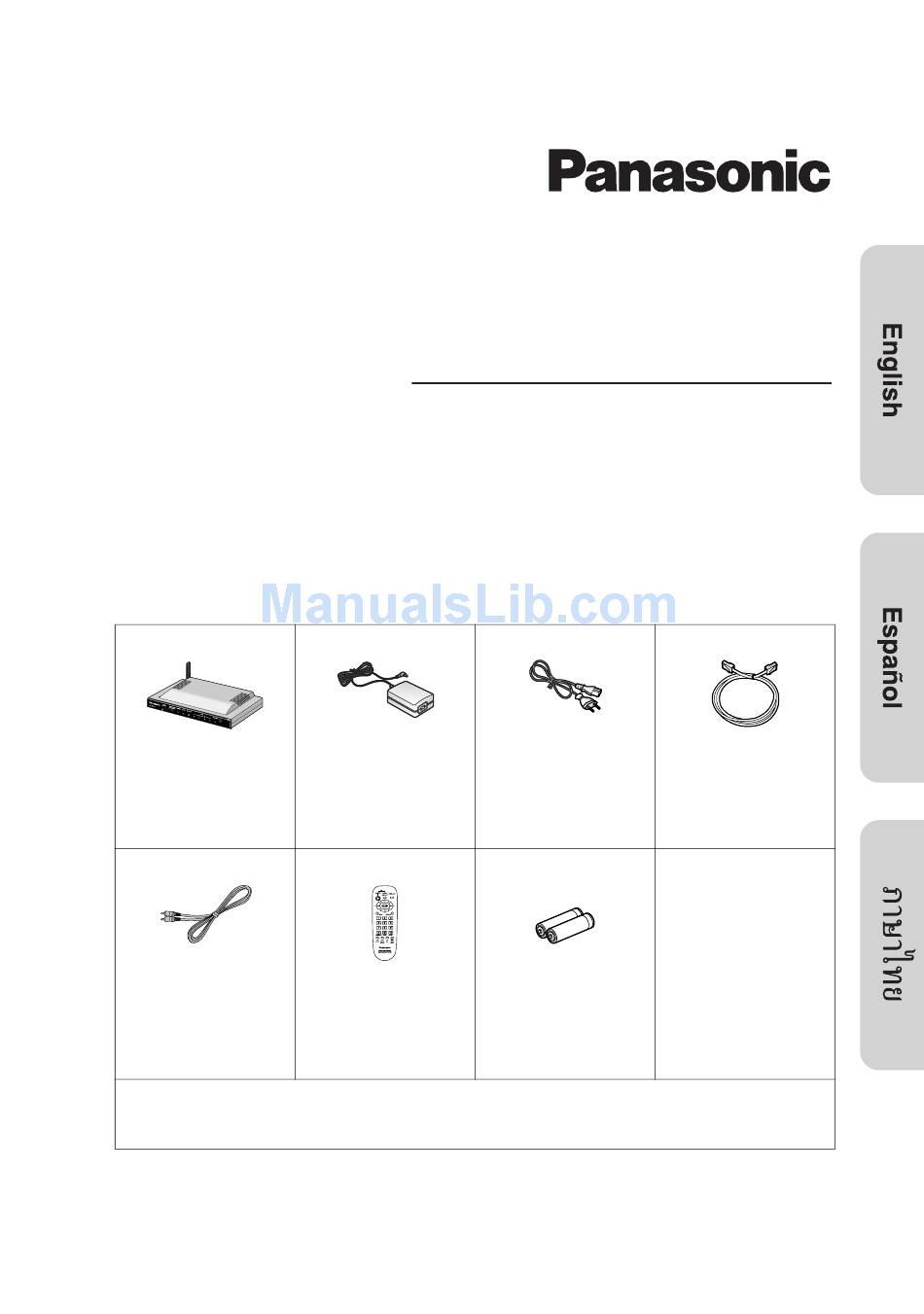

This document will help you install and configure the BL-WV10 Wireless Camera Monitoring System and your Network Cameras (sold separately). Included Items Confirm that the following items are included in the product box. BL-WV10 AC adaptor Order No.: PQLV202X Cord Length:...
The AC cord is used as the main disconnect device. Ensure that the AC outlet is located/installed near the product and is easily accessible. Use only the included Panasonic AC adaptor and AC cord. The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
Page 3
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
Page 4
Remove if the remote control is not going to be used for a period of time. Store in a cool, dark place. Use only non-rechargeable AA batteries. When replacing the batteries, we recommend using the same type of Panasonic batteries that are included with this product. Notice Regarding Wireless Communications To avoid wireless communication interference and instability, do not use this product near the following devices.
Page 5
Notice Regarding the Pyroelectric Infrared Sensor Certain Panasonic Network Cameras, such as the BL-C10 and BL-C30, feature a pyroelectric infrared sensor. This sensor detects temperature differences based on the infrared rays naturally emitted by human or animal bodies.
Page 6
Getting Started Compatible Network Cameras (sold separately) The following cameras are compatible with the BL-WV10, however, certain camera features cannot be used. See “Camera Compatibility” on page 5 of the Operating Instructions for more information. • Panasonic C series Network Cameras (BL-C10: firmware version 1.24 or higher;...
Table of Contents Setup ... 8 Using the Remote Control ...8 1.1.1 Preparing the Remote Control ... 8 1.1.2 Basic Remote Control Operation ... 8 Setup Overview ...9 1.2.1 Connection Examples ... 9 When Using a Router ...10 1.3.1 Initial Connections (When Using a Router) ... 10 1.3.2 Easy Network Setup (When Using a Router)...
1Table of Contents Using the Remote Control 1.1.1 Preparing the Remote Control The remote control included with the BL-WV10 is required for most operations. Insert the included batteries as shown below. While pulling the cover toward you, lift it up.
Setup Overview The following steps briefly describe the setup procedure required before you can use the BL-WV10 to view camera images. Detailed procedures can be found in this document. Insert the batteries in the remote control. Connect the BL-WV10 to your TV.
Make sure your router’s DHCP feature is turned on. Refer to the operating instructions included with your router for more information. • If you are using a wireless router, connect the BL-WV10 to the router using an Ethernet cable. Wireless connection to the router is not supported. 1.3.1...
1.3.2 Easy Network Setup (When Using a Router) After the BL-WV10 starts up for the first time, the [Easy Network Setup] screen is displayed. Here you can set the administrator user name and password, and select whether access from the Internet is configured automatically or manually.
12). 1.3.3 Quick Setup (When Using a Router) To use the BL-WV10 with your cameras and a router, you will need to configure the BL-WV10 and each device. The BL-WV10’s Quick Setup utility can help you configure the devices easily.
Page 13
BL-C30, set the switch to WIRED during Quick Setup. Connect the camera to the power outlet. Rear panel of LAN jacks BL-WV10 Wait while the Quick Setup utility restarts, configures, and registers the camera. • When the camera has been configured and registered, [Finished] is displayed next to the camera name ([CAM1], for example) and the buzzer sounds.
Page 14
Getting Started To register another camera, connect the camera to one of the LAN jacks of the BL-WV10 or the router, then turn the camera on by connecting it to the power outlet. When you have finished registering all cameras, set the BL-WV10’s mode switch to NORMAL, disconnect the DC cord from the rear of the unit, reconnect the DC cord, then continue from “Viewing Camera Images”...
Turn on the BL-WV10 by connecting the DC cord to the unit. • The startup screen appears on the TV screen. You are now ready to use the BL-WV10’s Easy Network Setup utility to configure the BL-WV10 (see page 16). Video output...
1.4.2 Easy Network Setup (When Not Using a Router) After the BL-WV10 starts up for the first time, the [Easy Network Setup] screen is displayed. Here you can set the administrator user name and password. Confirm that the [Easy Network Setup] screen is displayed.
1.4.3 Quick Setup (When Not Using a Router) To use the BL-WV10 with your cameras, you will need to configure the BL-WV10 and your cameras. The BL-WV10’s Quick Setup utility can help you configure the devices easily. Wait while the Quick Setup utility scans for network settings.
Page 18
104 of the Operating Instructions) and then register it again. To register another camera, connect the camera to one of the LAN jacks of the BL-WV10, then turn the camera on by connecting it to the power outlet. When you have finished registering all cameras, set the BL-WV10’s mode...
To start up the BL-WV10 to view camera images, make sure the mode switch on the rear of the unit is set to NORMAL and turn on the BL-WV10. The startup screen appears. If the [Date and Time] screen appears, set the date and time (including Daylight Saving Time start and end dates, if needed), then press ENTER.
Getting Started Note • If the camera’s color night view mode is turned on, the image refresh rate and overall image quality may decrease. As a result, objects may not be displayed properly. In low-light environments, images may be out of focus when using the pan/tilt feature or when the subject is moving.
Adding More Cameras to the System Up to 8 cameras can be registered to the BL-WV10. If you purchase additional cameras later, you can register them using the Quick Setup utility by following the same procedure used to register your existing cameras.
255.255.255.252. • Use a subnet mask setting of 255.255.255.0. If the router’s subnet mask is not 255.255.255.0, you will need to set the BL-WV10’s [Starting Address] setting manually. • From the [Camera] tab on the [General Setup] screen, set the [Starting Address] to a value that corresponds with the network segment address of the router.
Page 23
BL-WV10 during Quick Setup does not support UPnP. This error may also is displayed if the port number used by a camera is already used by the BL-WV10 or by your router. This error may also is displayed if your router is already using port numbers 51000 and higher.
• Enter the correct security code. If you’ve forgotten it, press the FACTORY DEFAULT RESET button to reset the BL-WV10 and re-register all cameras using Quick Setup. This error is displayed when the camera cannot be accessed.
Page 25
Error Message The timer could not be set This error is displayed if the recording time overlaps because the recording with another timer recording program. time overlaps with another timer. Set a different start and/or end time. (ED7) To use the sensor, first This error is displayed if the user name and password enter the Administrator required for sensor use for remote cameras are...
Page 26
Getting Started Error Message This sensor is used for timer recording. Turn off the record program. (EE6) This sensor is used for sensor recording. This camera is used for timer recording. Turn off the record program. (EE7) This camera is used for sensor recording.
• To use the BL-WV10 in normal operation mode, set the mode switch to NORMAL, then turn the BL-WV10 off and then on again. Causes and Solutions This error is displayed when an SD memory card’s write-protection is on.
Select [Yes] to return to the text panel or select [No] to stop inputting text. This error is displayed when setting up the BL-WV10’s IP address if the value entered is identical to the starting address registered for the camera network.
Page 29
Error Message Enter a key matching the This error is displayed when the length of an entered length determined by the encryption key does not match the specified length. key type. Do you want to go back and try again? (EL8) Causes and Solutions •...
Is there an obstruction (including colored glass in a rack door) between the remote control and the receptor? Is the mode switch on the back of the BL-WV10 set to SEQ. DISP.? • Set the mode switch to NORMAL and turn the power on again.
• Access the camera with a PC and disable the camera's color night view mode. You can also use the BL-WV10 to disable color night view mode (see “Camera Setup for Local Cameras” on page 93 of the Operating Instructions). Note that manual disable/enable is not available on certain cameras.
• This can result in a loss of data or damage to the SD memory card. Re-initialize the card or use a new one. (Panasonic cannot be held liable for data loss or damaged SD memory cards.) Was an SD memory card removed during recording? •...
Timer Recording Issue Timer recording doesn’t work. Timer recording doesn’t stop even when I press STOP. When initiating Timer recording, displayed on the [Recorder] screen. SD Memory Cards Issue I cannot format the card. Causes and Solutions Are the timer settings correct? Is the timer indicator lit? •...
When performing Quick Setup on cameras when 2 BL-WV10s are in use, those for one of the BL-WV10s will be registered as local cameras, but those for the other BL-WV10 will be registered as remote cameras. • First, make sure that the administrator name and password for the cameras is identical on both BL-WV10s.
Page 35
Setup menu. • If registration fails, re-initialize the camera, turn the BL-WV10 off and then on again, and re-perform Quick Setup. • Remove that access point from the network, and turn the BL-WV10 off and then on again.
Panasonic’s Quick Setup protocol (including the BL-WV10 itself). When using Quick Setup for more than one BL-WV10, the same IP address will be used for each. • Change the IP addresses to avoid duplication on the network.
• Refer to the wireless communication information on page 4 and clear the signal path of any obstacles, or move the BL-WV10 and camera closer. • Connect the camera using a wired connection if convenient.
(see “Camera Setup for Local Cameras” on page 93 of the Operating Instructions). The wireless signal between the BL-WV10 and the wireless camera is poor. • Change the camera location, remove any potential obstructions and try the connection again.
3.10 Camera Images, Screen Display Issue The image is out of focus. The lens is dirty. The image is out of focus (when using a camera with an optical zoom feature). Images colors are wrong. The white balance is set incorrectly. I cannot turn color night view mode on/off.
Page 40
• Access the camera with a PC and disable the camera's color night view mode. You can also use the BL-WV10 to disable color night view mode (see “Camera Setup for Local Cameras” on page 93 of the Operating Instructions). Note that manual disable/enable is not available on certain cameras.
Page 41
BL-WV10's connection channel setting. • Refer to the wireless communication information on page 4 and clear the signal path of any obstacles, or move the BL-WV10 and camera closer. • Switch to another screen on the BL-WV10, then return to the monitoring screen and try again.
If using a wireless camera with a built-in sensor, poor wireless network conditions may be interfering with the connection between the camera and the BL-WV10. • Try relocating the camera if possible.
Page 43
Issue The built-in sensor Detection errors can result when the camera is (BL-C10, BL-C30, etc.) is placed in one of the following locations. Move the detecting the wrong camera if the camera is located: things. Causes and Solutions • in direct sunlight in a kitchen or other location •...
Page 44
Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
Este documento le ayudará a instalar y configurar el Sistema inalámbrico de visualización de cámaras BL-WV10 y las cámaras de su red (que se venden por separado). Artículos que se incluyen Confirme que los siguientes artículos estén incluidos en la caja del producto.
Page 46
Asegúrese de que la toma de corriente alterna esté ubicada o instalada cerca del producto y tenga fácil acceso. Use sólo el adaptador y cable para corriente Panasonic incluidos. El adaptador de corriente alterna debe permanecer conectado todo el tiempo.
Page 47
Información sobre la eliminación para los usuarios de equipos eléctricos y electrónicos usados (particulares) La aparición de este símbolo en un producto y/o en la documentación adjunta indica que los productos eléctricos y electrónicos usados no deben mezclarse con la basura doméstica general.
Page 48
Sáquelas del control remoto si no lo va a utilizar durante un periodo largo de tiempo. Almacénelas en un sitio fresco y oscuro. Use solamente baterías AA no recargables. Al reemplazar las baterías, recomendamos que utilice el mismo tipo de baterías Panasonic que se incluyen con este producto. Notificación respecto a las comunicaciones inalámbricas Para evitar la interferencia e inestabilidad en las comunicaciones inalámbricas, no utilice este producto cerca de los siguientes dispositivos.
Page 49
Notificación respecto al sensor piroeléctrico infrarrojo Ciertas cámaras de red Panasonic como la BL-C10 y la BL-C30 incluyen un sensor piroeléctrico infrarrojo. Este sensor detecta las diferencias de temperatura en base a los rayos infrarrojos que el cuerpo humano o los animales emiten naturalmente.
Page 50
Configuración inicial Cámaras de red compatibles (que se venden por separado) Las siguientes cámaras son compatibles con el BL-WV10. Sin embargo, no es posible utilizar ciertas funciones de las cámaras. Consulte “Camera Compatibility” en la página 5 de Operating Instructions para obtener más información.
Page 51
Índice Configuración... 52 Uso del control remoto ...52 1.1.1 Preparación del control remoto ... 52 1.1.2 Operación básica del control remoto ... 52 Resumen de configuración...53 1.2.1 Ejemplos de conexión ... 53 Cuando utilice un enrutador ...54 1.3.1 Conexiones iniciales (cuando se utiliza un enrutador)... 54 1.3.2 Easy Network Setup (cuando se usa un enrutador) ...
Uso del control remoto 1.1.1 Preparación del control remoto El control remoto que se incluye con el BL-WV10 se requiere para la mayoría de las operaciones. Inserte las baterías que se incluyen como se muestra a continuación. Levante la cubierta.
Resumen de configuración Los siguientes pasos describen brevemente el procedimiento de configuración que se requiere antes de poder utilizar el BL-WV10 para ver imágenes de las cámaras. Puede encontrar los procedimientos detallados en este documento. Inserte las baterías en el control remoto.
(incluido) A TV Cable de video Conecte el BL-WV10 a su televisor usando el cable de video que se incluye. Encienda el televisor y coloque su interruptor de entrada en entrada de video externo (“VIDEO”, “EXT”, “INPUT 1”, etc.) Coloque el interruptor de modo que se encuentra en la parte posterior del BL-WV10 en SETUP.
1.3.2 Easy Network Setup (cuando se usa un enrutador) Después de que se inicia el BL-WV10 por primera vez, aparece la pantalla [Easy Network Setup]. Aquí puede establecer el nombre de usuario y contraseña del administrador, así como seleccionar si el acceso desde Internet se configurará...
(consulte la página 56). 1.3.3 Quick Setup (cuando utilice un enrutador) Para usar el BL-WV10 con sus cámaras y un enrutador, será necesario que configure el BL-WV10 y cada dispositivo. La herramienta Quick Setup del BL-WV10 puede ayudarle a configurar fácilmente los dispositivos.
Page 57
BL-C30, configure el interruptor para WIRED durante Quick Setup. Conecte la cámara a la toma de corriente. Panel posterior Tomas LAN del BL-WV10 Espere mientras la herramienta Quick Setup reinicia, configura y registra la cámara. • Cuando la cámara se configura y se registra, aparece [Finished] enseguida del nombre de la cámara (por ejemplo, [CAM1]) y el timbre...
Page 58
Configuración inicial Para registrar otra cámara, conéctela a una de las tomas LAN del BL-WV10 o al enrutador, y después encienda la cámara conectándola a la toma de corriente. Cuando haya terminado de registrar todas las cámaras, configure el interruptor de modo del BL-WV10 a NORMAL, desconecte el cable de corriente directa de la parte trasera de la unidad, conecte de nuevo el cable de corriente directa y continúe desde “Cómo ver las imágenes de las...
A TV Cable de video Conecte el BL-WV10 a su televisor utilizando el cable de video que se incluye. Encienda el televisor y coloque el interruptor de entrada del mismo en entrada de video externo (“VIDEO”, “EXT”, “INPUT 1”, etc.) Coloque el interruptor de modo que se encuentra en la parte posterior del BL-WV10 en SETUP.
Configuración inicial 1.4.2 Easy Network Setup (cuando no utilice un enrutador) Después de que se inicia el BL-WV10 por primera vez, aparece la pantalla [Easy Network Setup]. Aquí puede configurar el nombre de usuario y contraseña del administrador. Confirme que aparezca la pantalla [Easy Network Setup].
1.4.3 Quick Setup (cuando no utilice un enrutador) Para utilizar el BL-WV10 con sus cámaras, será necesario que configure el BL-WV10 y sus cámaras. La herramienta Quick Setup del BL-WV10 puede ayudarle a configurar fácilmente los dispositivos. Espere mientras la herramienta Quick Setup analiza la configuración de la red.
Page 62
“Erasing a Camera” en la página 103 de Operating Instructions) y después la registre de nuevo. Para registrar otra cámara, conéctela a una de las tomas LAN del BL-WV10, y después encienda la cámara conectándola a la toma de corriente.
Cómo ver las imágenes de las cámaras Para que el BL-WV10 comience a ver imágenes de las cámaras, asegúrese de que el interruptor de modo de la parte trasera de la unidad esté configurado en NORMAL y encienda el BL-WV10. Aparece la pantalla de inicio. Si aparece la pantalla [Date and Time], configure la fecha y la hora (incluyendo las fechas de inicio y terminación del Horario de verano, si se requieren), y después pulse...
Configuración inicial Nota • Si el modo color night view de la cámara está encendido, es posible que se reduzca la velocidad de actualización y la calidad de la imagen en general de la cámara. Como resultado, es posible que los objetos no se muestren correctamente.
Cómo añadir más cámaras al sistema Se pueden registrar hasta 8 cámaras en el BL-WV10. Si compró más cámaras, puede registrarlas usando la herramienta Quick Setup y siguiendo el mismo procedimiento que usó para registrar las cámaras que ya tiene.
Utilice una configuración de máscara de sub-red de 255.255.255.0. Si la máscara de sub-red del enrutador no es 255.255.255.0, será necesario que configure manualmente la [Starting Address] del BL-WV10. • Desde la pestaña [Camera] en la pantalla [General Setup], configure la [Starting Address] a un valor que corresponda con la dirección de segmento de red del enrutador.
Page 67
Este error aparece cuando el enrutador conectado al be configured. (EA5) BL-WV10 durante el Quick Setup no respalda UPnP. Este error aparece si el BL-WV10 o su enrutador ya utilizan el número de puerto que utiliza alguna de las cámaras.
[Camera Setup] es incorrecto. • Introduzca el código de seguridad correcto. Si lo olvidó, pulse el botón FACTORY DEFAULT RESET para reiniciar el BL-WV10 y registrar de nuevo todas las cámaras utilizando Quick Setup. Este error aparece cuando no es posible acceder a la cámara.
Page 69
Mensaje de error The timer could not be set Este error aparece si el tiempo de grabación se because the recording empalma con otro programa con reloj de grabación. time overlaps with another timer. Set a different start and/or end time. (ED7) To use the sensor, first Este error aparece si el nombre y contraseña del enter the Administrator...
Page 70
Configuración inicial Mensaje de error This sensor is used for timer recording. Turn off the record program. (EE6) This sensor is used for sensor recording. This camera is used for timer recording. Turn off the record program. (EE7) This camera is used for sensor recording.
Este error aparece cuando el control remoto se utiliza durante el modo sequential display. • Para utilizar el BL-WV10 en modo de operación normal, configure el interruptor de modo para NORMAL, y después apague el BL-WV10 y enciéndalo de nuevo.
Seleccione [Yes] para volver al panel de texto o seleccione [No] para dejar de introducir texto. Este error aparece al configurar la dirección IP del BL-WV10 si el valor que se introduce es idéntico a la dirección inicial registrada para la red de cámaras. •...
Page 73
Mensaje de error Enter a key matching the Este error aparece cuando la longitud de una tecla length determined by the de codificación introducida no coincide con la key type. longitud especificada. Do you want to go back and try again? (EL8) Causas y soluciones •...
¿Hay alguna obstrucción (incluyendo el vidrio coloreado de la puerta del estante) entre el control remoto y el receptor? ¿Está colocado el interruptor de modo que se encuentra en la parte posterior del BL-WV10 en SEQ. DISP.? • Coloque el interruptor de modo en NORMAL y enciéndalo de nuevo.
Causas y soluciones Revise la conexión del cable de video y el interruptor del modo de entrada del televisor. El BL-WV10 no puede acceder a la cámara. • Verifique que la cámara tenga energía y esté conectada correctamente, y que su dirección IP sea la que aparece en la configuración.
• Acceda a la cámara con una PC y deshabilite el modo color night view. También puede usar el BL-WV10 para deshabilitar el modo color night view (consulte “Camera Setup for Local Cameras” en la página 93 de Operating Instructions). Observe que la habilitación y deshabilitación manual no está...
• Esto puede producir una pérdida de datos o daños a la tarjeta de memoria SD. Reinicialice la tarjeta o utilice una nueva. (Panasonic no se hace responsable de la pérdida de datos o de tarjetas de memoria SD dañadas.) ¿Se retiró...
Quick Setup. Al ejecutar el Quick Setup en cámaras en las que 2 BL-WV10 se encuentren en uso, las que estén en uno de los BL-WV10 se registrarán como cámaras locales, pero las que estén en el otro se registrarán como cámaras remotas.
Page 79
Setup. • Si el registro falla, reinicie la cámara, apague y vuelva a encender el BL-WV10 y ejecute de nuevo el Quick Setup. • Retire ese punto de acceso de la red, y apague y vuelva a encender el BL-WV10.
3 minutos. Durante el Quick Setup, el BL-WV10 busca una dirección IP que actualmente no está en uso para su propia IP fija después de obtener los datos de la red de parte del enrutador.
BL-WV10 y la cámara inalámbrica. • Cambie el canal inalámbrico que utiliza el BL-WV10. Los obstáculos entre el BL-WV10 y la cámara están interfiriendo con la señal inalámbrica. • Consulte la información de comunicación inalámbrica en la página 48 y elimine los obstáculos de la ruta de la señal, o acerque el...
(consulte “Camera Setup for Local Cameras” en la página 93 de Operating Instructions). La señal inalámbrica entre el BL-WV10 y la cámara inalámbrica es mala. • Cambie la ubicación de la cámara, retire cualquier posible obstrucción e intente...
3.10 Imágenes de la cámara, pantalla Problema La imagen está desenfocada. La imagen está desenfocada (cuando se usa una cámara con función de zoom óptico). Los colores de las imágenes son incorrectos. No es posible encender o apagar el modo color night view.
Page 84
• Acceda a la cámara con una PC y deshabilite el modo color night view. También puede usar el BL-WV10 para deshabilitar el modo color night view (consulte “Camera Setup for Local Cameras” en la página 93 de Operating Instructions). Observe que la habilitación y deshabilitación manual no está...
Page 85
Causas y soluciones • Esto se puede resolver cambiando la configuración de la conexión del BL-WV10. • Consulte la información de comunicación inalámbrica en la página 48 y elimine los obstáculos de la ruta de la señal, o acerque el BL-WV10 y la cámara.
Si se utiliza una cámara inalámbrica con un sensor integrado, es posible que una mala condición en la red inalámbrica interfiera con la conexión entre la cámara y el BL-WV10. • Trate de reubicar la cámara de ser posible.
Page 87
Problema El sensor integrado Se pueden producir errores de detección cuando la (BL-C10, BL-C30, etc.) cámara se coloca en una de las siguientes está detectando cosas ubicaciones. Mueva la cámara si está ubicada: incorrectas. Causas y soluciones • directamente bajo la luz solar en una cocina u otra ubicación •...
Page 88
Derechos de autor: Este material cuenta con derechos de autor propiedad de Panasonic Communications Co., Ltd., y se puede reproducir sólo para uso interno. Queda prohibida cualquier otra reproducción, total o parcial, sin consentimiento por escrito de Panasonic Communications Co., Ltd.
Page 113
ข อ ความแสดงความผิ ด พลาด The timer could not be set because ข อ ความนี ้ จ ะปรากฏขึ ้ น หากเวลาในการบั น ทึ ก คาบเกี ่ ย วกั บ เวลาในการ the recording time overlaps with บั น ทึ ก ของอี ก โปรแกรมหนึ ่ ง another timer.
Page 114
ก อ นเริ ่ ม ใช ง าน ข อ ความแสดงความผิ ด พลาด This sensor is used for timer recording. Turn off the record program. (EE6) This sensor is used for sensor recording. This camera is used for timer recording. Turn off the record program.
