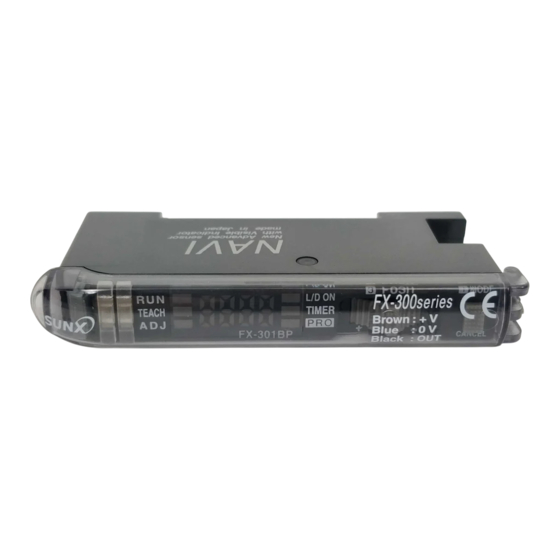

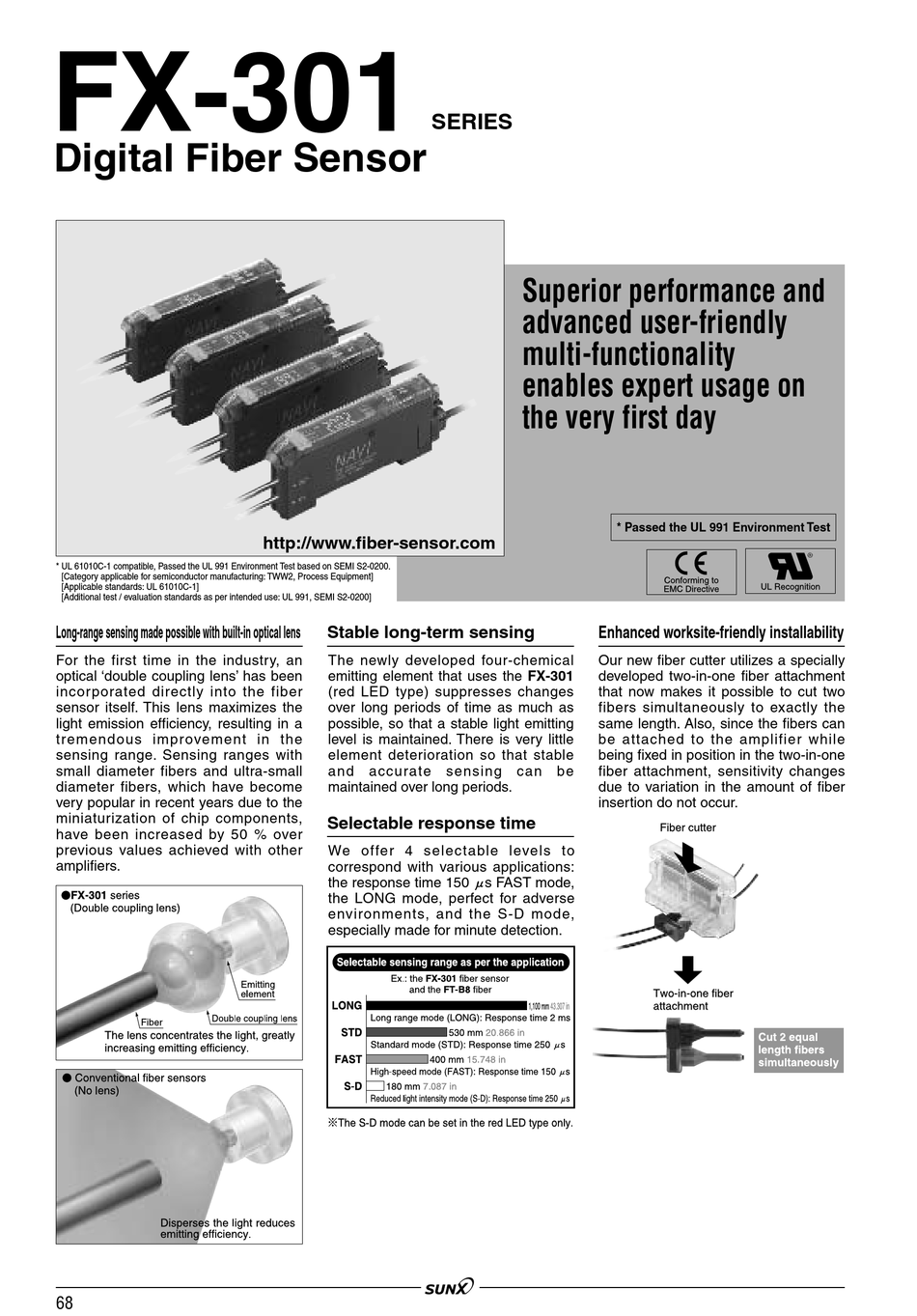

FX-301
Digital Fiber Sensor
* UL 61010C-1 compatible, Passed the UL 991 Environment Test based on SEMI S2-0200.
[Category applicable for semiconductor manufacturing: TWW2, Process Equipment]
[Applicable standards: UL 61010C-1]
[Additional test / evaluation standards as per intended use: UL 991, SEMI S2-0200]
Long-range sensing made possible with built-in optical lens
For the first time in the industry, an
optical 'double coupling lens' has been
incorporated directly into the fiber
sensor itself. This lens maximizes the
light emission efficiency, resulting in a
tremendous improvement in the
sensing range. Sensing ranges with
small diameter fibers and ultra-small
diameter fibers, which have become
very popular in recent years due to the
miniaturization of chip components,
have been increased by 50 % over
previous values achieved with other
amplifiers.
68
SERIES
http://www.fiber-sensor.com
Stable long-term sensing
The newly developed four-chemical
emitting element that uses the FX-301
(red LED type) suppresses changes
over long periods of time as much as
possible, so that a stable light emitting
level is maintained. There is very little
element deterioration so that stable
and
accurate
maintained over long periods.
Selectable response time
We offer 4 selectable levels to
correspond with various applications:
the response time 150 !s FAST mode,
the LONG mode, perfect for adverse
environments, and the S-D mode,
especially made for minute detection.
08/2005
Superior performance and
advanced user-friendly
multi-functionality
enables expert usage on
the very first day
* Passed the UL 991 Environment Test
Enhanced worksite-friendly installability
Our new fiber cutter utilizes a specially
developed two-in-one fiber attachment
that now makes it possible to cut two
fibers simultaneously to exactly the
same length. Also, since the fibers can
be attached to the amplifier while
being fixed in position in the two-in-one
sensing
can
be
fiber attachment, sensitivity changes
due to variation in the amount of fiber
insertion do not occur.
