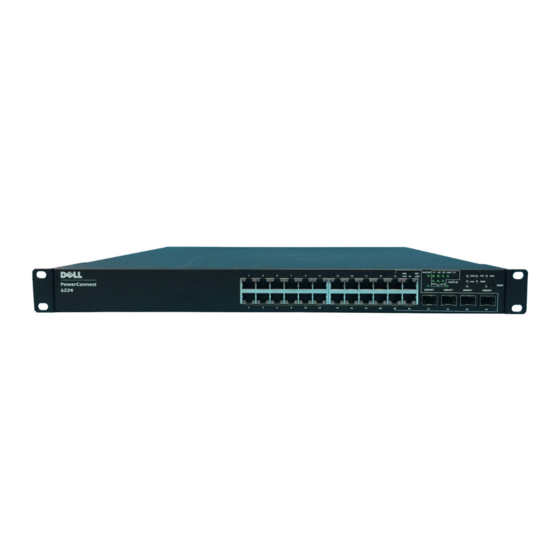

Dell PowerConnect 6224 Planning And Preparation Manual
Hide thumbs
Also See for PowerConnect 6224:
- Command line interface manual (1372 pages) ,
- User manual (786 pages) ,
- Release note (34 pages)
Related Manuals for Dell PowerConnect 6224
Summary of Contents for Dell PowerConnect 6224
- Page 1 Planning and Preparation Guide Rapid EqualLogic Configuration Series Switch: PowerConnect 6224 or 6248 Array: PS4100, PS6100, or PS6500 Host: Windows, VMware ESX or Red Hat Enterprise Linux April 2014 SISfeedback@Dell.com...
- Page 2 Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell disclaims any proprietary interest in the marks and names of others.
-
Page 3: Intended Audience
, VMware vSphere ESXi™ or Red Hat Enterprise Linux servers, storage systems, and Ethernet ® ® networking. If you are unsure about completing the installation, Dell support is available and ready to assist you. List of references TR1050 – Monitoring Your PS Series SAN with SAN HeadQuarters https://support.equallogic.com/WorkArea/DownloadAsset.aspx?id=8749... - Page 4 Latest network adapter device driver update (support.dell.com) Latest Host Integration Tools (HIT) kit installation package (equallogic.com/support) Note: A login is required to access the EqualLogic support site. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
-
Page 5: Configuration Settings
To get the latest update, visit http://www.equallogic.com/support. Update instructions and release notes are available with the latest downloads. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series... -
Page 6: Configuration Information
Array Group Admin password: __________________________* Array Membership password: ___________________________* *These may be the same password – see the PS-series Group Administration guide for more information. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series... - Page 7 Connectivity Diagrams Use the appropriate diagram and corresponding point-to-point table when cabling the SAN. Figure 1 PowerConnect 6224 or 6248 and EqualLogic PS4100 Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
- Page 8 Figure 2 PowerConnect 6224 or 6248 and EqualLogic PS6100 Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
- Page 9 Figure 3 PowerConnect 6224 or 6248 and EqualLogic PS6500 Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
- Page 10 Controller 1, port 1 Controller 1, port 0 * Use of the 3rd and 4th host ports is optional. At least two ports are required. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
- Page 11 Controller 1, port 3 Controller 1, port 2 * Use of the 3rd and 4th host ports is optional. At least two ports are required. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
- Page 12 Controller 1, port 3 Controller 1, port 2 * Use of the 3rd and 4th host ports is optional. At least two ports are required. Dell PowerConnect 6224 or 6248 | Planning and Preparation Guide | Rapid EqualLogic Configuration Series...
