Summary of Contents for Midland BR200

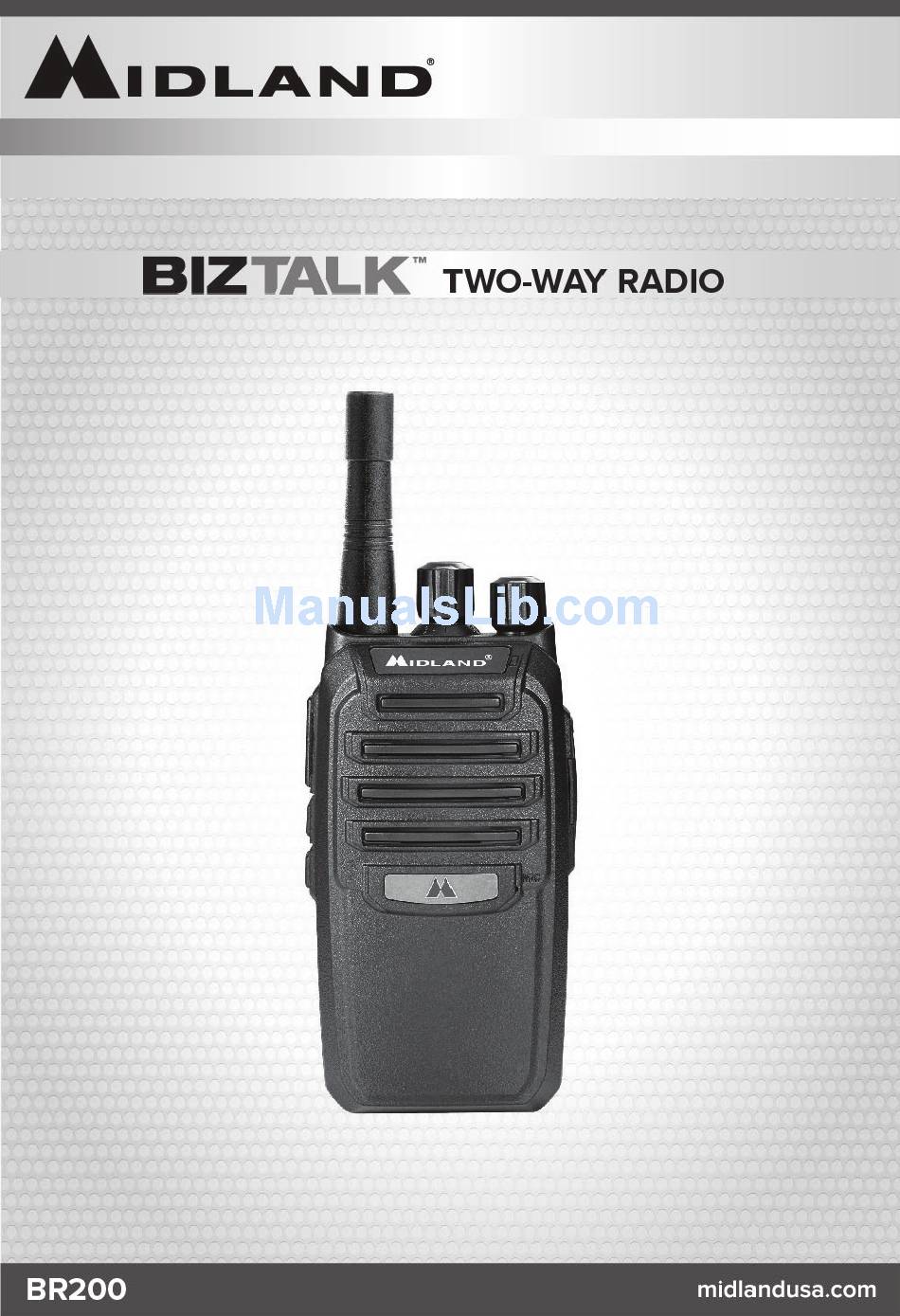

  • Page 1 BR100/200 Owners Manual...
  • Page 2: Table Of Contents

    Model BR200 TABLE OF CONTENTS FEATURES ����������������������������������������������������������������3 FCC NOTICE �������������������������������������������������������������4 EXPOSURE TO RADIO FREQUENCY ENERGY ����������������������������������4 BODY WORN OPERATION ���������������������������������������������������������������������4 ISED NOTICE ������������������������������������������������������������6 GETTING TO KNOW YOUR RADIO �����������������������������������8 CONTROLS ������������������������������������������������������������������������������������������������8 INSTALLING THE BATTERY ����������������������������������������������������������������������9 INSTALLING THE BELT CLIP ��������������������������������������������������������������������9 INSTALLING THE ANTENNA �������������������������������������������������������������������10...
  • Page 3: Features

    For over half a century, Midland Radio has been providing radio communication with superior Quality, Reliability, and Strong Value� With these Core Values in mind, the Midland BR200 provides a communication solution for Small Business, Hospitality, Construction, Warehousing, Maintenance, and other Business uses�...
  • Page 4: Fcc Notice

    Use of any accessories not supplied or approved by Midland may exceed FCC/ Health Canada RF exposure guidelines� If you do not use accessories supplied or approved by Midland, ensure the radio and its antenna are at least 1 inch (2�5cm) from your body when transmitting�...
  • Page 5 Model BR200 IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP� could void your right to operate this unit� Your radio is set up to transmit a regulated signal on an assigned frequency� It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations�...
  • Page 6: Ised Notice

    Model BR200 ISED NOTICE IMPORTANT: This device complies with Industry Canada licence exempt RSS standard(s)� Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device�...
  • Page 7 Model BR200 IMPORTANT: This radio transmitter (3690A-BR200) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated� Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device�...
  • Page 8: Getting To Know Your Radio

    Model BR200 GETTING TO KNOW YOUR RADIO CONTROLS A� LED INDICATOR: The LED is Green when receiving signals and Red when transmitting� B� CHANNEL SELECTOR: Rotate to select channels 1-16� C� POWER/VOLUME KNOB: Turn clockwise to turn the power on and increase the volume level�...
  • Page 9: Installing The Battery

    Model BR200 INSTALLING THE BATTERY Your radio operates with a Lithium-Ion battery� The belt clip should be removed (see below) to make the installation and removal of the battery easier� To install the battery: With the back of the radio facing you, install the battery by sliding the pack along the back of the radio until the latch on the radio locks�...
  • Page 10: Installing The Antenna

    Your radio is equipped for using a rechargeable Lithium-Ion battery pack which can be recharged by inserting the radio or battery into the desktop charger (as described below)� Midland recommends charging the battery pack when the charge battery alert comes on and removing the radio from the charger when the charging is finished�...
  • Page 11: Operating Your Radio

    OPERATING YOUR RADIO PROGRAMMING SOFTWARE Your Midland BR200 radio comes with 16 preprogrammed channels� The BR200 also comes with programming software to personalize your business radio� To download the software please go to: midlandusa�com Note:...
  • Page 12: Transmitting And Receiving A Call

    Model BR200 ABOUT RANGE Your BR200 radio is designed to give you maximum range under optimum conditions� Industrial Multi-Level Inside Steel/ Concrete Industrial Building Inside Multi-Level Building Up To 250,000 sg� ft� Up to 20 floors Optimum Conditions are: • Open warehouse floor plan or area.
  • Page 13: Privacy Codes

    When the transmission ends the channel becomes muted again� Transmissions that do not have the correct tone will not be heard� Your BR200 Series radio has 142 Privacy Codes, which are available on any channel� The selected Privacy Code may be different for each channel�...
  • Page 14: Troubleshooting Guide

    Model BR200 TROUBLESHOOTING GUIDE PROBLEM SOLUTION - Check battery installation and/or replace battery No Power pack� - Check Power/Volume control knob� - Confirm the radios have the same channel and privacy code settings� Cannot Receive - Make sure that you are within range of the other Messages transceivers�...
  • Page 15: Use And Care

    Model BR200 USE AND CARE 1� Use a soft damp cloth to clean the radio 2� Do not use alcohol or cleaning solutions to clean the radio� 3� Do not immerse the radio in water� 4� Dry the radio with a dry lint-free cloth should it get wet�...
  • Page 16: Specifications

    Model BR200 SPECIFICATIONS Channels 16 Channels + 142 Privacy Codes Operating Frequency UHF 461�0375 ~ 469�5625MHz Power Source 3�7Vdc Li-ion Battery Pack DEFAULT FREQUENCIES CHART CH. No CH. Freq (MHz) Code CH. No CH. Freq (MHz) Code 464.5500 464.5500 467.9250 467.9250...
  • Page 17: Dcs Privacy Code Chart

    Model BR200 DCS PRIVACY CODE CHART CODE CODE CODE CODE midlandusa.com Page 17...
  • Page 18: Limited Warranty

    Subject to the exclusions set forth below, Midland Radio Corporation will repair or replace, at its option without charge, any Midland UHF transceiver which fails due to a defect in material or workmanship within One Year following the initial consumer purchase�...
  • Page 19: Accessories

    Model BR200 ACCESSORIES Accessories can be purchased at midlandusa�com 1 Programming D-Ring headset cable for BR200 radio $9�99 $29�99 BRB200 Over the ear 1 Replacement battery headset for BR200 radio $29�99 $29�99 BGC200 Concealed 1 Multi unit charger headset for BR200 radio $39�99...
  • Page 20 We’d love to hear from you! Let us know what you think of your new Midland product at or by visiting us at midlandusa�com Note: Features & Specifications are subject to change without notice� MIDLAND is not responsible for unintentional errors or omissions on its packaging�...
