Midland 210 DS
ÿ CB Transceiver
R i c e s t R a s m e t t i to R e V H F / U H F |

Advertisement

Table of Contents
loading

Related Manuals for Midland 210 DS

Summary of Contents for Midland 210 DS

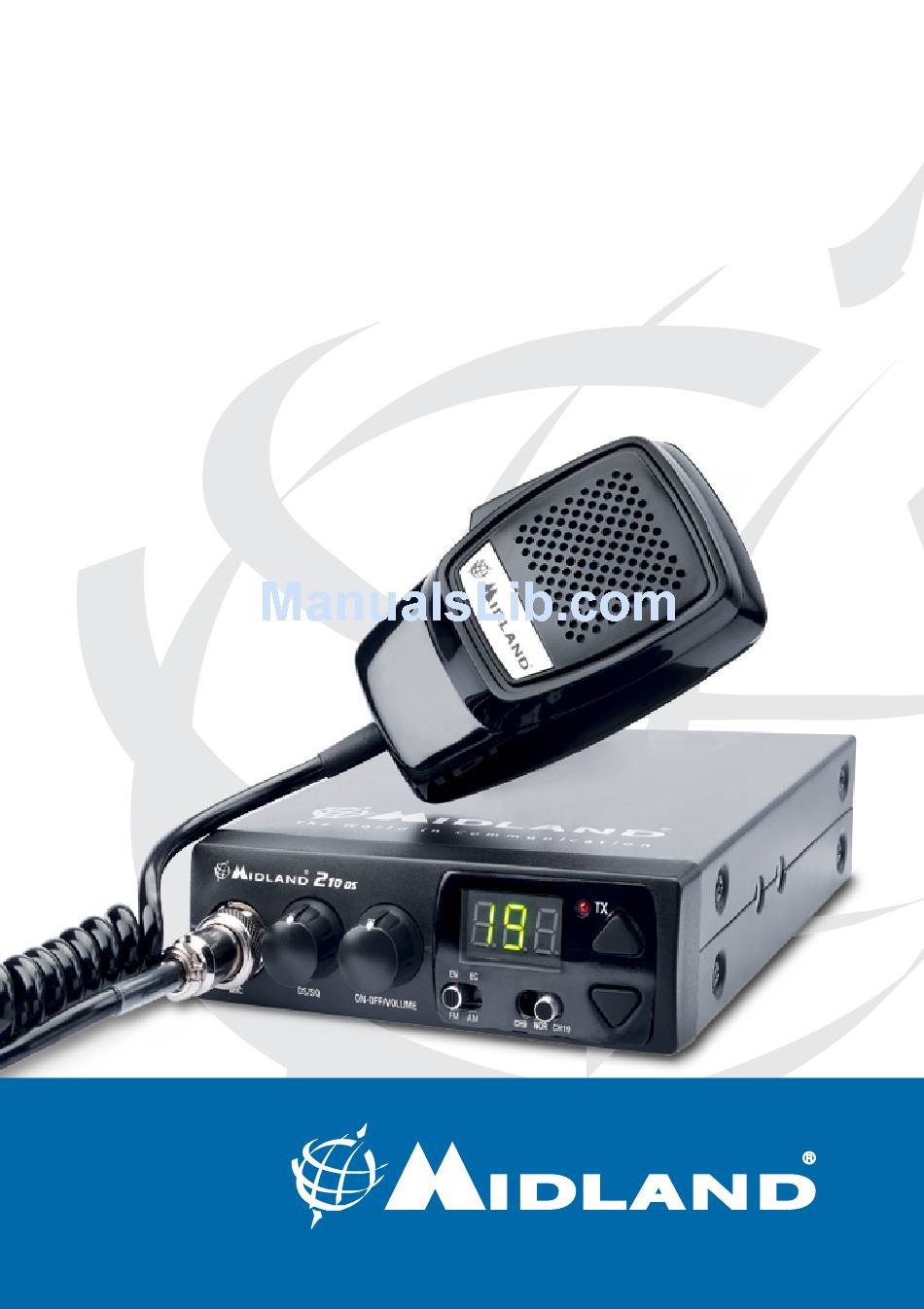

  • Page 1 Midland 210 DS ÿ CB Transceiver R i c e s t R a s m e t t i to R e V H F / U H F |...
  • Page 2 Midland 210 DS is the brand new Multi Standard CB transceiver, essen- tial in its functionalities but with advanced performances: Phase Locked Loop circuitry gives precise frequency control and stability over all channels (pinpoint channel tuning accuracy with separate scan up and down controls);...
  • Page 3 5. Microphone jack: jack for the mic connector 6. CH 9-19 switch: to turn immediately on priority channels 9 or 19. 7. Channel display: shows the number of the channel in use. 8. TX led: lights up when the radio is transmitting Midland 210 DS Instruction Guide...

  • Page 4: Rear Panel

    9. Antenna connector: PL connector type 10. EXT SPKR jack: external loudspeaker jack.(the internal loudspeaker will be excluded) 11. Power supply cable: power 12,6V DC ± 10% MICROPHONE 1. PTT: transmission button 2. 4 pin microphone connector Midland 210 DS Instruction Guide...

  • Page 5: Installation

    If a mismatch exists between the antenna and the receiver, the excellent sensitivity and signal-to-noise radio of the receiver circuit will be defeated. Useful information 1. Place the antenna as high as possible 2. The longer the antenna is, the better will be the performance Midland 210 DS Instruction Guide...
  • Page 6 WARNING: To avoid damage, never operate your CB radio without con- necting a proper antenna. A periodical control of the cable and of the S.W.R. is recommended. HOW TO OPERATE YOUR MIDLAND 210 DS After have installed and cabled your CB transceiver, follow these steps to operate with your device: 1.

  • Page 7: Frequency Band Selection

    FREQUENCY BAND SELECTION The frequency bands must be chosen according to the country where you are going to operate. Your Midland 210 DS can be set on 8 different frequency bands: IT(it): 40CH 26.965 MHz – 27.405 MHz 4W AM/FM EU(EU): 40CH 26.965 MHz –...
  • Page 8 To do this, set the channel selector to a channel where no signals are present or wait until signals cease on your channel. Midland 210 DS is supplied with two types of squelch: manual and au- tomatic.

  • Page 9: Technical Specifications

    A readily accessible disconnect device shall be incorporated in the installation wiring. The disconnect device shall disconnect both poles simultaneously. Hereby, CTE International declares that Midland 210 DS is in compliance with the essen- tial requirements and other relevant provisions of Directive 99/05/EC.
