CD RECEIVER
KDC-3028/328/MP4028/MP428
/MP5029/MP6029
/W5031/W5031Y/W531Y
SERVICE MANUAL
SWITCH UNIT (X16) TYPE 2

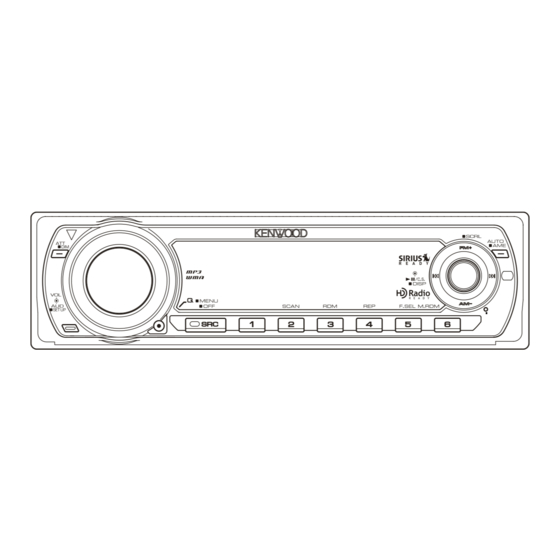

Illustration is KDC-3028
ATT
VOL
VOL
AUD
AUD
SET
SETUP UP
This service manual handles only switch unit (X16) for type 2.
Besides, please refer to the service manual of each model.
Switch unit (X16) has been changed from the following serial number to type 2.
Following system microcomputer (IC1: X34) also changes at the same time as changing
switch unit (X16).
MODEL
SERIAL No.
KDC-328
50200001~
KDC-3028
50100501~
KDC-MP4028
50200001~
KDC-MP428
50200001~
KDC-MP5029
T0200001~
KDC-MP6029
T0200001~
KDC-W5031
T0104001~
KDC-W5031Y
T0200001~
KDC-W531Y
T0200001~
MENU
MENU
FF
FF
SCAN
SWITCH UNIT
ELECTRIC UNIT MCU IC (IC1:X34)
(TYPE2 UNIT)
X16-3320-11
X34-3390-11
X16-3320-11
X34-3390-12
X16-3320-10
X34-3380-10
X16-3320-10
X34-3380-11
X16-3320-22
X34-3390-21
X16-3320-21
X34-3380-21
X16-3322-71
X34-3392-71
X16-3322-71
X34-3392-71
X16-3322-72
X34-3392-72
© 2005-4 PRINTED IN JAPAN
B53-0272-00 ( N ) 1708
KDC-3028
C.S.
DISP
DISP
RDM
REP
M.RDM
TDF NAME
784225GC280A
TDF-53D/O
784225GC280A
TDF-53DB/O
30624MGPA44GP
TDF-MP54DB/O
30624MGPA44GP
TDF-MP54D/O
784225GC279A
TDF-MP5029/O
30624MGPA44GP
TDF-MP6029/O
784225GC279A
TDF-W5031/O
784225GC279A
TDF-W5031/O
784225GC279A
TDF-W531Y/O
This product uses Lead Free solder.
SCRL
AUTO
AME
TDF PANEL No.
Y33-2230-66
Y33-2230-67
Y33-2230-60
Y33-2230-62
Y33-2230-63
Y33-2230-61
Y33-2230-64
Y33-2230-64
Y33-2230-65
