Panasonic TC-32LX700 Service Manual

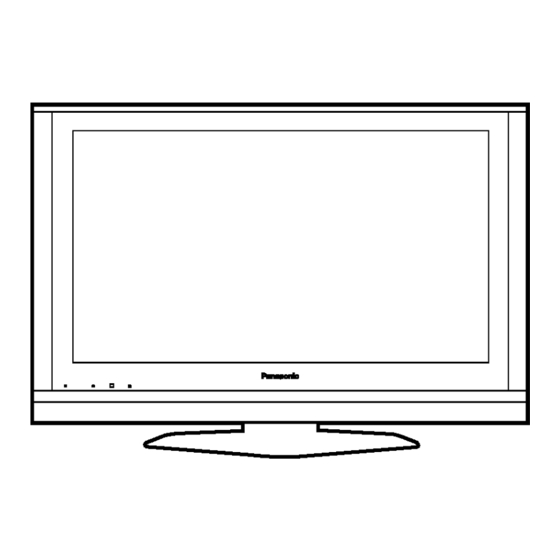

32 “diagonal lcd tv
Hide thumbs Also See for TC-32LX700:
Table of Contents

Advertisement

Specifications

Power Source
Power Consumption
Average use
Maximum Current
Standby condition
Aspect Ratio
Visible screen size
(W × H × Diagonal)
(No. of pixels)
Sound
Speaker
Audio Output
Headphones
Channel Capability -
ATSC/NTSC(Digital/Analog)
Operating Conditions
Connection Terminals
INPUT 1-2
INPUT 3
COMPONENT VIDEO
INPUT
HDMI 1-2 AUDIO IN
AC 110-127 V, 60 Hz
138 W
1.5 A
0.1W
16 : 9
31.5" DIAGONAL (80.0 cm DIAGONAL)
27.5" × 15.4" × 31.5" (698 mm × 392 mm × 800 mm)
1,049,088 (1,366 (W) × 768(H)) [4,098 × 768 dots]
2 way 4 speakers
20 W [ (7.5 W + 2.5 W) × 2] ( 10 % THD )
M3 (3.5mm) Jack × 1
VHF/UHF: 2 - 69, CATV: 1 - 135
Temperature: 32 °F - 95 °F (0 °C - 35 °C)
Humidity : 20 % - 80 % RH (non-condensing)
VIDEO:
S-VIDEO:
AUDIO L-R:
VIDEO:
AUDIO L-R:
Y:
P
, P
:
B
R
AUDIO L-R:
TYPE A Connector × 2
AUDIO L-R:
32 "DIAGONAL LCD TV
TC-32LX700
LH65 Chassis
RCA PIN Type × 1 1.0 V [p-p] (75 ohm)
Mini DIN 4-pin Y: 1.0 V [p-p] (75 ohm) C: 0.286 V [p-p] (75 ohm)
RCA PIN Type × 2 0.5 V [rms]
RCA PIN Type × 1 1.0 V [p-p] (75 ohm)
RCA PIN Type × 2 0.5 V [rms]
1.0 V [p-p] (including synchronization)
± 0.35 V [p-p]
RCA PIN Type × 2 0.5 V [rms]
RCA PIN Type × 2 0.5 V [rms]
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO.MTNC060802CE
B05 Canada: B07
Unauthorized
copying
and

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic TC-32LX700

  • Page 1: Specifications

    ORDER NO.MTNC060802CE B05 Canada: B07 32 “DIAGONAL LCD TV TC-32LX700 LH65 Chassis Specifications Power Source AC 110-127 V, 60 Hz Power Consumption Average use 138 W Maximum Current 1.5 A Standby condition 0.1W Aspect Ratio 16 : 9 Visible screen size 31.5”...
  • Page 2: Table Of Contents

    TC-32LX700 Card slot SD CARD slot × 1 OUTPUT VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 ohm) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] DIGITAL AUDIO OUT PCM/Dolby Digital, Fiber Optic FEATURES 3D Y/C Digital Comb Filter, CLOSED CAPTION, V-Chip...
  • Page 3 TC-32LX700 15.9. A-Board (2 of 13) Schematic Diagram 15.19. A-Board (12 of 13) Schematic Diagram 15.10. A-Board (3 of 13) Schematic Diagram 15.20. A-Board (13 of 13) Schematic Diagram 15.11. A-Board (4 of 13) Schematic Diagram 15.21. DT-Board Schematic Diagram 15.12.
  • Page 4: Applicable Signals

    TC-32LX700 1 Applicable signals * Mark: Applicable input signal for Component (Y, P ) and HDMI horizontal frequency (kHz) vertical frequency (kHz) COMPONENT HDMI 525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75...
  • Page 5: Safety Precautions

    TC-32LX700 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
  • Page 6: Prevention Of Electro Static Discharge (Esd) To

    TC-32LX700 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...
  • Page 7: About Lead Free Solder (Pbf)

    TC-32LX700 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
  • Page 8: Chassis Board Layout

    TC-32LX700 5 Chassis Board Layout...
  • Page 9: Disassembly For Servise

    TC-32LX700 6 Disassembly for Servise 6.1. Pedestal ass´y 6.3. VESA metal 1. Lay down the unit so that the rear cover faces upward. 1. Remove the 4 screws. 2. Remove the 4 screws. 2. Remove the VESA metal. 3. Remove the pedestal ass´y.
  • Page 10: Tuner Cover

    TC-32LX700 6.5. Tuner cover 6.7. Control panel ass´y 1. Remove the 2 screws. 1. Disconnect the connecter (AP6). 2. Remove the tuner cover. 2. Remove the 2 screws. 3. Remove the control panel ass´y. 6.8. G-Board and GS-Board 1. Remove the screw.
  • Page 11: Side Av Bracket

    TC-32LX700 6.9. Side AV bracket 6.11. P-Board 1. Remove the 2 screws (A). 1. Remove the 6 screws. 2. Remove the screw (B). 2. Disconnect the connecters (P3/P5/P6). 3. Remove the side AV bracket. 3. Remove the P-Board. 6.10. AP-Board 1.
  • Page 12: A-Board And Dt-Board Metal

    TC-32LX700 6.13. A-Board and DT-Board metal 6.15. LCD MTG (bottom) 1. Remove the 10 screws. 1. Remove the 4 screws (F). 2. Disconnect the connecter (A2/A5/A6/A9). 2. Remove the 6 screws (G) 3. Remove the LCD MTG (bottom). 3. Remove the 2 screws.
  • Page 13: Speaker AssエY

    TC-32LX700 6.16. Speaker ass´y 6.17. Squawker speaker 1. Remove the 4 screws. 1. Remove the 4 screws. 2. Remove the speaker ass´y. 2. Remove the squawker speaker. 6.18. V-Board 1. Remove the 2 screws. 2. Remove the V-Board.
  • Page 14: Lcd Panel

    TC-32LX700 6.19. LCD panel 1. Remove the 2 screws. 2. Remove the LCD L/R MTG (A). 3. Remove the 2 screws. 4. Remove the LCD L/R MTG (B). 5. Remove the LCD panel.
  • Page 15: Caution Statement

    TC-32LX700 7 Caution statement 7.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.
  • Page 16: Location Of Lead Wiring

    TC-32LX700 8 Location of Lead Wiring 8.1. Lead of Wiring (1)
  • Page 17 TC-32LX700 8.2. Lead of Wiring (2)
  • Page 18: Emi Processing

    TC-32LX700 9 EMI Processing 9.1. EMI (1)
  • Page 19 TC-32LX700 9.2. EMI (2)
  • Page 20: Self-Check Function

    TC-32LX700 10 Self-check Function Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 10.1. Check of the IIC bus lines 10.1.1. How to access Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.
  • Page 21: Power Led Blinking Timing Chart

    TC-32LX700 10.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit.
  • Page 22: No Power

    TC-32LX700 10.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 10.2.)
  • Page 23: Serviceman Mode

    TC-32LX700 11 Serviceman Mode 11.1. How to enter into Serviceman Mode While pressing [VOLUME ( - )] button of the main unit, press [RECALL] button of the remote control three times within 3 seconds. 11.1.1. Key command “1” button...Main items Selection in forward direction “2”...
  • Page 24: Srv-Tool

    TC-32LX700 11.3. SRV-TOOL 11.3.1. How to access 1. Select “SRV-TOOL” in Service man Mode. 2. Press [OK] button on the remote control. 11.3.2. Exit 1. Press [EXIT] button on the remote control.
  • Page 25: Adjustment

    TC-32LX700 12 Adjustment 12.1. Voltage chart of AP-board VOLTAGE TEST POINT SPECIFICATION TP7904 24.0±1.2V SUB_5V TP7211 5.12±0.25V SUB_9V TP7213 9.27±0.45V BT_30V TP7601 31.5±2.5V HQ_3.3V TP745 3.38±0.17 SOUND_15V TP7209 15.2V±0.75V PANEL_12V TP7702 12.14±0.6V STB_5V TP7151 5.0±0.5V 12.2. Voltage chart of P-board...
  • Page 26: Hotel Mode

    TC-32LX700 13 Hotel mode 1. Purpose item Function Mode Select hotel mode ON/OFF Restrict a function for hotels. Input Select input signal modes. 2. Access command to the Hotel mode setup menu Set the input, when each time power is switched on.
  • Page 27: Conductor Views

    TC-32LX700 14 Conductor Views 14.1. P-Board P-BOARD (FOIL SIDE) TZRXN010MRR Parts Location P-BOARD (FOIL SIDE) TP822 C824 D823 COLD TP821 R826 TP824 COLD F801 ZA801 IC801 IC802 C825 RL802 ZA803 T5AH AC250V TP802 TRANSISTOR D825 F802 TP801 D826 D814 TP803...
  • Page 28: Ap-Board

    TC-32LX700 14.2. AP-Board Parts Location AP-BOARD (FOIL SIDE) TRANSISTOR IC7205 Q7204 IC7209 Q7205 IC7212 Q7206 IC7215 Q7207 IC7216 Q7208 IC7217 Q7209 IC7233 Q7210 Q7211 Q7212 Q7213 TP7151 Q7214 TP7207 Q7221 TP7208 Q7222 TP7209 AP-BOARD (FOIL SIDE) Q7223 TP7210 Q7224 TP7211...
  • Page 29 TC-32LX700 Parts Location AP-BOARD (COMPONENT SIDE) IC7205 IC7209 IC7212 IC7215 IC7233 SW7203 AP-BOARD (COMPONENT SIDE) J123 C7344 TNPA4155ABS L7802 L7801 C7802 J339 JS7801 J114 PANEL_12V C7299 J317 L7452 C7803 J310 J136 L7315 L7208 J127 J110 JS7219 J305 J132 ZA7002 C7275...
  • Page 30: A-Board

    TC-32LX700 14.3. A-Board A-BOARD (FOIL SIDE) TNPH0683S TNPH0683 B C4704 C4703 TP4216 TP4113 TP3006 TP3004 Q4202 TP4106 TP4113 JS2076 IC1108 TP3002 R2141 TP4230 TP4227 TP4223 TP4221 TP4218 TP4214 C3397 TP3003 R2142 TP3004 TP4106 C3096 FL4048 R2145 TP4231 TP4228 TP4225 TP4222...
  • Page 31 TC-32LX700 Parts Location Parts Location A-BOARD (FOIL SIDE) A-BOARD (COMPONENT SIDE) TRANSISTOR TRANSISTOR TP4211 TP4512 TP4212 TP4513 IC1100 Q2053 TP1100 IC1101 Q1107 TP1110 TP4213 TP4514 IC1108 Q2059 TP1101 IC2008 Q1108 TP8002 TP4214 TP4515 IC2011 Q2060 TP1102 IC2013 Q1109 TP8003 TP4215...
  • Page 32 TC-32LX700 A-BOARD (COMPONENT SIDE) TNPH0683S TNPH0683 A ZA4002 R2140 C4705 Q2057 R2139 R4105 C4702 R5609 C4079 C1117 R4005 R5608 IC1101 R1202 ORDER NO. R1209 FL4201 FL4202 FL4203 FL4204 FL4205 IC1101 C4082 Q4201 IC8002 R1201 R1262 R1205 R1159 C4395 L5603 L5604...
  • Page 33: Dt-Board

    TC-32LX700 14.4. DT-Board DT-BOARD (FOIL SIDE) DT-BOARD (COMPONENT SIDE) TNAG172S TNAG172S R423 R420 C375 D301 D302 ZA307 R424 ZA302 C371 R421 R417 R414 R416 L314 Parts Location C386 R392 C385 R383 R378 R382 R381 R380 C410 R391 R368 R376 DT-BOARD...
  • Page 34: G, Gs And V-Board

    TC-32LX700 14.5. G, GS and V-Board Parts Location GS-BOARD (FOIL SIDE) GS-BOARD TNPA4206S TP3900 TP3901 Parts Location L3900 TNPA4206 TP3902 TP3903 TP3916 REVERSE ORDER V-BOARD TP3915 R3921 TP3904 TRANSISTOR TP3905 R3901 R3922 TP3906 TP3905 TP3914 Q1001 R3924 TP3907 R3904 Q1002...
  • Page 35: Schematic And Block Diagram

    TC-32LX700 15 Schematic and Block Diagram 15.1. Schematic Diagram Notes...
  • Page 36: Block Diagram (1 Of 2)

    TC-32LX700 15.2. Block Diagram (1 of 2) VIDEO2 COMPONENT HDMI1 MONITOR HDMI2 VIDEO VIDEO1 AUDIO IN AUDIO IN OUTPUT INPUT TU8300 DT-BOARD A-BOARD TUNER TV1_L L OUT ANT IN TV1_R R OUT TV1_V VIDEO OUT SUB+5V VIDEO3 HEADPHONE SUB+5V SUB+5V...
  • Page 37: Block Diagram (2 Of 2)

    TC-32LX700 15.3. Block Diagram (2 of 2) HDMI2 HDMI1 IC2301 SOUND+15V AUDIO AMP R D2303 CANDY R+ A-BOARD IC4510 CANDY R- SPEAKER R ADV/HDMI IC2303 WO R+ HDMI PROCESS WO R- SQ SPEAKER R DIGITAL TMDS DATA,CLOCK HDMI1 IC2106 +12V...
  • Page 38: Interconnection Schematic Diagram

    TC-32LX700 15.4. Interconnection Schematic Diagram VIDEO1 VIDEO2 COMPONENT MONITOR OUT FOR FACTORY USED DIGITAL JK4500 JK4501 AUDIO OUT HDMI1 HDMI2 12 13 REAR TERMINAL JK3000 SPEAKER LEAD HP_DET <TXJ/A60MRR> JK3801 HP_L G-BOARD HP_R VIDEO3 SPEAKER_R CANDY_R+ <EAS12S14A> HEADPHONE <TNPA4266S> CANDY_R-...
  • Page 39: G, Gs, P And V-Board Schematic Diagram

    TC-32LX700 15.5. G, GS, P and V-Board Schematic Diagram INVERTER (CN1) TP812 TP811 GS-BOARD TNPA4206S A-BOARD *C828 GS8A (A7) TP3900 *LF804 ZA804 3.3V G0B153H00007 K9ZZ00000424 P-BOARD TZRXN010MRR C3912 INVERTER TP3901 SDCLK (CN501) TP3909 R833 D801 INV_VCC(12V) TP3908 B0FBAT000008 R829 SDCMD...
  • Page 40: Ap-Board (1 Of 2) Schematic Diagram

    TC-32LX700 15.6. AP-Board (1 of 2) Schematic Diagram SOUND AP-BOARD TNPA4155ABS (1/2) IC7215 C0DAAZH00026 SOUND_VCC OVP *Q7228 2SD0601ASL *R7346 D7246 D7245 MAZ82000ML MA2J11100L *C7270 C7264 *R7327 0.022u 2200p C7268 Q7225 C7267 2SD0601ASL R7319 0.1u C7271 0.1u R7316 R7306 C7269 TP7208 0.1u...
  • Page 41: Ap-Board (2 Of 2) Schematic Diagram

    TC-32LX700 15.7. AP-Board (2 of 2) Schematic Diagram A-BOARD (A3) R7218 L7201 JS7204 SOUND_VCC C7209 C7210 R7228 SHORT SOS D7208 C7956 SOUND_VCC Q7210 R7234 R7247 100u 0.22u MA2J11100L 30.1k UNREG_30V 2SB0709ASL 0.1u SOUND_GND BT 30V SHORT L:ABNORMAL R7287 R7243 30V-> 18.8V:SOS...
  • Page 42: A-Board (1 Of 13) Schematic Diagram

    LVVDD12 IC8001 AC10 VDD33 IC8001 IC8001 AE25 C8080 IC8001 AF26 VDDIO C8076 C8075 IC8001 AC11 VDD33 IC8001 IC8001 0.1u 0.1u IC8001 IC8001 AF21 IC8001 IC8001 AF24 TC-32LX700 TC-32LX700 A-Board (1 of 13) Schematic Diagram A-Board (1 of 13) Schematic Diagram...
  • Page 43: A-Board (2 Of 13) Schematic Diagram

    TC-32LX700 15.9. A-Board (2 of 13) Schematic Diagram A-BOARD TNPH0683S (2/13) DIGITAL(NAND,BOOT,ETC) SUB3.3V C8503 L8500 J0JHC0000075 0.1u C8504 0.1u C8501 SUB3.3V C8500 R8663 0.1u 0.1u XECS2 XECS4 R8661 C8502 FACTORY USED 0.1u SUB5V R8512 IC8502 AA_SBI0 128Mbit NOR FLASH SBI0...
  • Page 44: A-Board (3 Of 13) Schematic Diagram

    TC-32LX700 15.10. A-Board (3 of 13) Schematic Diagram DTV9V IC5601 L5604 L5605 J0JHC0000075 G1C100MA0077 C0DBAYY00274 R5637 C5632 C5630 C5631 R5622 C5619 SUB_1.8V/1.2V 100k A-BOARD TNPH0683S (3/13) R5614 POWER SUPPLY C5626 C5616 C5617 C5610 CUVP 0.1u SUB1.8V 0.047u L5601 TP5602 PGOOD...
  • Page 45: A-Board (4 Of 13) Schematic Diagram

    TC-32LX700 15.11. A-Board (4 of 13) Schematic Diagram A-BOARD TNPH0683S (4/13) AUDIO DSP CRNo.2000-2299 MOUT AMP IC2011 AUD3.3V C0ABBB000230 C2170 SUB9V IC2008 C2185 R2183 L2040 R2181 J0JHC0000045 C0CBCBE00001 R2168 DTV_R SUB5V AUD3.3V C2146 VOUT C2173 180p 4.7u C2118 R2159 C2111 R2114 6.3V...
  • Page 46: A-Board (5 Of 13) Schematic Diagram

    C3033 R3033 OUT2(Pr) 220u 69.8 MON_V VOUT3 R3032 VOUT3FB V2_V C3095 R3095 C3032 VOUT4 VCC3 V2_S_DET R3096 VOUT4FB V2_Y C3097 R3097 VOUT5 V2_C C3099 0.01u R3099 TC-32LX700 TC-32LX700 A-Board (5 of 13) Schematic Diagram A-Board (5 of 13) Schematic Diagram...
  • Page 47: A-Board (6 Of 13) Schematic Diagram

    TC-32LX700 15.13. A-Board (6 of 13) Schematic Diagram to (4/13,7/13) AG_SOUND_SOS AG_SOUND_SOS AG_AUDIO_MUTE AG_AUDIO_MUTE to (3/13,7/13,8/13) TP2037 AG_TV_MAIN_ON AG_TV_MAIN_ON Q2301 MAIN3.3V SOUND15V IC2303 to (3/13) R2331 2SB0709ASL AG_KEY3 SOUND15V AG_KEY3 AG_SOUND_SOS R2302 C0DBGYY00202 C2372 to (8/13) SOUND12V C2301 R2330 2.2k...
  • Page 48: A-Board (7 Of 13) Schematic Diagram

    TC-32LX700 15.14. A-Board (7 of 13) Schematic Diagram SUB5V Power Supply FACTORY USED to Sheet 005 STB_RST Lite2 to (1/13) UART(LITE2-GenX4) SBI2 SBI2 SBO2 SBO2 STB3.3V for DEBUGER R1182 R1195 100k C1105 ADV7493 6.3V D1107 SCLOCK MA3X704A0L Q1108 SCLOCK to (12/13)
  • Page 49: A-Board (8 Of 13) Schematic Diagram

    TC-32LX700 15.15. A-Board (8 of 13) Schematic Diagram A-BOARD TNPH0683S (8/13) VDDI/1.2V HQ1L,INV PWM IC4200 CRNo.4200-4499 MB87Q1430YNK MHQ1.2V MHQVD1.2V L4200 HQ1L J0JHC0000078 C4203 C4204 C4206 C4400 C4401 C4402 C4404 6.3V C4403 6.3V 6.3V 6.3V 6.3V 6.3V C4213 1000p 0.1u IC4200...
  • Page 50: A-Board (9 Of 13) Schematic Diagram

    TC-32LX700 15.16. A-Board (9 of 13) Schematic Diagram IC4202 IC4208 C0DBAMH00018 C0CBCBD00043 MAIN_1.2V SUB5V TP4235 MHQLV3.3V Main3.3V(HQ1L/LVDS) L4213 PLL3.3V_1 SUB9V J0JHC0000078 C4288 TP4208 MHQDDR2.5V IC4204 L4202 4.7u C4381 C4409 PVIN C4411 C4308 C4331 G1C220MA0077 SUB5V C0CBCBC00190 MHQPL3.3V MHQVD3.3V C4289 C4287...
  • Page 51: A-Board (10 Of 13) Schematic Diagram

    TC-32LX700 15.17. A-Board (10 of 13) Schematic Diagram MHQLV3.3V L4211 A-BOARD TNPH0683S (10/13) J0JHC0000078 C4379 C4376 C4380 6.3V 0.01u 0.01u HQ1L,INV PWM LCD PANEL CRNo.4200-4499 PANEL SIDE TP4236 1 GND 2 TEST 3 NC C4391 FL4201 4 NC 0.01u J0MAB0000169...
  • Page 52: A-Board (11 Of 13) Schematic Diagram

    TC-32LX700 15.18. A-Board (11 of 13) Schematic Diagram A-BOARD TNPH0683S (11/13) ADV7493, HDMI-Mux CRNo.4500-4799 AG_HDMI_5V_DET1 R4530 Q4503 R4527 2SD0601ASL MAIN5V D4526 D4527 B0HCMM000014 TP4508 B0HCMM000014 L4506 J0JHC0000078 R4751 L4507 R4750 J0JHC0000078 R4536 4.7k TP4505 Q4501 R4501 R4503 2SD0601ASL R4525 IC4501...
  • Page 53: A-Board (12 Of 13) Schematic Diagram

    TC-32LX700 15.19. A-Board (12 of 13) Schematic Diagram to (1/13) Vout C4607 C4609 C4618 C4620 SUB3.3V 6.3V 0.01u ADV 1.8V L4518 VI1P9 VI1P9 UVIN9 R4676 J0JHC0000078 VI1P8 VI1P8 UVIN8 IC4508 SUB5V C4623 COMPARATOR C4615 VI1P7 VI1P7 UVIN7 470p C0CBCAD00082 0.1u SUB3.3V...
  • Page 54: A-Board (13 Of 13) Schematic Diagram

    TC-32LX700 15.20. A-Board (13 of 13) Schematic Diagram A-BOARD TNPH0683S (13/13) DT I/F(110PIN CONNECTER) LVDS etc to (7/13) R2694 AG_PANEL_STBY_ON/PANEL_VCC_ON to (6/13) to (1/13) RF_V RF_V to (6/13) RF_L RF_L RF_R YUV RGB RF_R PANEL_VCC_ON MVDACO0 DT-BOARD MVDACO1 to (7/13)
  • Page 55: Dt-Board Schematic Diagram

    TC-32LX700 15.21. DT-Board Schematic Diagram DT-BOARD TNAG172S TP8324 3.3V TP8332 A-BOARD (A1) C8390 C8391 0.1u TP8304 TP8318 AD_SDA2 TP8326 SUB5V R8406 FL8308 J0MAB0000164 TP8305 TP8319 AD_SCL2 R8401 TP8320 C8394 C8396 AA_CH0CLK R8413 0.1u TP8321 1.2V TP8328 AA_CH0DATA R8399 TP8322 TU8300...
  • Page 56 TC-32LX700 NOTE...
  • Page 57: Parts Location & Mechanical Replacement Parts List

    TC-32LX700 16 Parts Location & Mechanical Replacement Parts List 16.1. Parts Location...
  • Page 58: Mechanical Replacement Parts List

    TC-32LX700 16.2. Mechanical Replacement Parts List Note: All parts except parts mentioned [PAVCA] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCA] are supplied by PAVCA. Ref. No. Part No. Part Name & Remarks Description EAS10D85G SQUAKER SP...
  • Page 59: Electrical Replacement Parts List

    TC-32LX700 17 Electrical Replacement Parts List 17.1. Replacement Parts List Notes...
  • Page 60: Electrical Replacement Parts List

    TC-32LX700 17.2. Electrical Replacement Parts List Note: Ref. No. Part No. Part Name & Remarks Description All parts except parts mentioned [PAVCA] in the Remarks C2107,08 F2G0J470A019 E 47UF 6.3V column are supplied by PAVC-CSG. C2109,10 F1G1A104A012 C 0.1UF, K, 10V...
  • Page 61 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C2375 F1H1H223A219 E 0.022UF, 50V C4215 ECJ0EB1C103K C 0.010UF, K, C2377 F1H1H223A219 E 0.022UF, 50V C4216,17 F1G1A104A012 C 0.1UF, K, 10V...
  • Page 62 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C4313 F1J0J1060004 C 0.010UF, K, C4506,07 F1G1A104A012 C 0.1UF, K, 10V C4508,09 EEEHB0J330R C 33PF, J, 6.3V C4314,15 F1G1A104A012 C 0.1UF, K, 10V...
  • Page 63 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C4620 ECJ1VB1A105K C 0.01UF, Z, 50V C5766,67 ECJ0EB1C103K C 0.010UF, K, C4623 F1G1C104A081 C 0.10UF, K, 16V C5769 F2G0J470A019 E 47UF 6.3V...
  • Page 64 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description C8006-08 F1G1A104A012 C 0.1UF, K, 10V C8398,99 ECJ0EB1C103K C 0.010UF, K, C8009,10 F1J1A106A043 C 0.010UF, K, C8400,01 F1G1A104A012 C 0.1UF, K, 10V...
  • Page 65 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description D7203 MAZ82700ML ZENER DIODE IC4500 TVRP198S PAVCA D7204 MA2J11100L DIODE IC4501 TVRP199S PAVCA D7206 MAZ81500ML ZENER DIODE IC4504 TVRP197S PAVCA D7208...
  • Page 66 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description L4091 J0JHC0000078 CHIP INDUCTOR Q2057 2SB0709ARL TRANSISTOR L4093 J0JHC0000078 CHIP INDUCTOR Q2059,60 2SD0601ARL TRANSISTOR L4200,01 J0JHC0000078 CHIP INDUCTOR Q2066 2SD0601ARL TRANSISTOR...
  • Page 67 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R1139,40 ERJ2GEJ473 R1243-50 ERJ2GEJ473 47KOHM,J,0.063W 47KOHM,J,0.063W R1143,44 ERJ2GEJ473 R1251 EXB2HV473JV RESISTOR ARRAY 47KOHM,J,0.063W R1253,54 ERJ2GEJ473 R1146 ERJ2GEJ102X M 1KOHM, 47KOHM,J,0.063W J,0.063W...
  • Page 68 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R2145 ERJ2GEJ104 M 100KOHM, R2834-37 D0YAR0000007 M 0.0 OHM, J,0.063W J,0.063W R2146 ERJ2GEJ105 M 1MOHM, R3001 ERJ2GEJ221 M 220 OHM, J,0.063W J,0.063W...
  • Page 69 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R3174 ERJ2GEJ103 M 10KOHM, R4270,71 ERJ2GEJ220 M 22 OHM, J,0.063W J,0.063W R3190-93 ERJ2GEJ184 M 180KOHM, R4272,73 ERJ3GEYJ220 M 22 OHM,J,1/16W J,0.063W...
  • Page 70 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R4349 ERJ2GEJ103 M 10KOHM, R4587 ERJ3EKF9100 M 910 OHM, 1/16W J,0.063W R4593 ERJ3EKF1001 M 1KOHM, 1/16W R4352 D0YAR0000007 M 0.0 OHM,...
  • Page 71 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R5601 J0JCC0000100 CHIP INDUCTOR R5762 ERJ2GEJ101 M 100 OHM, J,0.063W R5602,03 D0YAR0000007 M 0.0 OHM, J,0.063W R5763 ERJ2GEJ103 M 10KOHM, J,0.063W...
  • Page 72 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R7344 ERJ6GEYF473 M 47KOHM,J,1/10W R8087 ERJ2GEJ103 M 10KOHM, J,0.063W R7345 ERJ6GEYJ223 M 22KOHM,J,1/10W R8090 ERJ2GEJ103 M 10KOHM, R7346 ERJ6GEYG103 M 10KOHM,J,1/10W J,0.063W...
  • Page 73 TC-32LX700 Ref. No. Part No. Part Name & Remarks Ref. No. Part No. Part Name & Remarks Description Description R8408-12 ERJ2GEJ220 M 22 OHM, R8867 D0YAR0000007 M 0.0 OHM, J,0.063W J,0.063W R8413 ERJ6GEY0R00V M 0 OHM, 1/10W R8875 ERJ2GEJ473 47KOHM,J,0.063W...
