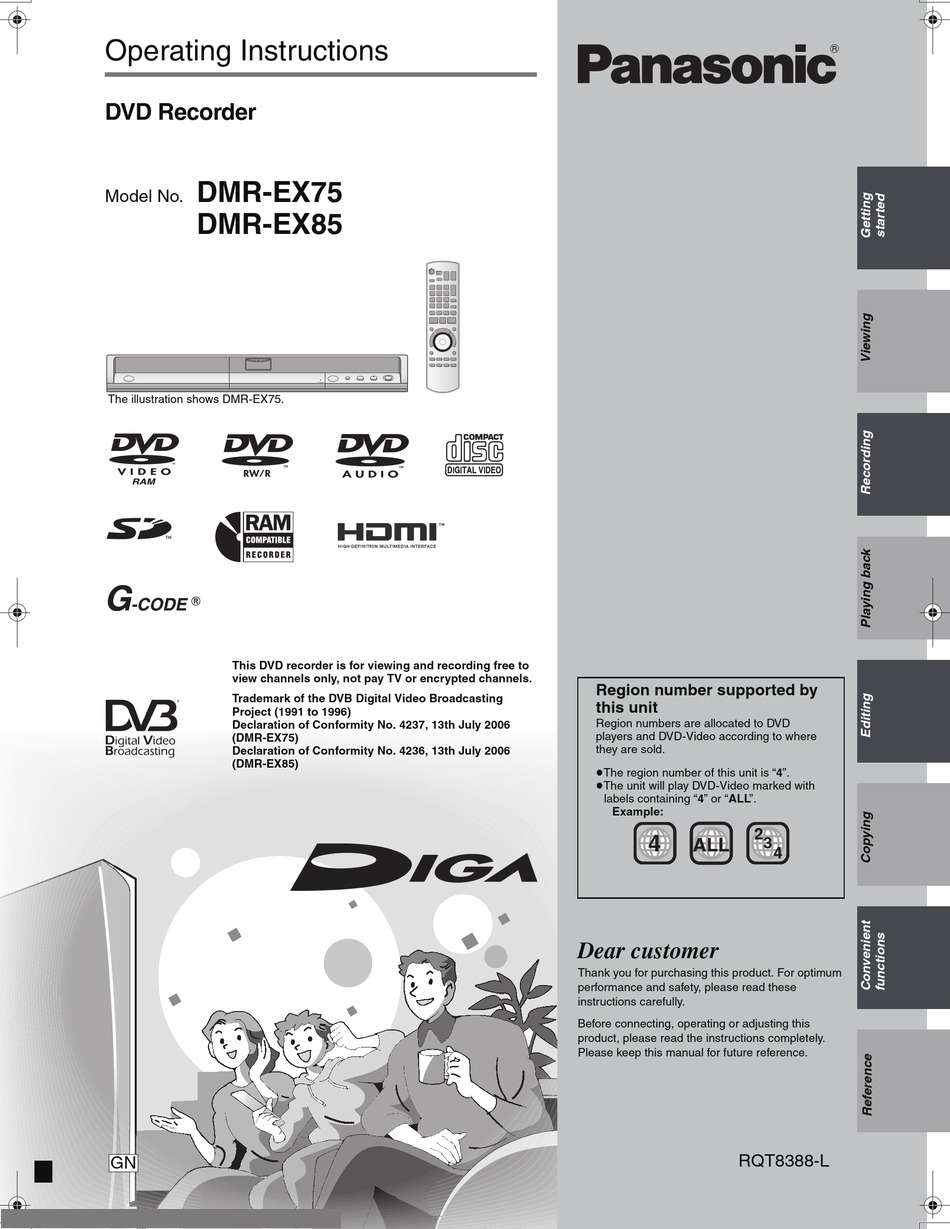

Operating Instructions

DVD Recorder

DMR-EX75
Model No.
DMR-EX85

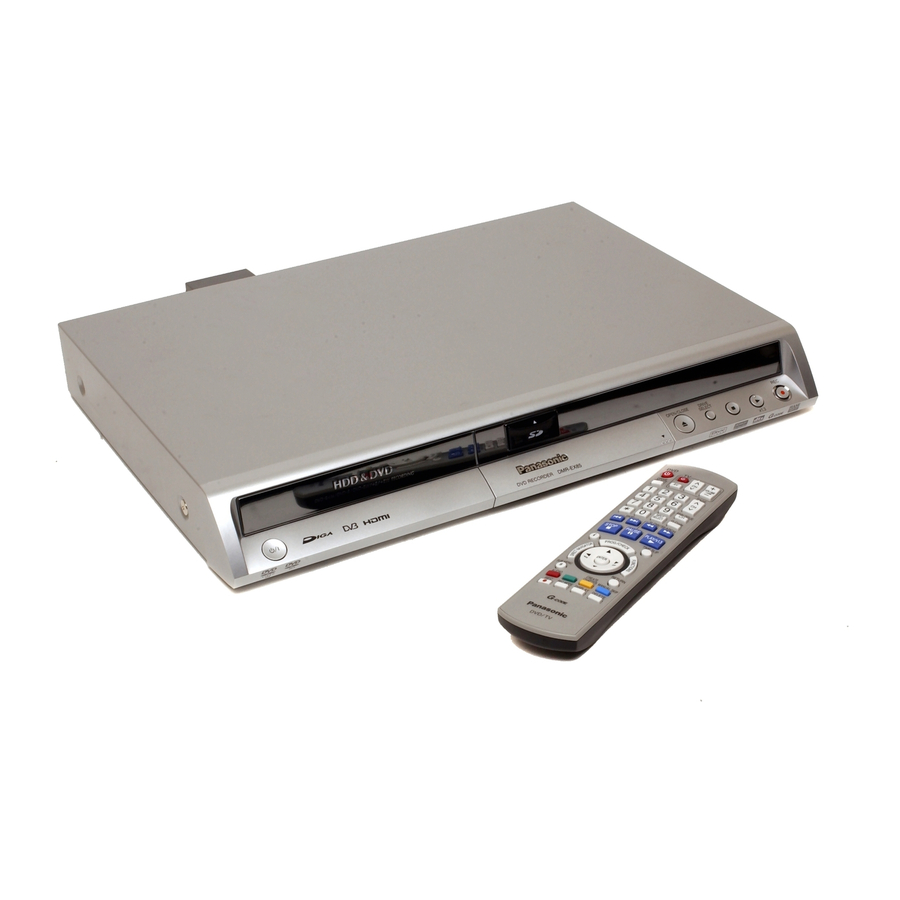

The illustration shows DMR-EX75.
This DVD recorder is for viewing and recording free to
view channels only, not pay TV or encrypted channels.
Trademark of the DVB Digital Video Broadcasting
Project (1991 to 1996)
Declaration of Conformity No. 4237, 13th July 2006
(DMR-EX75)
Declaration of Conformity No. 4236, 13th July 2006
(DMR-EX85)
GN
Region number supported by
this unit
Region numbers are allocated to DVD
players and DVD-Video according to where
they are sold.
≥The region number of this unit is "4".
≥The unit will play DVD-Video marked with
labels containing "4" or "ALL".
Example:
4
4
ALL
ALL

Dear customer

Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read the instructions completely.
Please keep this manual for future reference.
RQT8388-L
2
2
3
3
4
4
