Frymaster Pasta Magic 17SMS Service And Parts Manual

Frymaster Pasta Magic 17SMS Service And Parts Manual

Electric cooker
Hide thumbs Also See for Pasta Magic 17SMS:

Advertisement

Quick Links

See also: Operation & Installation Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
AUG 2011
24-Hour Service Hotline 1-800-551-8633
*8196896A*

Advertisement

loading

Related Manuals for Frymaster Pasta Magic 17SMS

Summary of Contents for Frymaster Pasta Magic 17SMS

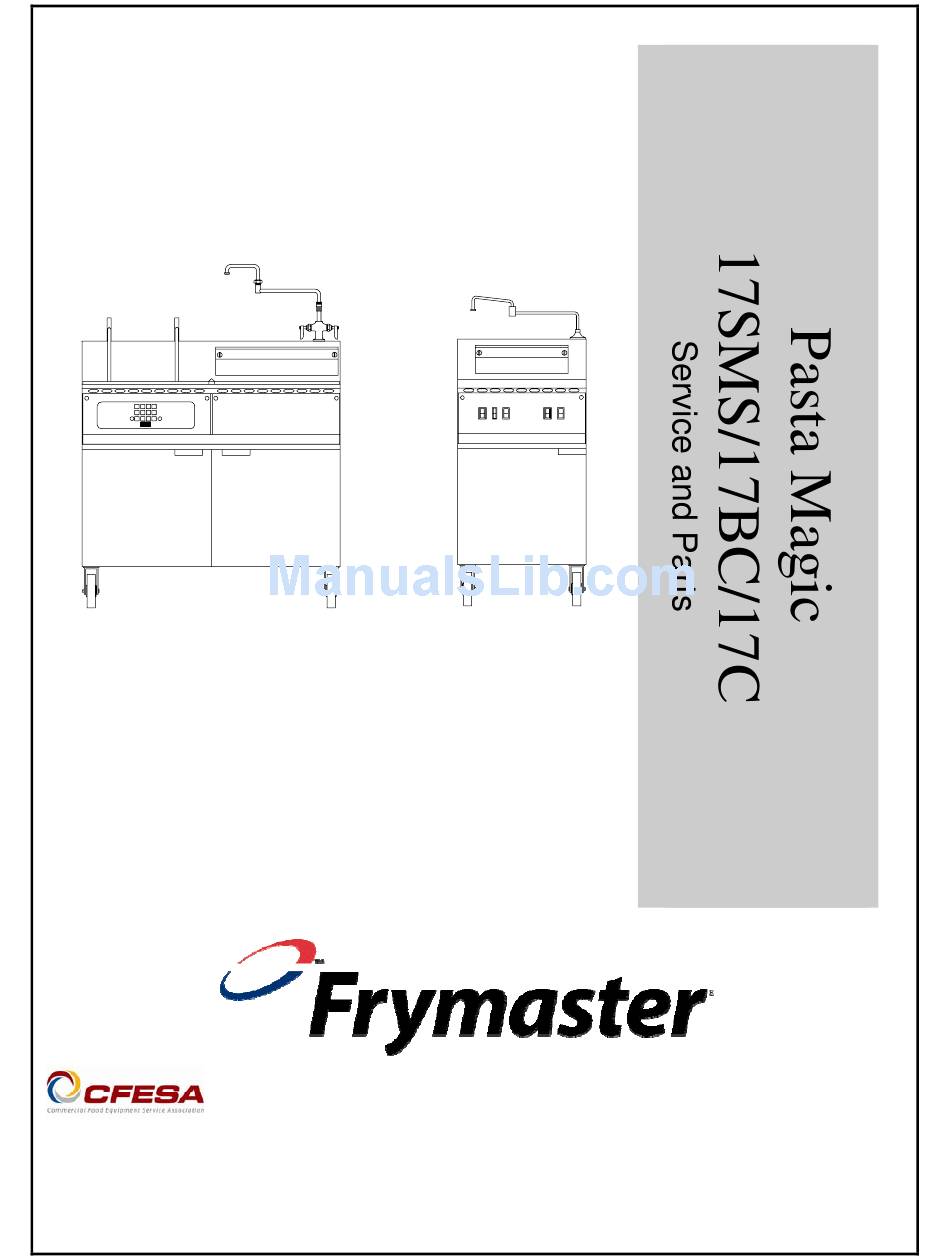

  • Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. AUG 2011 24-Hour Service Hotline 1-800-551-8633 *8196896A*...
  • Page 2 DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.

  • Page 3: Table Of Contents

    ELECTRIC COOKER MODELS 17SMS, 17BC, 17C TABLE OF CONTENTS CHAPTER 1: General Information Functional Description Accessing Equipment Replacing Components Troubleshooting 1-11 1.4.6 Troubleshooting Guide 1-14 CHAPTER 2: Installation Instructions Accessories Wiring Diagrams 2-11...

  • Page 4: Functional Description

    ELECTRIC COOKER MODELS 17SMS, 17BC, 17C CHAPTER 1: 17EC/17ECS SERVICE PROCEDURES & PARTS Functional Description The 17kW Pasta Magic Electric Cooker contains a 16.5-gallon (62.5-liter) stainless steel cookpot. The water in the cookpot is heated by a pair of 8.5-kilowatt heating elements. Electrical power to the elements is controlled by a solid-state SMS III Spaghetti Magic computer specifically modified for this application.

  • Page 5: Accessing Equipment

    Accessing Equipment for Servicing DANGER Moving this equipment while it is filled with hot water may cause spilling or splattering of the hot water. Always drain the cookpot before attempting to relocate this equipment for servicing. 1. Disconnect the unit from the electrical power supply and from the water supply. 2.
  • Page 6 1.3.2 Replacing Fuses 1. The 15-amp fuses are located in holders mounted on front of the box. 2. Remove the cover and replace the fuse. 1.3.3 Replacing Electronic Components Other than the Computer 1. Drain the cookpot and disconnect the cooker from the electrical power supply. 2.
  • Page 7 Remove these nuts to remove element from cookpot. Standoffs 6. Position the replacement element in the cookpot with the standoffs on the bottom of the cookpot. Thread the element leads through the Teflon washers recovered from the failed element. Secure the element in place with the nuts removed in Step 5.
  • Page 8 2. Reposition the cooker to allow clear access to the rear of the unit. Remove the upper and lower basket lift panels. 3. At the rear of the cookpot, loosen the small compression nut, and then unscrew the large fitting from the cookpot.
  • Page 9 3. Disconnect the 15-pin connector from the rear of the computer 1000 Ω @ 212°F (100°C) and, using a pin pusher (such as Frymaster P/N 806-4855), push out the temperature probe (red and white) leads from positions 13 and 14 on the connector.
  • Page 10 2. Loosen the compression fittings on the water lines running to and from the regulator and remove the regulator from the unit. (NOTE: If the cooker is equipped with the optional Autofill feature, the solenoid valve is installed between the regulator and the cookpot. If that is the case, disconnect the solenoid leads and remove both the regulator and solenoid valve from the unit.) Optional Solenoid Valve Compression Fitting...
  • Page 11 Remove screws to remove the faucet mounting plate. Remove this nut to separate the faucet from the mounting plate. Loosen this nut to separate the faucet from the water inlet manifold. Disconnect this compression fitting. 5. Separate the faucet from the water inlet manifold and mounting plate as shown in the illustration at Step 4.
  • Page 12 Lifter Rods Link Disconnect the basket lift link from the lifter cams and slip the lifter rods down and out of the assembly. 6. Remove the four bolts securing the motor mount to the frame, then remove the motor and mount assembly from the unit.
  • Page 13 Disconnect the high-limit thermostat leads and the water-level sensor leads. Using a pin-pusher (such as Frymaster P/N 806-4855), disconnect the temperature probe leads from the 15-pin connector. 7. Disconnect the union joining the cookpot and rinse tank drain piping together.

  • Page 14: Troubleshooting

    Troubleshooting NOTE: The 24VAC power to the electronic components of this system is controlled by the master ON/OFF switch located on the front of the contactor box. If this switch is in the OFF position, none of the system components will function. DANGER The master ON/OFF switch does not disconnect this equipment from the electrical power source! Line voltage is supplied to the transformer and to the basket lift motors as long as the unit...
  • Page 15 1.4.3 How the Autofill/AutoSkim System Works The heart of the automatic filling (Autofill) system is a normally closed solenoid valve that opens when 24VAC is applied. The ground for the solenoid is supplied (via Pin 6 of the computer wiring harness) so long as the upper water-level sensor is not in contact with the water in the cookpot.
  • Page 16 The contactor is the terminal block to which the element leads are connected and where actual contact is made between the leads and the line voltage. Built into the contactor is a 24VAC coil that energizes when the master ON/OFF switch is placed in the ON position. When it energizes, contact is made between the incoming line voltage and the element leads, and line voltage is supplied to one side of the element circuit.

  • Page 17: Troubleshooting Guide

    1.4.6 Technician Troubleshooting Guides Symptom Potential Cause Diagnosis • • Master switch not on Turn switch on. • Unit not plugged in. • Plug unit in. • Failed 24-volt transformer. • Test input and output • Failed or loose wiring. voltage from transformer.
  • Page 18 Symptom Potential Cause Diagnosis • • Failed fuse Replace 15-amp fuse • • Failed computer. With basket lift up, check • for 27-33VDC at pin 10 of Failed or loose wiring. 15-pin plug. Zero volts if • Failed basket lift relay. basket lift is down.

  • Page 19: Accessories

    Parts List ACCESSORIES ITEM PART # COMPONENT 823-1910 Cooking Basket 823-7384 Basket, bulk 823-6290 Basket, wash 823-2936 Starch Diverter 803-0200 Rack, 12 portion 803-0238 Basket, round 5.5 x 8.5 803-0018 Cup, pasta portion (beige) 803-0332 Basket Support Rack 210-5068 Pan Insert 910-7540 Cookpot/Rinse Tank Top Connecting Strip 823-2938...
  • Page 20 BASKET LIFT COMPONENTS ITEM PART # COMPONENT...
  • Page 21 ITEM PART # COMPONENT 823-7061 Arms, Basket Lift 910-7420 Top, Basket Lift Enclosure 222-3763 Side, Basket Lift Enclosure Right 221-3763 Side, Basket Lift Enclosure Left 900-7421 Support, Basket Lift Rod Bushing 826-1363 Screw, 8-32 x ½-inch Slotted Truss Head (Pkg of 25) 902-1927 Bracket, Left Basket Lift Roller 901-1927...
  • Page 22 CABINETRY...
  • Page 23 ITEM PART # COMPONENT 210-0815 Channel, Front or Rear Base 806-5209 Leg Pad Assembly (on bottom of Item 1, for mounting casters) 210-0816 Channel, Side Base 900-7198 Post, Door 900-1552 Gusset (Corner Brace) 900-7389 Brace, Top Rear 900-7390 Brace, Top Front 900-7391 Divider, Cabinet Side, Left or Right Cabinet...
  • Page 24 COOKPOT, RINSE TANK, AND DRAIN COMPONENTS...
  • Page 25 ITEM PART # COMPONENT 106-0461 Cookpot Assembly (for 17EMCS (McDonald’s), use 823-3827SP) 106-0543 Rinse Tank Assembly 806-7552SP Water level sensor assembly 900-5045 Retainer, Cookpot Front Insulation 816-0152 Insulation, Cookpot Front (behind Item 4) 900-1762 Retainer, Insulation 826-1376 Nut, 10-32 Hex Head Keps (Pkg of 10) 807-3333 Probe, Temperature 210-0681...
  • Page 26 ELECTRONICS 1H BLK 1H BLK 2H BLK 2H BLK 3H BLK 3H BLK 4H BLK 4H BLK 106-0156 106-0157 5H BLK 5H BLK 6H BLK 6H BLK 51C WHT 52C WHT 53C BLK 1C BLK 2C BLK 106-0160 3C BLK 4C BLK 5C BLK 106-0144...
  • Page 27 ITEM PART # COMPONENT 106-0385 Computer, Fazoli’s 106-2926 Computer, 17kW 824-0856 Starch Shield (mounts to back of control panel to protect computer) 807-0922 Holder, fuse 807-0680 Transformer, 208-240VAC/24VAC 50/60Hz 43VA 810-1202 Contactor, 3 Pole 600VAC 40 Amp 106-7574 Harness, 15-pin control box 807-2082 Switch, Non-Illuminated Rocker 807-3996...
  • Page 28 WATER SUPPLY SYSTEM COMPONENTS ITEM PART # COMPONENT 810-0907 Elbow, ⅜-inch NPT Compression 910-2513 Tubing, Solenoid Valve to Cookpot ⅜-inch Stainless Steel 806-5565 Valve Assembly, 24VAC 60Hz Solenoid 813-0302 Elbow, ⅜-inch Tube to ¼-inch NPT 90º Brass Male 813-0472 Nipple, ¼-inch NPT x 2.5-inch Brass 900-1905 Mount, Solenoid Valve 813-0022...
  • Page 29 Wiring Diagram (17E1 Fazoli’s) 2-11...

  • Page 30: Wiring Diagrams

    Wiring Diagrams (17SMS 220V/380V) 2-12...
  • Page 32 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 FAX (Tech Support) 1-318-219-7135 819-6896A SERVICE HOTLINE PRINTED IN THE UNITED STATES AUG 2011 1-800-551-8633...
