Panasonic Lumix DMC-LX1EG-K
The DMC-LX1 features a 4x optical zoom with a 28 to 112mm
wide-angle capability (35mm equivalent). This and a 1/1.65"
diagonal CCD with 8.4 million effective pixels give you superb image
quality over a wide shooting range. The Extended Optical Zoom,
which minimizes the image degradation that normally occurs with
digital zooming, gives you up to 5x zooming power. Plus, the 4x
optical zoom and 4x digital zoom can be used together to produce a
maximum of 16x zooming power.The DMC-LX1 features a 2.5"
diagonal high-resolution LCD monitor - surprisingly large for such a
compact camera. This high-quality, 207, 000-pixel display makes it
easy to see your subject. For easier viewing when shooting outdoors
on a sunny day, press the Power LCD button to boost the
backlighting by about 40%.Jitter from shaky hands is one of the
main reasons why cameras produce blurry images. Not everyone
has hands of stone when taking pictures - that's why Lumix cameras
help solve the problem of unsteady hands with advanced MEGA
Optical Image Stabilizer technology. The DMC-LX1 has a built-in
gyrosensor that detects any hand movement and relays a signal to a
tiny microcomputer inside the camera, which instantly calculates the
compensation needed. A linear motor then shifts the Optical Image
Stabilizer lens as necessary to guide incoming light from the image
straight to the CCD. You won't even notice it working - all you'll see
are the outstanding results!In addition to displaying the settings in
large, easy-to-understand text, the large, 2.5" diagonal screen with
230, 000-pixel resolution lets you show up to 25 thumbnail images at
once. This makes it easier to search for, and organize, the photos
you take.A switch at the top of the lens barrel lets you choose an
aspect ratio of normal 4:3, wide 16:9, or the 3:2 used in film
cameras. A 16:9 image is obtained using the wide-angle lens and
large CCD, instead of the conventional method of cropping the top
and bottom of a 4:3 image.A switch on the side of the lens lets you
match the focusing operation to your shot. Choose from 1-point AF
(normal or high-speed), 3-point high-speed AF, 9-point AF, Spot AF,
AF macro to focus from as close as 0.16feet (5cm) from the subject,
or manual focus using the joystick. Focusing is also made easier by
the Manual Focus Assist function, which lets you enlarge the center
Copyright © 2006 dooyoo AG www.dooyoo.co.uk

Advertisement

loading

Summary of Contents for Panasonic Lumix DMC-LX1EG-K

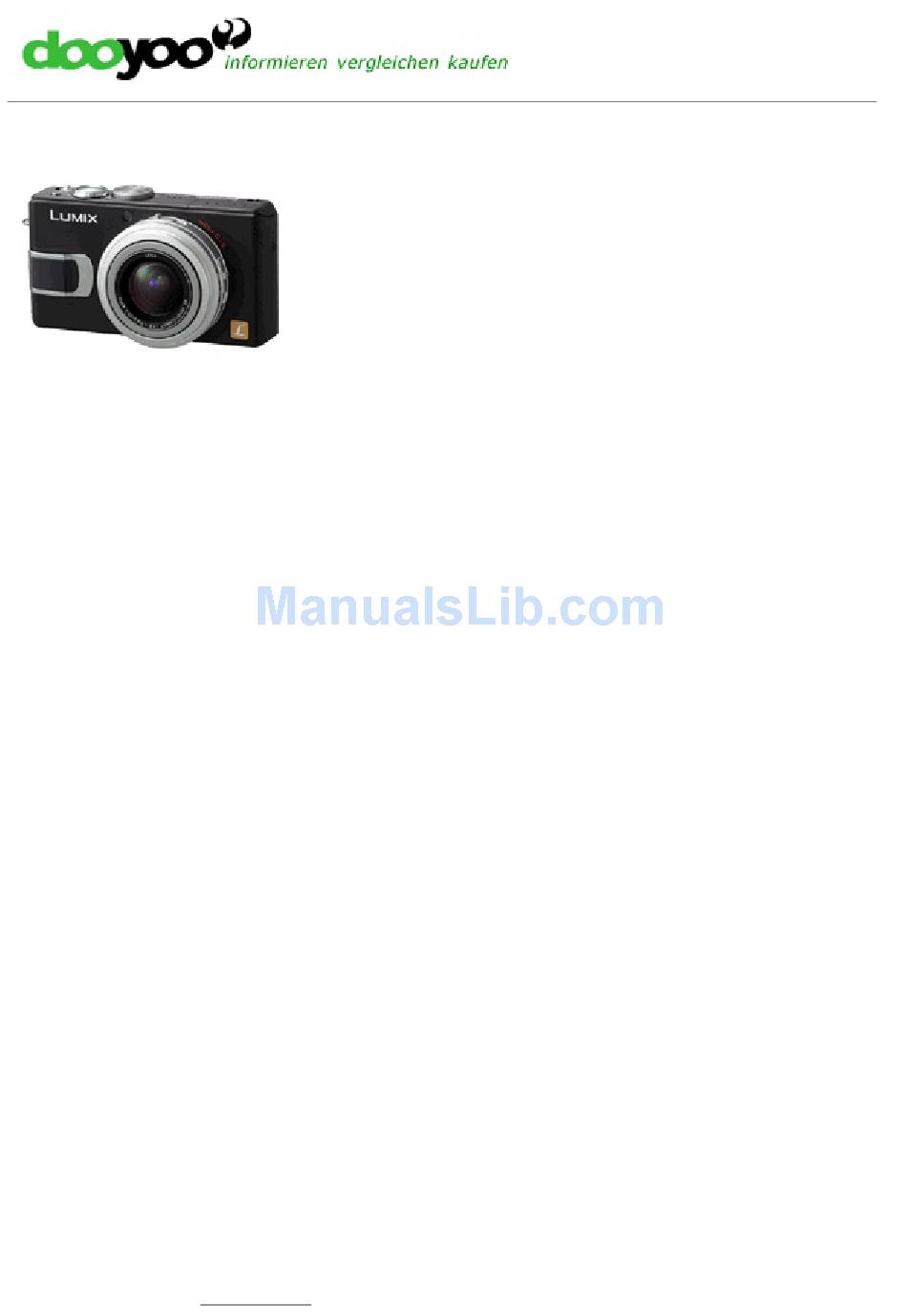

  • Page 1 Panasonic Lumix DMC-LX1EG-K The DMC-LX1 features a 4x optical zoom with a 28 to 112mm wide-angle capability (35mm equivalent). This and a 1/1.65" diagonal CCD with 8.4 million effective pixels give you superb image quality over a wide shooting range. The Extended Optical Zoom, which minimizes the image degradation that normally occurs with digital zooming, gives you up to 5x zooming power.
  • Page 2 :: Photography :: Digital Camera :: Panasonic Lumix DMC-LX1EG-K General Product Type Width Depth Height Weight Enclosure Colour Copyright © 2006 dooyoo AG www.dooyoo.co.uk of the LCD image to check the focus, and the AF Assist Lamp for focusing in dimly lit places.Thanks to the Venus Engine II's release time lag of around 0.008 second and shutter interval of around 0.4...
  • Page 3: Main Features

    Main Features Resolution Colour Support Optical Sensor Type Total Pixels Effective Sensor Resolution Optical Sensor Size Light Sensitivity Digital Zoom Shooting Modes Shooting Modes Special Effects Image Stabiliser Max Shutter Speed Min Shutter Speed Exposure Metering Exposure Modes Exposure Compensation Auto Exposure Bracketing White Balance White Balance Presets...
  • Page 4: Camera Flash

    Camera Flash Camera Flash Flash Modes Red Eye Reduction Effective Flash Range Features Copyright © 2006 dooyoo AG www.dooyoo.co.uk 1 - with 32MB card ¦ Fine JPEG 3840 x 2160 : 7 - with 32MB card ¦ Normal JPEG 3840 x 2160 : 14 - with 32MB card ¦...
  • Page 5: Additional Features

    Lens System Type Focal Length Focal Length Equivalent to 35mm Camera Focus Adjustment Auto Focus Auto Focus Points (Zones) Min Focus Range Macro Focus Range Lens Aperture Optical Zoom Zoom Adjustment Lens Construction Lens Manufacturer Features Additional Features Self Timer Self Timer Delay Additional Features Display...
  • Page 6 Software Software System Requirements for PC Connection Operating System Support Peripheral Devices Miscellaneous Included Accessories Cables Included Power Power Device Battery Supported Battery Details Copyright © 2006 dooyoo AG www.dooyoo.co.uk Drivers & Utilities, ArcSoft PhotoImpression, ArcSoft PhotoBase, ArcSoft Panorama Maker, LUMIX Simple Viewer, Photo Fun Studio MS Windows XP, MS Windows 2000, MS Windows ME, MS Windows98, MS Windows 98 SE, Apple Mac OS X...
