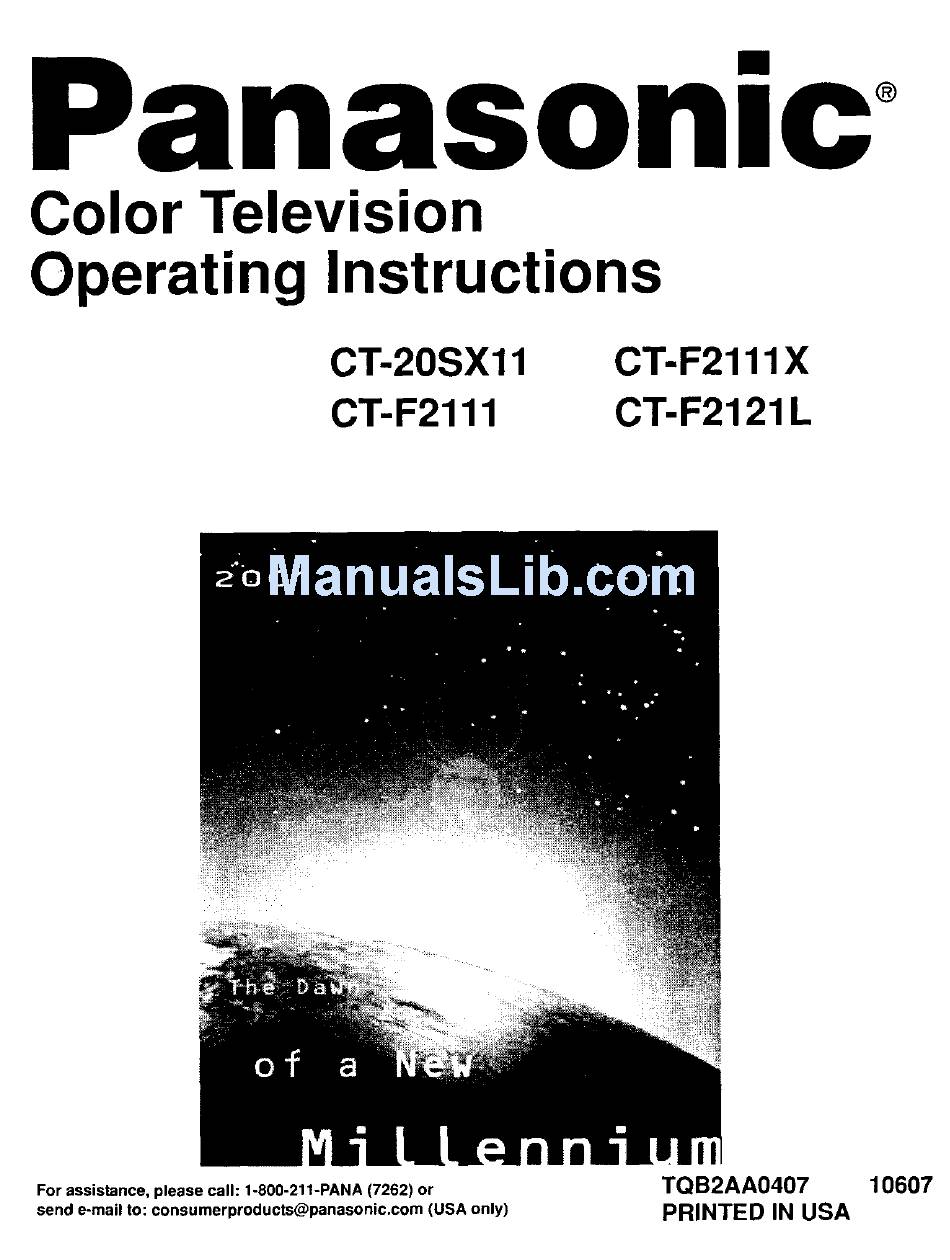

- Page 1 Color Television Operating Instructions For assistance, please call: 1-800-211-PANA send e-mail to: consumerproducta@panasonic.com CT-20SX11 CT-F2111 (7262) or (USA only) CT-F2111X CT-F2121L TQB2AA0407 PRINTED IN USA 10607...
- Page 2 WARNING WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. head within triangle intended to tell the user that The lightning flash with arrow parts inside the product are a risk of electric shock to persons WARNING: To prevent fire or shock hazard, do not expose this appliance...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents Feature Chart ... Congratulations Customer Care and Cleaning ... Specifications Installation Television Optional Cable Connections ... AC Power Supply Cord ... Cable / Antenna Connection Optional VCR Connection ... Cable Box Connection ... VCR and Cable Box Connection ... Amplifier Connection Main Menu ... -
Page 4: Feature Chart
Feature Chart MODELS FEATURES MENU LANGUAGE ENG/SPAN/FR V-CHIP CAPABILITY 75 OHM INPUT VIDEO NORM AUDIO NORM STEREO AI SOUND BASS/BALANCE/TREBLE SURROUND A/V IN (REAR/FRONT) (2/1) AUDIO OUT S-VHS INPUT HEADPHONE JACK FEATURE (2/1) (2/1) (2/1) CHART... -
Page 5: Congratulations
U S. customers Model Number Serial Number or wmdow cleaner and Remote Control Avotd excesstve motsture and w=pe dry. CT-20SXll (1.4A) CT-F2111 (1.4A) CT-F2111X (1.4A) CT-F2121L (1.4A) Video Input Jacks Jacks Audio Input Jacks Audto Output Jacks S-Video Input w_thout notice or obhgatton. -
Page 6: Installation
Installation Television Location This unit Consult your dealer for available Avoid excessive sunlight or bright lights, including reflections. Keep away from excessive component failure. Fluorescent Keep away from magnetic equipment, including motors, fans and external speakers. CAUTION: bracket, or tabte specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus injury from tip-over. -
Page 7: Optional Cable Connections
INSTALLATION Optional Cable Connections Shielded results: Use 75-ohm coaxial shielded cables. Use appropriate Avoid long cables to minimize interference. AC Power Supply Cord CAUTION: BLADE OF PLUG TO WIDE SLOT OF AC OUTLET INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET PREVENT BLADE EXPOSURE. -
Page 8: Optional Equipment Connections
Optional Equipment Connections IMPORTANT COMPUTERS, The extended use of fixed image program material can cause a permanent "shadow image" on the picture tube. This background stationary observing the following steps: Reduce the brightness/contrast Do not display the fixed image for extended periods of time. C. -
Page 9: Cable Box Connection
INSTALLA TION Cable Box Connection Followthis diagram when connecting your television to a cable box only. INCOMING CABLE Note: The remote control must be programmed box. See Programming Guide. Viewing a premium (scrambled) Procedure Tune the television to Channel 3 or 4 depending on the RF out setting of the cable box. Using the cable box, tune to the premium cable channel you want to view. -
Page 10: Vcr And Cable Box Connection
VCR and Cable Follow this diagram when connecting your television to both a VCR and a cable box. CONNECTIONS ON BACKOFTV I ANT I® INPUT L,® Use either the S-VIDEO or Video connection. CABLES NOT SUPPLIED Note: The remote control must be programmed cable box. -
Page 11: Amplifier Connection (To Audio Amp)
INSTALLATION Amplifier Connect to an external Note: Audio Adjustments External Amplifier CABLES NOT SUPPLIED Connection (To Audio Amp) audio amplifier input for listening to a stereo system. TO AUDIO AMP termina/s cannot be connected direct/y to extema/ speakers. Select TV SPEAKERS ON from AUDIO menu. Set amplifier volume to minimum. -
Page 12: Main Menu
Main Menu ACTION Button Press the ACTION button to display the Main Menu and submenus. repeatedly to exit. CH / VOL Buttons Press the CH (channel) or VOL (volume) buttons to select an icon. Use the CH buttons to highlight the desired features. Remote Control Buttons Remote Control Guide The Remote... -
Page 13: Main Menu Feature Chart
MAIN MENU FEATURE CHART Main Menu Feature Chart When entered, TIME will display on screen after SET TIME pressing POWER button, RECALL button, or changing channels. Choose CABLE or TV to match the signal at your antenna input. AUTO PROG Automatically into memory. - Page 14 Main Menu Feature Chart (Cont.) SLEEP TIMER PROGRAM TIMER PICTURE NORM COLOR TINT BRIGHTNESS PICTURE SHARPNESS CHANNEL CAPTION GAME GUARD MAIN MENU FEATURE TIMER Program TV to automatically turn off in 30, 60, or 90 minutes. Select NO to turn timer off. Program TV to automatically turn on and off at selected time on a selected channel, daily or only one day.
-
Page 15: Special Features
SPECIAL FEATURES Special Features SET UP Menu Languages In SETUP menu, select ENGLISH, ESPANOL(Spanish),orFRANOAIS(French)to menulanguage. Timer Sleep Timer In TIMER menu, program to turn TV OFF in 30, 60, or 90 minutes. Program In Timer menu, program TV to automatically channel, daily or one day. -
Page 16: Ch Cap (Channel Caption)
CH CAP (Channel Caption) Program channel numeric keypad for entering Note: Turn Off After 90 Minutes The TV automatically turns OFF after 90 minutes when turned on by the PROGRAM TIMER. OFF time is programmed or if a key is pressed, automatic after be cancelled. -
Page 17: Lock
SPECIAL FEATURES LOCK Game Guard Select GAME GUARD to prevent video games and videotapes from being viewed. Lock Channel 3, Channel 4, and video inputs for 12, 24, 48 hours or ALWAYS by entering a four-digit secret code, then selecting GAME GUARD ON. Note: Understand remember or record it in a safe place. -
Page 18: Troubleshooting Chart
Troubleshooting Before calling for service, determine Snowy Video Noisy Audio Noisy Audio Multiple Image Noisy Audio Interference No Audio Normal Video • • . -.: _." _ ": No Video with Snow Noisy Audio No Audio No Video / No PIP Normal Audio No Color Wrong Audio... - Page 19 Division of Matsushita Electric Corporation of America One Panason_c Way Secaucus, New Jersey 07094 www.panasonic corn Panasonic de Mexico, S.A, de C.V. Company, Amores No 1120 Col. Del Valle C.I_ 03100 Mexico, D.F. Tel. (915 b 015) 488-1000 Fax (915 b 015) 579-6763, 575-6765...
