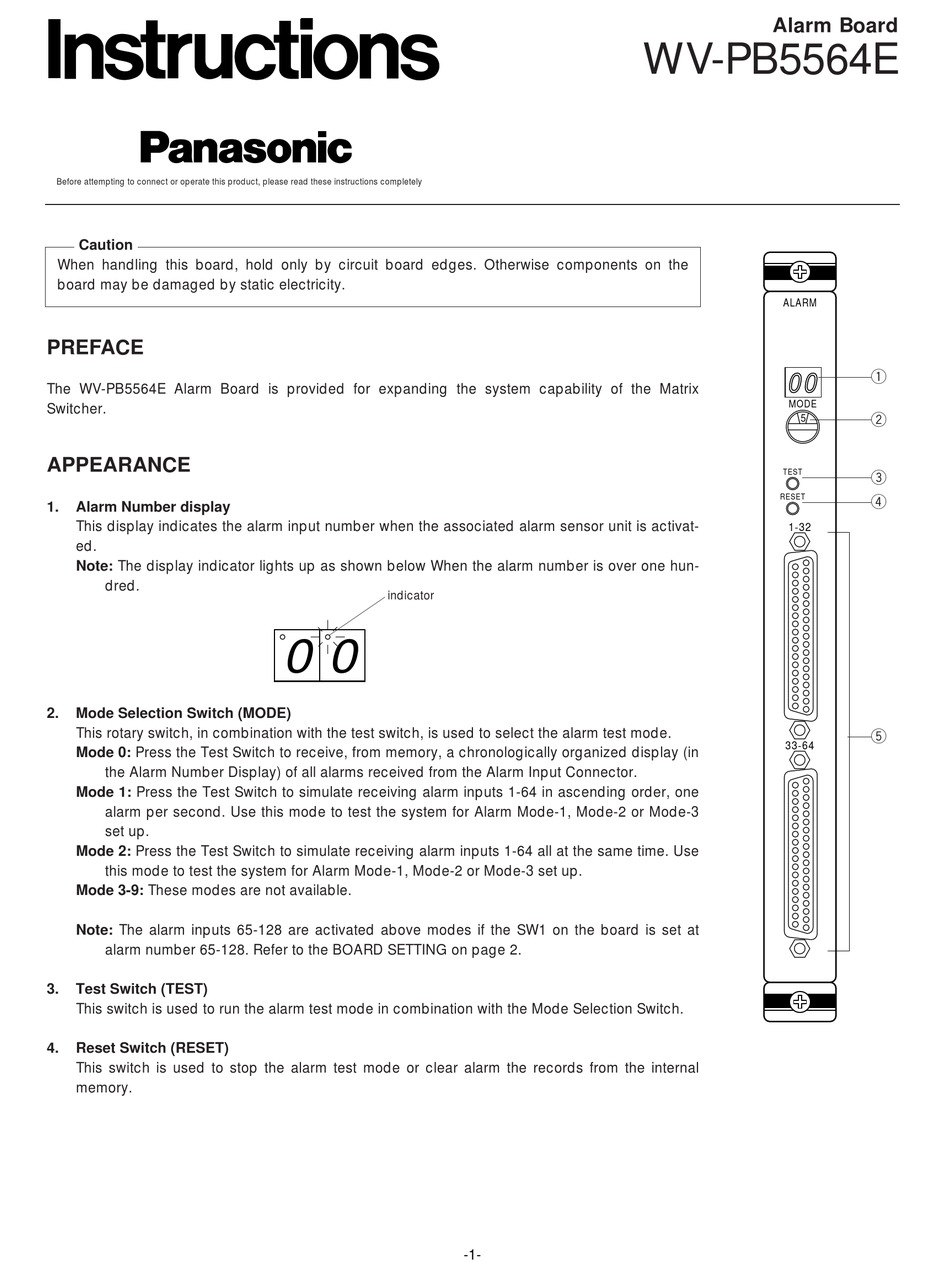

Panasonic WV-PB5564E Instructions

Before attempting to connect or operate this product, please read these instructions completely
Caution
When handling this board, hold only by circuit board edges. Otherwise components on the
board may be damaged by static electricity.
PREFACE
The WV-PB5564E Alarm Board is provided for expanding the system capability of the Matrix
Switcher.
APPEARANCE
1. Alarm Number display
This display indicates the alarm input number when the associated alarm sensor unit is activat-
ed.
Note: The display indicator lights up as shown below When the alarm number is over one hun-
dred.
2. Mode Selection Switch (MODE)
This rotary switch, in combination with the test switch, is used to select the alarm test mode.
Mode 0: Press the Test Switch to receive, from memory, a chronologically organized display (in
the Alarm Number Display) of all alarms received from the Alarm Input Connector.
Mode 1: Press the Test Switch to simulate receiving alarm inputs 1-64 in ascending order, one
alarm per second. Use this mode to test the system for Alarm Mode-1, Mode-2 or Mode-3
set up.
Mode 2: Press the Test Switch to simulate receiving alarm inputs 1-64 all at the same time. Use
this mode to test the system for Alarm Mode-1, Mode-2 or Mode-3 set up.
Mode 3-9: These modes are not available.
Note: The alarm inputs 65-128 are activated above modes if the SW1 on the board is set at
alarm number 65-128. Refer to the BOARD SETTING on page 2.
3. Test Switch (TEST)
This switch is used to run the alarm test mode in combination with the Mode Selection Switch.
4. Reset Switch (RESET)
This switch is used to stop the alarm test mode or clear alarm the records from the internal
memory.
indicator
0 0
-1-
Alarm Board
WV-PB5564E
ALARM
00
MODE
5
TEST
RESET
1-32
33-64
q
w
e
r
t
